PSE Cartridge XL Type

NEW

An ultra-high flow rate type of cartridge (2 times the flow rate of conventional cartridges) has been added to the lineup of PSE cartridges that have been received favorably because of their high flow rate and high retention performance. Best suited for cleaning Gen 6 and Gen 7 large LCD glass substrates.

Overview

  • These ultra-high flow rate cartridge filters demonstrate excellent cleaning performance for Gen 6 and Gen 7 large LCD glass substrates.

  • The proprietary membrane offers excellent performance by combining a high fine particle retention with a high flow rate and long service life.

Features

Ultra-high flow rate

The cartridge realizes a high flow rate equivalent to 2 times that of earlier cartridges. A flow rate of 100 L/min. or more is ensured with a pore size of 0.2µm. (At ΔP = 0.02 MPa)

SEM photo of the cross-section of the PSE membrane

High fine particle retention performance

The proprietary dense inner layer of the PSE membrane that features a well-defined pore size distribution ensures reliable retention of fine particles.

Can be used with existing housings

The cartridge fits many existing housings that are ready for use at a high flow rate, and an ultra-high flow rate can be obtained without changing the housing.*1

  • *1 Regarding fittability to the housings, contact us for consultation.

Main applications

The cartridge employs a membrane of a favorably received, proprietary asymmetrical structure (PSE membrane). It demonstrates excellent performance in the following applications that require high fine particle retention performance, a high flow rate and long service life.

  • Filtration of cleaning water used by wet process equipment that makes large glass substrates for LCD

Specifications

Table of Performance Characteristics

Item

Unit

Performance

Remarks

Pore size

µm

0.1

0.2

0.45

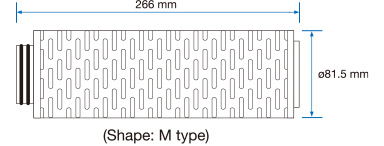

Size

Length

mm

266

*1

Outer diameter

mm

81.5



Maximum differential pressure

25℃

MPa

0.34 (Positive pressure)



PH area to be used



1 - 14

*2

  • *1 Please contact us if you need detailed dimensions of the M type.
  • *2 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.

Material

Part name

Material

Guard

Polypropylene

Center core

Polypropylene

Support

Polypropylene

Membrane filter

Polysulfone (Asymmetric membrane)

O-ring

EPDM (Silicon, Viton)

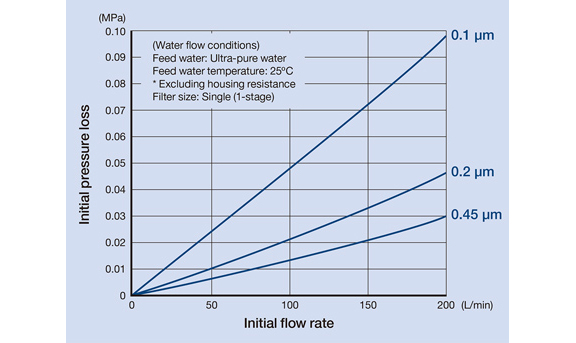

Water flow differential pressure ΔP high flow rate area

Abbreviated product name



Pore size

0.1 µm

0.2 µm

0.45 µm

Shape

M type

PSECM10XLSPPW1

PSECM20XLSPPW1

PSECM45XLSPPW1

PM type

PSECPM10XLSPPW1

PSECPM20XLSPPW1

PSECPM45XLSPPW1



Size

  • * For details of the methods of use, refer to the instruction manual that comes with the product.
  • * The product may be built to order, depending on the shape and/or size. For details, contact your sales agent.
  • * Specifications are subject to change for improvement purposes without prior notice.
