PSE Cartridge L Type

NEW

A high flow rate type cartridge (1.5 times the flow rate of the conventional cartridges) has been added to the lineup of PSE cartridges that have been received favorably because of their high flow rate and high retention performance. Ready for use with larger LCD panels and wafers of larger diameters.

Overview

  • The flow rate is 1.5 times that of earlier cartridges.

  • The fine particle removal performance is rated for a single pass operation, standing at the same level as that of earlier PSE cartridges.

  • Long service life (Filtering service life is 1.5 - 2 times.*1

  • Because the cartridge is the same size (φ70 mm) as earlier models, the housing does not requiring replacing.

  • *1 The service life may vary with the conditions of use.

Features

High flow rate

The cartridge realizes a high flow rate equivalent to 1.5 times that of earlier (single (1-stage)) cartridges.

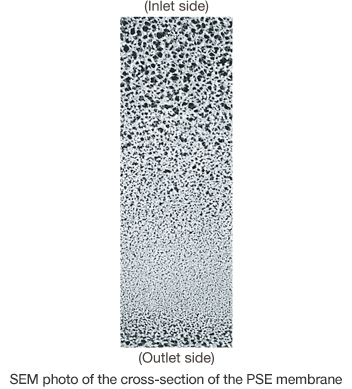

SEM photo of the cross-section of the PSE membrane

Excellent retention performance

The dense inner layer peculiar to the PSE membrane ensures reliable retention of fine particles.

Long service life

Owing to an increased filtering area, the cartridge has a long service life that is 1.5 - 2 times that of earlier cartridges.*2

  • *2 The filtering service life may vary with the conditions of use.

Main applications

Since the cartridge employs the PSE membrane that has been received a favorable reputation, it is best suited for the following lines that require a high flow rate and high retention performance.

  • Filtration of purified water for cleaning equipment, etc. in the manufacturing processes of large LCDs and 300 mm wafers

  • Filtration of chemicals for cleaning equipment, etc. in the manufacturing processes of large LCDs and 300 mm wafers

Specifications

Table of Performance Characteristics

Item

Unit

Performance

Remarks

Pore size

µm

0.1

0.2

0.45



Size

Length

mm

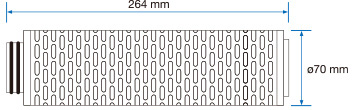

264

*3

Outer diameter

mm

70



Maximum differential pressure

25℃

MPa

0.54 (Positive pressure)



25℃

MPa

0.34 (Negative pressure)



Heat resistance

MAX℃

90

*4

PH area to be used



1 - 14

*5

  • *3 Please contact us if you need detailed dimensions.
  • *4 Continuous operating temperature
  • *5 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.

Material

Part name

Material

Guard

Polypropylene

Center core

Polypropylene

Support

Polypropylene

Membrane filter

Polysulfone (Asymmetric membrane)

O-ring

EPDM (Silicon, Viton)

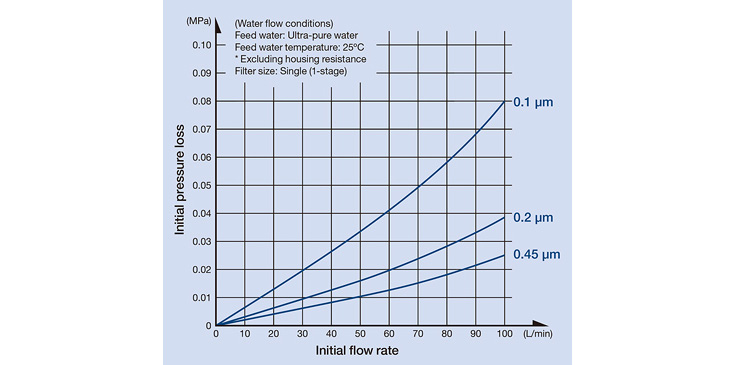

Water flow differential pressure ΔP high flow rate area

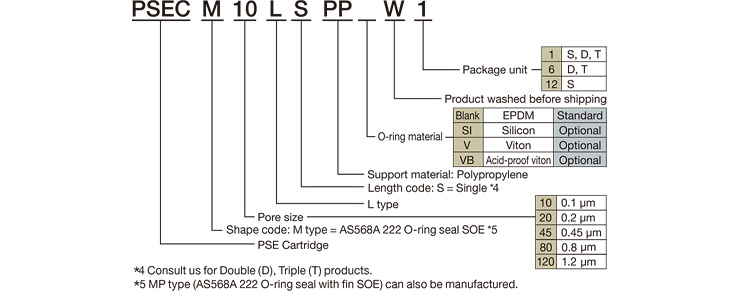

Abbreviated product name



Pore size

0.1 µm

0.2 µm

0.45 µm

Package unit

1

PSECM10LSPPW1

PSECM20LSPPW1

PSECM45LSPPW1

12

PSECM10LSPPW12

PSECM20LSPPW12

PSECM45LSPPW12

Size

  • * For details of the methods of use, refer to the instruction manual that comes with the product.
  • * The product may be built to order, depending on the shape and/or size. For details, contact your sales agent.
  • * Specifications are subject to change for improvement purposes without prior notice.
