The content on this page is intended to healthcare professionals and equivalents.
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

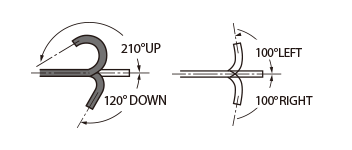

- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

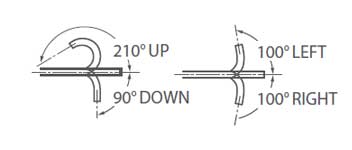

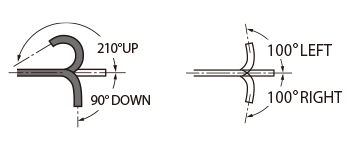

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability

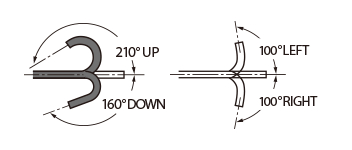

UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability

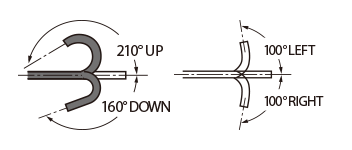

UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m

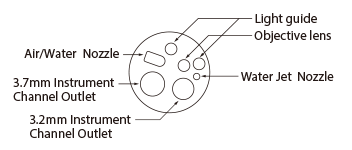

- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

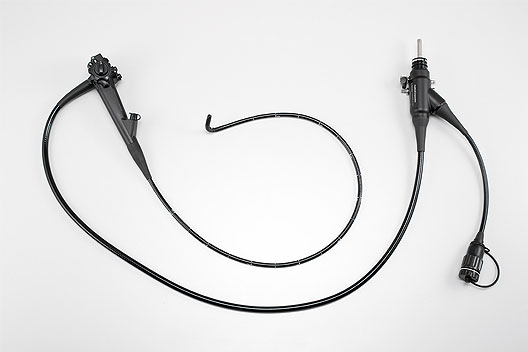

![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/ar/files/2025-09/9e8ca6c79d6840dbed6aff69d5e46f7f/pic_gastroscopes_01.jpg)

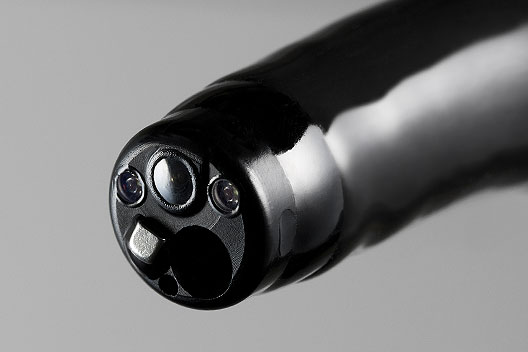

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ar/files/2025-09/96dafd5a85afd71fe4af4d0b3eb6ae96/pic_gastroscopes_02.jpg)

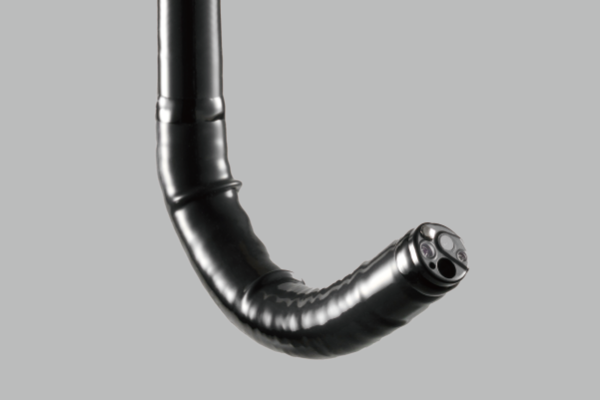

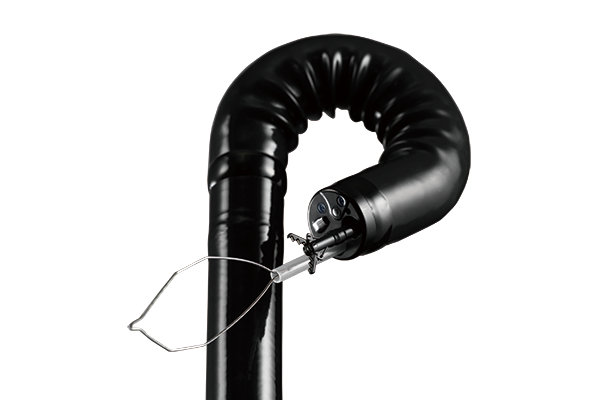

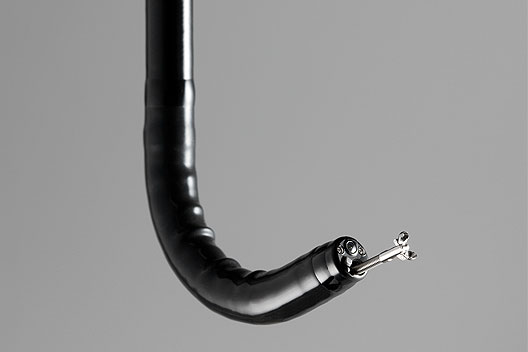

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/ar/files/2025-09/680556e52758ccfb49a3240d2fb3c967/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

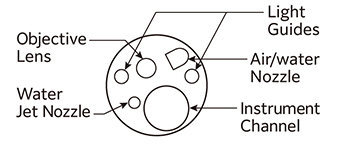

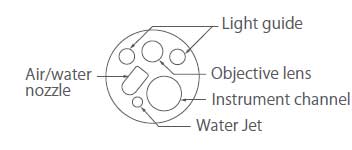

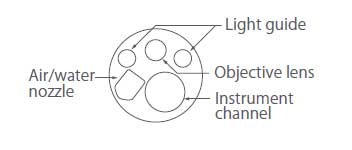

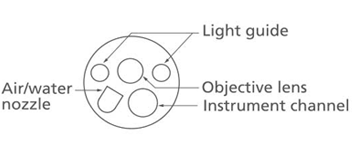

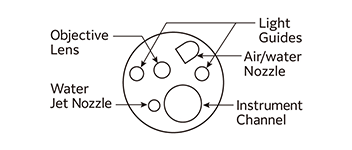

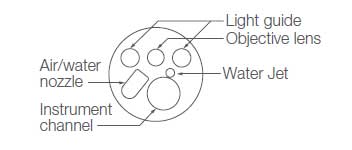

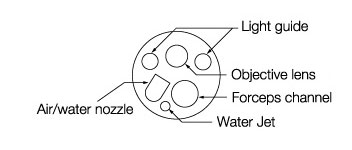

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ar/files/2025-09/0430fbd22ba744b4f14437fb7be8faac/fig_gastroscopes_01.jpg)

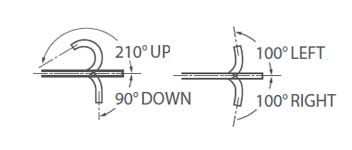

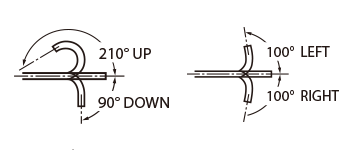

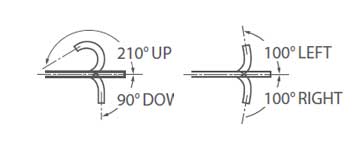

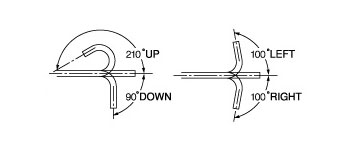

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ar/files/2025-09/18e94b5c287ef4be79d39b0a4adfe8b6/fig_gastroscopes_02.jpg)

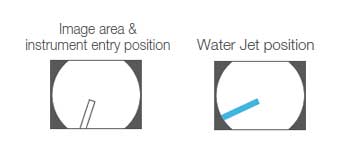

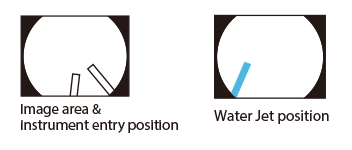

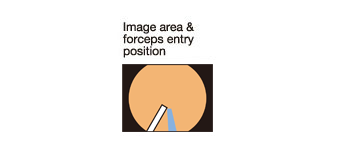

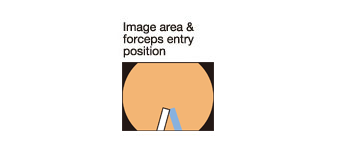

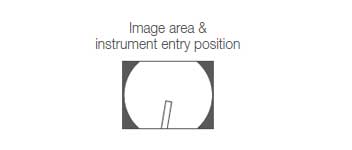

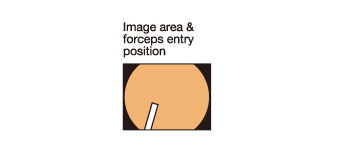

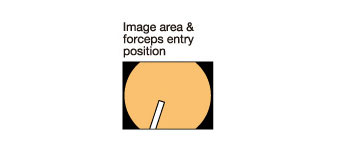

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ar/files/2025-09/68c4f253e3566cf7272bc78b509c6f4c/fig_gastroscopes_03.jpg)

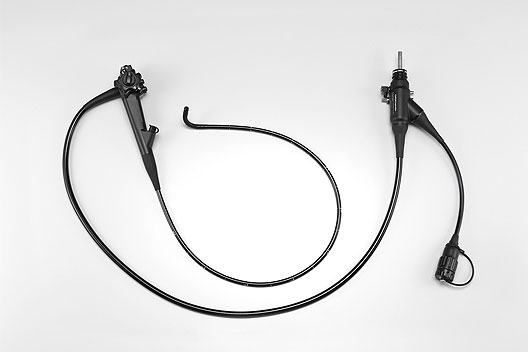

![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/ar/files/2025-09/667f7d175155596334f874451fbac235/pic_gastroscopes_04.jpg)

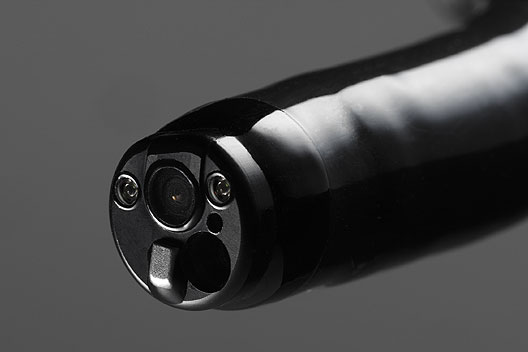

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ar/files/2025-09/726d106afcd6b52f7d5c818778b8e116/pic_gastroscopes_05.jpg)

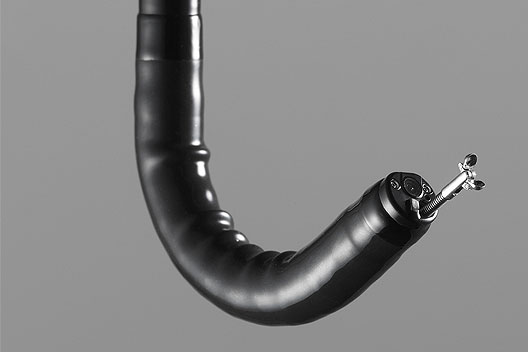

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/ar/files/2025-09/d20e0ba81f34b01734207d84ec26a6c1/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

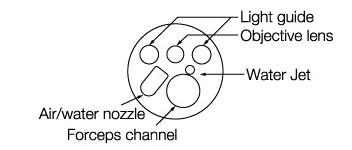

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ar/files/2025-09/afbc2d79dc5f8085809bc4141235f3ea/fig_gastroscopes_04.jpg)

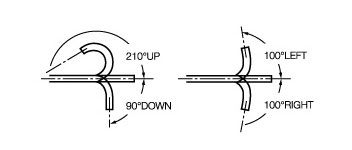

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ar/files/2025-09/3c9c3b436d2e37c5c55b4cd7240d388c/fig_gastroscopes_05.jpg)

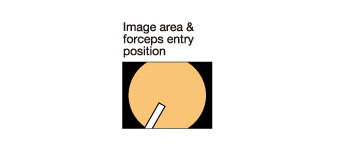

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ar/files/2025-09/1782078f126721571a86f2d937ab60ec/fig_gastroscopes_06.jpg)

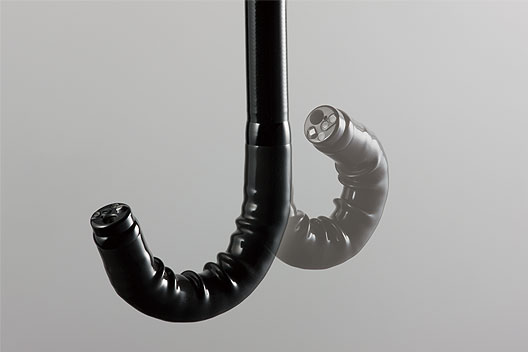

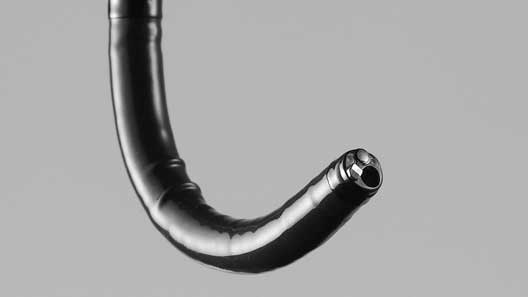

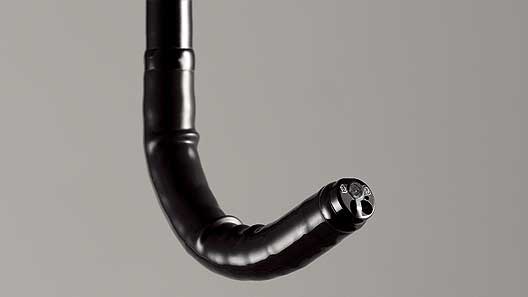

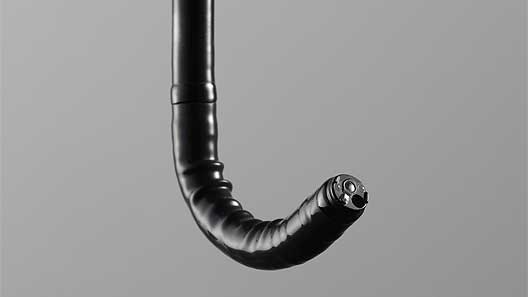

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/ar/files/2025-09/80a8acf556daf296fc6381ee8016321b/pic_gastroscopes_07.jpg)

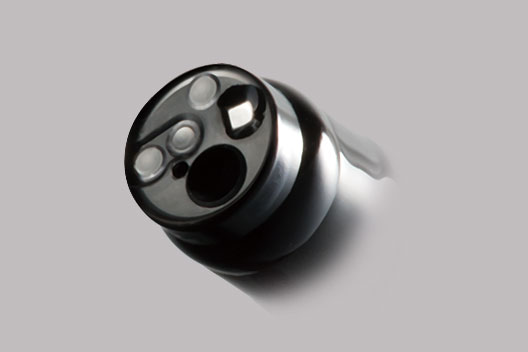

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ar/files/2025-09/32522299fbc976b1a2665a42f13b74b0/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

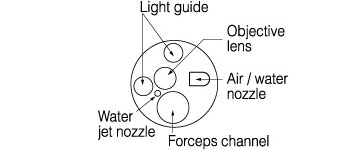

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ar/files/2025-09/b0c4b4193cf6563ad07cdb58f134a37c/fig_gastroscopes_07.jpg)

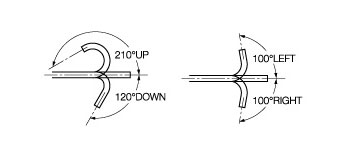

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ar/files/2025-09/0eb3c91ef70d06f7242459db9bf9df6f/fig_gastroscopes_08.jpg)

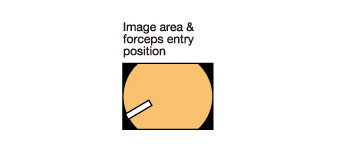

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ar/files/2025-09/efebd1a102853bc26485166f56e4ce51/fig_gastroscopes_09.jpg)

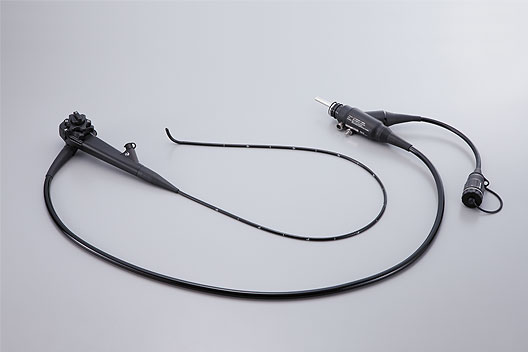

![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/ar/files/2025-09/6df8126117e065890cbef89931412986/pic_gastroscopes_09.jpg)

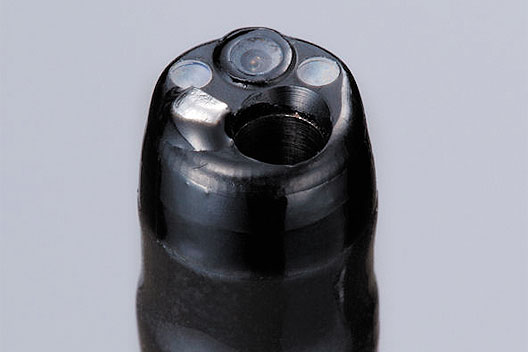

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ar/files/2025-09/a7465c5fccbec7753587f46c926a768d/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

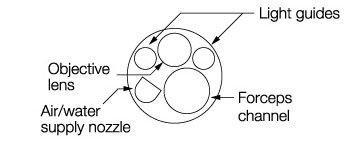

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ar/files/2025-09/df206abf7ef7487b403a35a6a484ebfb/fig_gastroscopes_10.jpg)

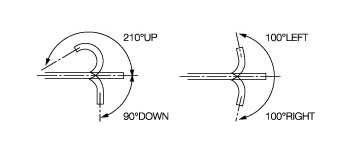

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ar/files/2025-09/54b8a757dfaab28b4aa3a236ab525838/fig_gastroscopes_11.jpg)

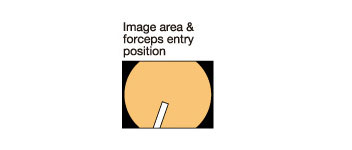

![[image] image area & forceps entry position](https://asset.fujifilm.com/www/ar/files/2025-09/f2ca5c8686e61fc5402fc35c12295ea7/fig_gastroscopes_12.jpg)
