LCI & BLI, the new standard
![[photo] Eluxeo Lite 6000 multi-LED endoscope system](https://asset.fujifilm.com/www/au/files/2020-05/1d6a1a0aa1aedf4c16f9f8d57bdd5486/pic_6000system_01.jpg)
Multi-Light Technology
This technology enables creation of images suitable for intended purposes through image processing combined with accurate control of intensity ratio between multiple lights.
It uses white light to depict subjects in natural colors as well as short wavelength light for higher contrast of fine vessels and structures of mucous membrane surface layers to create sharp images.

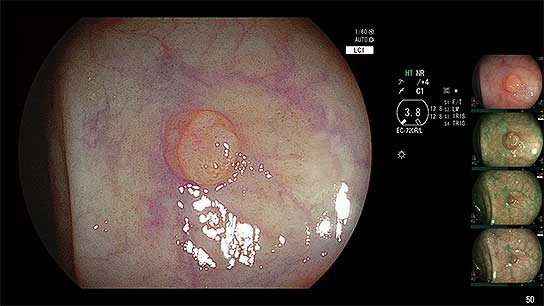

By adding signal processing to the images obtained through these lights, it is possible to provide not only white light images but also LCI/BLI images.
![[image] White Light images of colon and stomach, Linked Color Images of colon and stomach, and Blue Light Images of colon and stomach](https://asset.fujifilm.com/www/au/files/2020-05/2caf5e235b8ea89184c74475216be87d/fig_6000system_01.jpg)

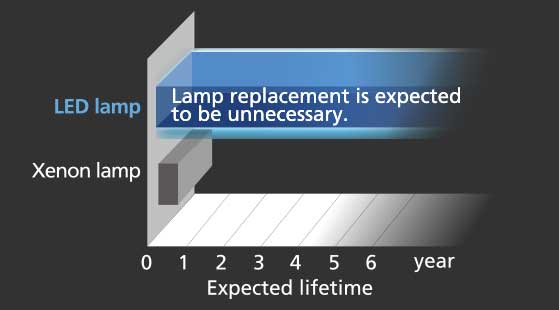

Energy-saving and long-lasting LED light source
When compared to standard Xenon light sources, the LED light source*1 consumes about a third of the energy and lasts longer. Life time of the LED light is expected for 6 years based on Fujifilm evaluation condition. Intensity of the light source qualifies that of 300W Xenon lamp.
- *1 The warranty period is 1 year after date of purchase.
Five features to facilitate smooth examination
High-definition images with quite low noise level are established by Megapixel CMOS sensor.
It allows superior visualization for Full HD display.

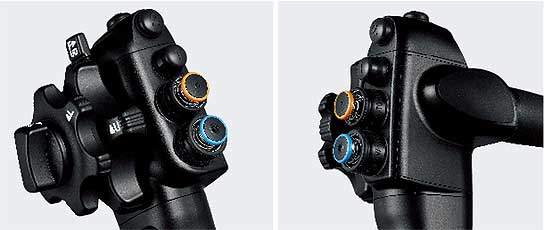

(2) G7 control portion
G7 control portion is developed from ergonomics point of view.
Scope has a rounded surface to fit the hand, and button layout makes intuitive operation possible.

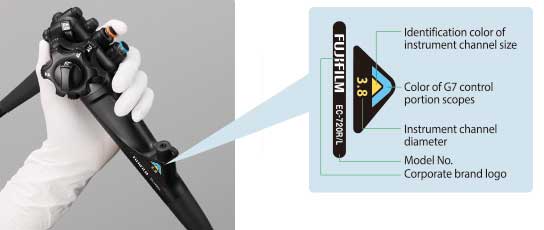

Labels attached to the control portion, which show the model number and instrument channel inlet size.
(3) One Step Connector with Contact-free Technology
![[photo] Cord being plugged into 6000 system](https://asset.fujifilm.com/www/au/files/2020-05/340e9d2a594e4d38f2db32dd60abd1fc/pic_6000system_05.jpg)
Scopes can be connected to light source in just 1 step operation.
Scope cable connection is no longer required in setting up.
One Step Connector enhances efficiency of clinical workflow.
Conventional scopes can also be connetcted.

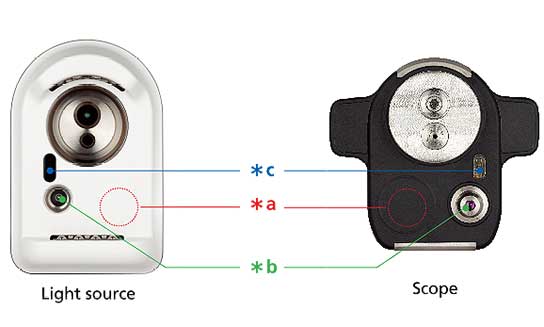

Contact-free Technology
- *a Power feed: Wireless electrical supply
- *b Image transmission: High speed optical laser
- *c Remote signal: infrared [IR] LED
This’s the generic name of below 3 points. It means connectors do not need to touch to transmit power and image data.
By this technology, durability and reliability of scopes is expected to improve.
(4) Insertion Performance
EC-720R/M,I,L
![[image] EC-720R/M,I,L Control Portion and Scope with gradually increasing stiffness from distal end to the control portion](https://asset.fujifilm.com/www/au/files/2020-05/d5eef40f28ad0d4d4d10f7197eb11f63/pic_6000system_08.jpg)

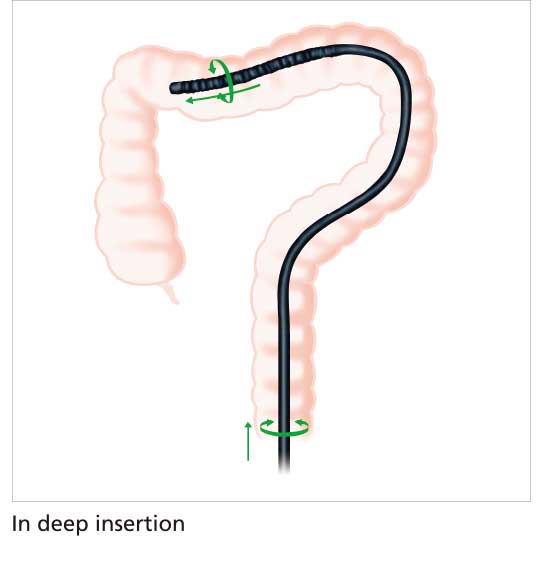

Advanced Force Transmission
The flexible portion is designed to transmit operator’s movements, pushing and rotating, to the distal end of endoscope.

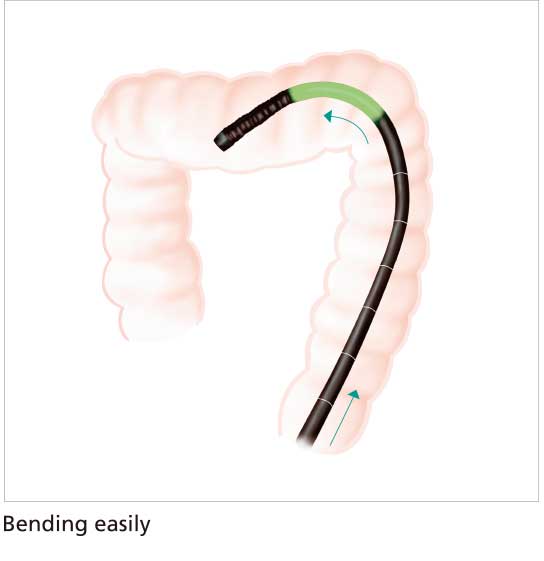

Adaptive Bending
The end of flexible portion is soft, allowing the scope to bend easily. Flexible portion is elastic, and easy to return to its straight shape.

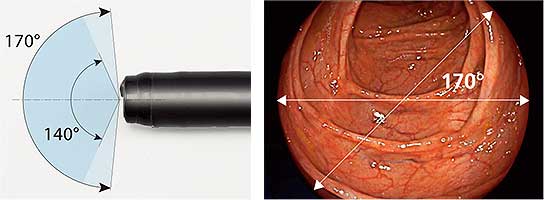

Wide 170° field of view is available with EC-720R/M,I,L.
Even areas that are hard to observe such as the reverse side of folds could be observed and approached smoothly.
