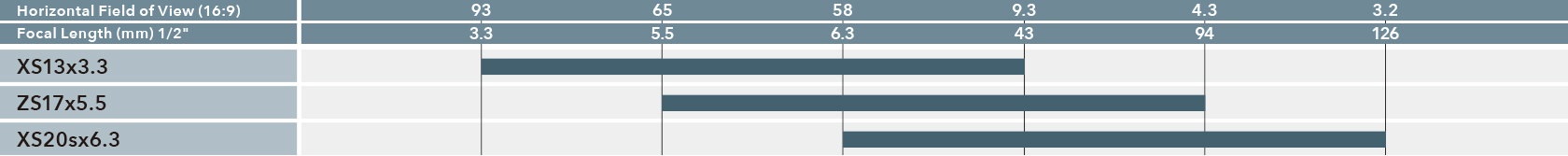

![[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (1/2 inch) by model number](https://asset.fujifilm.com/www/cl/files/2022-01/8a27c6377b384a3e68d5b27ab50726ad/fig_1_2HDENGLenses_01.jpg)
Lineups
1/2" Series [eXceed Series]
XS20sx6.3BRM
- Focal Length Covered 6.3 to 126mm
- HD Optical Performance
- Newly eXceed Servo Grip
- Latest EBC coatings for improved optical performance
-
* It is necessary to set up the lens to use Quick Zoom function.

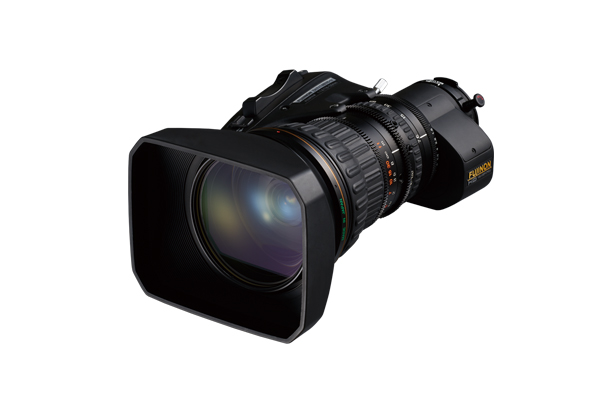

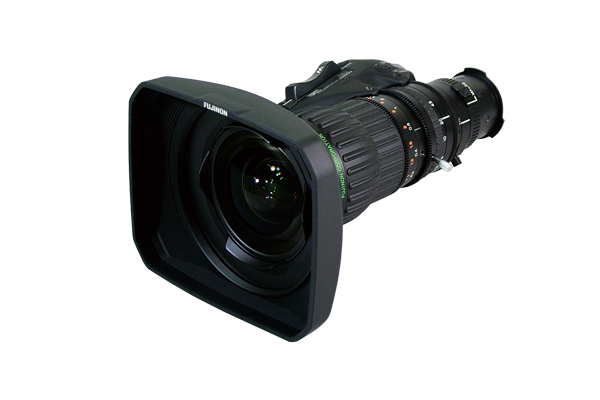

![[photo] 1/2 inch HD ENG lens model XS20sx6.3BRM](https://asset.fujifilm.com/www/cl/files/2019-09/fdce711eb29fc0cb44fa32ed90fcc481/pic_1_2HDENGLenses_03.jpg)
Specifications
-
Model Name
-
XS20sx6.3BRM
-
Focal length
-
[1x]
6.3-126mm[2x]
- -
Zoom ratio
-
20x
-
Extender
-
-
-
Maximum relative aperture (F-no.)
-
1 : 1.4 (6.3-88mm) / 1 : 2.0 (126mm)
-
Minimum object distance (M.O.D.) from front lens
-
0.9m
-
Object dimensions at M.O.D.
16 : 9 Aspect ratio -
[1x]
6.3mm 904 x 508mm
126mm 47 x 26mm[2x]
- -
Angular field of view
16 : 9 Aspect ratio -
[1x]
6.3mm 57.9°'x 34.6°
126mm 3.2° x 1.8°[2x]
- -
Filter thread
-
M82 x 0.75
-
Approx Size
-
φ85 x 181.9mm (φ x Length)
-
Mass
-
1.4kg (RM) (without lens hood)
