Prescale - Pressure measurement film（*****For countries where PSM is not sold*****）

See here for document downloads and sample product services

Measure tire pressure

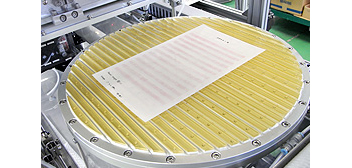

Measure the pressure distribution of cleaning polish against liquid crystal panels

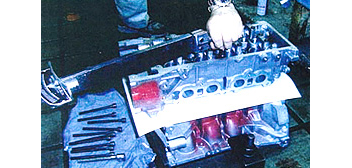

Measure the pressure between cylinder heads and cylinder blocks

Product name/Model: Prescale (Two-sheet type/Mono-sheet type)
Precision: ±10% or less (measured by a densitometer at 23°C, 65% RH)
Recommended temperature: 20°C to 35°C^*1
Recommended humidity: 35% RH to 80% RH^{*2 *3}

*1 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW) / Super high pressure (HHS): 15°C–30°C
*2 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW): 20% RH–75% RH
*3 Super high pressure (HHS): 35% RH–70% RH

Prescale is categorized into different types according to the pressure range [MPa] you wish to measure.
Please select the type that best suits your inspection condition.

How to calculate pressure value (MPa):

To calculate the pressure value (Mpa), you need the mass (kg) or newtons (N), as well as the surface area (mm² or cm²).

1 MPa = 1 N/mm² ≒ 10.2 kgf/cm²
e.g.) if 100 kg is applied on a 100mm²(1cm²) surface, the calculation is 100kgf/cm².

You can automatically check the pressure values from the options below.
