- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90° / RIGHT: 100° / LEFT: 100°
- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
Product name: Video Endoscope GMDN: 38805
Generic name: Flexible video gastroduodenoscope

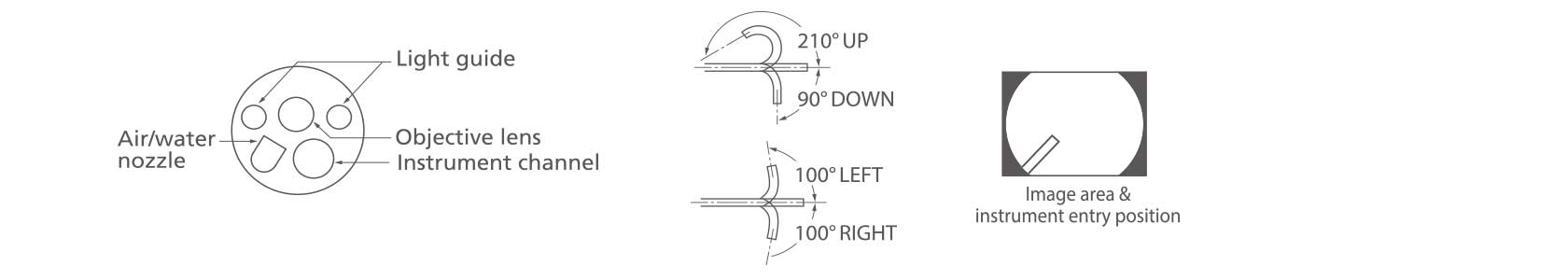

![[image] Tip of endoscope with parts/functions and 210 degreesup/90 degrees down, 100 degrees left/right flexible angles it moves in](https://asset.fujifilm.com/www/cl/files/2025-05/a3552ae48b6c7a733da375dcec257433/fig_6000system_01.jpg)
- Field of view
170°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
- Working length
1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)
- Total length
1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L)
- Distal end diameter
12.8 mm
- Insertion tube diameter
12.8 mm
- Minimum instrument channel diameter
3.8 mm
- Image size
Super image
Product name: Video Endoscope GMDN: 36117
Generic name: Flexible video colonoscope , reusable

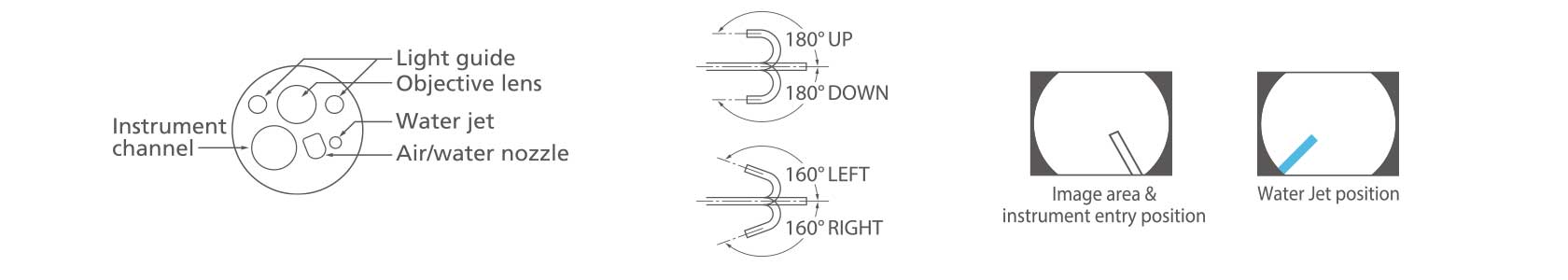

![[image] Tip of endoscope with parts/functions and 180 degrees up/down, 160 degrees left/right flexible angles it moves in](https://asset.fujifilm.com/www/cl/files/2025-05/1631c432ebbd389630bbf31912fb5ad9/fig_6000system_02.jpg)
Conventional 500 *1 / 600 system scopes can also be used.
| 700 system scopes | |
| 600 system scopes | |
| 500 system scopes *1 | 580 series scopes |
| 530 series scope *2 | |
- *1 Excluding 590 series scope.
- *2 Excluding EG-530UT2, EG-530UT, EG-530UR2 and EG-530UR
Available observation mode
| White light | BLI | BLI-bright | LCI | FICE | |
|---|---|---|---|---|---|
| 700 system scopes | ○ | ○ | ○ | ○ | ○ |
| 500/600 system scopes | ○ | - | - | - | ○ |
For routine examination
![[photo] Black with blue color ring air/water valve](https://asset.fujifilm.com/www/cl/files/styles/600x400/public/2025-05/dbaa465d748bd12ea9ce91804536464d/pic_6000system_03.jpg?itok=XpupcAO9)
AW-603
![[photo] Black with orange color ring suction valve](https://asset.fujifilm.com/www/cl/files/styles/600x400/public/2025-05/cac9fc321dc84a265a7f8f8029390947/pic_6000system_04.jpg?itok=eke6lf3N)
SB-605
![[photo] Water tank](https://asset.fujifilm.com/www/cl/files/styles/600x400/public/2025-05/1c55d0fbc43695add957e02c57c48e67/pic_6000system_05.jpg?itok=2jRzAduH)
WT-603
Used with CO2 Regulator “GW-100”
![[photo] Gas/water valve](https://asset.fujifilm.com/www/cl/files/styles/600x400/public/2025-05/b63d0158647a9b0c5a1ae442295a1ae3/pic_6000system_06.jpg?itok=SHawWBvD)
AW-604G
![[photo] Water tank](https://asset.fujifilm.com/www/cl/files/styles/600x400/public/2025-05/55c40715992effc0e81b136cc1b5ebf0/pic_6000system_07.jpg?itok=8lut_VkK)
WT-604G
