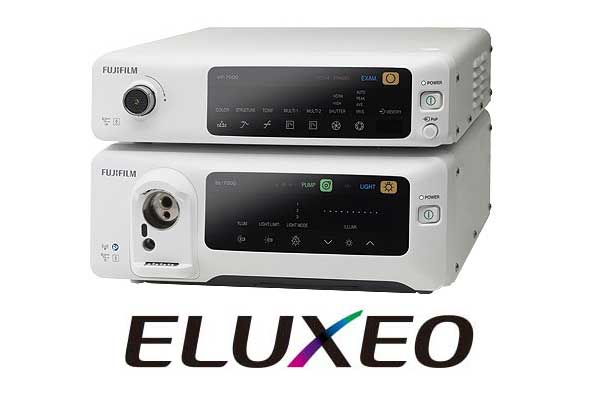

Eluxeo Sistema 7000 - Scopes

NEW

Es un sistema de endoscopia para diagnosticar con facilidad, está diseñado con una fuente de 4 luces LED de alta intensidad.

Contáctenos

The content on this page is intended to healthcare professionals and equivalents.

Field of view: 140°
Viewing direction: 0° (Forward)
Observation range: 2～100 mm
Bending capability: UP: 210° / DOWN: 90° / RIGHT: 100° / LEFT: 100°
Working length: 1,100 mm
Total length: 1,400 mm
Distal end diameter: 10.5 mm
Insertion tube diameter: 10.8 mm
Minimum diameter of instrument channel: 3.8 mm
Image size: Super image

Product name: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

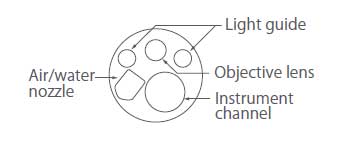

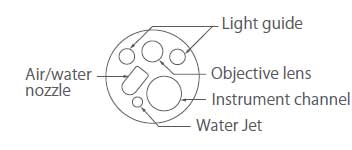

[image] Tip of scope with parts - light guide, lens, water jet, instrument channel

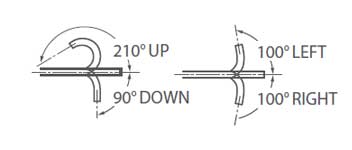

[image] Scope moves 210 degrees up/90 degrees down, 100 degrees left/right flexible angles

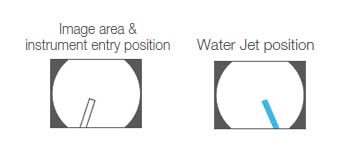

[image] Image area & instrument entry position and water jet position

Field of view: 140°
Viewing direction: 0° (Forward)
Observation range: 3～100 mm
Bending capability: UP: 210° / DOWN: 90° / RIGHT: 100° / LEFT: 100°
Working length: 1,100 mm
Total length: 1,400 mm
Distal end diameter: 5.8 mm
Insertion tube diameter: 5.9 mm
Minimum diameter of instrument channel: 2.4 mm
Image size: Super image

Product name: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, lens, water jet, instrument channel

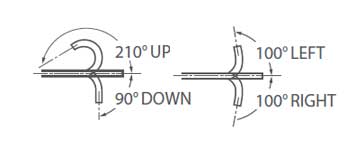

[image] Scope moves 210 degrees up/90 degrees down, 100 degrees left/right flexible angles

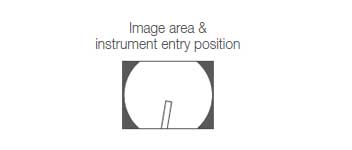

[image] Image area & instrument entry position

Field of view: 140°
Viewing direction: 0° (Forward)
Observation range: 2-100 mm
Image size: Super image
Distal end diameter: 9.2 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 2.8 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400 mm

Product name: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

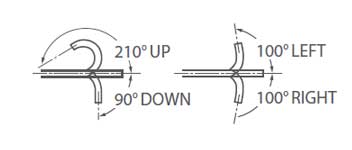

[image] Scope moves 210 degrees up/90 degrees down, 100 degrees left/right flexible angles

[image] Image area & instrument entry position and Water Jet position

Field of view: Normal: 140° Closest: 56°
Viewing direction: 0° (Forward)
Observation range: 1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
Image size: Super image
Distal end diameter: 9.9 mm
Insertion tube diameter: 9.8 mm
Minimum diameter of instrument channel: 2.8 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400 mm

Product name: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

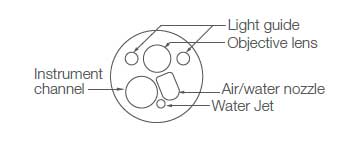

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

[image] Scope moves 210 degrees up/90 degrees down, 100 degrees left/right flexible angles

[image] Image area & instrument entry position and Water Jet position

Field of view: 170°
Viewing direction: 0° (Forward)
Observation range: 2～100 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm（M）/1,520 mm（I）/1,690 mm（L）
Total length: 1,650 mm（M）/1,840 mm（I）/2,010 mm（L）
Distal end diameter: 12.0 mm
Insertion tube diameter: 12.0 mm
Minimum diameter of instrument channel: 3.8 mm
Image size: Super image
Flexibility adjustment mechanism: Available

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

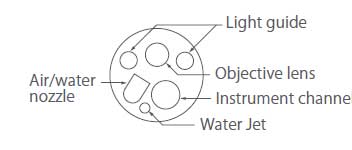

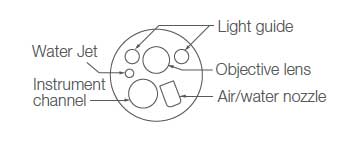

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

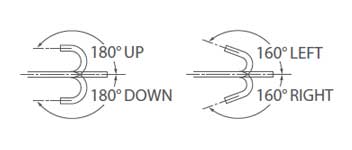

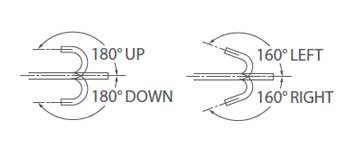

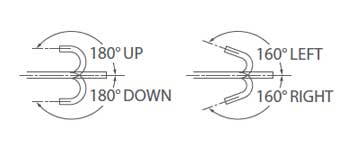

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

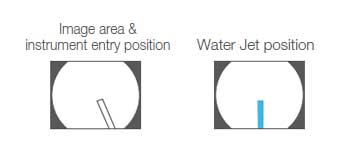

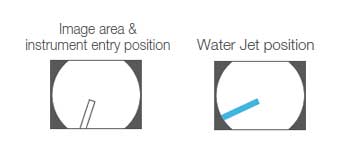

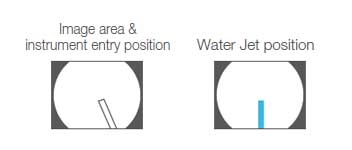

[image] Image area & instrument entry position and Water Jet position

Field of view: 170°
Viewing direction: 0° (Forward)
Observation range: 2～100 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm（M）/1,690 mm（L）
Total length: 1,650 mm（M）/2,010 mm（L）
Distal end diameter: 11.1 mm
Insertion tube diameter: 11.5 mm
Minimum diameter of instrument channel: 3.2 mm
Image size: Super image
Flexibility adjustment mechanism: Available

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

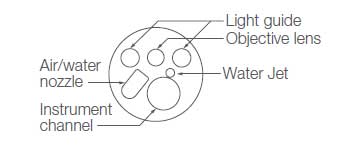

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

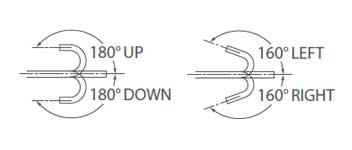

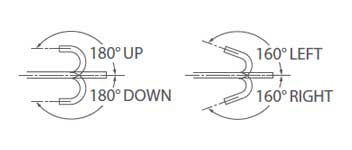

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

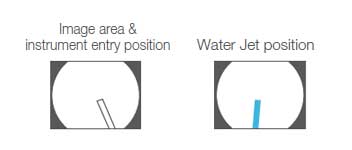

[image] Image area & instrument entry position and Water Jet position

Field of view: 170°
Viewing direction: 0° (Forward)
Observation range: 2～100 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,690 mm
Total length: 2,010 mm
Distal end diameter: 12.8 mm
Insertion tube diameter: 12.8 mm
Minimum diameter of instrument channel: 3.8 mm
Image size: Super image
Flexibility adjustment mechanism: Available

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

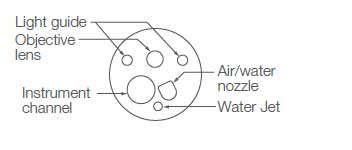

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

[image] Image area & instrument entry position and Water Jet position

Field of view: Normal: 140° Closest: 56°
Viewing direction: 0° (Forward)
Observation range: 1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm（M）/1,690 mm（L）
Total length: 1,650 mm（M）/2,010 mm（L）
Distal end diameter: 12.8 mm
Insertion tube diameter: 12.8 mm
Minimum diameter of instrument channel: 3.8 mm
Image size: Super image
Flexibility adjustment mechanism: Available

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

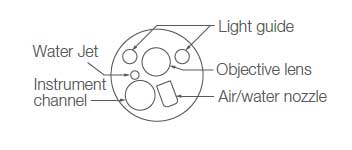

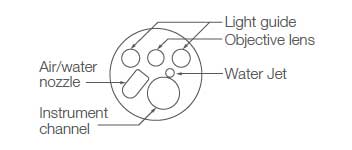

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

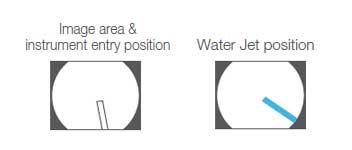

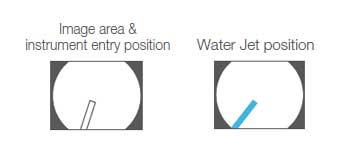

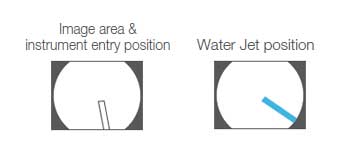

[image] Image area & image entry position and Water Jet position

Field of view: Normal: 140° Closest: 56°
Viewing direction: 0° (Forward)
Observation range: 1.5～100 mm
Normal: 3～100 mm
Closest: 1.5～2.5 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm(M) / 1,690 mm(L)
Total length: 1,650 mm(M) / 2,010 mm(L)
Distal end diameter: 11.7 mm
Insertion tube diameter: 11.8 mm
Minimum diameter of instrument channel: 3.2 mm
Image size: Super image
Flexibility adjustment mechanism: Available

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

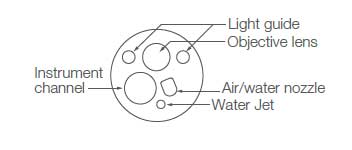

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

[image] Image area & image entry position and Water Jet position

Field of view: 140°
Viewing direction: 0° (Forward)
Observation range: 3～100 mm
Bending capability: UP: 210° / DOWN: 160° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm（M）/1,690 mm（L）
Total length: 1,630 mm（M）/1,990 mm（L）
Distal end diameter: 9.8 mm
Insertion tube diameter: 10.7 mm
Minimum diameter of instrument channel: 3.2 mm
Image size: Super image

Product name: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

[image] Tip of scope with parts - light guide, lens guide, water jet, instrument channel

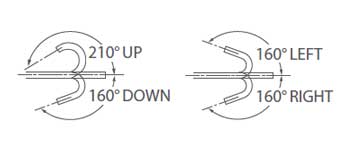

[image] Scope moves 210 degrees up/160 degrees down, 160 degrees left/right flexible angles

[image] Image area & image entry position and Water Jet position

Accessories (Valve, Tank)

For routine examination

[photo] Black with blue color ring air/water valve

Air/Water ValveNEW

AW-603

[photo] Black with orange color ring suction valve

Suction ValveNEW

SB-605

[photo] Water tank

Water TankNEW

WT-603

Used with CO_² Regulator “GW-100”

[photo] Gas/Water Valve

Gas/Water ValveNEW

AW-604G

[photo] Water tank

Water TankNEW

WT-604G
