The content on this page is intended to healthcare professionals and equivalents.
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

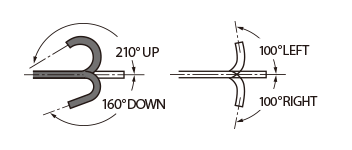

- Bending capability

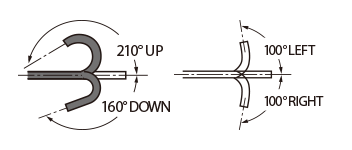

UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m
- Minimum instrument channel diameter

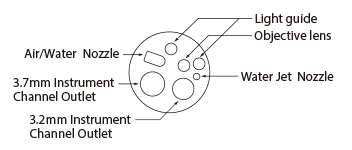

3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

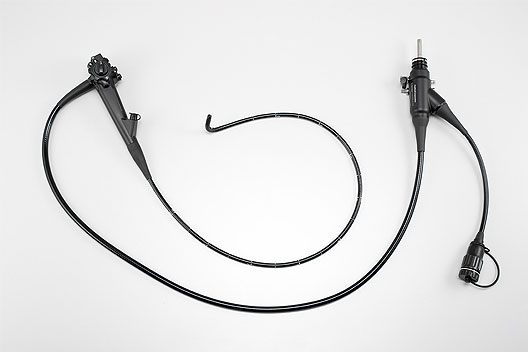

![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/cl/files/2025-09/3d90f2644b0c982f251dd0fec65d00d3/pic_gastroscopes_01.jpg)

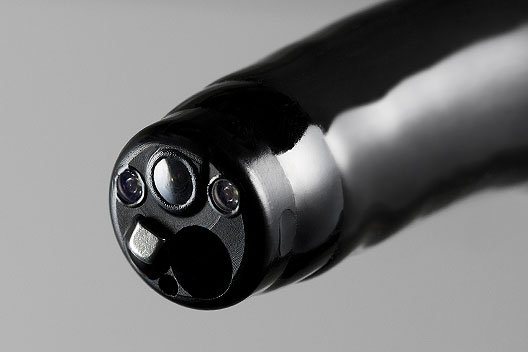

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/cl/files/2025-09/6968d435a72b38b465b867ac71d9cb5c/pic_gastroscopes_02.jpg)

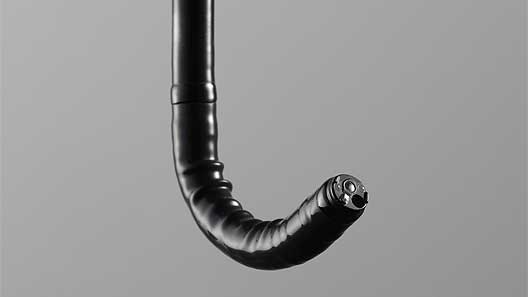

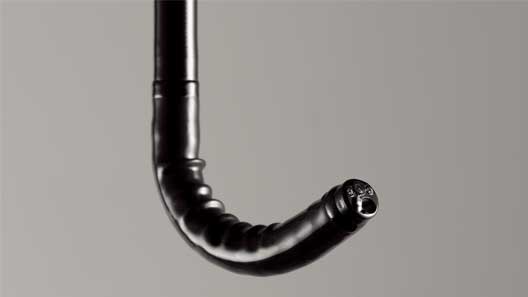

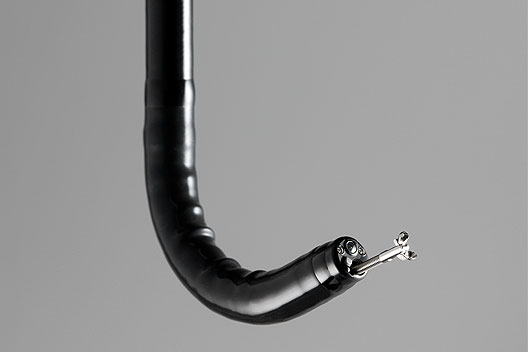

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/cl/files/2025-09/2a30ac4990ee8df9a08f56a6c8469bdb/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

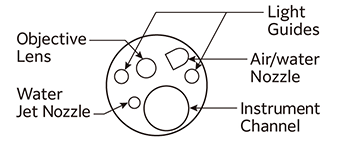

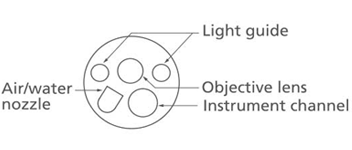

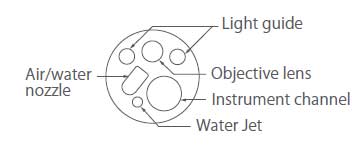

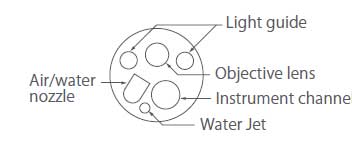

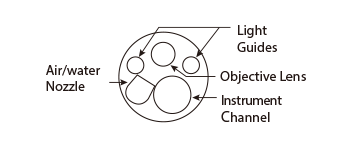

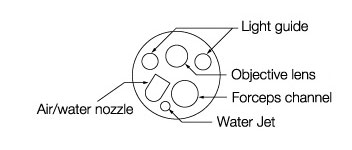

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/cl/files/2025-09/4310913d52814e0a6ed432c4c751a6ae/fig_gastroscopes_01.jpg)

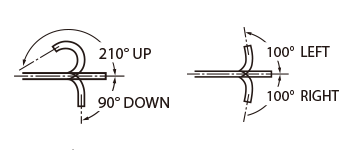

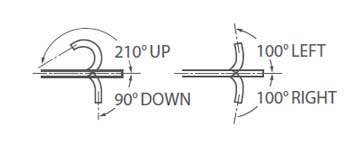

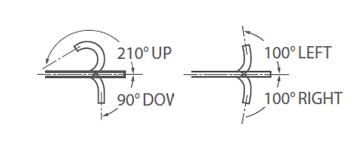

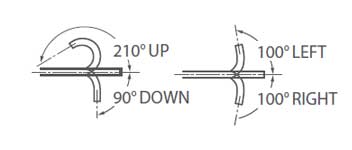

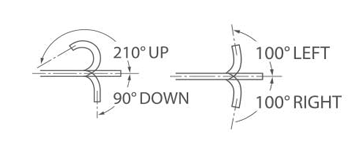

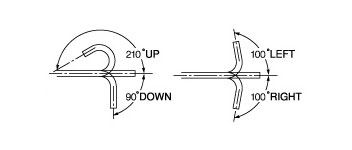

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/cl/files/2025-09/3d8b00e404ff2b51c94ba2b0e645e6de/fig_gastroscopes_02.jpg)

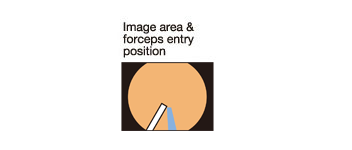

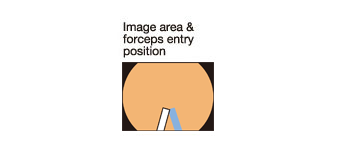

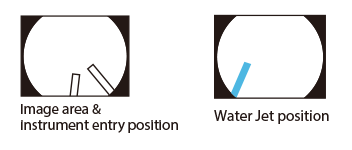

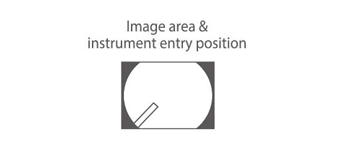

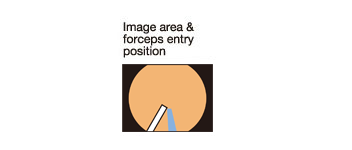

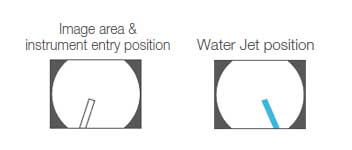

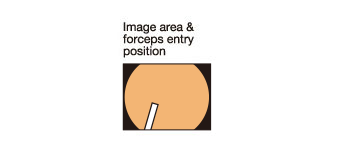

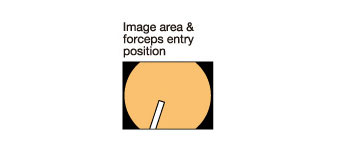

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/cl/files/2025-09/83d542a01978903ea450ddafbd9e2557/fig_gastroscopes_03.jpg)

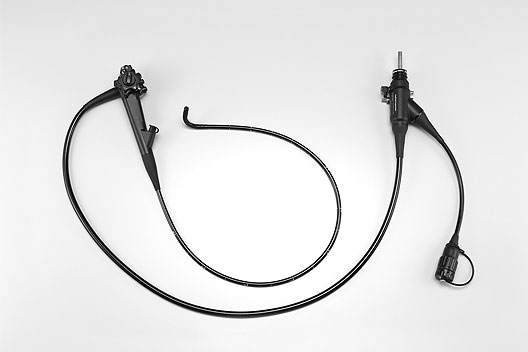

![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/cl/files/2025-09/cdbff175531e8ad8db66dbf0af5e7e7c/pic_gastroscopes_04.jpg)

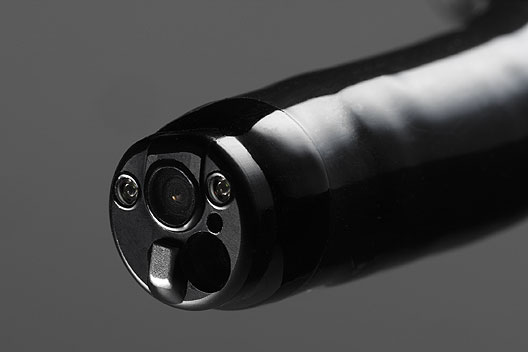

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/cl/files/2025-09/4a1da7cf6a42c0c15a1ddf1fbe592781/pic_gastroscopes_05.jpg)

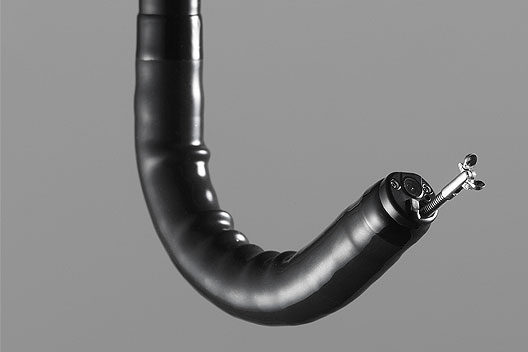

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/cl/files/2025-09/a526f18784445ff34b80608f248a9cc2/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

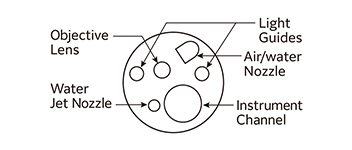

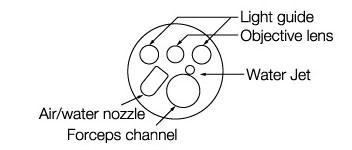

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/cl/files/2025-09/c35aa6460446072d38fa3c28339a3d92/fig_gastroscopes_04.jpg)

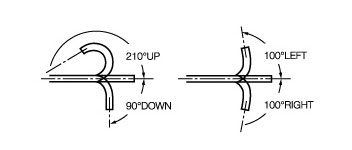

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/cl/files/2025-09/3b577bcc2c2f47948bffcb6eae1b3a2f/fig_gastroscopes_05.jpg)

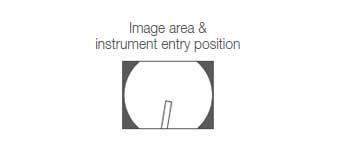

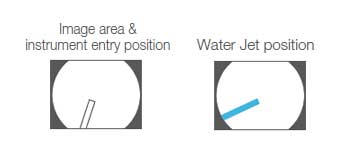

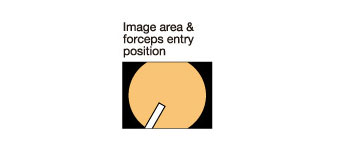

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/cl/files/2025-09/c449e3d26225b8ddfc1c8c4e74a4e7e7/fig_gastroscopes_06.jpg)

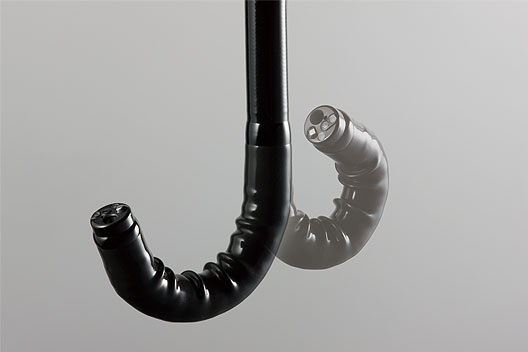

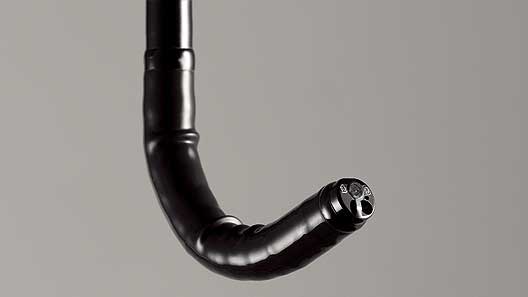

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/cl/files/2025-09/47a7f44485602c65b272ef906b3ef534/pic_gastroscopes_07.jpg)

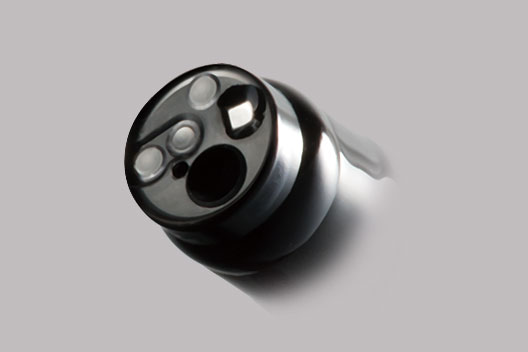

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/cl/files/2025-09/5f8e838c8fec968c5b0916f3cdcd5c86/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

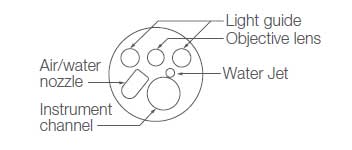

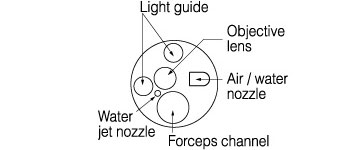

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/cl/files/2025-09/63073ef95e9928723b19d62e78e98f42/fig_gastroscopes_07.jpg)

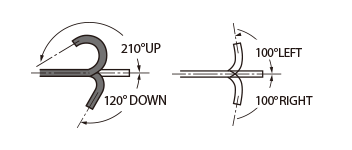

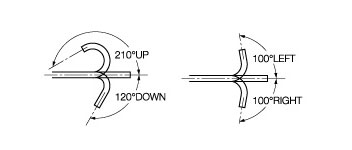

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/cl/files/2025-09/e270daf257d26849f8680abccb66eff4/fig_gastroscopes_08.jpg)

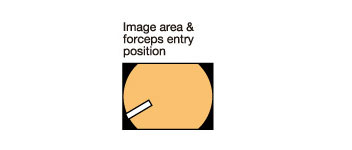

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/cl/files/2025-09/2ce18d6a610b069736adbda82997b146/fig_gastroscopes_09.jpg)

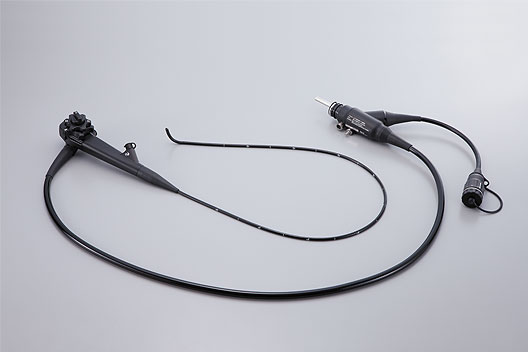

![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/cl/files/2025-09/006c2f5e3cec051db50ec7fb4017a740/pic_gastroscopes_09.jpg)

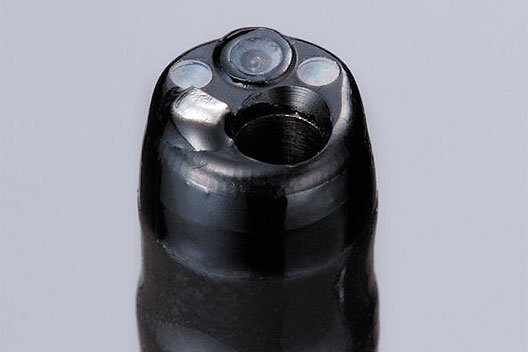

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/cl/files/2025-09/5ae83941ee9db2406fb52d863653982e/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

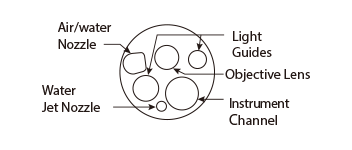

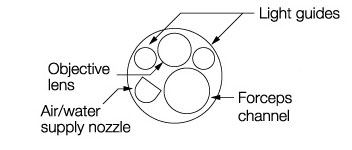

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/cl/files/2025-09/047704b6f76482ec9ec811f808bc2eeb/fig_gastroscopes_10.jpg)

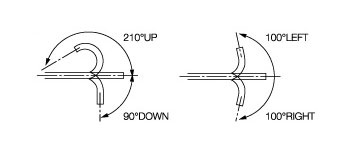

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/cl/files/2025-09/1ab88fb051216b844364f3a6f78d0e07/fig_gastroscopes_11.jpg)

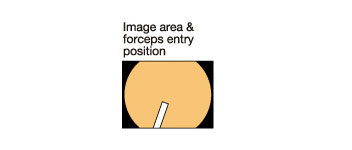

![[image] image area & forceps entry position](https://asset.fujifilm.com/www/cl/files/2025-09/6bf603250dd7d2b22372b9870d05234c/fig_gastroscopes_12.jpg)
