Optional Accessories
Head Mount
The Mini 4300 Head Mount is designed to provide an integration solution between the printbar and a transport system, while providing 5 axes of adjustment for high image quality results.
-
Material
-
Stainless steel, aluminum
-
Weight
-
Approximately 11 kg [25 lbs.]
-
Mounting holes
-
M8 x 1.25 thread, 25.4 x 25.4 square hole pattern
-
Yaw adjustment
-
± 3 degrees
-
Roll adjustment
-
± 2.5 degrees
-
Pitch adjustment
-
± 2 degrees
-
Standoff adjustment
-
19 mm [0.75 in.]
-
Horizontal coarse adjustment
-
320 mm [12.6 in.] max
-
Horizontal fine adjustment
-
9 mm [ 0.35 in.]
LED Lamp
The LED lamp is used for UV/LED curable inks. Results may vary.
-
Size
-
77 x 90 x 231.3 mm [3 x 3.5 x 9 in.]
-
Weight
-
1.82 kg [2.2 lbs.]
-
Standoff distance
-
2 mm [0.08 in.]
-
Noise
-
54dbA @ 1 m [3.3 ft.]
-
Max operating temp
-
35°C [ 95°F]
-
Input power
-
120V
-
Input signal
-
Analogue or RS485
Aqueous Dryer
The Aqueous dryer is used for aqueous inks, organic solvents and latex. Results may vary.
-
Lamp size
-
362/508 x 22/67 x 237 mm [14.2/20 x 0.9/2.6 x 9.3 in.]
-
Drying width
-
44 mm [1.7 in.]
-
Lamp weight
-
1.7 kg [3.7 lbs.]
-
Lamp power
-
Up to 3.1kW emitter
-
PSU input power
-
230VAC, 14A, 50/60 Hz*
-
PSU weight
-
2 kg [4.4 lbs.]
-
PSU size
-
128 x 250 x 60 mm [5 x 9.8 x 2.4 in.]
-
Mount height adjustment
-
60 mm [2.4 in.]
-
Mount flip-up angle
-
45° and 90°
-
Mounting holes
-
M8, 100 mm [3.9 in.] width

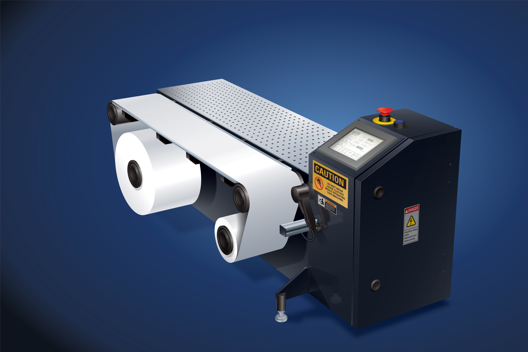

Roll-to-Roll Rewinder
The Roll-to-roll Rewinder is a tabletop unit designed to support single pass inkjet technology.
-
Size
-
1092.2 x 457.2 x 508 mm [43 x 18 x 20 in.]
-
Weight
-
113.4 KG [250 lbs.]
-
Max substrate roll diameter
-
304.8 mm [12 in.]
-
Max substrate roll width
-
152.4 mm [6 in.]
-
Substrate roll core diameter
-
76.2 mm [3 in.]
-
Core locking
-
Manual
-
Speed
-
10.7 – 152.4 meters per minute [35 – 500 feet per minute]
-
Unit control
-
Manual through local HMI touch screen
-
Auto tension control
-
Yes
-
Tension control method
-
Pneumatic brake
-
Substrate break detection
-
Yes
-
End of substrate notification
-
Yes
-
E-stop
-
Yes
-
Encoder mounting bracket
-
Yes
-
Mounting plate
-
M8 x 1.25 thread, 25.4 x 25.4 mm square pattern
-
Substrate elevation
-
Even with top mounting plate
-
Input power
-
230 VAC, Single phase, 50/60 Hz
