FPM 1-1 NE 1

NEW

Filter housing completely made of polypropylene for M-type cartridges.

Overview

Filter housing completely made of polypropylene for M type cartridges

  • Made of chemically stable polypropylene.

  • Applicable elements: M type cartridge (AS568 222 O-ring type, SOE: Single Open End)

  • Cartridge length: Single

Specifications

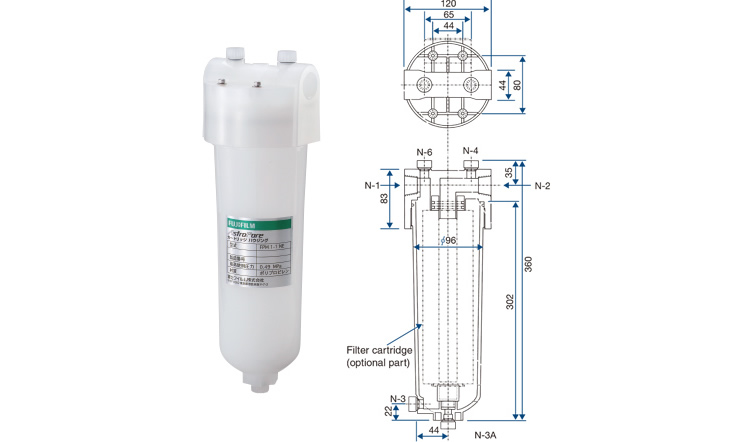

Rough dimensions

As stated above

Bore diameter
N-1   Inlet
Rc3/4 (20A)
N-2   Outlet
Rc3/4 (20A)
N-3   Drain
Rc1/4 (8A)
N-4   Primary vent
Rc1/4 (8A)
N-6   Secondary vent
Rc1/4 (8A)
N-3A   Drain
Rc1/4 (8A)
Withstand pressure

0.49MPa

Maximum working temperature

60℃

Material

Main body: Polypropylene
O-ring: EPDM

  • * For details on the methods of use, refer to the instruction manual included with the product.
  • * The housing may be built to order in terms of shape and size. For details, contact your sales agent.
  • * Specifications are subject to change for improvement purposes without prior notice.
