Dry Minilab
Frontier DL650 PRO
NEWBringing the photo print business to a new level with increased processing capability and new paper.
Main Specifications
-
Model name
-
DL650
-
Print method
-
Piezoelectric inkjet system
-
Print size
-
127 x 89 mm to 305 x 1,219 mm (5” x 3.5” to 12” x 48”)
-
Print capacity
-
- [Standard Paper]
- Standard Mode:
- Approx. 950 print/hr (152 x 102 mm, 6” x 4”)
Approx. 300 print/hr (203 x 305 mm, 8” x 12”) - High Quality Mode:
- Approx. 150 print/hr (152 x 102 mm, 6” x 4”)
Approx. 50 print/hr (203 x 305 mm, 8” x 12”) - [Professional Paper]
- Standard Mode:
- Approx. 900 print/hr (152 x 102mm, 6” x 4”)
Approx. 290 print/hr (203 x 305mm, 8” x 12”) - High Quality Mode:
- Approx. 150 print/hr (152 x 102mm, 6” x 4”)
Approx. 50 print/hr (203 x 305mm, 8” x 12”)
-
Print resolution
-
Standard Mode 720 x 720 dpi, High Quality Mode 1,440 x 1,440 dpi
-
Roll paper
-
- [Standard Paper]
- 180m: 102 mm (4”), 127 mm (5”), 152 mm (6”)
100m: 203 mm (8”), 210 mm, 254 mm (10”), 305 mm (12”) - [Professional Paper]
- 100m: 127 mm (5”), 152 mm (6”), 203 mm (8”), 254 mm (10”), 305 mm (12”)
-
Paper loading
-
2 roll paper feeders (Built-in)
-
Paper supply
-
Width: 102 to 203 mm (4” to 8”) [Front]/102 to 305 mm (4” to 12”) [Rear]
-
Paper type
-
Glossy/Luster
-
Ink cartridges
-
6 Colors (C, M, Y, K, SB, P) of dye based ink (Volume: 700 ml per color)
-
Back printing
-
Two 40-character lines in backside print of information
-
Printer sorter
-
10 order sorter (Maximum size 210 x 305 mm, 8” x 12”)
-
Foot print
-
Approx. 1.48 m2 (included sorter unit)
-
Installation space
-
Approx. 3.2 m2 (included sorter unit)
-
Power requirements
-
100/120V/200-240V (50/60Hz) single-phase two-wire
-
Dimensions (W x D x H)
-
1,266 x 1,530 x 817 mm
-
Weight
-
Approx. 165 kg (included sorter unit)
-
Power consumption
-
Approx. 70.6 kWh/month (in energy saving mode)
Approx. 110.5 kWh/month (without energy saving mode)
- * Specifications are subject to change without notice due to improvements.

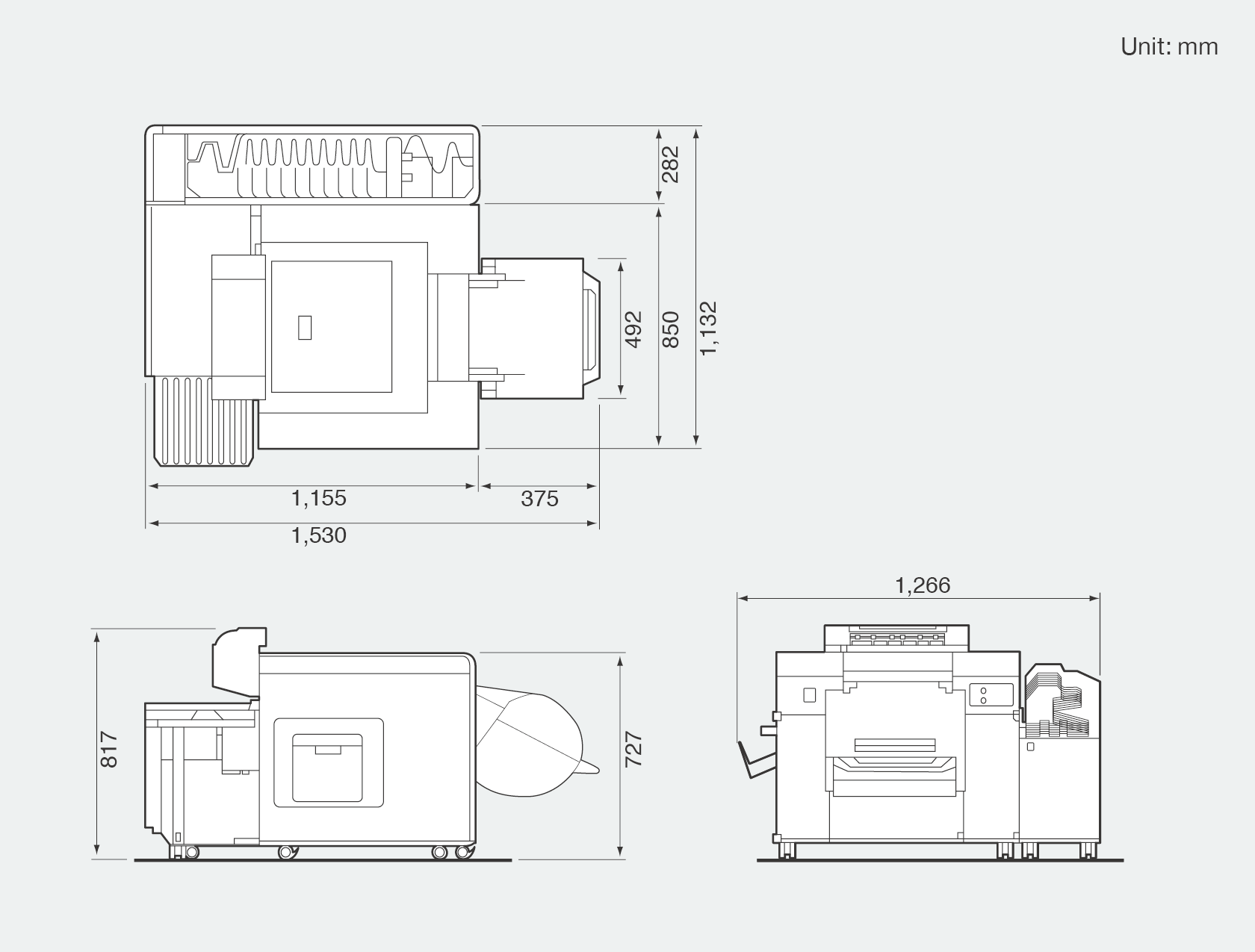

Dimensions
