FDX Visionary-C

A mobile fluoroscopy system with a large C-arm depth for maximum accessibility in surgical applications

The content on this page is intended to healthcare professionals and equivalents.

Absolute Operability

Absolute Operability
From any side, thanks to a multi-touch console and live imaging. Operator always has direct control over the surgical procedure.

Display Station
Two 21,5” touch screen monitors fully adjustable in height and angle of view. Ultra sharp details and max zoom with 1920x1920 pixels. Large images and thumbnail in portrait mode. Touchscreen technology for easy image and document call-up and management. I/O ports for easy IT network integration.

Compact Design
Large diameter, lightweight mobile C-arm for easy access to the operating table. Fast, accurate positioning on patient and effortless gliding. Easy to move from one room to another.

Flat Panel
21x21cm with 1.8 million pixels or 30x30cm with 3.8 million pixels for high-resolution, low dose images. aSi technology. Removable grid for low dose applications.

Modulated Power
X-ray emission in pulsed mode with modulated power to suit each type of procedure. Excellent dose/image quality ratio.





REINFORCED USABILITY

READY TO GO

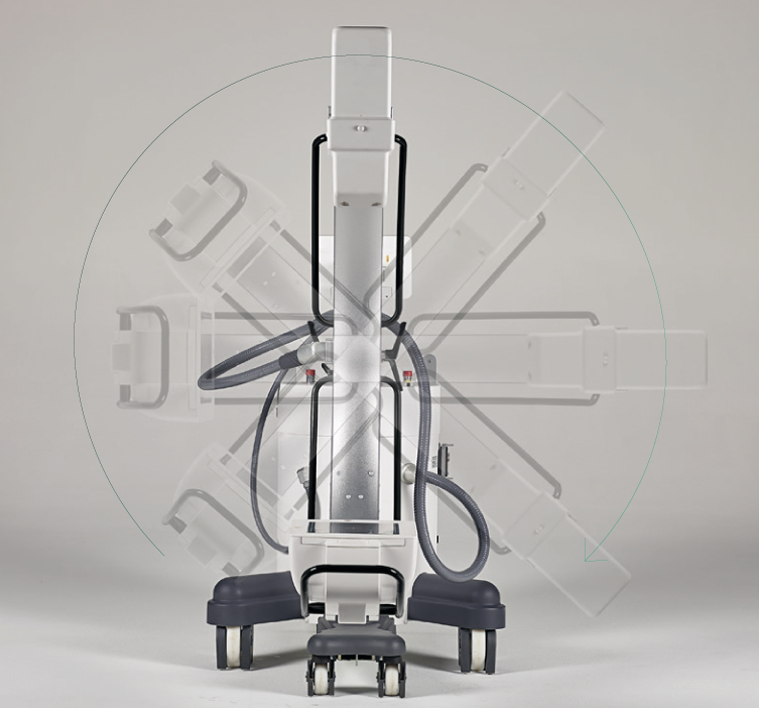

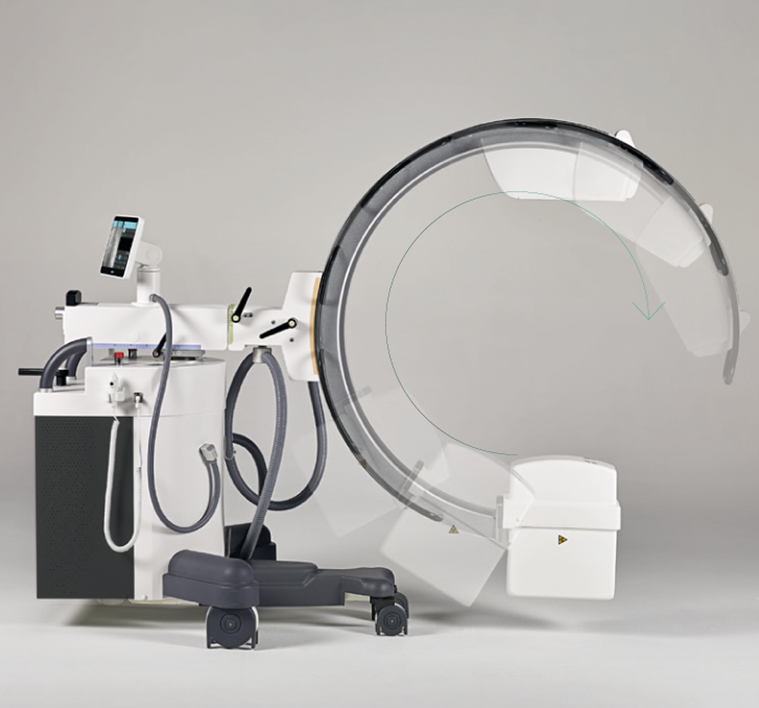

Perfectly balanced C-arm orbital and angular rotation for fast and precise positioning. Responds perfectly to operator touch and feel.

FACING THE SCREENS

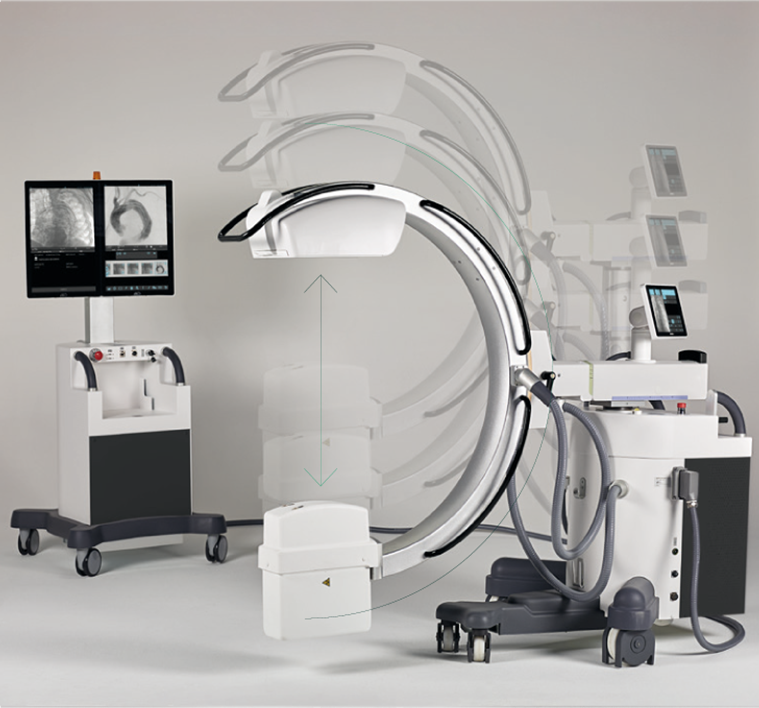

VIEWSTATION
The ultra-wide 27’’ monitor allows for simultaneous display of live and stored images. Thanks to the 4 MP resolution, the monitor shows  even the smallest details. The wide travel of the articulated arm lets you move the monitor comfortably into the ideal position for use or visualization.

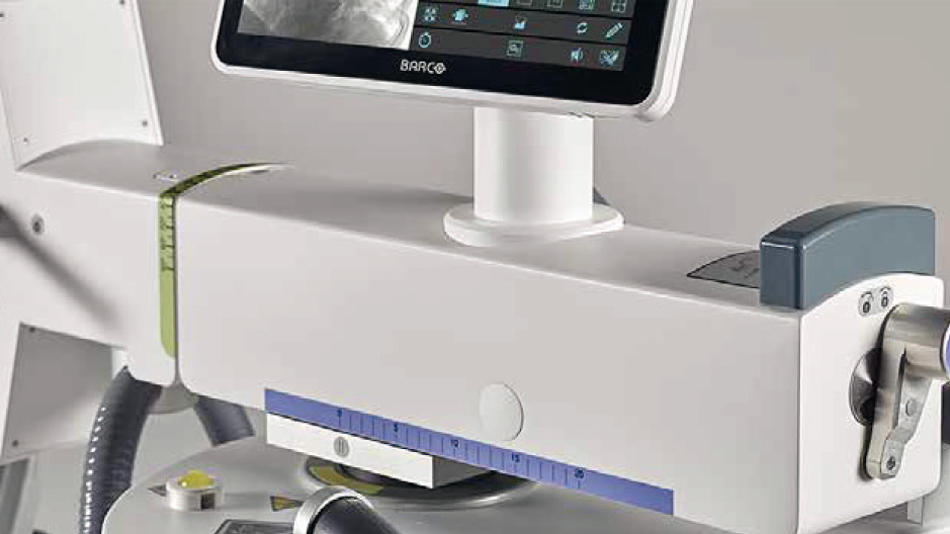

CONSOLE
Always within reach and directly linked to the surgical procedure. Live or saved images are always shown together with replace selection with control commands (select, edit, move, send, drag, compress, reduce, expand) ... simply touch the icon to enable the function.





Quality Features

  • Function control via wireless footswitch for less cables on the floor.
  • Instant login via the NFC device.
  • Removable grid for low dose pediatric surgery and gridless procedures.
  • X-ray emission controlled by either a foot switch or a multi-function hand switch.

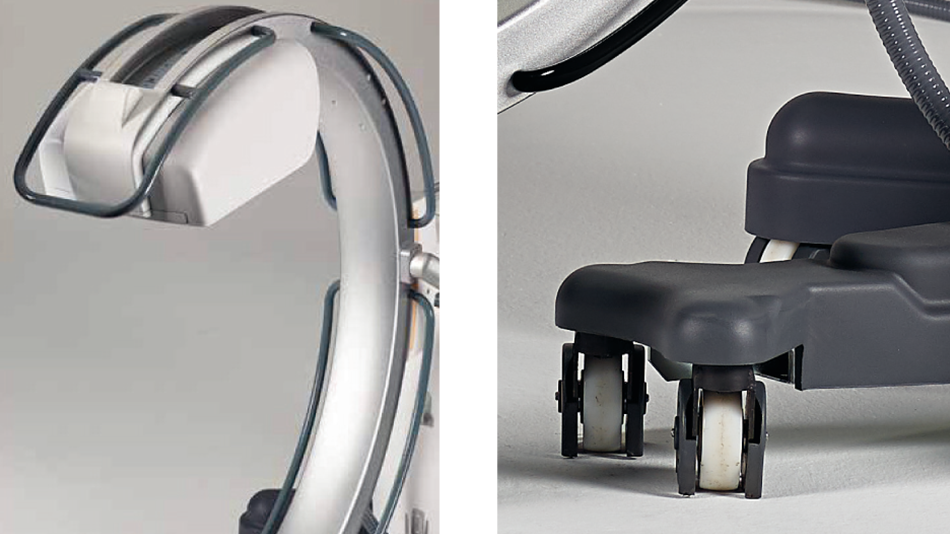

  • Easy lifting of the front wheels for overcoming obstacles.
  • Top quality display, certified for medical use and in conformity with the relevant standards for diagnostic .imaging.
  • Zero dose centering thanks to laser localizers on X-ray tube and on flat panel detector side.

The FDX Visionary-C is manufactured by ATS.
