Studio/ Field Lenses

NEW

2/3" Studio / Field Box Lenses

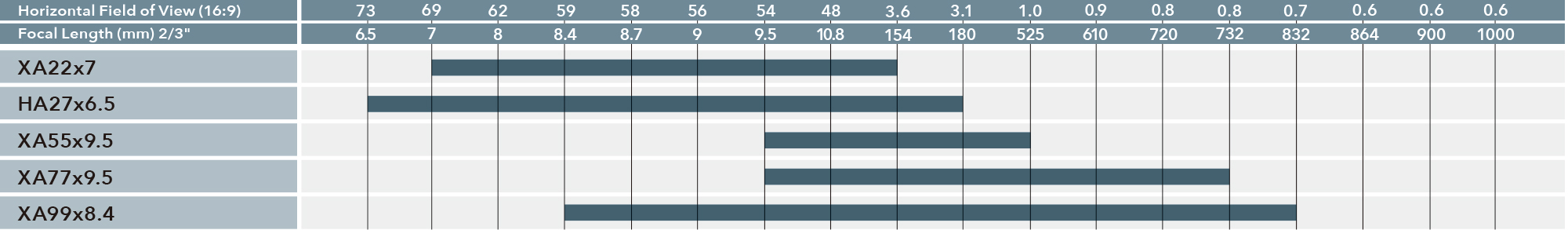

Lineups

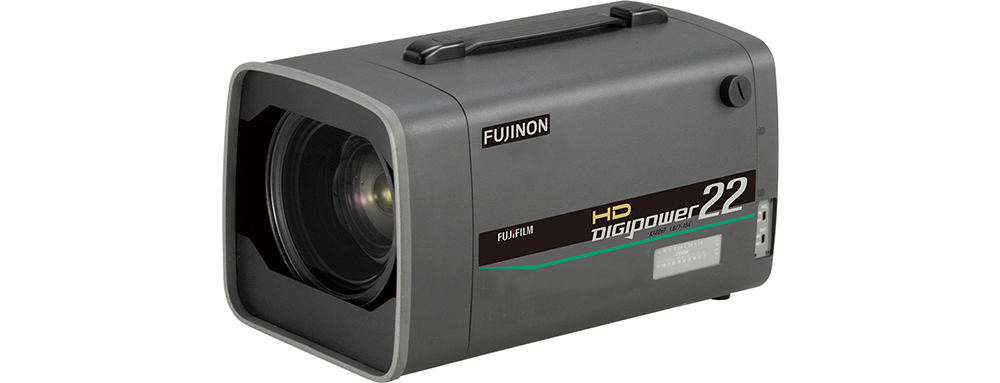

XA22x7BES

  • Compact and Lightweight Design
  • Easy-to-mount ENG Style Camera (Lens supporer is requred)
  • Current Portable lens accessories and Studio Box lens are available
  • Virtual System Support

Specifications

Model Name

XA22x7BES

Focal length

[1x]
7-154mm

[2x]
14-308mm

Zoom ratio

22x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.8 (7-116mm)
1 : 2.4 (154mm)

Minimum Object Distance (M.O.D.) from Front Lens

0.8m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
7mm   1,197 x 673mm
154mm   54 x 31mm

[2x]
14mm   599 x 337mm
308mm   27 x 15mm

Angular field of view
16 : 9 Aspect ratio

[1x]
7mm  68.8° × 42.1°
154mm  3.6° × 2°

[2x]
14mm  37.8° × 21.8°
308mm  1.8° × 1°

Approx. Size

179 × 187 × 340mm(HxWxL)

Approx. Mass

6.6kg

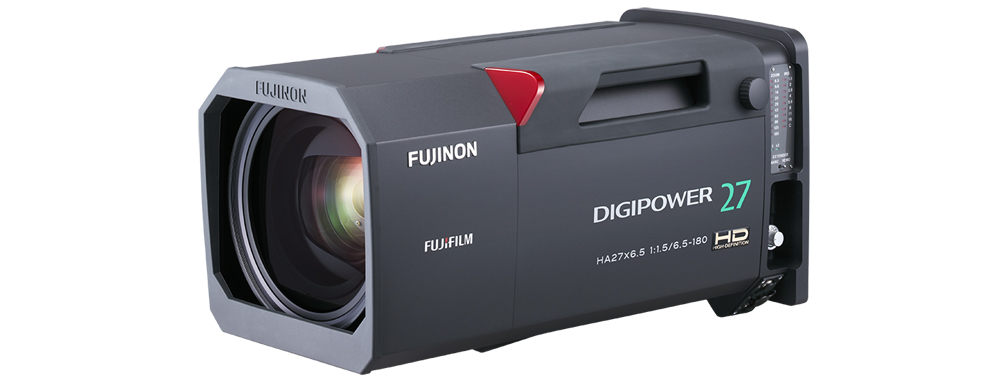

HA27x6.5BESM

  • Outstading optical performance with Fujifilm latest optical technology
  • DIGIPOWER preision servo character provides various seen
  • Focus breathing compensation
  • Virtual system support
  • Advanced back focus (0.05 m)

Specifications

Model Name

HA27x6.5BESM

Focal length

[1x]
6.5-180mm

[2x]
13-360mm

Zoom ratio

27x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.5 (6.5-123mm)
1 : 2.2 (180mm)

Minimum object distance (M.O.D.) from front lens

0.6 m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
6.5mm   1,053 x 592mm
180mm   39 x 22mm

[2x]
13mm   527 x 296mm
360mm   20 x 11mm

Angular field of view
16 : 9 Aspect ratio

[1x]
6.5mm  72.8° × 45°
180mm  3.1° × 1.7°

[2x]
13mm  40.5° × 23.4°
360mm  1.5° × 0.9°

Approx. Size

233 × 231 × 539mm(HxWxL)

Approx. Mass

22.3kg

XA55x9.5BESM

  • 55x high-power zoom and high optical performance
  • Euipped standard blaket for cost-effective ENG style camera
  • Standard feature of OS-TECH technorogy
  • Virtual System Support
  • Adoption of new design

Specifications

Model Name

XA55x9.5BESM

Focal length

[1x]
9.5-525mm

[2x]
19-1,050mm

Zoom ratio

55x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.7 (9.5-308mm)
1 : 2.9 (525mm)

Minimum object distance (M.O.D.) from front lens

3.0m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9.5mm   2,782 x 1,564mm
525mm   51 x 29mm

[2x]
19mm   1,406 x 790mm
1,050mm   26 x 15mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9.5mm  53.6° × 31.7°
525mm  1° × 0.6°

[2x]
19mm  28.3° × 16.1°
1050mm  0.5° × 0.3°

Approx. Size

253 × 253 × 876mm(HxWxL)

Approx. Mass

24.8 kg

  • * XA55x9.5BESM without lens supporter model is also available.

XA77x9.5BESM

  • 77x high-power zoom
  • High optical peformance with newly HT-EBC Coat technorogy
  • OS-TECH technorogy
  • Virtual System Support
  • Adoption of new design

Specifications

Model Name

XA77x9.5BESM

Focal length

[1x]
9.5-732mm

[2x]
19.0-1,464mm

Zoom ratio

77x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.7 (9.5-335mm)
1 : 3.8 (732mm)

Minimum object distance (M.O.D.) from front lens

2.7m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9.5mm   2,425 x 1,363mm
732mm   32 x 18mm

[2x]
19.0mm   1,241 x 697mm
1,464mm   16 x 9mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9.5mm  53.6° × 31.7°
732mm  0.8° × 0.4°

[2x]
18.6mm  28.3° × 16.1°
1464mm  0.4° × 0.2°

Approx. Size

253 × 253 × 656.4mm(HxWxL)

Approx. Mass

22.4kg

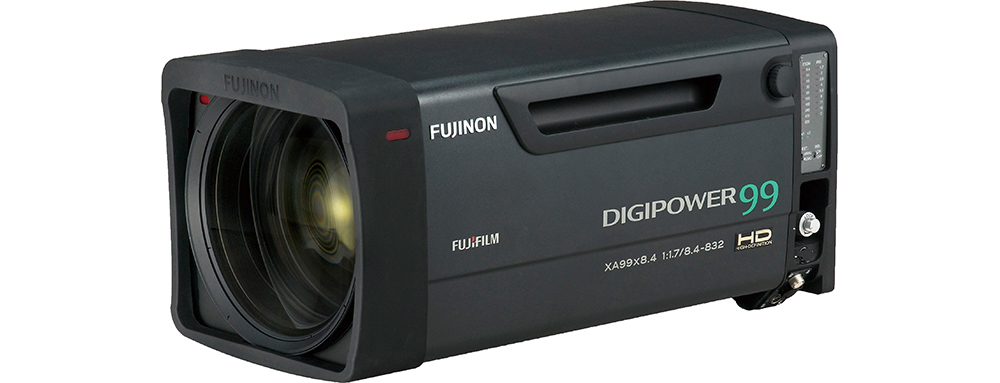

XA99x8.4BESM

  • Wider 8.4mm with 99x high-power zoom
  • Outstanding HD optical performance combined aspherical technology and new HT-EBC coating
  • Advanced OS-TECH Technorogy
  • Superior operability with smaller size and weight
  • Virtual System Support

Specifications

Model Name

XA99x8.4BESM

Focal length

[1x]
8.4-832mm

[2x]
16.8-1,664mm

Zoom ratio

99x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.7 (8.4-341mm)
1 : 4.15 (832mm)

Minimum object distance (M.O.D.) from front lens

2.95m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
8.4mm   2,950 x 1,658mm
832mm   31 x 17mm

[2x]
16.8mm   1,538 x 864mm
1,664mm   16 x 9mm

Angular field of view
16 : 9 Aspect ratio

[1x]
8.4mm  59.4° × 35.6°
832mm  0.7° × 0.4°

[2x]
16.8mm  31.9° × 18.2°
1664mm  0.3° × 0.2°

Approx. Size

258 × 264 × 610mm(HxWxL)

Approx. Mass

23.5kg
