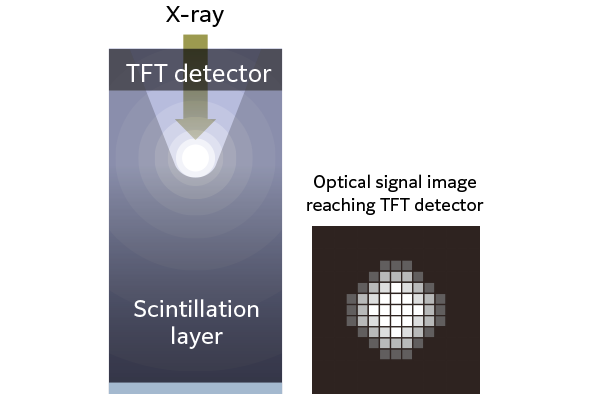

Equipped with Irradiated Side Sampling (ISS) method, signal detection and transmission within the detector are improved by mounting the TFT on the incident side of the detector. This provides a shorter distance for the signal to travel from the scintillator to the TFT array creating a sharper image with lower dose of X-rays.
Conventional method
ISS system reading technology
Fujifilm's ISS method incorporates a noise reduction circuit that reduces image noise and graininess in low-density areas.
Automatic Exposure Detection(AED) technology allows automatic X-ray detection removing the requirement for connection between the X-ray generator and DR power supply unit to automatically detect X-rays and start image creation.

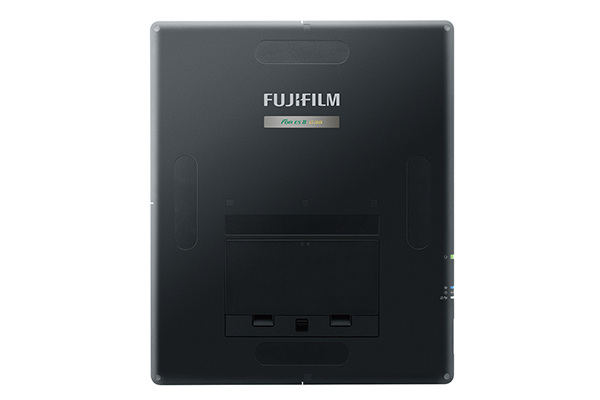

FDR ES II C35[14”×17”model]
FDR ES II C43[17”×17”model]

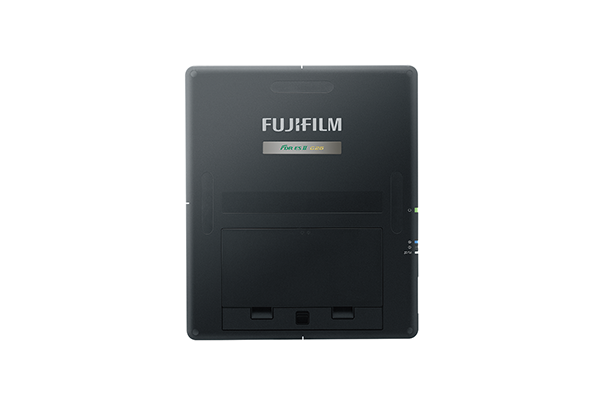

FDR ES II C25[10”×12”model]

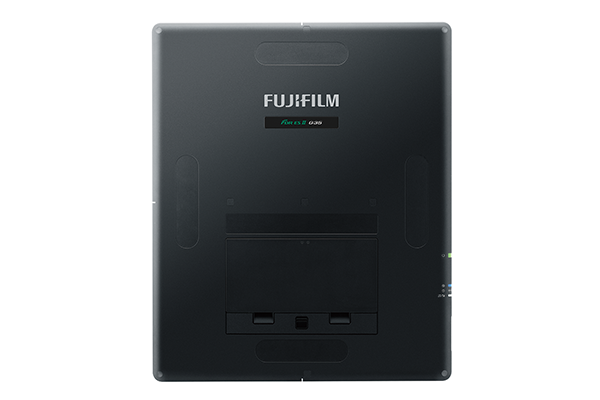

FDR ES II G35[14”×17”model]

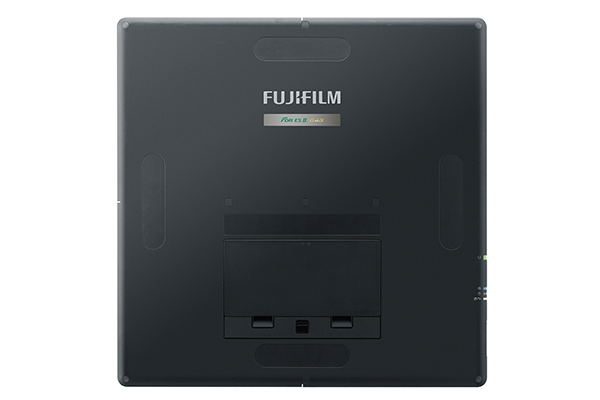

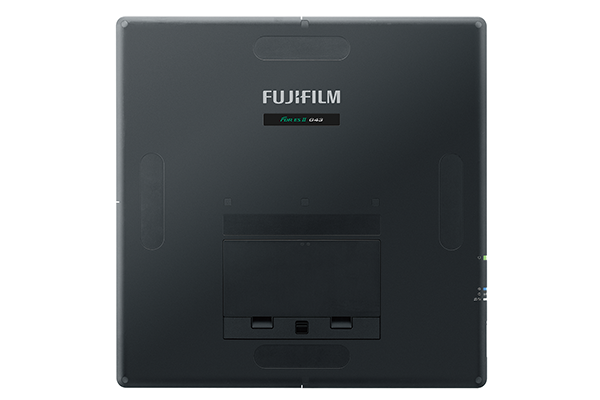

FDR ES II G43[17”×17”model]
The 17×17 square shaped cassette allows improved workflow by removing the requirement of switching the cassette horizontally or vertically during the examination.
IPX3 waterproofing*1 with Easy-to-clean flat shape
- *1 These effects cannot always be guaranteed in the future for its product characteristics.

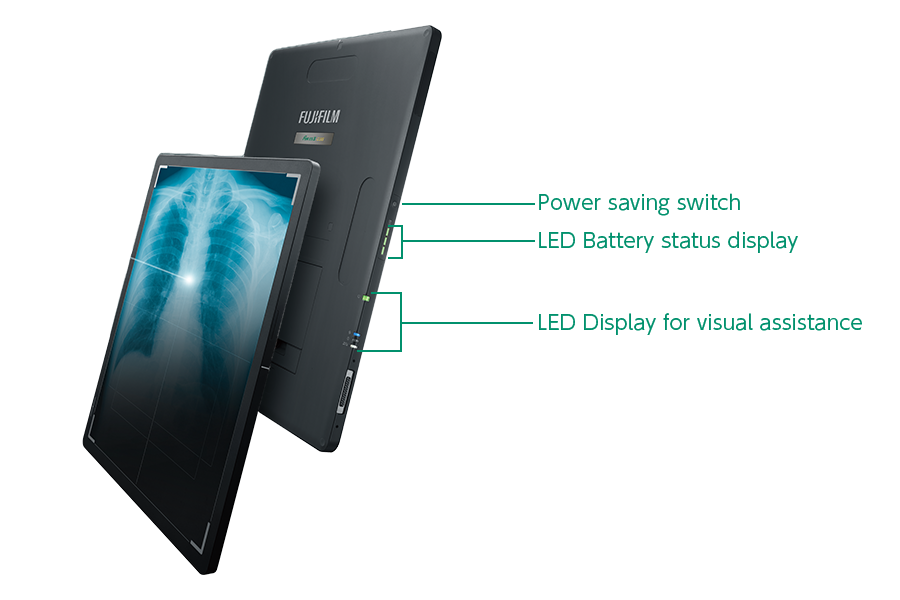

Power saving switch is equipped on the side of panel and allows to change to low power mode by pressing. It conserves battery power when the panel is not in use.

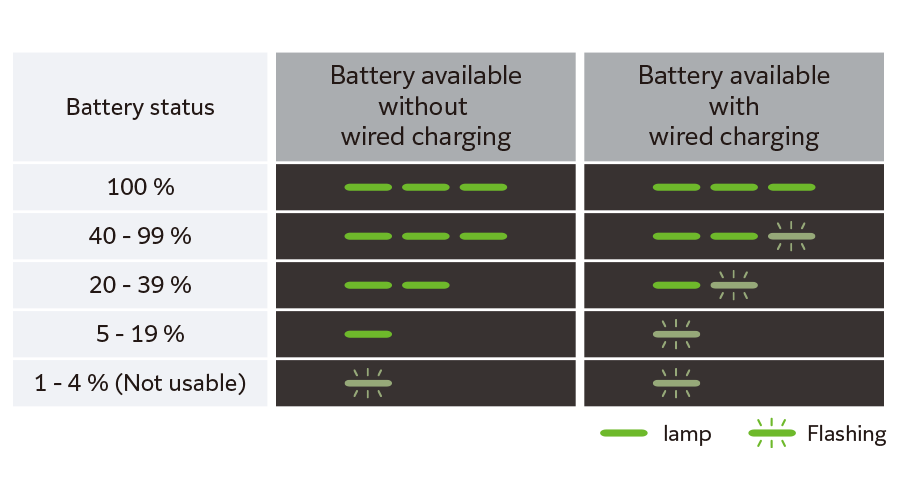

The detector is equipped with a side mounted LED bar that displays remaining battery status. This allows a simple visual check of remaining battery, reducing anxiety when using the detector.

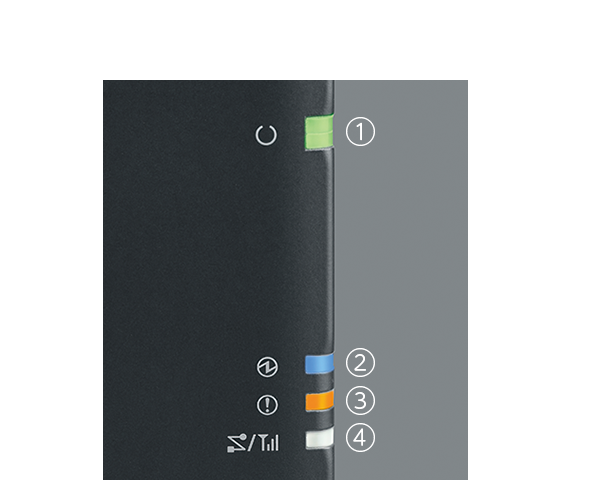

The left side of the detector is equipped with LED lights, which provide status information on Power, Device operation and connectivity.
①Device status
When the device is ready for X-ray exposure, the LED lights up in green.
②Power status
When the device is on, the LED lights up in blue.
③Issue detector
When there is an issue, it lights up in orange
④Connectivity with Image processing unit
It lights up in white when the device is connected with Image processing unit.

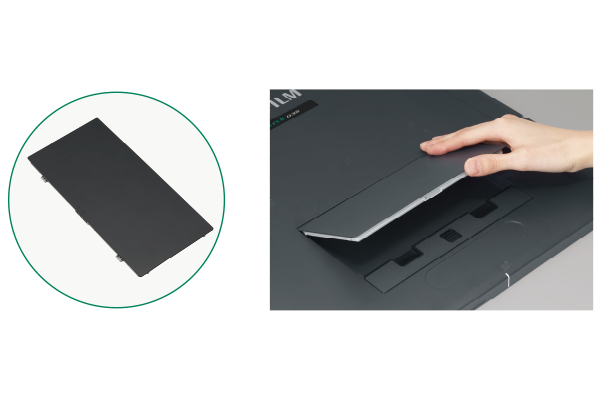

The battery replacement workflow has been improved by simple battery latch structure. The battery can be replaced with one hand and ready to image in 30 seconds.
- * The battery is an accessory of FDR ES II.
FUJIFILM has over 30 year’s experience the invention of the world’s first CR system to provide optimized X-ray imaging.
Simpler, more efficient with improved workflow for the radiographer our advanced image processing provides higher diagnostic value with reduced impact for the patients.
- * The Console Advance, which is another medical device, can generate images to assist diagnosis by linking patient information and processing the images, and it is compatible with the FDR ES II.
Virtual Grid processing corrects for the effects of scatter radiation. Without the need for a grid, Virtual Grid retains high contrast and image sharpness, while preventing the asymmetric density resulting from misalignment of X-ray tube and detector. （Option）
No Grid
Virtual Grid
Real Grid
Abdomen
Cervical Spine
Thoracic Spine
Lumber Spine

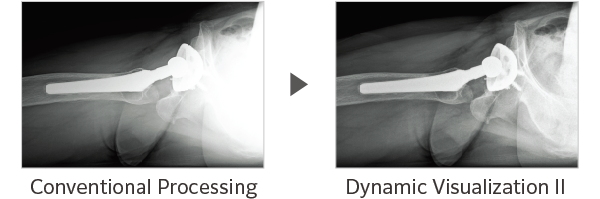

Advanced recognition algorithms using automatic calculations of estimated 3D image data, identify the body part required and adjusts contrast, density and enhancement for optimised image display. （Option）
FDR ES II mobile solution*2 transforms your analogue mobile X-ray units into Digital Radiography systems quickly and easily. Images can be checked quickly on the spot, thus improving efficiency.
- *2 The mobile type of Console Advance is also necessary in addition to FDR ES II.
- Manufacturer
FUJIFILM Corporation
The instructions for use of "FDR ES II and its accessories" are provided in electronic form by PDF format. Please access the following address and find this product page.
