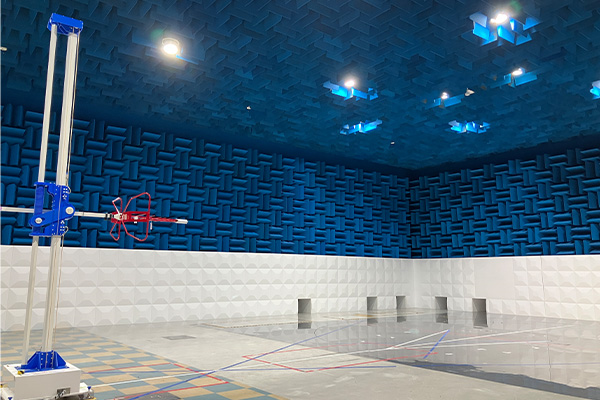

10-meter Semi Anechoic Chamber (nicknamed "Neptune")

FBICC Test Laboratory

Electromagnetic Compatibility (EMC)

1. Test Standards
1-1. Electromagnetic Compatibility (EMC)
  • CISPR 11/EN 55011
  • CISPR 32/EN 55032
  • IEC/EN 61000-6-3
  • IEC/EN 61000-6-4
  • FCC Part 15 Subpart B
  • FCC Part 18
  • IEC/EN 61000-3-2
  • IEC/EN 61000-3-12
  • IEC/EN 61000-3-3
  • IEC/EN 61000-3-11
1-2. Immunity
  • CISPR 35/EN 55035
  • IEC/EN 61000-6-1
  • IEC/EN 61000-6-2
  • IEC/EN 61000-4-2
  • IEC/EN 61000-4-3
  • IEC/EN 61000-4-4
  • IEC/EN 61000-4-5
  • IEC/EN 61000-4-6
  • IEC/EN 61000-4-8
  • IEC/EN 61000-4-11
  • IEC/EN 61000-4-34
1-3. Local Standard

As VCCI registered testing laboratory, FBICC Test Laboratory can offer the test data for applying for compliance with such standards:

  • VCCI-CISPR 32
2. Overview of the Test Facilities
2-1. Semi Anechoic Chamber for EMI2-2. Shield Room2-3. Full Anechoic Room (FAR) for Immunity
2-1. Semi Anechoic Chamber for EMI

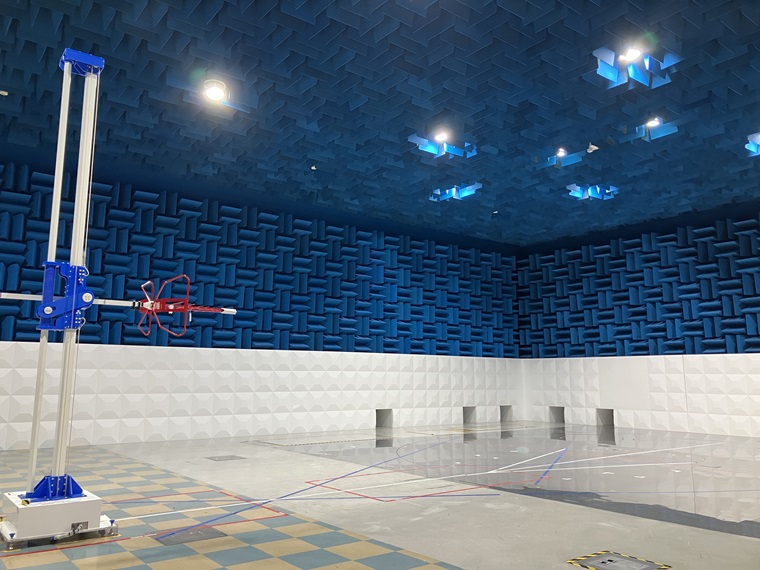

10-meter Semi Anechoic Chamber (nicknamed "Neptune")
Measurement Distance 3m, 10m
Turn Table Size Φ3m and Φ10m in diameter
Weight Limits : Φ3m - 3,000kg; Φ10m - 10,000kg
Size of Carrying-in Entrance 3.0 (W) × 3.0 (H) m
Test Frequency 9kHz-40GHz
Power capacity Single Phase : 6kVA (System 1)
Single Phase : 32kVA, Three Phase : 96kVA (System 2)
Power Outlet Frequency 50Hz, 60Hz

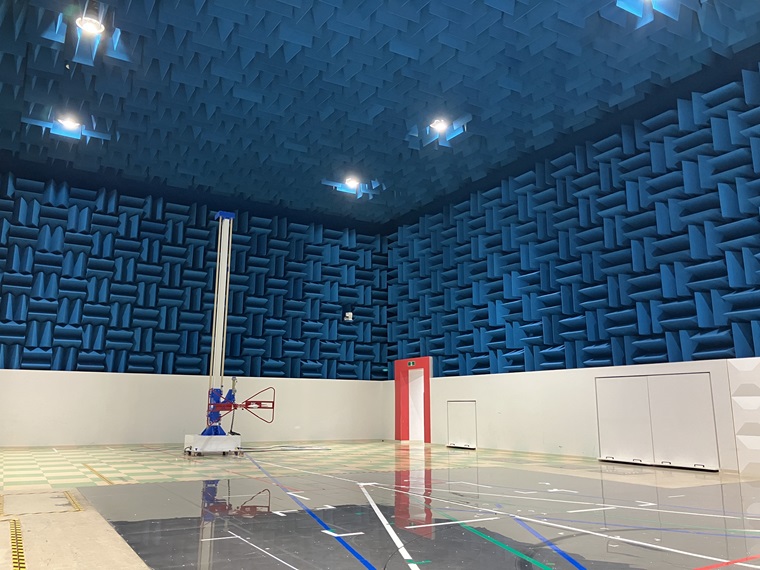

10-meter Semi Anechoic Chamber-II (nicknamed "Verze")
Measurement Distance 3m, 10m
Turn Table Size Φ5m in diameter,Weight Limit: 5,000kg
Size of Carrying-in Entrance 3.0(W) × 3.0(H) m
Test Frequency 9kHz-40GHz
Power capacity Single Phase : 6kVA (System 1)
Single Phase : 12kVA, Three Phase : 36kVA (System 2)
Power Outlet Frequency 50Hz, 60Hz
Size of Vertical Ground Reference Plane 5.0(W) × 2.0(H) m (max.)

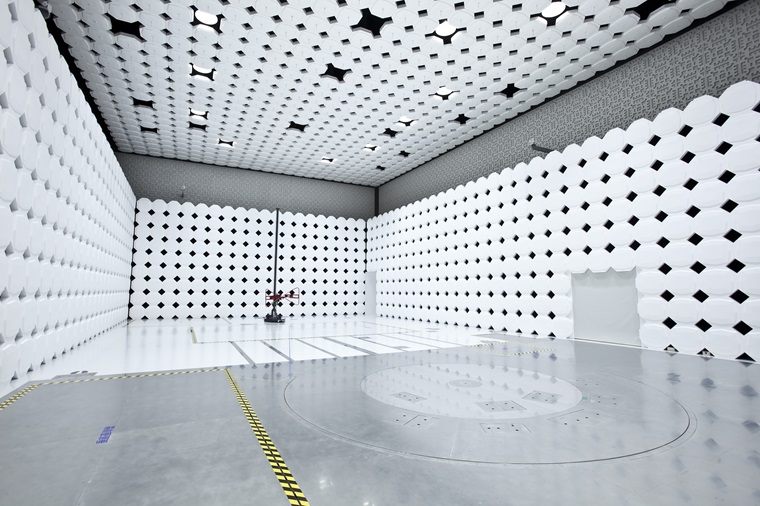

10-meter Semi Anechoic Chamber-III (nicknamed "Legend")
Measurement Distance 3m, 10m
Turn Table Size Φ3m and Φ5m in diameter
Weight Limits : Φ3m / 5m - 5,000kg
Size of Carrying-in Entrance 2.5 (W) × 2.5 (H) m
Test Frequency 9kHz-40GHz
Power capacity Single Phase : 12kVA (System 1)
Single Phase : 36kVA, Three Phase : 36kVA (System 2)
Power Outlet Frequency 50Hz, 60Hz
Size of Vertical Ground Reference Plane 5.0 (W) × 2.4 (H) m (max.)
Carry-in Lifter to Laboratory Building (StarWave) (W)2.5m ×(D)3.0m× (H)2.7m、Weight Limit:2,000kg
2-2. Shield Room

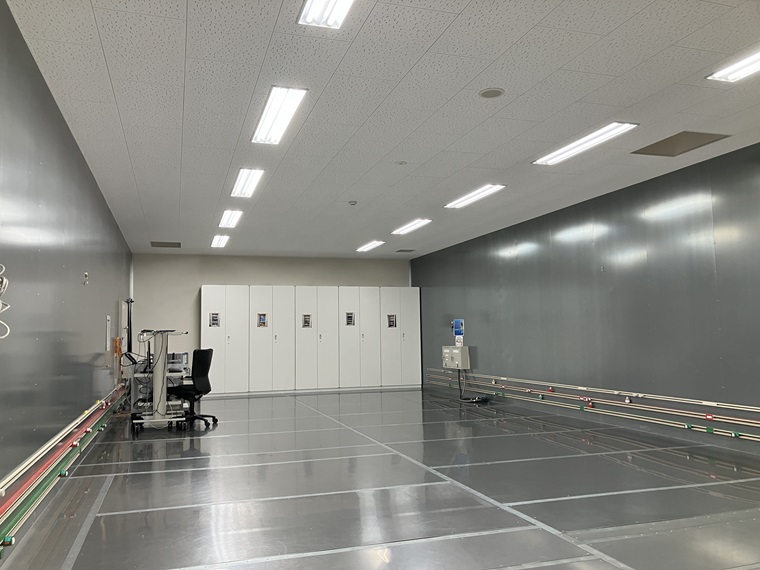

Shield Room (nicknamed "Delta")
Shield Room Size (W)5.8m × (L)16.4m × (H)2.8m
(Internal Usable Dimensions)
Size of Carrying-in Entrance (W)2.0m × (H)2.0m
Shield Capacity 9kHz~18GHz
Power capacity Single Phase : 6kVA (Syetem 1)
Single Phase : 12kVA (Syetem 2)
Single Phase : 16kVA, Three Phase : 48kVA (Syetem3)
Power Outlet Frequency 50Hz, 60Hz

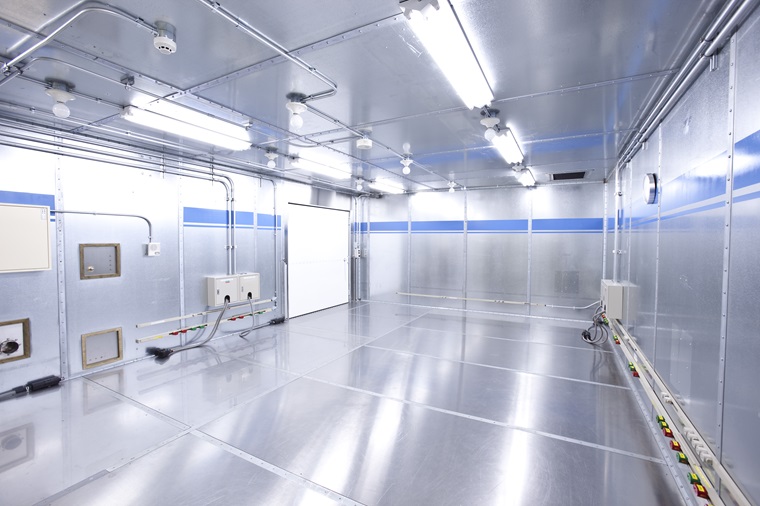

Shield Room (nicknamed "Iris")
Shield Room Size (W)4.6m × (L)8.8m × (H)2.8m
(Internal Usable Dimensions)
Size of Carrying-in Entrance 2.0 (W) × 2.0 (H) m
Shield Capacity 9kHz~18GHz
Power capacity Single Phase : 9kVA(Syetem 1)
Single Phase : 9kVA(Syetem 2)
Power Outlet Frequency 50Hz, 60Hz

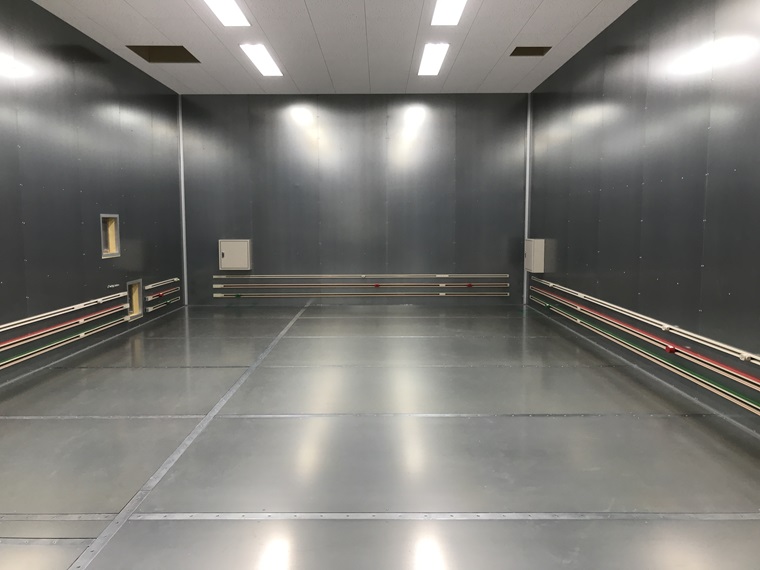

Shield Room (nicknamed "Crea")
Shield Room Size 5.0 (W) ×8.0 (L) ×2.5 (H) m
(Internal Usable Dimensions)
Size of Carrying-in Entrance (W)2.0m × (H)2.0m
Shield Capacity 9kHz~18GHz
Power capacity Single Phase : 6kVA(Syetem 1)
Single Phase : 9kVA(Syetem 2)
Power Outlet Frequency 50Hz, 60Hz
2-3. Full Anechoic Room (FAR) for Immunity

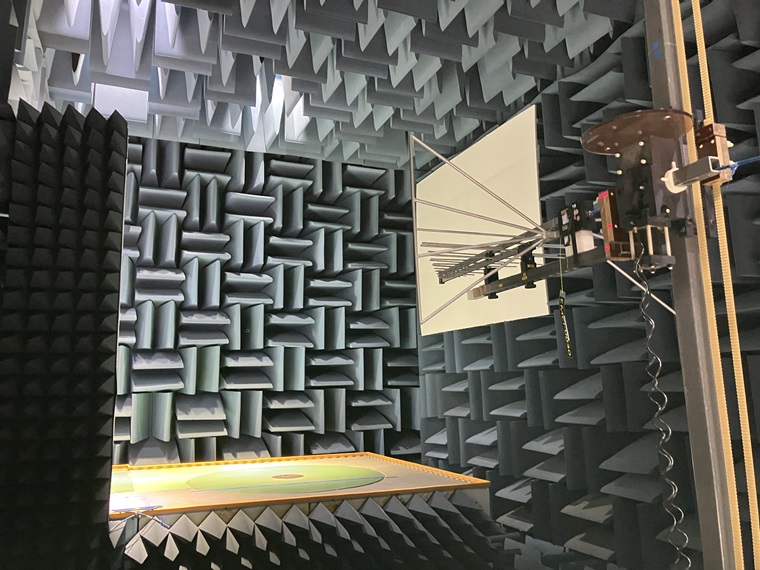

Full Anechoic Room (nicknamed "Aqua")
Measurement Distance 3m
Turn Table Size Φ2m in diameter,Weight Limit: 200kg
Field Uniformity 80MHz～6GHz
Size of Carrying-in Entrance (W)2.0m × (H)2.0m
Power capacity Single Phase 6kVA
Power Outlet Frequency 50Hz, 60Hz
