Electromagnetic Compatibility (EMC)
1.Test Standards
1-1. Electromagnetic Compatibility (EMC)
- IEC/EN 61000-3-2
- IEC/EN 61000-3-3
- IEC/EN 61000-3-11
- IEC/EN 61000-3-12
- FCC Part 15B
- IEC/EN 61326-1
- EN 55011
- CISPR Publ. 11
- CISPR Publ.22
- EN 55032
- CISPR Publ. 32
- IEC/EN 61000-6-3
- IEC/EN 61000-6-4
1-2. Immunity
- EN 55024
- CISPR Publ.24
- EN 55035
- CISPR Publ.35
- IEC/EN 61000-4-2
- IEC/EN 61000-4-3
- IEC/EN 61000-4-4
- IEC/EN 61000-4-5
- IEC/EN 61000-4-6
- IEC/EN 61000-4-8
- IEC/EN 61000-4-11
- IEC/EN 61000-4-31
- IEC/EN 61000-4-39
- IEC/EN 61000-6-1
- IEC/EN 61000-6-2
1-3. Local Standard
Although the following standards are not included within the scope of BELAC accreditation, FBICC Test Laboratory can offer the test data for applying for compliance with such standards:
- VCCI-CISPR 32
2.Overview of the Test Facilities
2-1. Anechoic Chamber for EMI

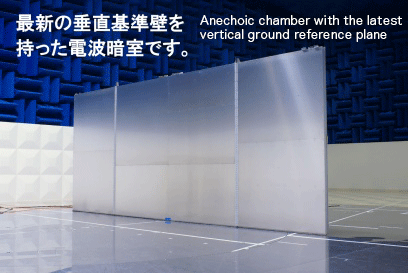

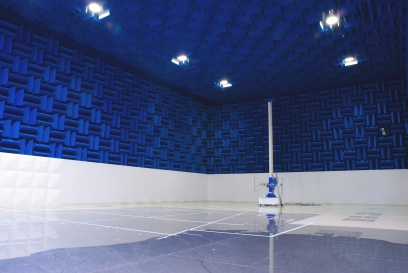

10-meter Anechoic Chamber (nicknamed "Neptune")
| Measurement Distance | 3m, 10m |
|---|---|
| Turn Table Size | Φ3m and Φ10m in diameter Weight Limits : Φ3m - 3,000kg; Φ10m - 10,000kg |
| Size of Carrying-in Entrance | 3.0 (W) × 3.0 (H) m |
| Test Frequency | 9kHz-40GHz |
| Power capacity | Single Phase : 30kVA Three Phase : 90kVA |
| Power Outlet Frequency | 50Hz, 60Hz |

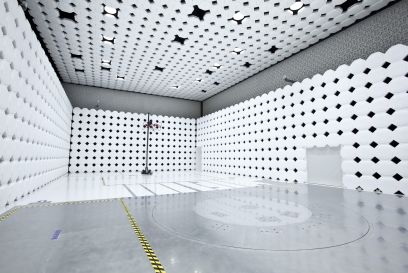

10-meter Anechoic Chamber-II (nicknamed "Verze")
| Measurement Distance | 3m, 10m |
|---|---|
| Turn Table Size | Φ5m in diameter,Weight Limit: 5,000kg |
| Size of Carrying-in Entrance | 3.0(W) × 3.0(H) m |
| Test Frequency | 9kHz-40GHz |
| Power capacity | Single Phase:28kVA Three Phase:42kVA |
| Power Outlet Frequency | 50Hz, 60Hz |
| Size of Vertical Ground Reference Plane | 5.0(W) × 2.0(H) m (max.) |

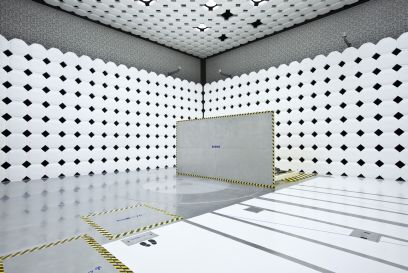

10-meter Anechoic Chamber-III (nicknamed "Legend")
| Measurement Distance | 3m, 10m |
|---|---|
| Turn Table Size | Φ3m and Φ5m in diameter Weight Limits : Φ3m / 5m - 5,000kg |
| Size of Carrying-in Entrance | 2.5 (W) × 2.5 (H) m |
| Test Frequency | 9kHz-40GHz |
| Power capacity | Single Phase:12kVA Three Phase:36kVA |
| Power Outlet Frequency | 50Hz, 60Hz |
| Size of Vertical Ground Reference Plane | 5.0 (W) × 2.4 (H) m (max.) |
| Carry-in Lifter to Laboratory Building (StarWave) | (W)2.5m ×(D)3.0m× (H)2.7m、Weight Limit:2,000kg |
2-2. Shield Room for Immunity
Shield Room for Immunity (nicknamed "Crea")
Graz
| Shield Room Size | 6.0 (W) ×10.0 (L) ×3.0 (H) m (Internal Usable Dimensions) |
|---|---|
| Size of Carrying-in Entrance | 2.4 (W) × 2.0 (H) m |
| Shield Capacity | 9kHz~40GHz |
| Power capacity | Single Phase : 8kVA and 12kVA (2systems) |
| Power Outlet Frequency | 50Hz, 60Hz |
Delta
| Shield Room Size | 6.0 (W) ×8.0 (L) ×3.0 (H) m (Internal Usable Dimensions) |
|---|---|
| Size of Carrying-in Entrance | 2.0 (W) × 2.0 (H) m |
| Shield Capacity | 9kHz~40GHz |
| Power capacity | Single Phase / Three Phase : 8kVA and 12kVA (2systems) |
| Power Outlet Frequency | 50Hz, 60Hz |
Crea
| Shield Room Size | 5.0 (W) ×8.0 (L) ×2.5 (H) m (Internal Usable Dimensions) |
|---|---|
| Size of Carrying-in Entrance | 2.0 (W) × 2.1 (H) m |
| Shield Capacity | 9kHz~40GHz |
| Power capacity | Single Phase : 6kVA and 8kVA (2systems) |
| Power Outlet Frequency | 50Hz, 60Hz |
2-3. Full Anechoic Room (FAR) for Immunity
Full Anechoic Room (nicknamed "Aqua")
| Measurement Distance | 3m |
|---|---|
| Turn Table Size | Φ2m in diameter,Weight Limit: 200kg |
| Field Uniformity | 80MHz～6GHz |
| Size of Carrying-in Entrance | (W)2.0m × (H)2.0m |
| Power capacity | Single Phase 6kVA |
| Power Outlet Frequency | 50Hz, 60Hz |
