ApeosPro C750 / C650

A3 Colour Multifunction Printer

New Times, New Apeos

ApeosPro C810 / C750


  • Copy / Print: Colour/ Monochrome 75ppm*1
  • Scan: Colour/ Monochrome 270ppm*2
  • Fax*3: Super G3 Fax
  • Printing Resolution: 2,400 x 2,400dpi
  • Paper Weight: 52 to 350gsm
  • Paper Size: 100 x 148 mm to 330 x 1,300 mm
  • Cloud Enabled
  • Mobile Enabled
  • Supports Long Paper
    *1: For C750. C650 is 65ppm.
    *2: 1 pass, 2 sided scanning.
    *3: Optional.
Customer who requires:
  • A device that can create flyers and catalogues quickly to take advantage of business opportunities
  • A device that can make beautiful in-house samples that cannot be taken outside, such as mock-ups of new products
  • A device that can print on a wide range of papers such as lightweight paper, cardstock paper, and embossed paper
  • A device for general office use, in terms of functions and operability
  • Sharing creative team's output management with other teams


Promotes in-house production of eye-catching promotional materials

Supports a wide range of paper sizes and thicknesses, and can create a variety of deliverables. You can easily create flyers, business cards, and posters to expand your business.

  • Supports a wide range of sizes from postcards to long paper (330 x 1,300 mm*)
  • Supports a wide range of thicknesses from 52gsm lightweight paper to 350gsm cardstock paper
  • Renewed the core technology for image writing, and prints beautifully even on envelopes and embossed paper with uneven surface
    * When feeding paper from Bypass Tray installed directly to the printer, or from Multi Sheet Inserter for Banner Print. When printing on one side.
    2 sided printing is up to 330 x 762 mm.

Print beautifully on various types of paper

Supports the various characteristics of paper, enabling high-precision output.

  • The sensor detects misalignment of paper traveling at high speed and automatically corrects it
  • By adjusting the force applied to the paper according to the paper thickness, stable paper feed is performed even with cardstock paper, and high registration accuracy is achieved
  • Built-in decurler flattens paper curl and stabilises paper feed
  • While viewing the amount of curl on paper, curl adjustments can be performed in real time*
  • The optimum output conditions for each type of paper, such as transfer conditions, can be registered (maximum: 100) so that high-quality output can be achieved efficiently simply by selecting the paper type
    * Optional.

Variable data printing for effective marketing campaigns

Create in-house highly appealing promotional materials by customising messages and images to suit each individual in the target audience.

  • Supports variable printing, which prints one sheet at a time with the content replaced
  • Supports industry standard PPML with variable printing

Beautiful post-processing output with in-line finishing options

From printing to post-processing, you can do it all at once.

  • Beautifully designed full page photo booklets with full bleed trim
  • High-quality booklet with a square back finish for a flat book spine
  • Crease* function to create unique accordion fold for promotional materials
  • Insert oversized A3 size paper as covers
  • Supports frequently used office functions - Punch, Side Stitch, Saddle Staple, and Single Fold
    Note: Optional. See "Optional" for details on the output options and post-processing.
    * Up to five creases can be made for mountain fold and valley fold. Folding is performed manually.

"World's first" high resolution LED printhead print output

Latest technology to achieve professional quality image and high-definition printing.

  • World's first* LED printhead with 2,400dpi resolution.
  • Vibrant colours with Super EA Eco toner and its smallest toner particles for smooth gradation
  • Clear reproduction of images with fine lines and small text
  • Gloss function brings the beautiful glossy finish to the end product (e.g. photos.)
    * Dry-type electrophotographic method. As of March 2021. According to our research.

Highest productivity level with continuous operations

Excellent durability and ability to handle core output and high volume printing.

  • Achieves print speed as high as 75ppm*1
  • Low wear photoconductor drum with long life reduces the frequency of drum replacement
  • High capacity paper feed up to 7,360sheets*2
  • Replace toner and add paper without stopping the print jobs in progress, and maximise machine runtime
    *1: For C750. C650 is 65 ppm.
    *2: 80 gsm paper. When High Capacity Feeder C3-DS is installed.

Maintain print quality with easy adjustment

Use inbuilt standard SIQA* to easily & quickly adjust the print quality.

  • Simply scan the dedicated charts to automatically calculate the appropriate adjustment values for both Side 1 & 2 Registration, Density Uniformity Adjustment, and Adjust Image Transfer
  • Quick & simple user operation without need of remembering fine calibration values
  • In addition to print quality, machine utilisation rate is also improved
    * Simple Image Quality Adjustment

Supporting Technologies

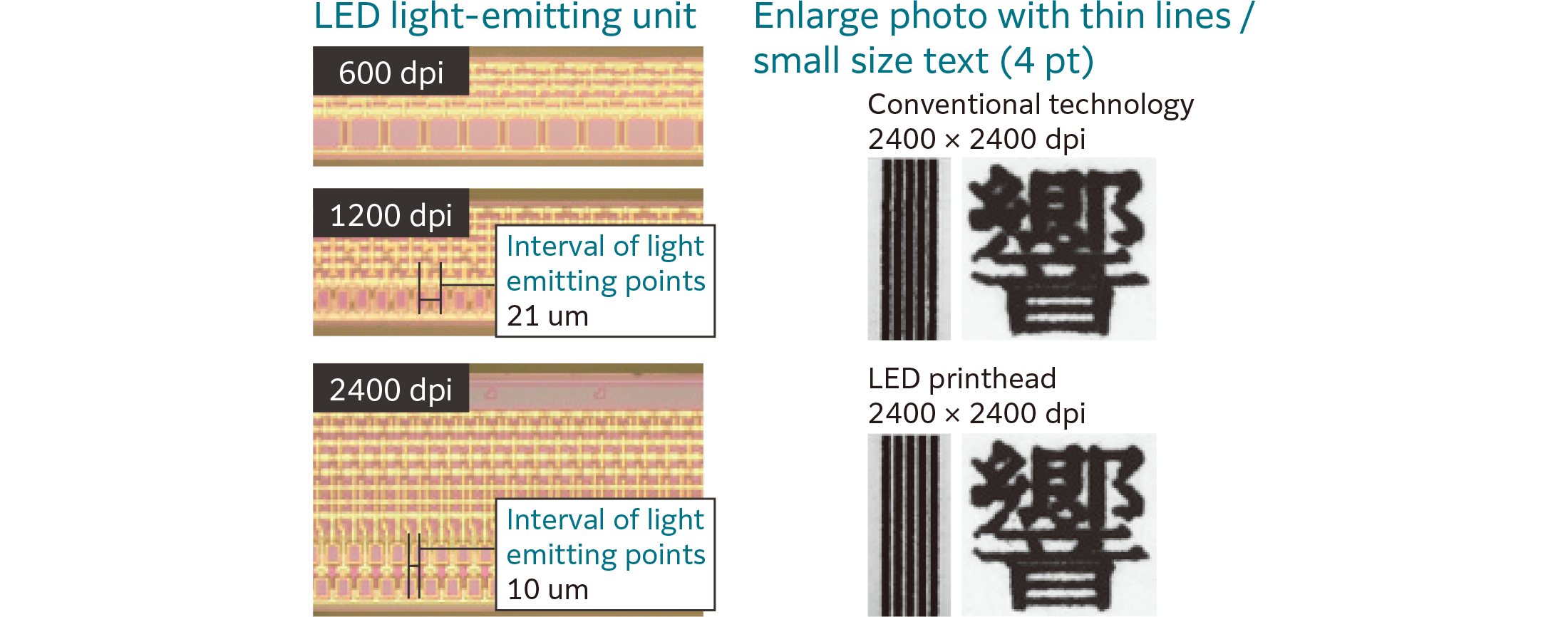

World's first*, LED printhead to achieve 2,400 x 2,400dpi high resolution

LED printheads, which are compact and have high image quality, have evolved to be sharper and higher definition.

  • Thin emitting light to write the image
  • The exposure unit does not vibrate because there is no drive mechanism
  • High resolution of 2,400dpi and digital magnification correction
    * Dry-type electrophotographic method. As of March 2021. According to our research.

Optimise device performance with GP Controller*

GP Controller provides even higher image quality and productivity.
* Graphic Print Controller

High image quality
  • 1,200 x 1,200dpi high-resolution RIP processing
  • 10-bit smooth gradation correction
  • Beautifully reproduces text, thin lines, and gradations
  • 3D calibration that allows for colour adjustment of not only CMYK single colours, and also for mixture of colours

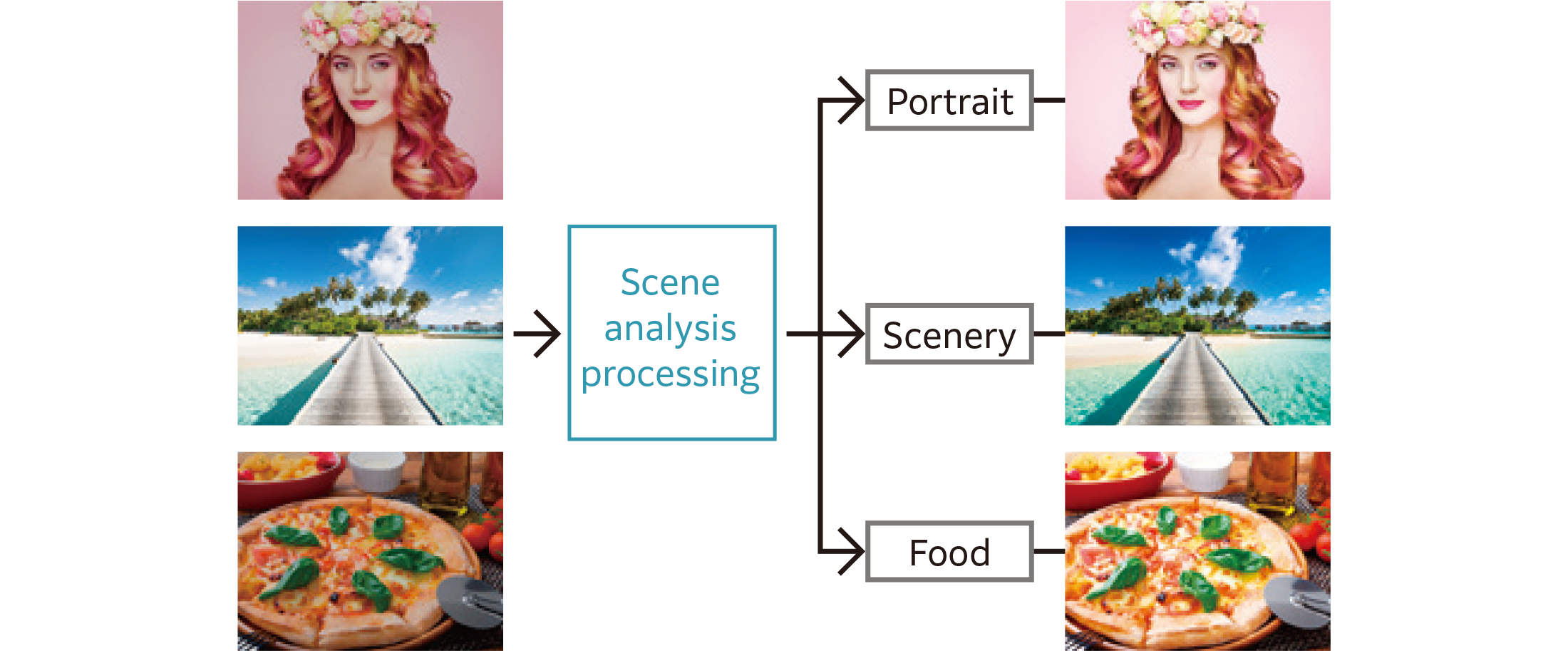

  • RGB images, such as photos, are made even more beautiful by automatically* detecting if they are "Portrait" or "Scenery" and correcting them to match the characteristics
    * You can also specify the correction method manually.

Auto RGB image detect function

High productivity
  • Heavy duty RIP function with high-speed processing for high-quality or variable data print jobs
  • Equipped as a standard with the RIP accelerator board that produces high speed performance beyond the physical specifications of the server
  • High speed serial transmission technology enables high speed job transfer to multifunction devices
  • Easy operation with drag & drop of jobs during preview tasks like imposition or merging
  • Supports industry standard of Adobe® PDF Print Engine 5.0*
  • Comes with industry standard of JDF* format for higher-level systems integration, post-processing systems or building a hybrid-system with offset-printing
  • Software linkage capability (e.g. variable printing) enhances and streamlines printing operations
    * Optional.

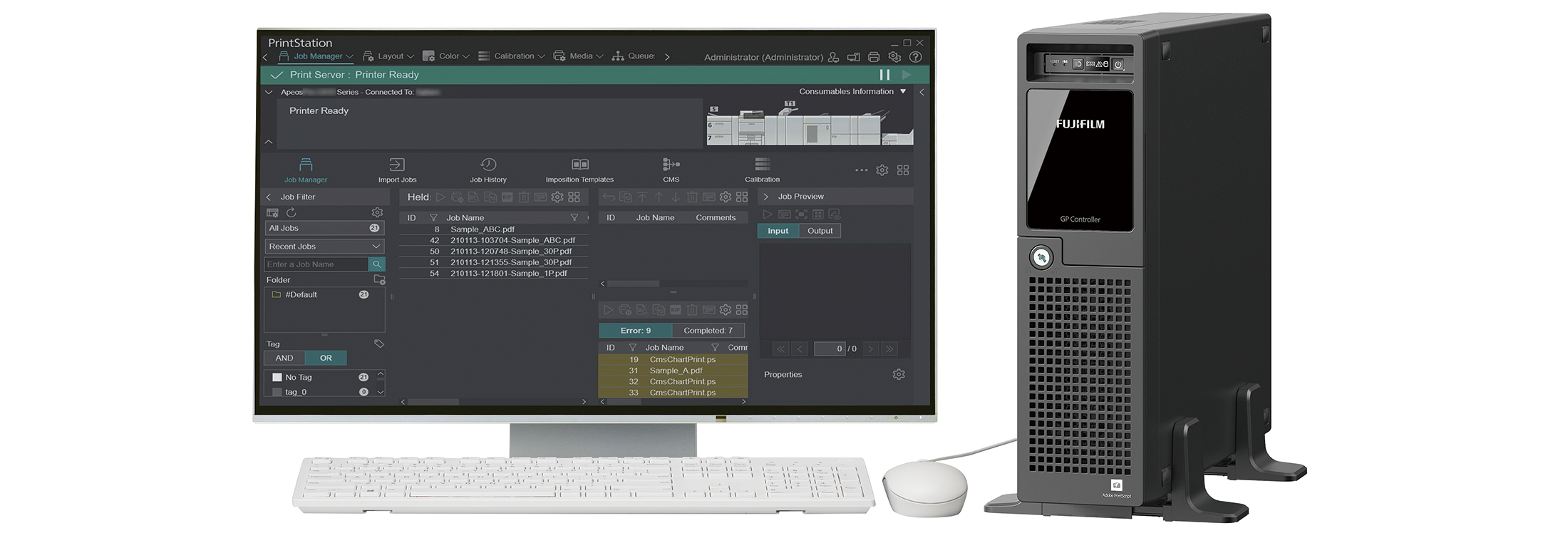

GP Controller D01

Note: - A monitor, key board and mouse are required.
- Images are for illustration purposes only.
            - Actual product may change.

Professional quality + Latest office MFP functionalities

One device that can be used for customers who want to use professional use functions and office functions.

  • Equipped with advanced office functions and operability
  • Linkage with software and cloud services streamlines office operations
  • Various output methods are available to suit user needs and skills
  • GP Controller provides detailed output instructions for professional use
  • With the PCL driver, you can easily and conveniently give print instructions for the office

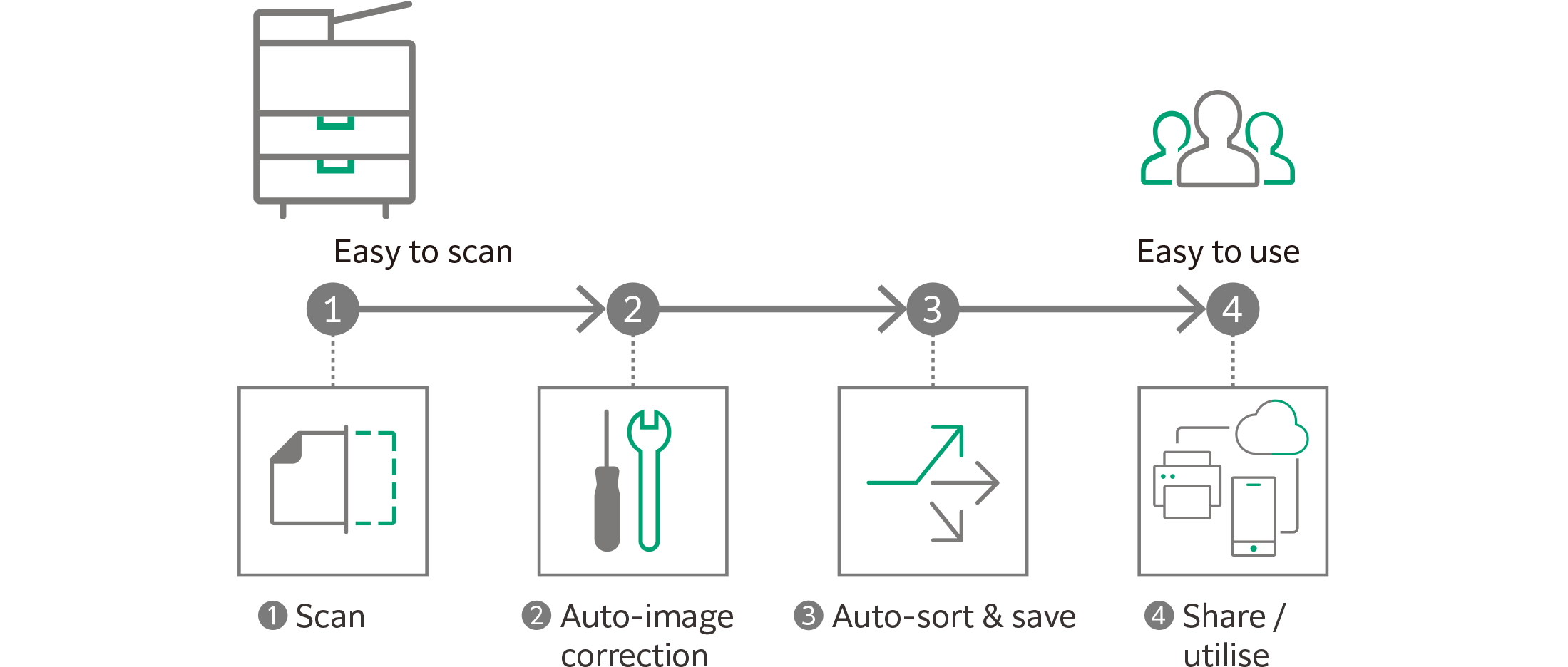

Digitisation of paper documents for effortless document management

With Scan Delivery*, you can automatically process and store scanned images by simply pressing the preset button for each workflow or document type.

  • Automate to set file format, file name, OCR, etc
  • Automatically stores scanned and processed documents in the appropriate destination
  • Specify particular words or characters in a document as the folder or file name
  • 0̸ and other frequently mis-recognised characters can be read correctly
    * Optional.

Fast and efficient operation

Fast startup and output. You can use it anytime you want.

  • Smart WelcomEyes detects approaching user, and automatically recovers from a power-saving state
  • High-end model, yet recovers from sleep mode within 30 seconds
  • First Copy Output Time of 5.4 seconds*
    * Colour priority mode.

Simple scanning to yourself

With ScanAuto, you can easily send scanned data with a touch of a button

  • Automatically adjusts the orientation or 1-sided/2-sided of the original document
  • Automatically sets user mail address as the destination by using user authentication function

Information is an important asset which should be protected at all cost

[Protect from unauthorised user]

User Authentication and Permissions

Unauthorised operations and access are prevented by user identification and usage restrictions.

  • Local Authentication
  • Authentication by Remote Server*
  • IC Card Authentication*
  • User-specific feature access
  • Private Charge Print
  • Image log*
  • Print UUID
    * Optional.
Prevents unwanted access
  • Secondary Ethernet*
    Add Ethernet, separate the network
    * Optional.

[Protects Data]

Protection of communication data

Protects the communication data between the multifunction printer and a PC or file server from eavesdropping or tampering.

  • Encryption of communication paths by SSL/TLS or IPsec
  • Encryption when transferring via SMBv3 and SFTP
  • Scan file encryption/signature
  • Email encryption and signature by S/MIME
  • TLS version limit
  • Elliptic curve cryptography
  • WPA3
Protection of stored documents in multifunction printer

Protects the data stored in the multifunction printer by encryption.

  • Encryption of stored data
  • Uses TPM* 2.0 chip for encryption key management
  • Deletes settings and document information all at once
    * Trusted Platform Module

[Protect from unauthorised access]

Protection of management function

Protects against unauthorised access to the multifunction printer's management function.

  • Service representative operation restriction
  • Account lock to prevent unauthorised access
  • Information for changing the default password
  • Warnings displayed when using global IP address
Protection of multifunction printer software

Prevents the installation, execution, and operation of fraudulent software.

  • Software signature verification
  • Remote update restrictions
  • IP address filtering
  • Tampering detection at startup
  • Prevention of tampering during operation
  • Automatic restoration of multifunction printer software
  • Audit log
  • Audit log system transfer

[Prevents operation errors]

Prevents settings and operation errors

Prevents information leakage due to inadvertent mistakes by administrators and users.

  • Scan documents to be delivered to fixed destination
  • Re-enter fax recipient
  • Annotations
  • Hidden text printing*
  • Digital code embedding and tracking function*
    * Optional.

Feeding Options

Bypass Tray (Standard)*1
- 52 to 350 gsm
- 250 sheets
- 1300 mm Long paper*2
Multi Sheet Inserter for Banner Print*1
- 52 to 350 gsm
- 250 sheets
- 1300 mm Long Paper*2
- 660 mm Long Paper*3

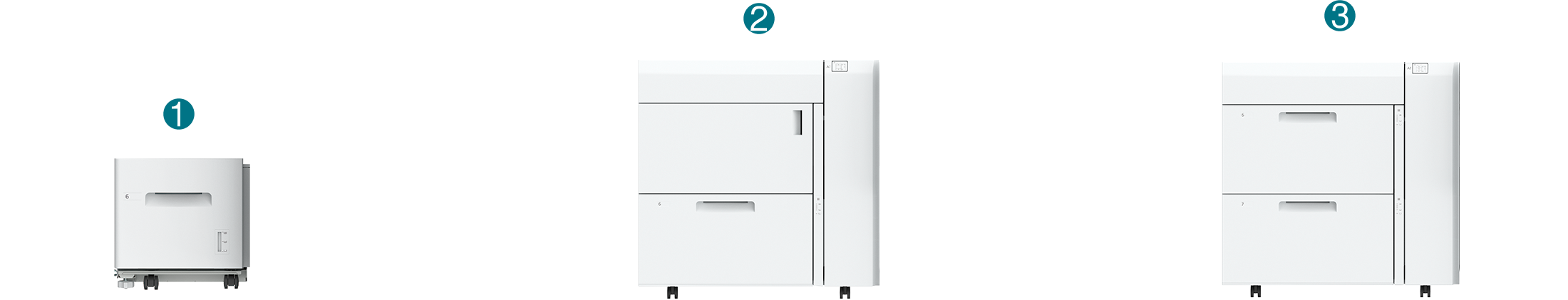

1. High Capacity Feeder B1
- 52 to 220 gsm
- 2000 sheets x 1-tray
- A4 Size
2. High Capacity Feeder B1-S
- 52 to 300 gsm
- 2000 sheets x 1-tray
- Cabinet
- Air Assist
- Multi-feed Detection
3. High Capacity Feeder C3-DS
- 52 to 350 gsm
- 2000 sheets x 2-tray
- Air Assist
- Multi-feed Detection
Note: Supported paper weight for long paper is 52 to 220 gsm.
*1: Installed directly to the printer, or installed on the top of High Capacity Feeder C3-DS or B1-S.  Paper weight up to 300 gsm is supported when installed on the top of High
Capacity Feeder C3-DS or B1-S.
*2: When installed directly on the printer unit.
*3: When installed on the top of High Capacity Feeder C3-DS or B1-S.

Output Options

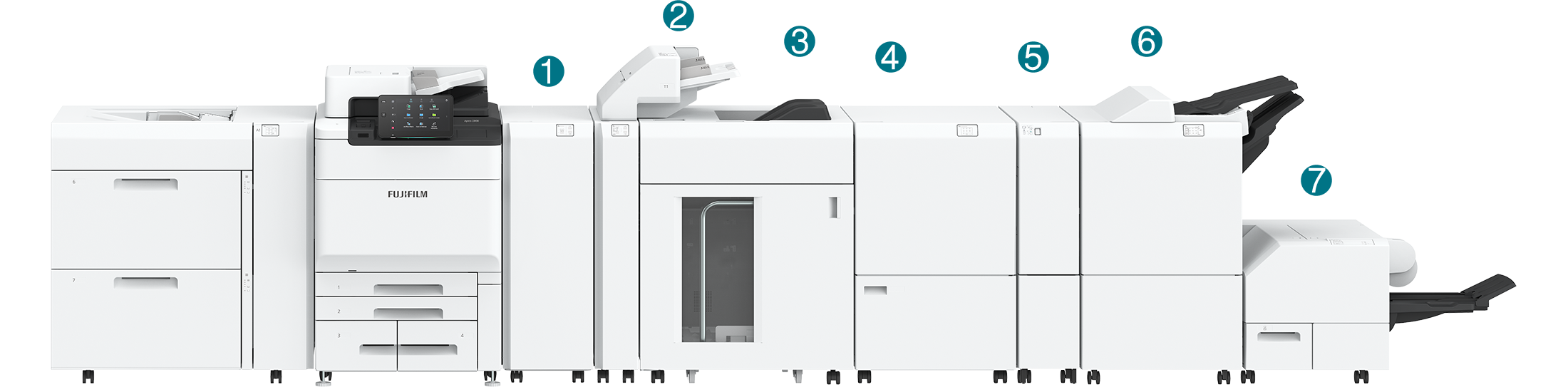

High Capacity Stacker and Finisher D6 for professional use (maximum configuration)

1. Interface Decurler Module D1
- Real Time Curl Correction (3 Levels Upward / Off / 3 Levels Downward)
2. Inserter D1
- Cover / Sheet Insertion
3. High Capacity Stacker A1
- 5000-sheet Stacking
- Stacker Cart
- Long Paper Stacking*1
4. Crease / Two-sided Trimmer D2
- Two-Sided Trim
- Crease
5. Folder Unit CD2
- Z Fold Half Sheet / Tri-Fold
6. Finisher D6 with Booklet Maker
- Sort / Stack
- Staple (100 sheets)
- Punch*1
- Saddle Staple (30 sheets) / Single Fold*2
- Long Paper Stacking*1
7. Square Back Trimmer D1
- Face Trim
- Square Back

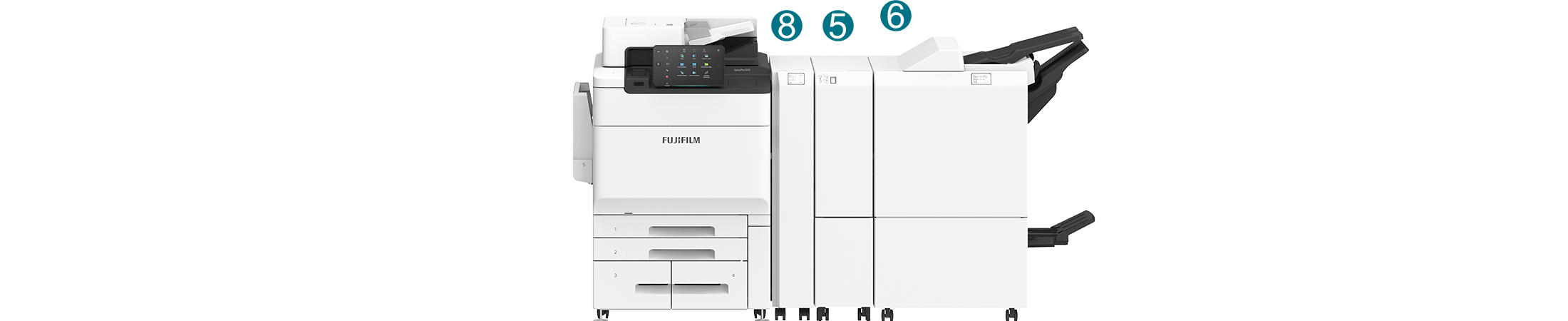

Space-saving Finisher-D6 (with Booklet Maker) with a slim type connection module

8. Interface Module D1
- Real Time Curl Correction (Upward / Off / Downward)
- Slim Connection Module
Note: When using Interface Module D1, the output options that can be connected are Folder Unit CD2 and Finisher D6 with Booklet Maker only. Other output options that can be connected with Finisher D6 with Booklet Maker cannot be connected.

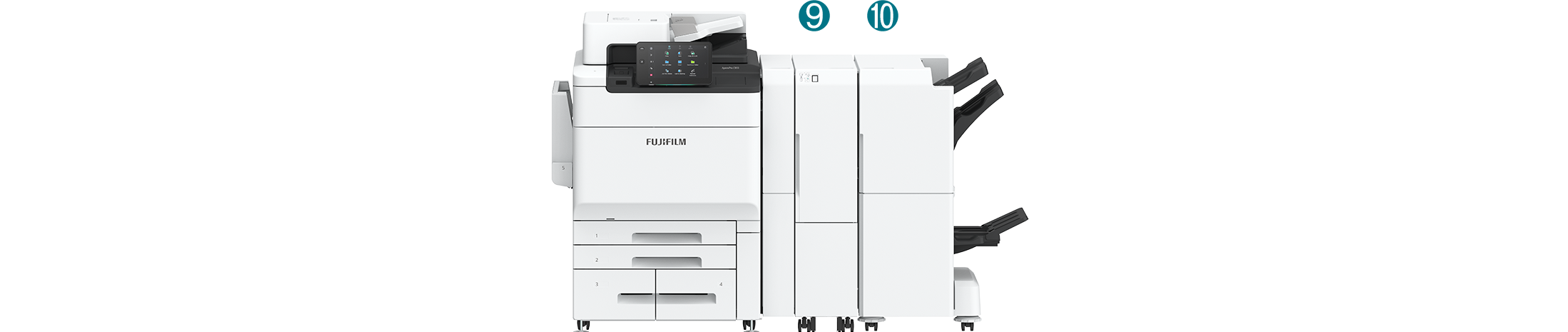

Finisher-C4 with Booklet Maker fits into the office space

9. Folder Unit CD3
- Z Fold Half Sheet / Tri-Fold
10. Finisher-C4 with Booklet Maker
- Sort / Stack
- Staple (50 sheets / 65 sheets*1)
- Punch*1
- Saddle Staple (20 sheets) / Single Fold*3
Note: Simple Catch Tray / Offset Catch Tray / Long Catch Tray are available if post-processing is not required.
*1: Optional.
*2: For Finisher D6 with Booklet Maker.
*3: For Finisher-C4 with Booklet Maker.
Finishing Applications

Note: Full Bleed Trim is made by Two-sided Trim and Face Trim.


ApeosPro C750 C650 Brochure_EN

File Size:
3.99 MB
Document Type:
Portable Document Format
Download Resource

How To Buy

ApeosPro C750 / C650

Contact our sales team

We make it easy for you to purchase products, supplies and services from us. Our extensive network of representatives can help you choose the right solutions for your business needs.
ApeosPro C810 / C750
