Jet Press 1160CF

High-speed Continuous Feed Inkjet Printing System

Jet Press 1160CF Banner Image

Overview

Printing with a high level of productivity and quality

The highest printing density in the industry (in 160 m/min continuous paper inkjet printer class)

Features

Full-colour printing at 160 m/min*1

The printer can print in full colour at a maximum speed of 160 m/min, which is equivalent to 2,096 pages per minute on precut A4 paper*2.
Mass batch prints of tens of thousands of pages may be created at high speeds through the use of the unwinder and rewinder*3
This ensures great productivity and stable processing for high-volume/short-duration print jobs such as trans-promo materials and invoices.

  • *1: Speed priority mode (1,200 x 600 dpi)
  • *2: Two-sided printing with dual layout of A4 pages
  • *3: Optional

Invoices

Pigment Inks with High Concentrations

Superior image quality printing is achieved through the newly designed high-concentration pigment ink.

High-quality, high-definition prints up to 1,200 x 1,200 dpi

Printer can produce output image with great resolution:
- 1,200 x 600 dpi (with a print speed of 160 m/min)
- 1,200 x 1,200 dpi (with a print speed of 80 m/min)
It prints characters and numbers clearly.

Crimped postcard

Print server featuring Fujifilm Business Innovation's unique technology provides high quality output and rapid processing.

  • Faster On-the-fly*1 printing
  • High quality image data processing 1,200 x 1,200 dpi, 8 bit
  • Supporting APPE*2 perfect for PDF output
  • High-precision CMYK profiles
  • High-speed, large volume printing of variable data
    (Mercury RIP, Industry standard PPML, PDF/VT-1, PDF/VT-2)
  • Increased fault tolerance due to OS HDD redundancy
  • Uninterruptible power supply (UPS)*3
  • *1: Requires direct printing without creating raster data in advance.
  • *2: Adobe® PDF Print Engine
  • *3: A product sold by Fujitsu. Two units are required.

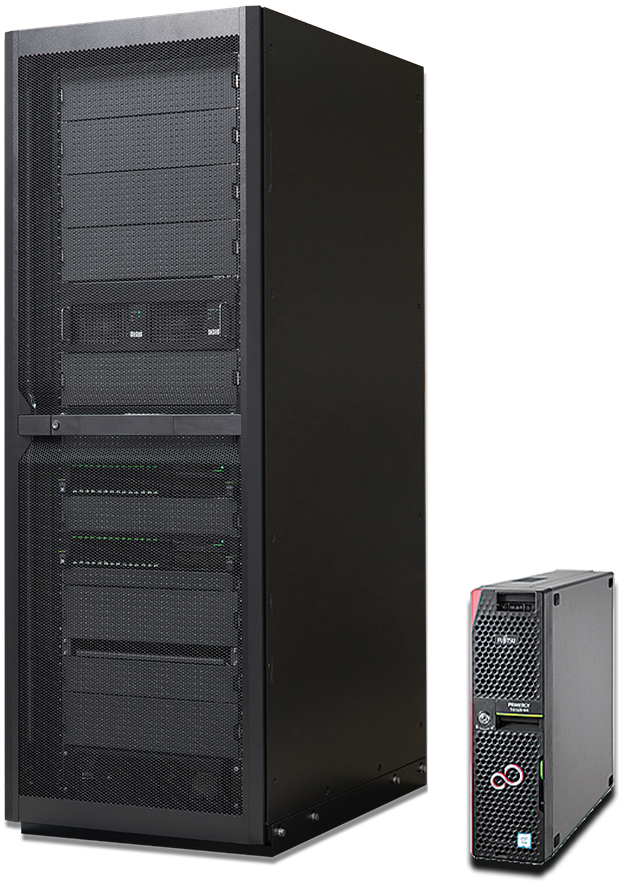

Print server

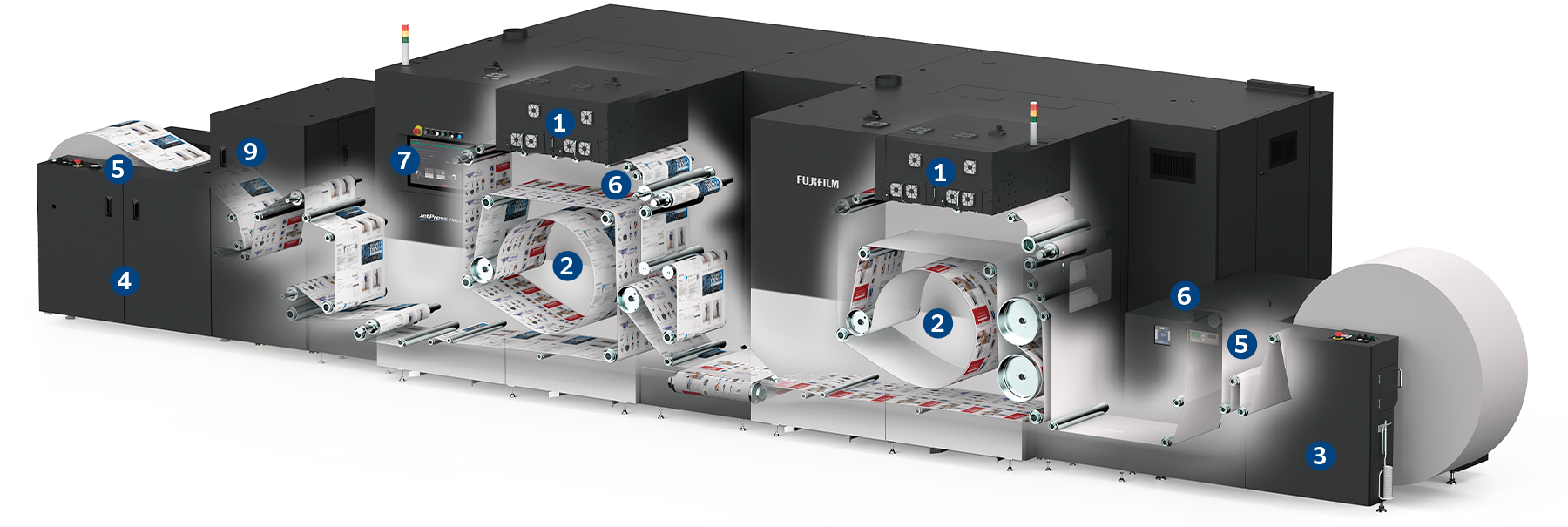

Inside Structure

  1. Print Head Box
    The print head supports 1,200 x 1,200 dpi printing.
    A single dot can be expressed with up to three gradations, allowing for smoother density transitions.
  2. Dryer
    Two types of drying technology is utilised: heat drum and heat air dryers.
  3. Unwinder
    It can be configured to feed paper with roll positioned for top or bottom feeding.
    Raising and lowering heavy paper rolls is performed through a simple mechanism. Paper alignment can be applied rapidly through a simple interface.
  4. Rewinder (Optional)
    The machine can wind paper either upwards or downwards. A touch roller is added to prevent wrinkling when rewinding.
  5. Tension Controller
    It assures that paper tension remains constant, helping to stabilise paper feed during high-speed printing.
  6. Edge Guide
    Paper movement, positioning, monitoring allows for adjustment to remove any misalignment of the paper path which allows for a smooth printing process.

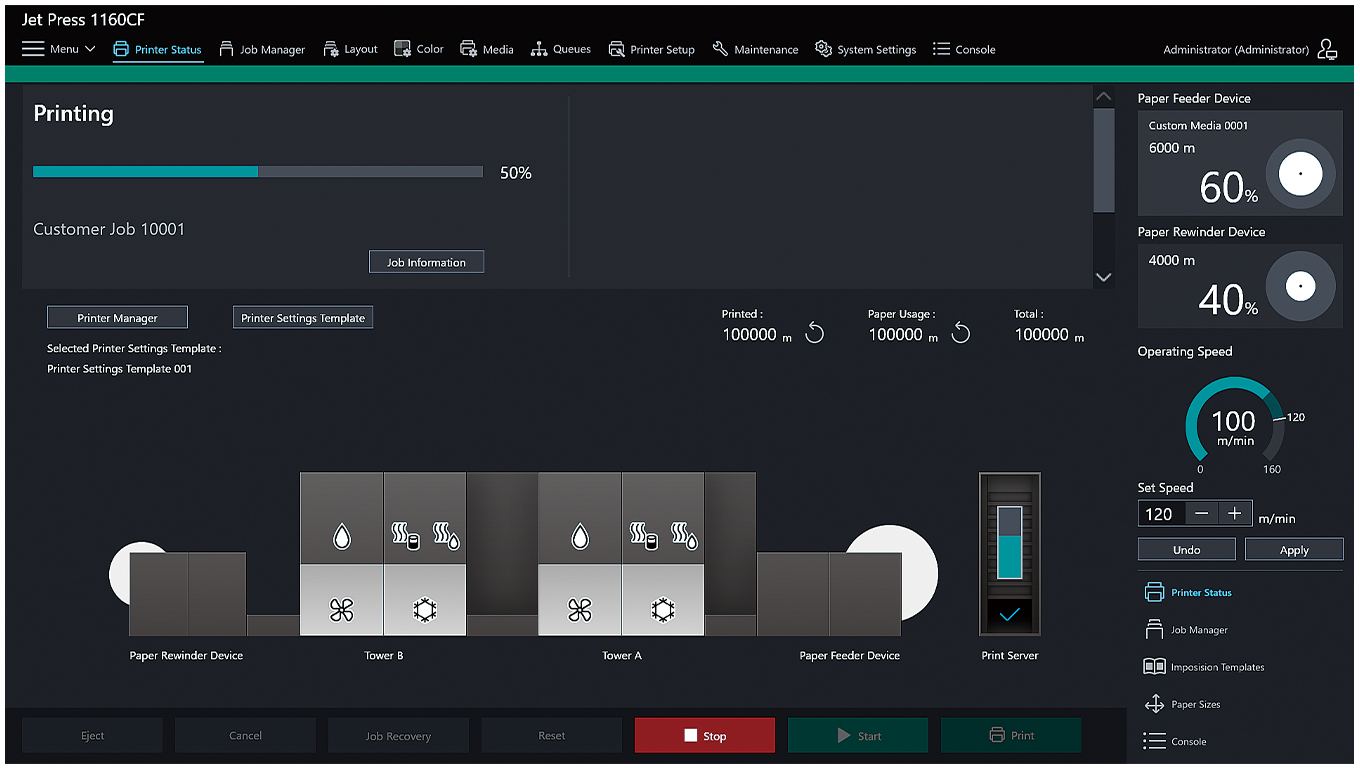

  7. Operation Panel

    Machine operation is via a simple touch screen interface.

    Operation Panel

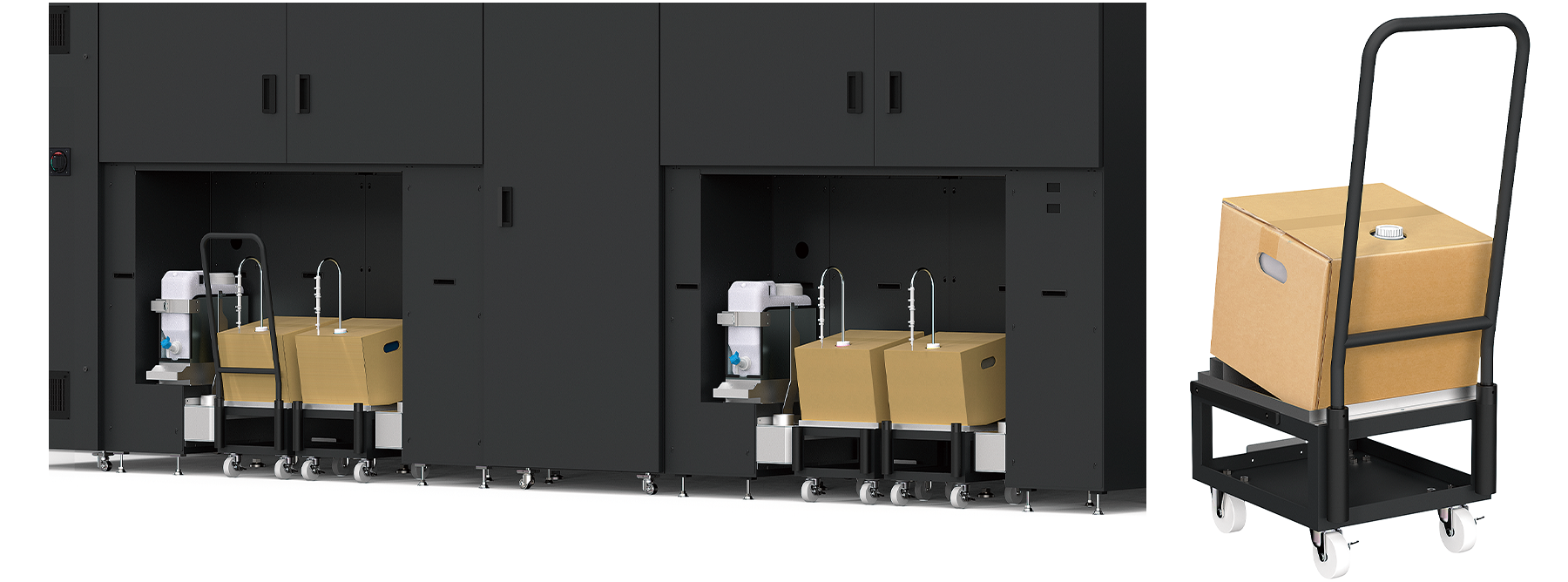

  8. Cart Ink Pack

    The four-colour ink packs are located on the back of the printer. Ink packs weigh about 20 kg per colour. Replacement is performed easily using a specialised cart.

    Cart Ink Pack

  9. Inspection Box (Optional)
    This is the box for inspection unit for example.
    Different kinds of inspection boxes and units are available depend on countries.
    • Note: Contact with our sales representative for details.

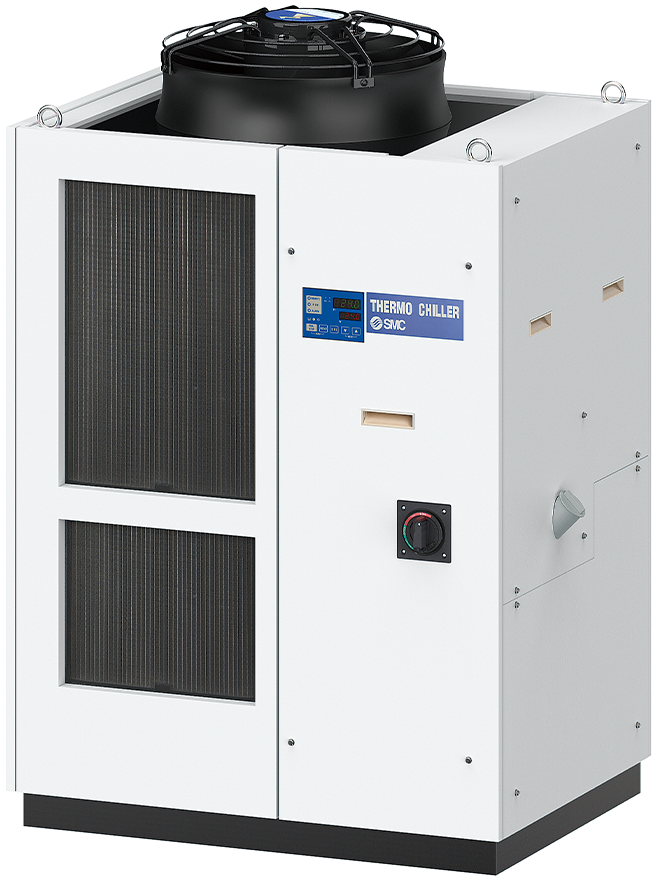

  10. Chiller

    The chiller flows water through the printer to cool the paper.

    Chiller

  11. Slack Web Unit (Optional)
    This unit applies tension to roll paper when not using the rewinder. Users can utilise a post-processing device with a loose tension.
