Pressure Image Analysis App

FUJIFILM Prescale Mobile

The app that enables any user to quantify pressure and other analysis results with ease.

FUJIFILM Prescale Mobile Product Overview Video

The app that enables any user to quantify pressure and other analysis results with ease.

Prescale Mobile is a dedicated app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. You can also register and inspection images against your own boundary sample.

  • Easily quantitative inspection

  • Improve inspection quality

  • Improve traceability

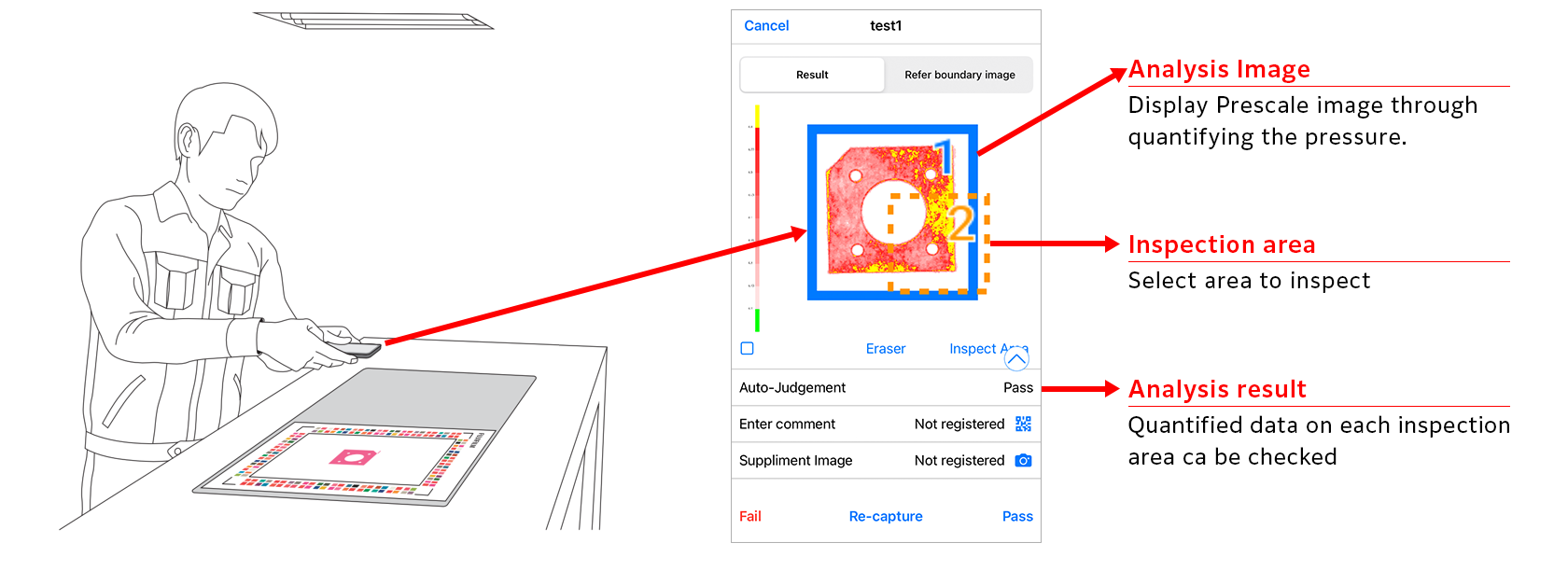

Inspection Workflow

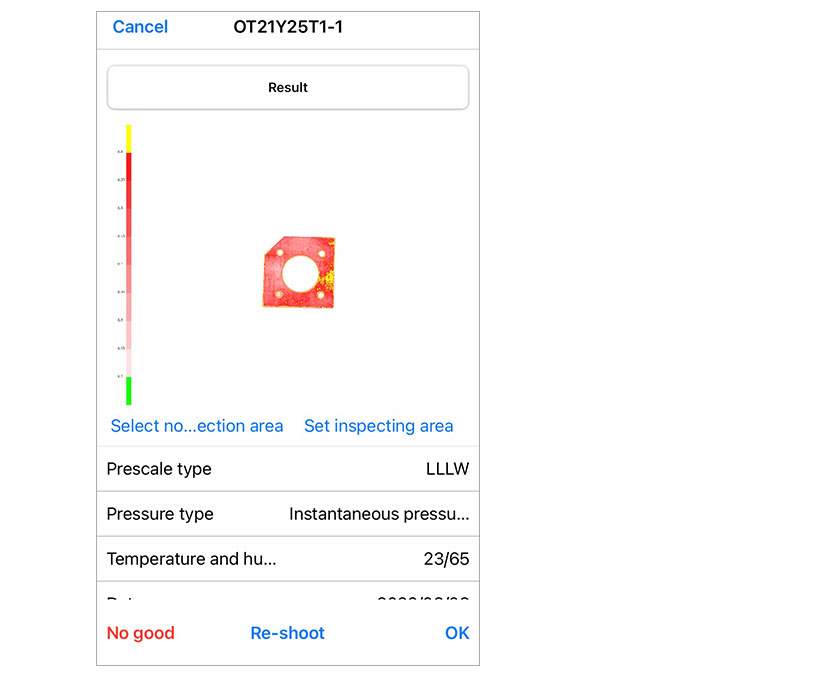

Functions

Supported measurements

Item Unit Explanation
Pressure efficiency The percentage of the colored area within the recommended pressure range for the applicable Prescale
Pressured area mm2 The area over which color is produced
Average pressure MPa The average pressure in the area over which color is produced
Maximum pressure MPa The maximum pressure in the area over which color is produced
Minimum pressure MPa The minimum pressure in the area over which color is produced
Weight N The weight on the area over which color is produced (calculated based on the product of the pressured area and the average pressure)
Measured surface area mm2 The area of the specified area and the area to be processed
Uniformity (pressure) An index indicating the uniformity of pressure across the area over which color is produced
Uniformity (density) An index indicating the uniformity of color density across the area over which color is produced
