DRI-CHEM NX10N

NEW

A blood ammonia test analyzer that can examine a whole blood sample and deliver the test results within two minutes.

The content on this page is intended to healthcare professionals and equivalents.

Optional accessories

Consumables
 (The actual package may slightly differ from those in the pictures.)

Slides

FUJI DRI-CHEM SLIDE
  • NH3-WII (for whole blood)  24 slides/box
  • NH3-PII (for plasma) 24 slides/box

Tips

FUJI DRI-CHEM CLEAN TIPS
  • 96 tips x 6 racks/box

Control fluid

FUJI DRI-CHEM CONTROL QN
  • 3 mL x 2 bottles/box

Main specifications

PRODUCT NAME : FUJI DRI-CHEM NX10N

Slides

FUJI DRI-CHEM SLIDE NH3-WII (for whole blood) and NH3-PII (for plasma)

Measurement range

Measurement range : 7-357 μmol/L (10-500 μg/dL)

Amount of sample

10 μL

Measurement time

2 minutes

Incubation temperature

37 °C

Light source

600 nm LED

Electrical requirements

DC12V   AC adapter : AC100-240 V 50/60 Hz 0.6 A

Operating temperature and humidity

Temperature : 15 to 32 °C, humidity: 30 to 80%RH

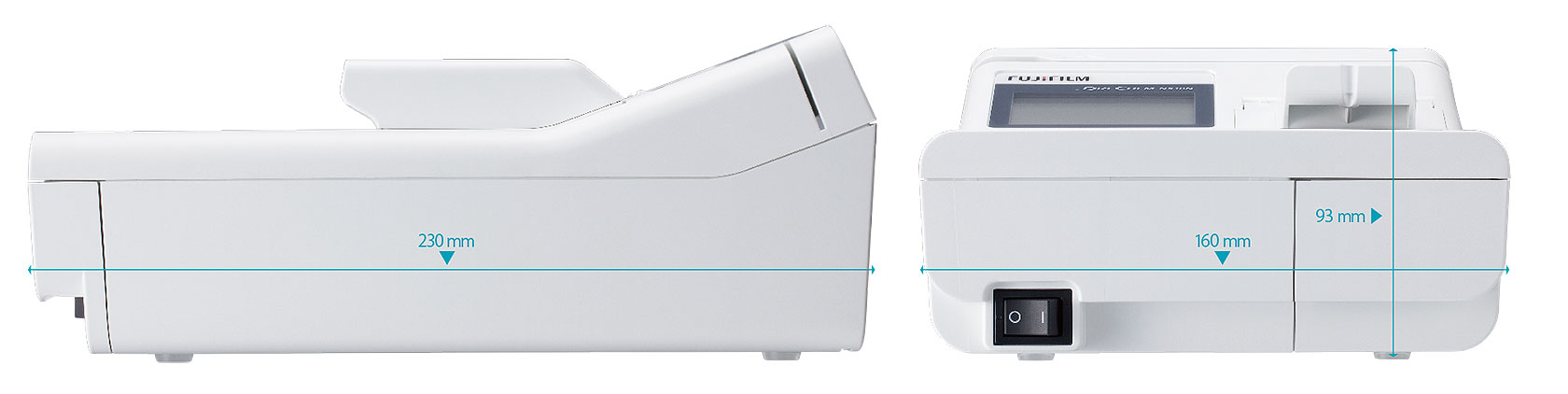

Dimensions

160 (W) x 230 (D) x 93 (H) mm

Weight

1.2 kg (Excluding AC adapter)

External communication

USB connection (virtual COM port RS232C)

Output terminals

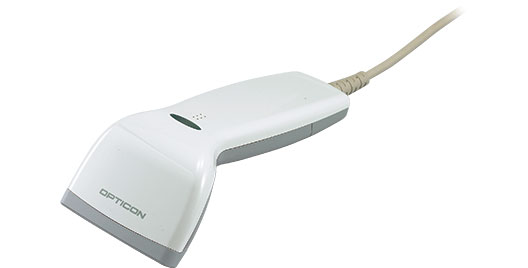

USB Type A (for the barcode reader)

USB Type B (for data transmission)

  • * The specifications and appearance of the products shown in this brochure may be changed without prior notification in order to improve the system.
  • * Please be sure to read the instruction manual carefully for proper use of the equipment.
