PSE Cartridge L Type
NEWA high flow rate type cartridge (1.5 times the flow rate of the conventional cartridges) has been added to the lineup of PSE cartridges that have been received favorably because of their high flow rate and high retention performance. Ready for use with larger LCD panels and wafers of larger diameters.
Overview
-
The flow rate is 1.5 times that of earlier cartridges.
-
The fine particle removal performance is rated for a single pass operation, standing at the same level as that of earlier PSE cartridges.
-
Long service life (Filtering service life is 1.5 - 2 times.*1
-
Because the cartridge is the same size (φ70 mm) as earlier models, the housing does not requiring replacing.
- *1 The service life may vary with the conditions of use.
Features
High flow rate
The cartridge realizes a high flow rate equivalent to 1.5 times that of earlier (single (1-stage)) cartridges.
Excellent retention performance

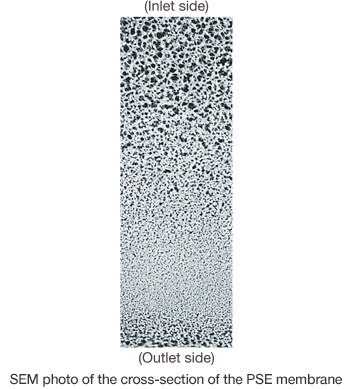

The dense inner layer peculiar to the PSE membrane ensures reliable retention of fine particles.
Long service life
Owing to an increased filtering area, the cartridge has a long service life that is 1.5 - 2 times that of earlier cartridges.*2
- *2 The filtering service life may vary with the conditions of use.
Main applications
Since the cartridge employs the PSE membrane that has been received a favorable reputation, it is best suited for the following lines that require a high flow rate and high retention performance.
-
Filtration of purified water for cleaning equipment, etc. in the manufacturing processes of large LCDs and 300 mm wafers
-
Filtration of chemicals for cleaning equipment, etc. in the manufacturing processes of large LCDs and 300 mm wafers
Specifications
Table of Performance Characteristics
|
Item |
Unit |
Performance |
Remarks |
|||
|---|---|---|---|---|---|---|
|
Pore size |
µm |
0.1 |
0.2 |
0.45 |
||
|
Size |

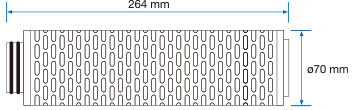

Length |
mm |
264 |
*3 |
||
|
Outer diameter |
mm |
70 |
|
|||
|
Maximum differential pressure |
25℃ |
MPa |
0.54 (Positive pressure) |
|
||
|
25℃ |
MPa |
0.34 (Negative pressure) |
|
|||
|
Heat resistance |
MAX℃ |
90 |
*4 |
|||
|
PH area to be used |
|
1 - 14 |
*5 |
|||
- *3 Please contact us if you need detailed dimensions.
- *4 Continuous operating temperature
- *5 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.
Material
|
Part name |
Material |
|---|---|
|
Guard |
Polypropylene |
|
Center core |
Polypropylene |
|
Support |
Polypropylene |
|
Membrane filter |
Polysulfone (Asymmetric membrane) |
|
O-ring |
EPDM (Silicon, Viton) |

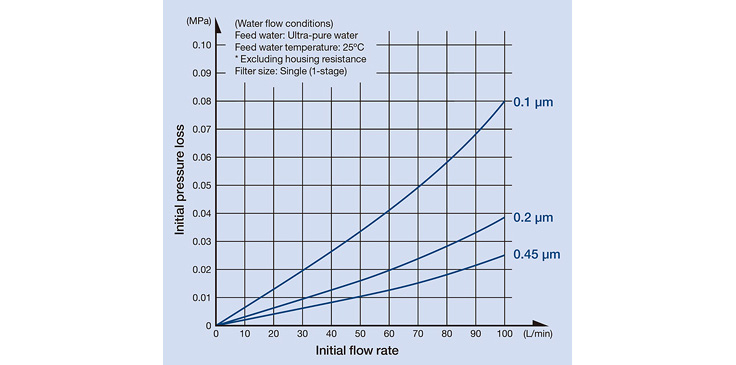

Water flow differential pressure ΔP high flow rate area

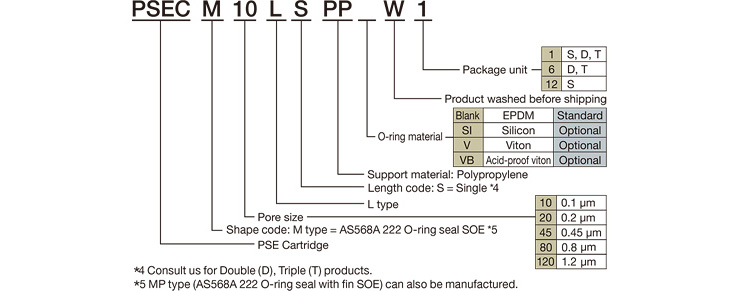

Abbreviated product name
|
|
Pore size |
|||
|---|---|---|---|---|
|
0.1 µm |
0.2 µm |
0.45 µm |
||
|
Package unit |
1 |
PSECM10LSPPW1 |
PSECM20LSPPW1 |
PSECM45LSPPW1 |
|
12 |
PSECM10LSPPW12 |
PSECM20LSPPW12 |
PSECM45LSPPW12 |
|
Size
- * For details of the methods of use, refer to the instruction manual that comes with the product.
- * The product may be built to order, depending on the shape and/or size. For details, contact your sales agent.
- * Specifications are subject to change for improvement purposes without prior notice.
