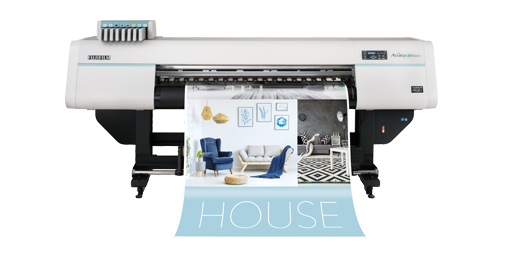

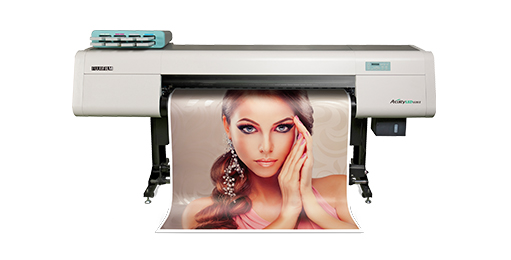

Acuity LED 1600 Series

NEW

Powered by Fujifilm’s leading printhead and ink technologies, including low-energy LED UV curing technology, Acuity LED 1600 Series are reliable production machines built to deliver exceptional results.

Lineups

We have 2 lineups of Acuity LED 1600 series depending on the number of colours to use and the material types to print on.

Wide application range

Produce a wide variety of applications on a broad range of roll-to-roll material – including uncoated media – such as display graphics, signage, decals, environmental graphics and interior decoration. LEDs produce very little heat, which means they can work with heat-sensitive media without deformation or shrinkage.

Easy upgrade path

Start off with a CMYK or CMYKLcLm colour configuration. Upgrade to light inks to achieve smoother tonal images and add a white ink channel for printing on clear and coloured materials. This flexibility means the Acuity LED 1600R can grow with your business and makes it a perfect entry-level machine.

Technical specification

Printing technology

LED UV inkjet

Media

[Width]
210 - 1620 mm, maximum print width: 1610 mm

[Thickness]
0.1 - 1.0 mm

[Roll weight]
Up to 40 kg

[Roll diameter]
210 mm or less

Ink

Fujifilm Uvijet RL LED UV curable ink (600 ml pouch). GREENGUARD Gold certified.

Colour channels

Standard: CMYK,

Upgrade: CMYKLcLm, CMYKW, CMYKLcLmW

Printheads

Fujifilm Dimatix Q-class

Interface

USB

RIP

AL RIP / Caldera / ColorGATE Production Suite

Operating environment

20-30 °C, 3-65% RH non-condensing

Power requirements

Single phase AC 200 - 240 ±10%, 50/60 Hz ±1 Hz, 18 A or less

Power consumption

1kW

Dimensions (length x depth x height)

3.22 × 0.83 x 1.45 m

Weight

300 kg

Wide application range

Produce a wide range of applications on roll and rigid materials, including display graphics, signage, decals, environmental graphics and package prototypes. LEDs produce very little heat, which means they can work with heat-sensitive media without deformation. High impact Acuity LED prints can be used with specialist finishing processes to create durable architectural graphics.

8 colour Fujifilm Uvijet ink set

Includes CMYK, light cyan, light magenta, white and clear inks as standard.
Light inks enhance colour reproduction, producing smooth tonal images like skin tones, vignettes and lighter solid colours.

Added value, creative printing

Simultaneous two or three-layer printing with colour, white and clear inks provides the ability to produce high value creative prints that can expand your service offer.

Technical specification

Printing technology

LED UV inkjet

Media

[Max print width]
1610mm

[Print length tolerance]
Error of ± 0.3% of distance travelled,
or ± 0.3mm, whichever is greater.

[Max thickness]
13mm
Printer tables included for printing on rigid substrates

[Max weight]
Rigid: 12kg, Roll: 25kg

Ink

Fujifilm Uvijet LL LED UV curable ink (600ml pouch)

8 colours (cyan, magenta, yellow, black, light cyan, light magenta, white, clear)

Printheads

Fujifilm Dimatix Q-class printheads

Interface

USB 2.0

RIP recommendation

Caldera V10

ColorGATE Production Suite 9

Operating environment

18-30°C, 30-70% RH non-condensing, 5-10 air changes per hour

Power requirements

AC 100-120V, 200-240V, 50/60Hz

Dimensions (W x L x H)

3.22 × 0.78 x 1.52m

Weight

[Printer only]
280kg

[Tables]
50kg
