Supports a variety of approach for patients
Biopsy Positioner - 50μm image solution

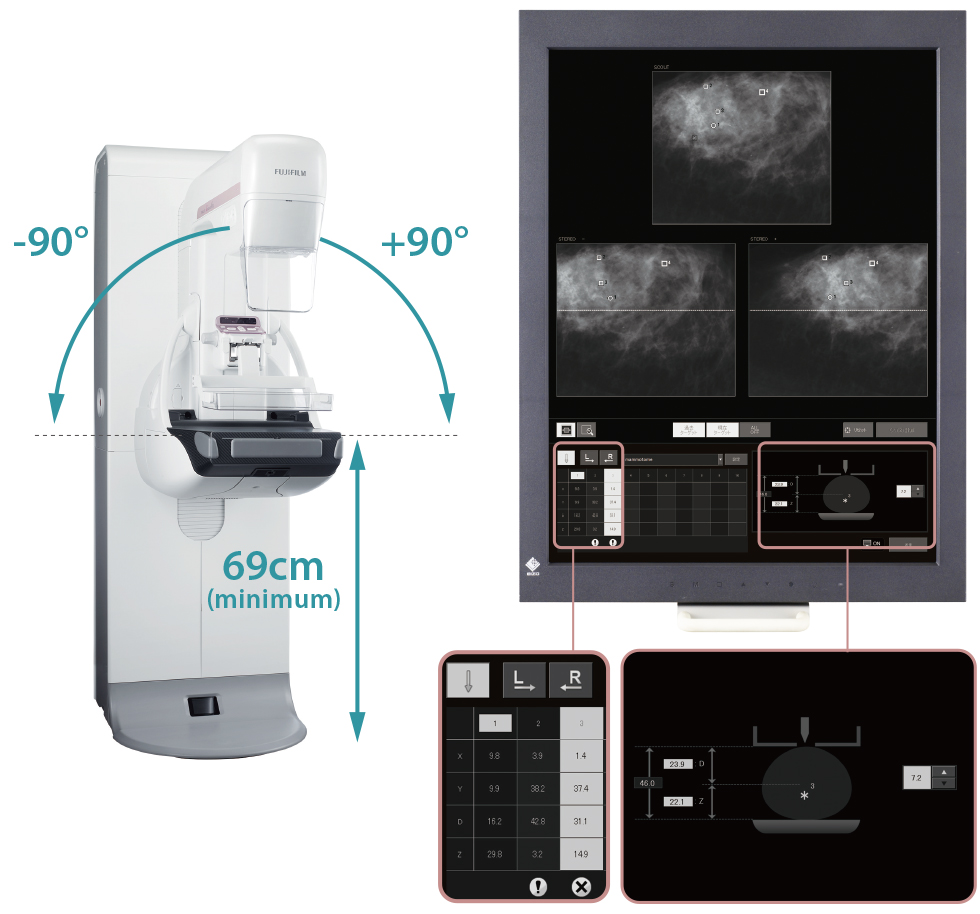

The system is designed to support flexible positioning of tube and detector, from -90°to +90°. Ergonomically designed arm rests and disposable soft pads ensure patient comfort and safe positioning.
![[photo] Close-up view of Biopsy Positioner - 50μm image solution](https://asset.fujifilm.com/www/id/files/2020-05/fdf0aa3bc696fa3fc0e37012789e10e6/pic_amulet-innovality_02.jpg)
- Irradiation field size can be easily adjusted, depending on breast size and procedure needs. Convenient spacers can be used in order to perform needle positioning in extremely thin breasts, too.
- AEC full automatic function is available for both scout (2D) and Tomosynthesis exposures.
- Prior images and studies can be viewed during biopsy, to further improve accuracy.
- Variable image resolution for different needs

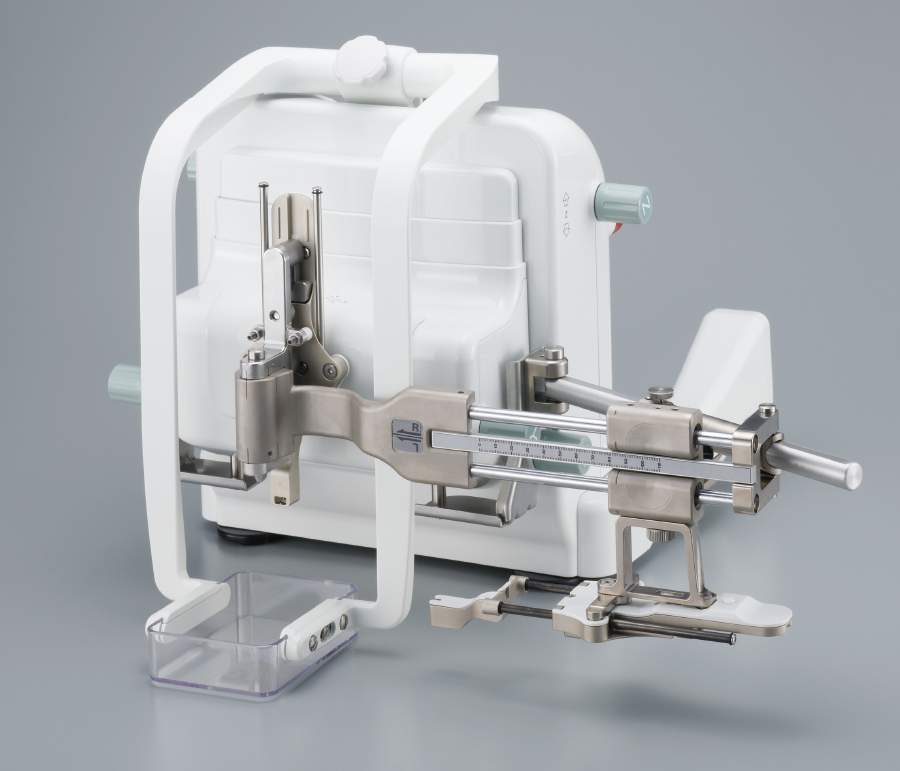

Lateral approach
Thanks to the adapter, needle positioning can be performed both vertically and laterally. Accessing to the compressed breast in two directions ensures precise targeting of lesions which might be in a difficult position.

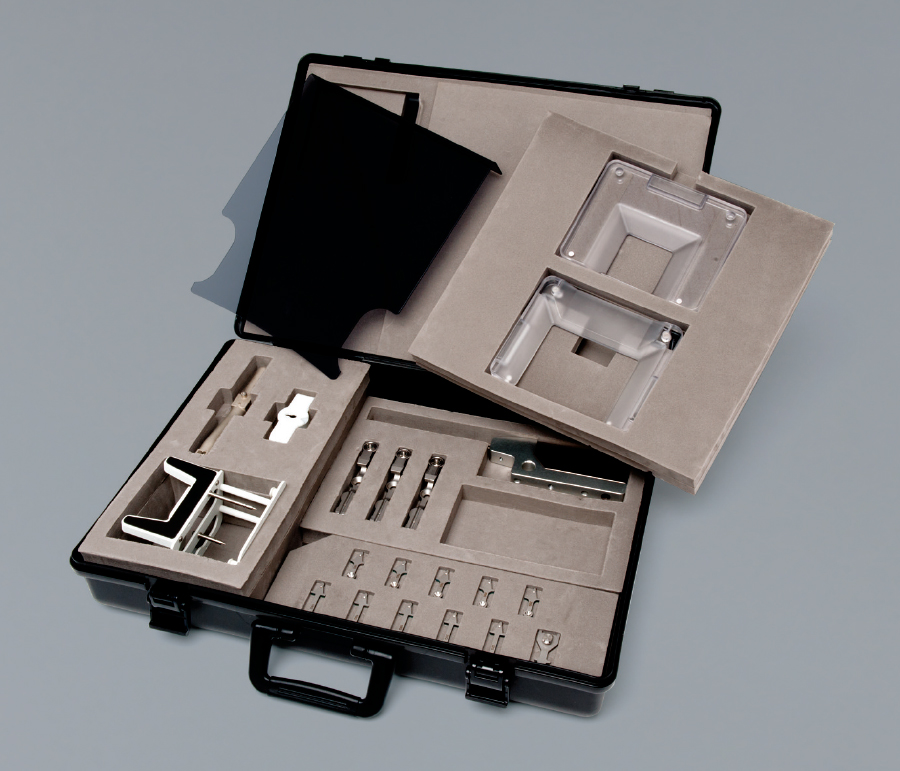

Supports a variety of needle
Both CNB/FNB/Hook wire and VAB needles can be used in a wide range of sizes, for various models and manufacturers.
- *Refer to technical specifications and to local representatives for further information.

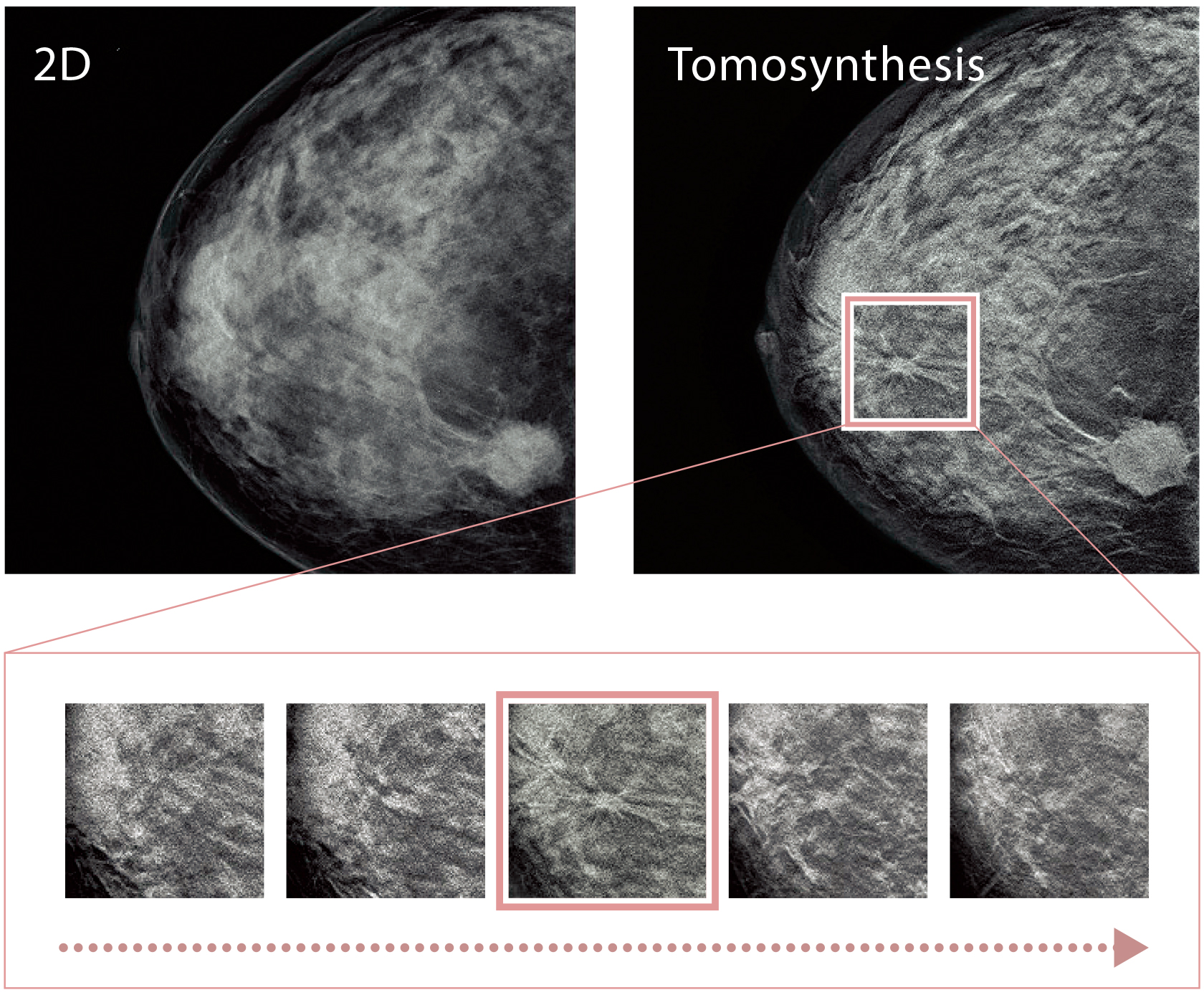

Tomosynthesis Biopsy
Targeting is supported using both tomosynthesis and stereoscopic images: the choice depends on operator confidence and lesion positioning. Tomosynthesis acquisition can be performed in both ST (Standard) and HR (High Resolution) modes, according to desired accuracy and lesion size.
- Using a tomosynthesis image, it makes it possible to target the lesion which cannot be found on 2D image.
- Thanks to easier lesion position identification, tomosynthesis targeting results in a more efficient workflow and more simple operation.
![[photo] Tomosynthesis Biopsy in realtime simulation with sample 2D image and Tomo X-rays results](https://asset.fujifilm.com/www/id/files/2020-05/cd61bcfbb5bb30783d49d8055572e4e6/pic_amulet-innovality_06.jpg)

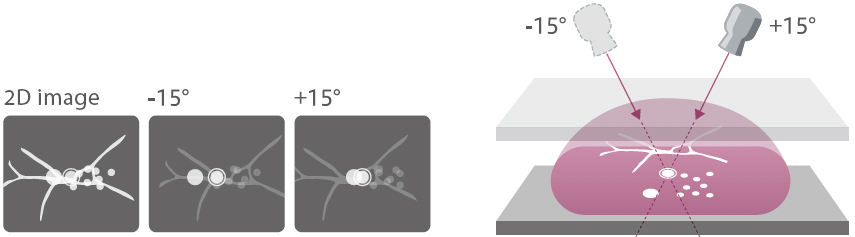

Stereo imaging
•Overlapping breast structures make lesions less visible
•Difficult to identify a particular region
Tomosynthesis
•Reconstructed images show overlapping structures separately
•Easier to locate a target than with the conventional method
- Both Tomosynthesis and stereotactic support for needle positioning
The highest image quality and workflow efficiency for interventional proceduresa
- * Some items are optional, please contact your subsidiary for the detail.
