Application examples by usage

Impact pressure

This is a collection of examples of impact pressure measurement using Prescale.
A example of peak pressure of a ball is posted.

Table of contents

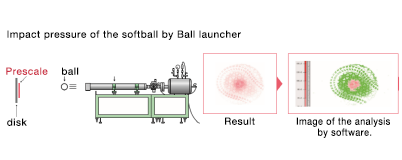

(1) Measuring the peak impact pressure and its distribution of a ball of softball

Industry: Sports
Challenges: When measuring the impact pressure of the ball by piezoelectric element sensor, the maximum pressure varies depending on the position of the ball that hits the sensor due to the uneven surface such as the seams on the ball.
Benefits of Prescale: Able to gain pressure distribution data
