Dry Minilab

Frontier DL650 PRO

NEW

Bringing the photo print business to a new level with increased processing capability and new paper.

Main Specifications

Model name

DL650

Print method

Piezoelectric inkjet system

Print size

127 x 89 mm to 305 x 1,219 mm (5” x 3.5” to 12” x 48”)

Print capacity

[Standard Paper]
Standard Mode:
Approx. 950 print/hr (152 x 102 mm, 6” x 4”)
Approx. 300 print/hr (203 x 305 mm, 8” x 12”)
High Quality Mode:
Approx. 150 print/hr (152 x 102 mm, 6” x 4”)
Approx. 50 print/hr (203 x 305 mm, 8” x 12”)
[Professional Paper]
Standard Mode:
Approx. 900 print/hr  (152 x 102mm, 6” x 4”)
Approx. 290 print/hr  (203 x 305mm, 8” x 12”)
High Quality Mode:
Approx. 150 print/hr  (152 x 102mm, 6” x 4”)
Approx. 50 print/hr  (203 x 305mm, 8” x 12”)

Print resolution

Standard Mode 720 x 720 dpi, High Quality Mode 1,440 x 1,440 dpi

Roll paper

[Standard Paper]
180m: 102 mm (4”), 127 mm (5”), 152 mm (6”)
100m: 203 mm (8”), 210 mm, 254 mm (10”), 305 mm (12”)
[Professional Paper]
100m: 127 mm (5”), 152 mm (6”), 203 mm (8”), 254 mm (10”), 305 mm (12”)

Paper loading

2 roll paper feeders (Built-in)

Paper supply

Width: 102 to 203 mm (4” to 8”) [Front]/102 to 305 mm (4” to 12”) [Rear]

Paper type

Glossy/Luster

Ink cartridges

6 Colors (C, M, Y, K, SB, P) of dye based ink (Volume: 700 ml per color)

Back printing

Two 40-character lines in backside print of information

Printer sorter

10 order sorter (Maximum size 210 x 305 mm, 8” x 12”)

Foot print

Approx. 1.48 m2 (included sorter unit)

Installation space

Approx. 3.2 m2 (included sorter unit)

Power requirements

100/120V/200-240V (50/60Hz)  single-phase two-wire

Dimensions (W x D x H)

1,266 x 1,530 x 817 mm

Weight

Approx. 165 kg (included sorter unit)

Power consumption

Approx. 70.6 kWh/month (in energy saving mode)
Approx. 110.5 kWh/month (without energy saving mode)

  • * Specifications are subject to change without notice due to improvements.

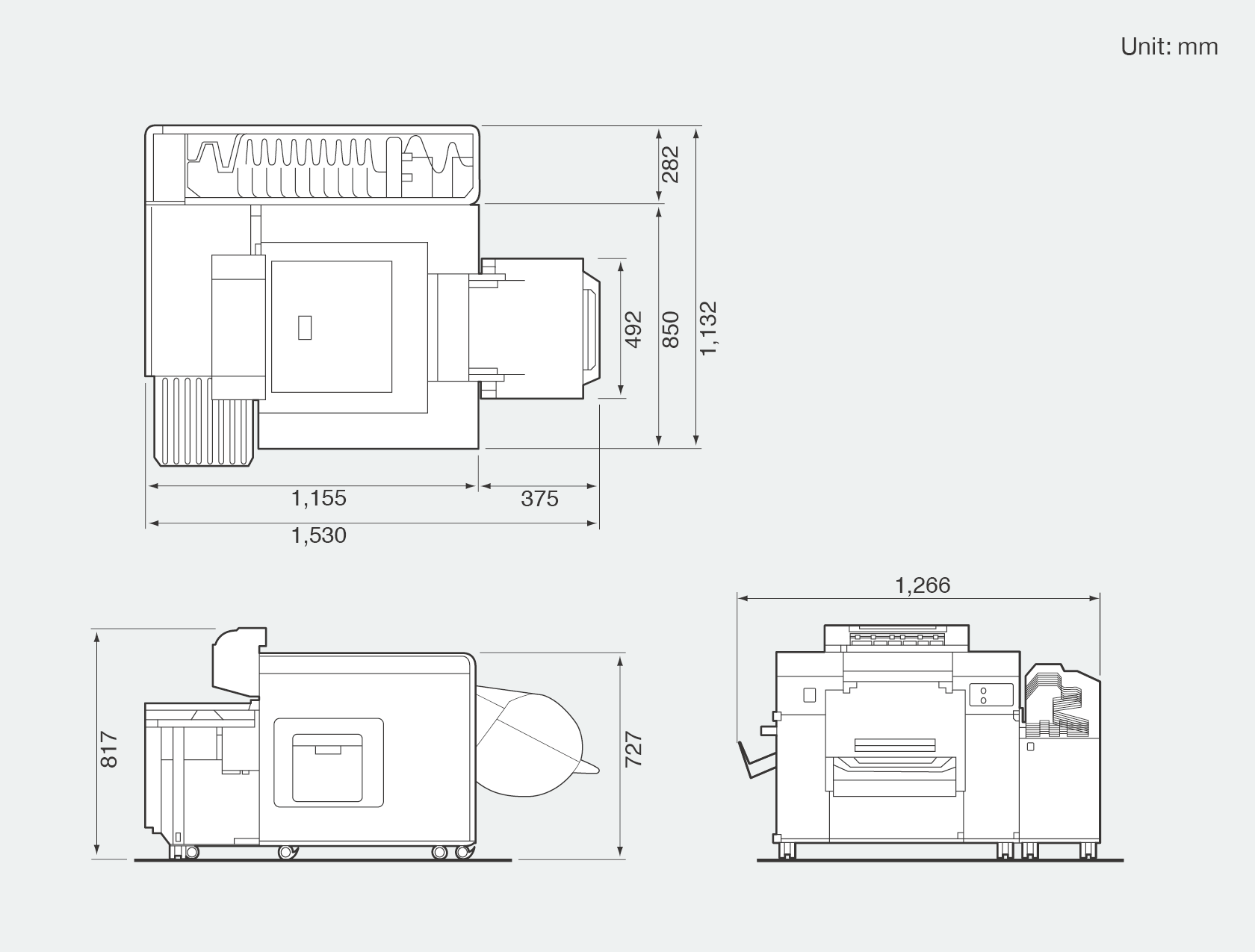

Dimensions
