Original Technology PSE Membranes
Original Asymmetric Structure

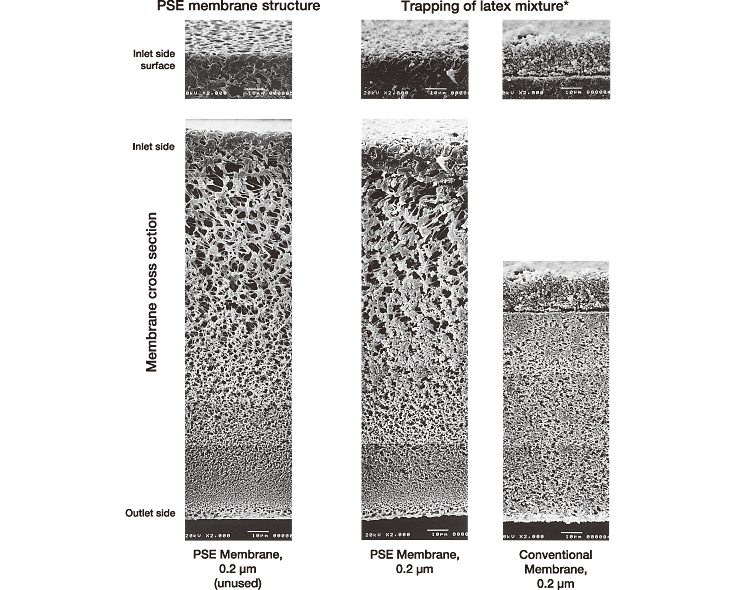

The pore diameter in the film is rather large on the inlet side but decreases gradually towards the outlet side (see "PSE membranes structure" below).
Coarse particles are first trapped near the inlet side, while finer particles are trapped by finer pores situated at greater depths.
Low Initial Pressure Loss With High Flow Rate
The larger pores on the inlet side ensure a low initial pressure loss. The pore size, after decreasing in the bulk of the film, becomes larger again on the outlet side, providing a high flow rate.
Reliable Trapping Performance

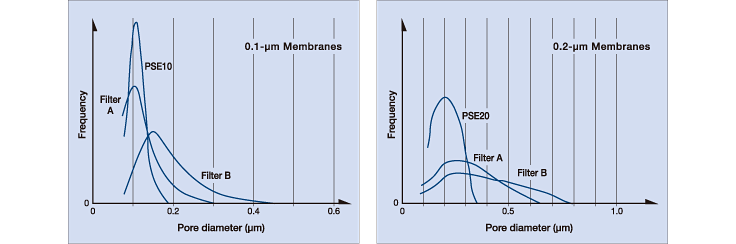

The pore diameter can be as small as 0.05 μm, depending on the product grade. Sharp pore size distribution curves (see charts below) assure reliable removal of fine particles and microorganisms.
