[photo] XK20-120mm T3.5 zoom lens

XK Cabrio Series - Overview

NEW

XK Cabrio Series offers 4K compatible optical performance and covers a wide range of focal length from 20mm to 120mm.

Contact Us

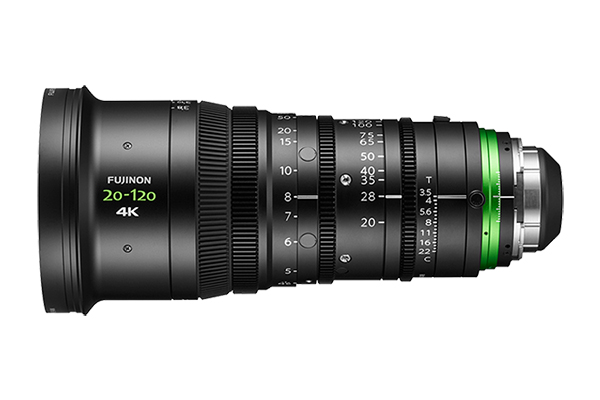

XK20-120mm T3.5
Feature
  • Outstanding 4K optical performance and compact design
  • Wide focal length from 20mm to 120mm
  • T3.5 brightness in the entire zoom range
  • 0.8M gear pitch
  • Moderate focus torque with 200-degree rotation angle to aid accurate focusing
  • Focus indicator can be displayed in feet or meters
Specifications
Focal Length:

20mm - 120mm

Zoom Raito:

6x

T-No.:

T3.5

Lens Mount:

PL Mount

M.O.D from Sensor Plane:

1.1m / 3ft 7in (with macro function 0.4m / 1ft 4in)

Angular Field of View
40.96mm x 21.60mm (*1)

20mm ： 63°41'×38°30'
120mm ：11°49'×6°40'

Focus Rotation:

200°

Zoom Rotation :

90°

Iris Rotation:

53.9°

Iris Blades:

9

Macro Function:

Yes

Front Diameter:

114mm

Filter Diameter:

-

Length (approx.):

φ114mm x 239mm / 9.4"

Weight (approx.):

2.9kg / 6.4lbs.（with Drive Unit）
2.4kg / 5.3lbs.（without Drive Unit）

  • *1 Aspect ratio 16:9 Gear pitch 0.8M
