Optical Accessories for Portable Lenses

Optical accessories expand the capabilities of FUJINON TV lenses.

[image] Size of Fujinon TV lens compared to Tele Converter, Wide Converter, Fish-eye Attachment, and Close-up Lens
[photo] Tele Converter (TCV) accessory

Tele Converter(TCV)

►Focal length is multiplied by the magnification of the converter on the telephoto side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is increased. ►Loss of picture edges will occur toward the wide angle side of the zoom range.

[photo] Wide Converter (WCV) accessory

Wide Converter(WCV)

►Focal length is multiplied by the magnification of the converter on the wide side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is decreased.

[photo] Wide Attachment (WAT) lens conversion accessory

Wide Attachment(WAT)

►Converts only the wide end of the lens by the magnifica­tion of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

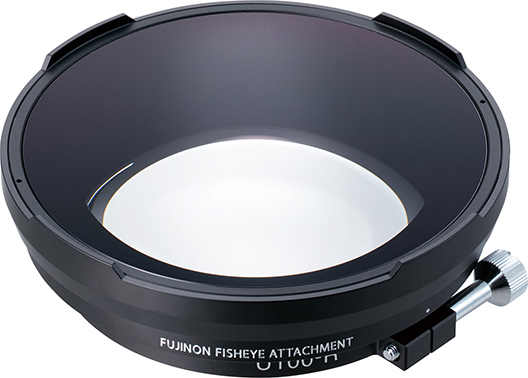

[photo] Fish-eye Attachment (F-AT) lens conversion accessory

Fish-eye Attachment(F-AT)

►Converts only the wide end of the lens by the magnification of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

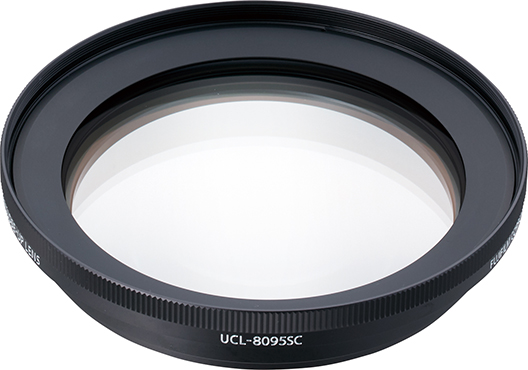

[photo] Close-up Lens (CL) lens conversion accessory

Close-up Lens(CL)

►Close-up lens provides a shorter minimum focusing distance between lens and object. ►Ideal for copy stand or other close up work.

Tele Converter/ Wide Converter/ Wide Converter/ Fish-eye Attachment

LENS     XA20sx8.5
XS20sx6.3
XT17sx4.5
XT20sx4.7

UA18×7.6
HA18x7.6
ZA17x7.6

 UA24x7.8
UA23x7.6
HA23x7.6
ZA22x7.6
Front Lens Diameter    ∅85 ∅100
Model Name  Magnification Approx.
Mass(kg)
TCV-U85  1.5x  1.10   ●
TCV-U100  1.00     ●
WCV-U85  0.8x  1.24   ●
WCV-U100  1.20     ●
WAT-U85 0.7x  0.36   ●
WAT-U100  0.53     ●
F-ATU85  0.55x  0.71   ●
F-ATU100  0.67     ●

Close-up Lens

Model Name  Magnification Approx.
Mass(kg)
UCL-8082SC 0.8m 0.28   ●
M82x0.75
UCL-8095SC 0.42     ●
M95x1

  • * AE20B-2 is specifically designed for SDTV lens.

Mount Adapters

[photo] Two Mount adapters side-by-side
Model Name Camera Lens Note
ACM-8B 1/2" Sony Bayonet Mount 2/3" Bayonet Mount Angle of view is approx. 1.3x shifted to tele side
ACM-19 1/3" Bayonet Mount 1/2" Sony Bayonet Mount  Angle of view is approx. 1.3x shifted to tele side
ACM-17 1/3" Bayonet Mount 2/3" Bayonet Mount Angle of view is approx. 1.6x shifted to tele side
ACM-21 SONY PMW-300 2/3" Bayonet Mount Angle of view is approx. 1.4x shifted to tele side

  • * Fujifilm has variety of Mount Adapters. For more detail, please ask our sales office .
