Product Lineup 8K 1.25” Mount Series

HP66ｘ15.2-ESM

HP66x15.2-ESM is the world’s highest zoom magnification^*1 of 66x , capable of producing dynamic 8K ultra-high definition video. It is covering the longest focal length of 1000mm^*2and the wide end of 15.2mm. It is equipped with a proprietary anti-vibration mechanism. The ultra-high resolution that supports 8K equipment is combined with vivid color reproduction and high contrast to produce rich tonal gradation in high dynamic range(HDR). The HP66x15.2-ESM is ideally suited for shooting live sports, concerts, and live events.

*1 Among 8K-compatible broadcast lenses according to FUJIFILM data as of October 1, 2020.
*2 Among 8K-compatible broadcast telephoto box lenses according to FUJIFILM data as of October 1, 2020.

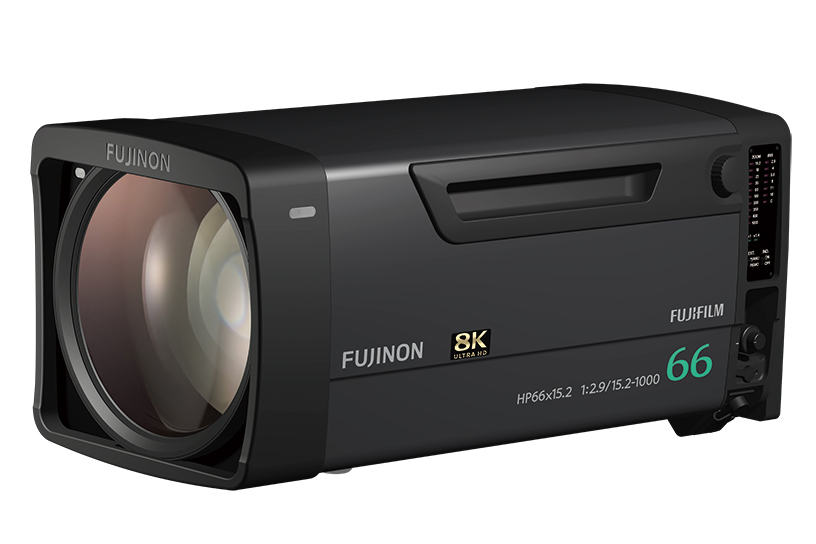

[photo] 8K Studio / Field Box Lenses model HP66x15.2-ESM

Specifications

Model Name: HP66ｘ15.2-ESM
Focal Length: [1x]
15.2-1000mm
[1.4x]
21.5-1414mm
Zoom ratio: 66x
Extender: 1.4x
Maximum relative aperture (F-no.): 1:2.9(15.2-592mm)
1:4.9(1000mm)
Minimum object distance (M.O.D) from the front lens element: 3.7m
Object dimensions at M.O.D. 16 : 9 Aspect ratio: [1x]
15.2mm  3495x1966mm
1000mm  55x31mm
[1.4x]
21.5mm  2502x1408mm
1414mm  39x22mm
Angular field of view 16 : 9 Aspect ratio: [1x]
15.2mm  55.8°x33.3°
1000mm  0.9°x0.5°
[1.4x]
21.5mm  41.1°x23.9°
1414mm  0.7°x0.4°
Filter thread: －
Approx. Size: 258x264x610mm(H×W×L)
Approx. Mass: 24.7kg
