Projector FP-ZUH12000 - Lenses & Accessories

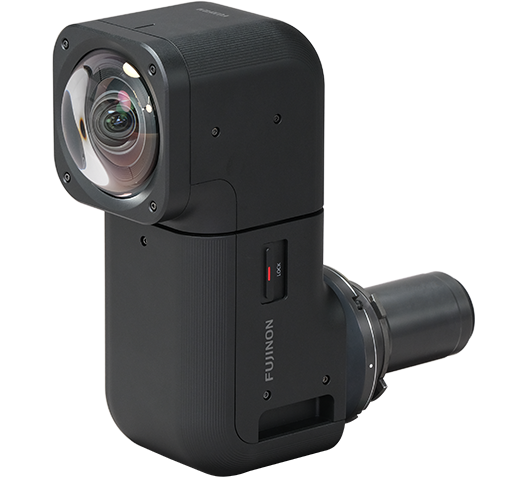

A new interchangeable ultra-short-throw zoom lens has been developed using our proprietary folded rotating mechanism.

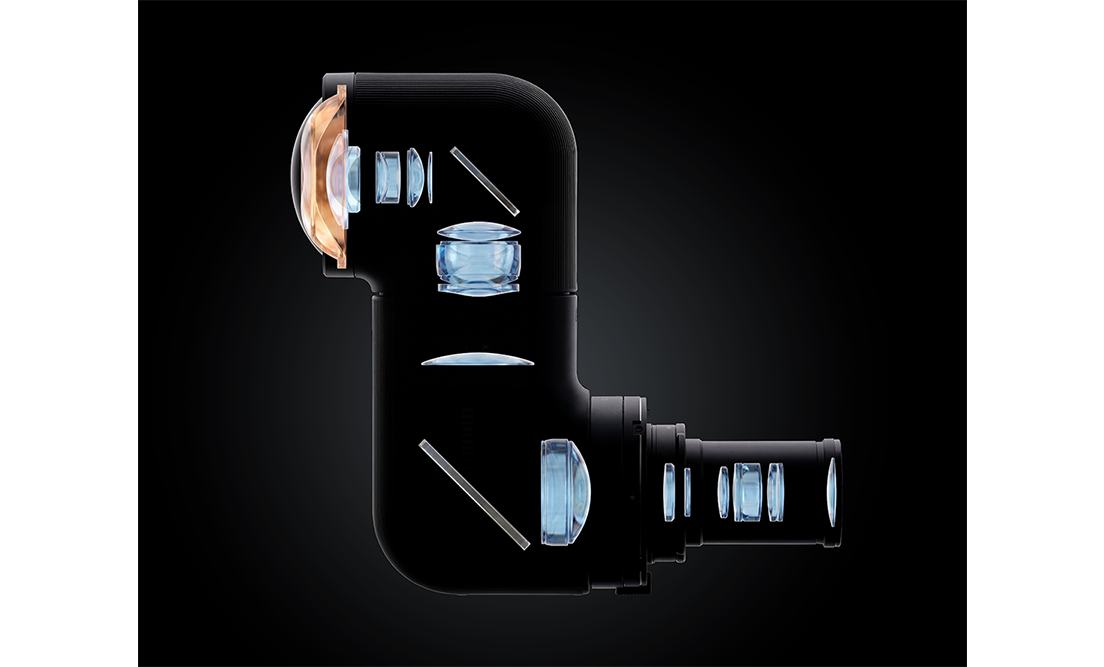

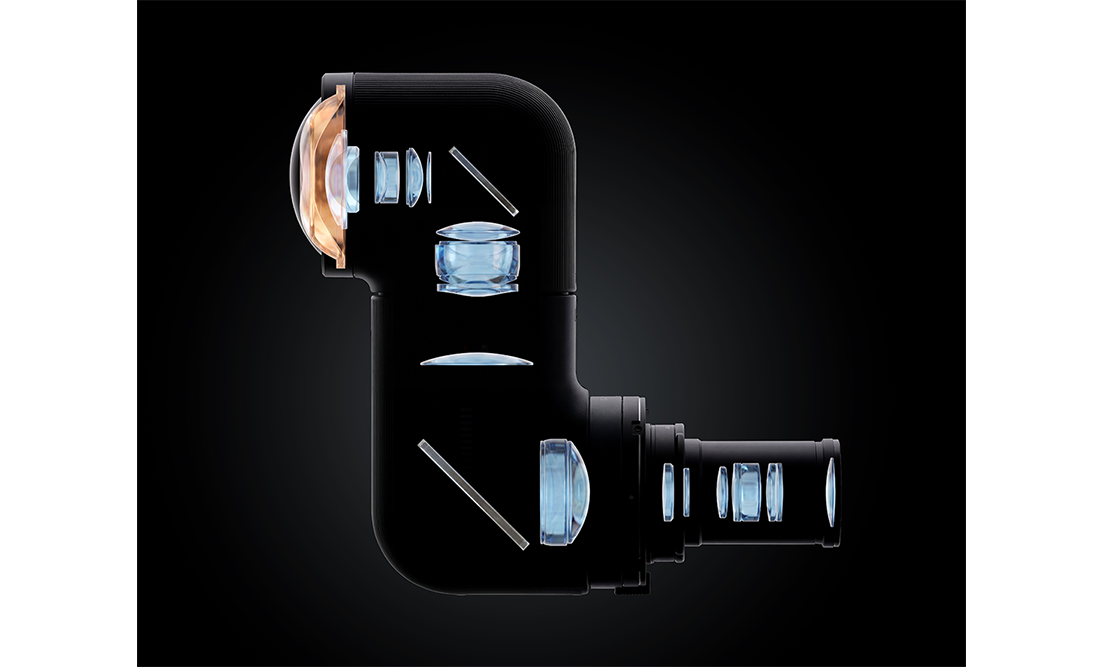

The FP-ZL034 consists of more than 20 lens elements, including a large-diameter aspherical lens, and two high-precision mirrors.
Based on lens design expertise developed through more than half a century of projector optical technology, and supported by highly precise manufacturing technologies, the FP-ZL034 enables high-quality image projection.
Its rotatable mount and lens sections allow projection in a wide variety of directions.

The optical and mechanical design takes into account thermal effects in the lens caused by high brightness, helping suppress focus shift resulting from thermal fluctuations.

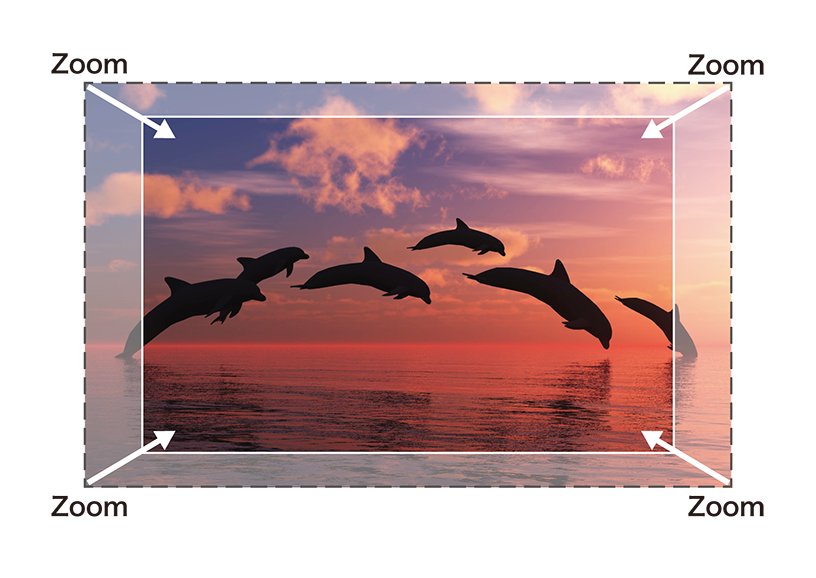

The lens is equipped with two independent focus adjustment mechanisms: one for the overall screen and one for the screen periphery. This enables high-resolution image reproduction with sharp focus from the center to the edges of the projected image.
The focus mechanism also supports motorized control. Dedicated buttons on the remote control support quick setup during installation.

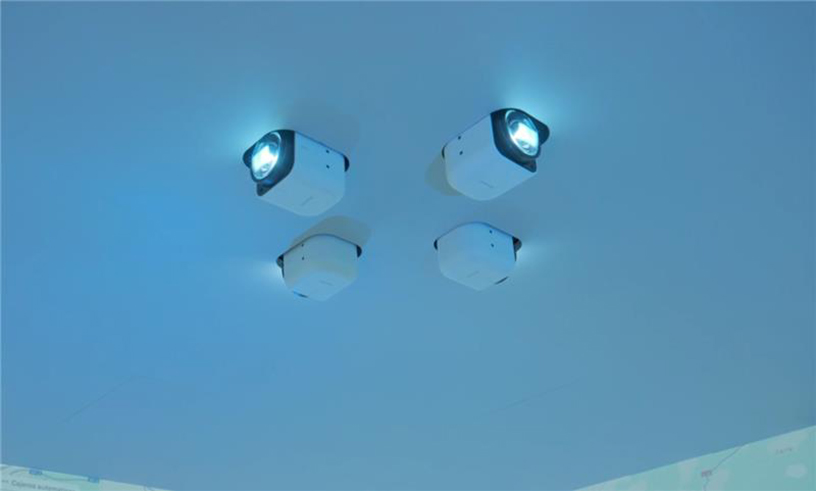

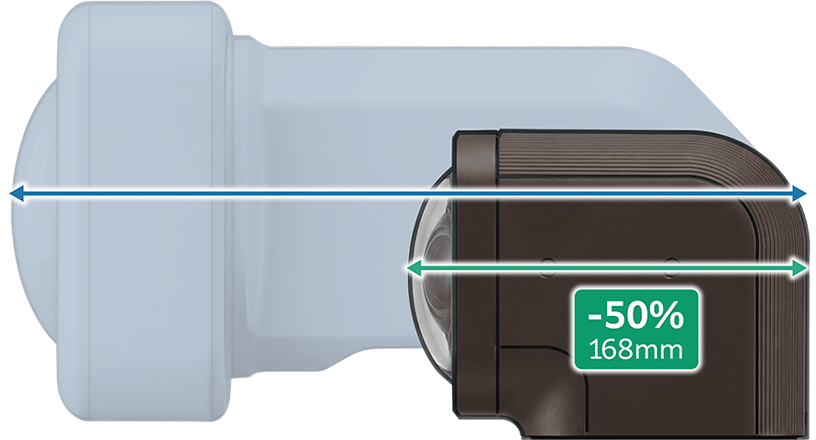

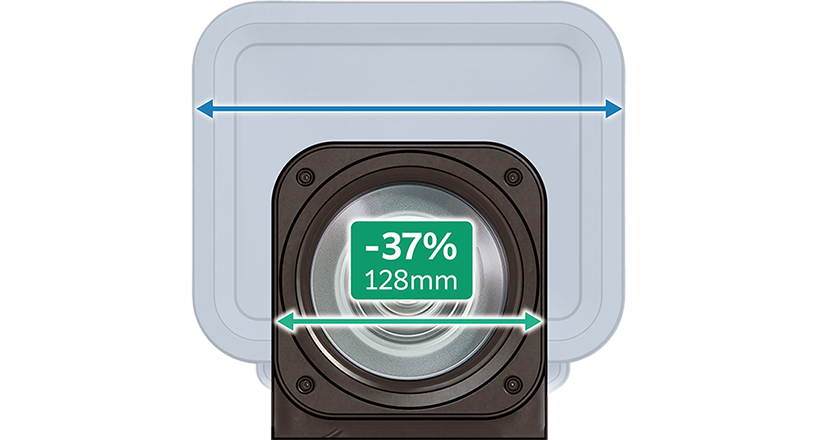

Despite being an interchangeable lens for a high-brightness projector, the FP-ZL034 features a compact and lightweight design. This allows installation that does not interfere with interior design, even when the projector is recessed into a ceiling.
A specially designed robust mount adapter securely holds the lens in place, eliminating the need for additional support parts. This helps suppress projection image misalignment and supports stable long-term operation.

• * Illustration for reference only. The comparison image does not represent any specific product.

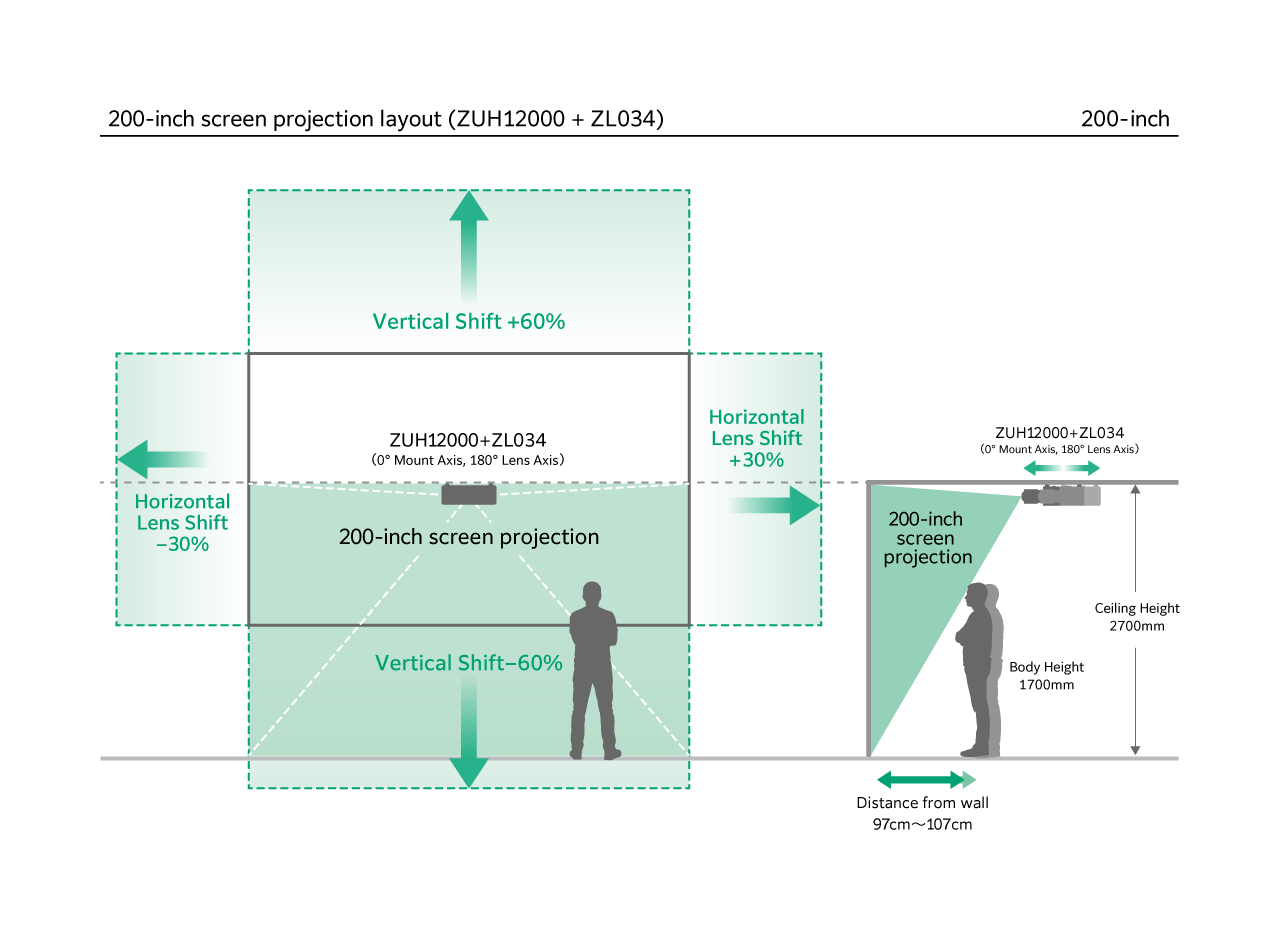

With a wide lens shift range of ±60% vertically and ±30% horizontally, the FP-ZL034 offers flexible installation even in locations where existing equipment, beams, air-conditioning units, or other obstacles must be avoided.
Because the projection position can be adjusted freely, the lens enhances installation flexibility in spaces with many constraints, as well as in multi-projector configurations such as immersive environments.

• *1 When projecting horizontally at a 16:10 aspect ratio.

With its newly developed three-group zoom mechanism, the FP-ZL034 achieves a class-largest^*2 1.2× optical zoom for an ultra-short-throw lens.
A single lens covers a throw ratio range from the ultra-short-throw range (TR: 0.34) to the short-throw range (TR: 0.41), enhancing layout flexibility during the installation design stage.
It also provides greater flexibility for final projection size adjustments on site, allowing the lens to adapt to unexpected installation conditions and helping reduce the workload during installation.

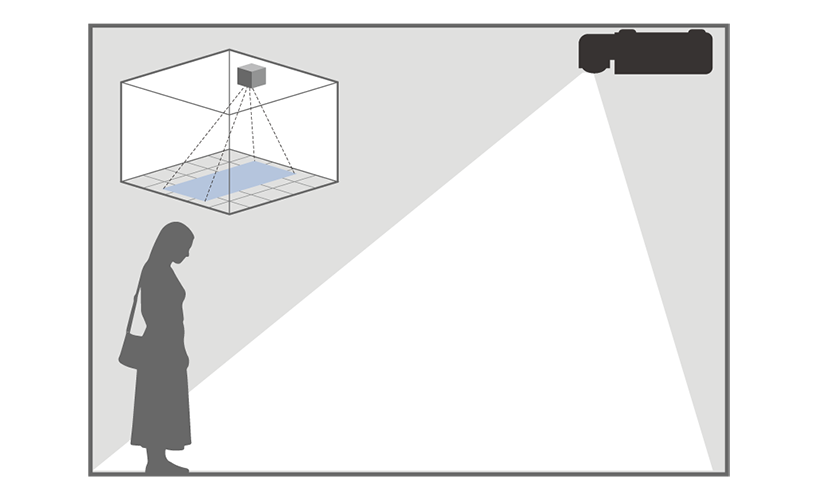

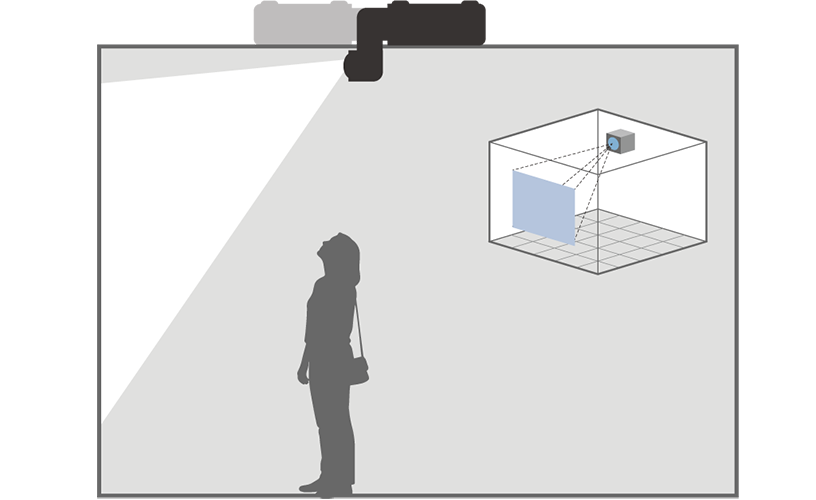

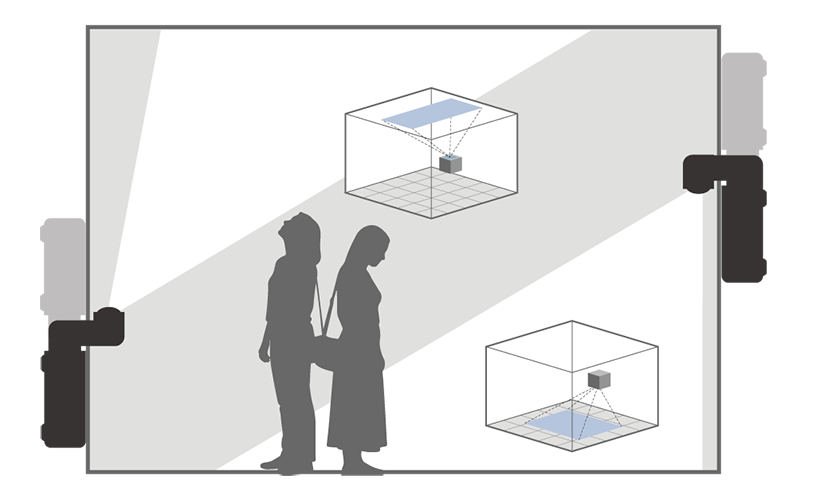

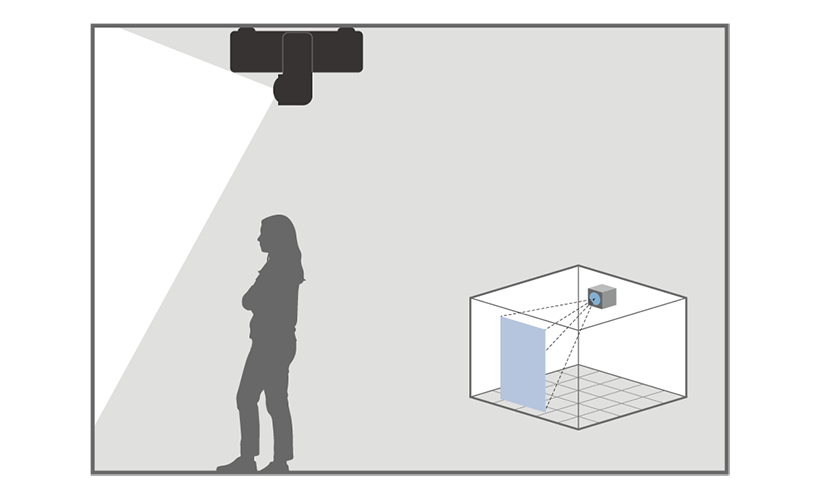

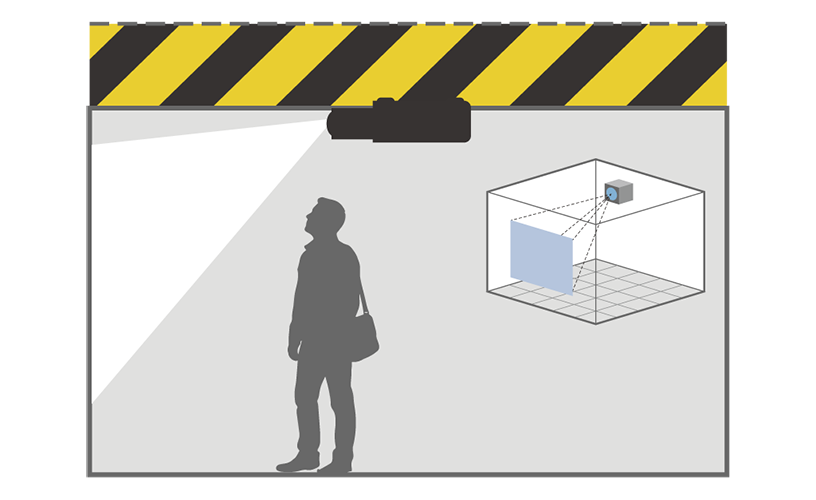

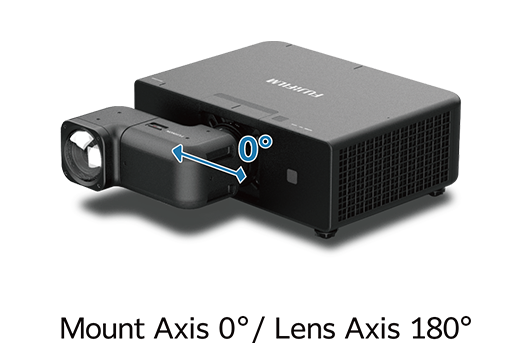

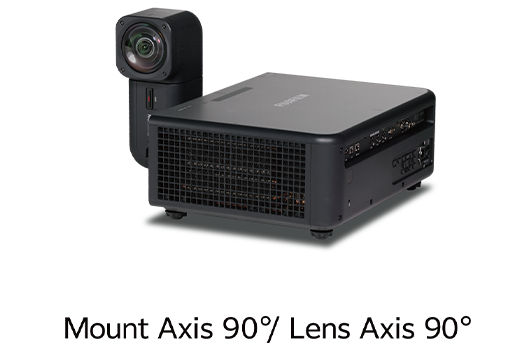

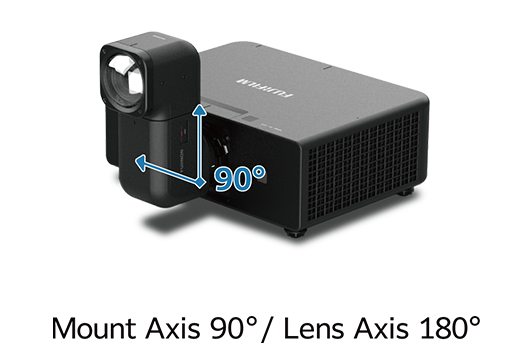

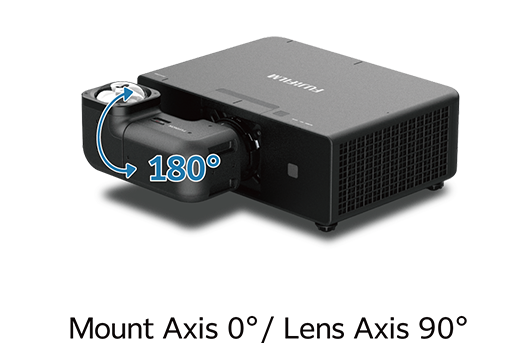

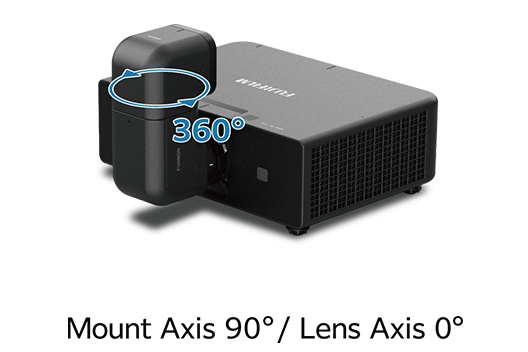

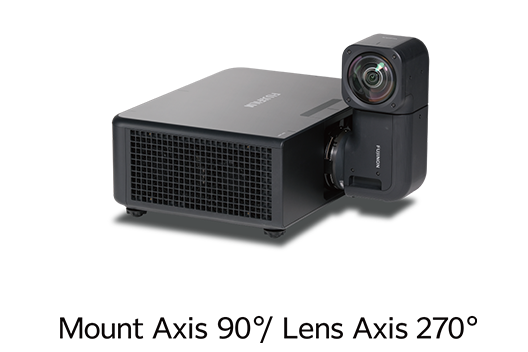

This lens carries forward the Z Series’ unique rotation mechanism, offering 0° and 90° mount positions and full 360° lens rotation for greater installation flexibility.
