The IMMUNO AG2’ s highly sensitive detection technology using silver amplification principle of photographic development offers accurate detection of a small amount of antigen during early stages of flu.
Easy operation allows the user to set a sample and execute automatic determination, reducing the labour for inspection, and prevents determination errors that are common with the visual inspection method.
The barcode reader offers the convenience to users.
The IMMUNO AG2 brings efficiency to test for infection reducing the burden to patients through early detection.
![[photo] FUJI AG test cartridge for Influenza type A and B virus antigen with light blue label](https://asset.fujifilm.com/www/mm/files/2020-05/3a4c35c1b3cd199e7e2156761ce54235/pic_dri-chem-immuno-ag2_01.jpg)
Influenza virus kit
Sample type | Nasopharyngeal swab |
Reaction time | 3.5 to 15 minutes |
![[photo] FUJI AG test cartridge for RS virus and Adenovirus antigen with light green label](https://asset.fujifilm.com/www/mm/files/2020-05/ed6590fac17336685399e777a6ca2944/pic_dri-chem-immuno-ag2_02.jpg)
RS virus and Adenovirus kit
Sample type | Nasopharyngeal swab |
Reaction time | 3.5 to 15 minutes |
The photographic technology leads to improved detection sensitivity of bacterial and viral antigens. This offers a greater ability to detect viruses in a small sample amount of antigen in early onset of disease.
By applying the silver amplification principle of photographic development, the colloidal gold particles that are the targets are amplified up to approx. 100 times, leading to the improvement of detection sensitivity.

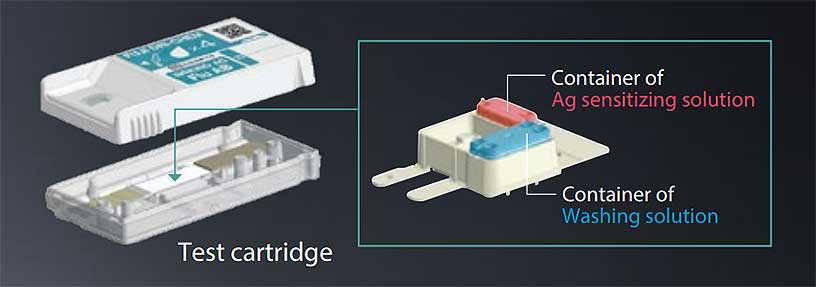

The specificity of the measurement is improved by washing off colloidal gold particles, which had foreign substances attached, prior to Ag sensitization to avoid false positive reaction.
After dropping the sample liquid onto the reagent cartridge and inserting it into the port, the system automatically starts the measurement. Further manual operation is not required until the measuring result is printed out. For FluAB, the shortest measurement time is about 3.5 minutes. If the system cannot make a determination, it automatically starts a sensitization test.
![[image] Gloved hands writing name and dropping sample liquid onto AG Flu Test cartridge, then inserting into equipment and receiving automatically printed test results paper](https://asset.fujifilm.com/www/mm/files/2020-05/70adbe51df89b297c63e76a5f1117755/pic_dri-chem-immuno-ag2_03.jpg)
![[image] Steps for measuring FluAB with AG Test in 15 minutes, from start of measurement, start of determination, determination, start of sensitizing, and judgement](https://asset.fujifilm.com/www/mm/files/2020-05/ca86fe593fe32bf4a637055ab1a04f8f/fig_dri-chem-immuno-ag2_04.jpg)

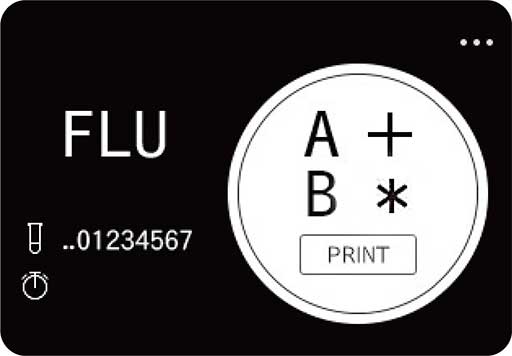

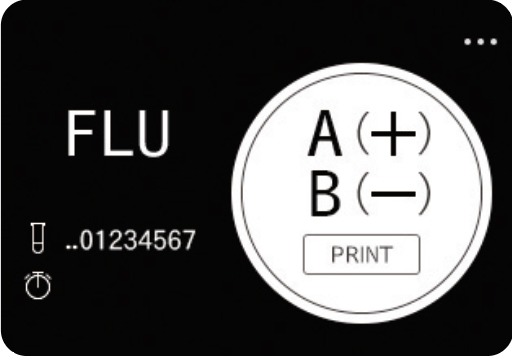

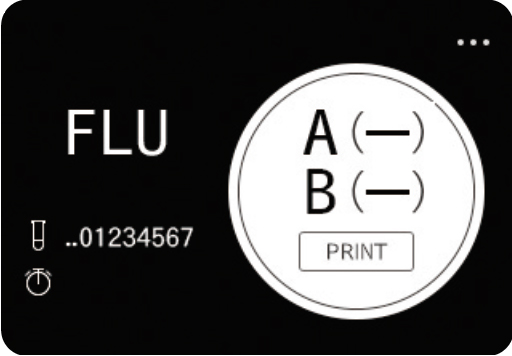

The system automatically reads the results. Thus human error in reading result can be avoided unlike the visual inspection method.
Determined with
immunochromatography
Determined after
sensitization
Determined after
sensitization

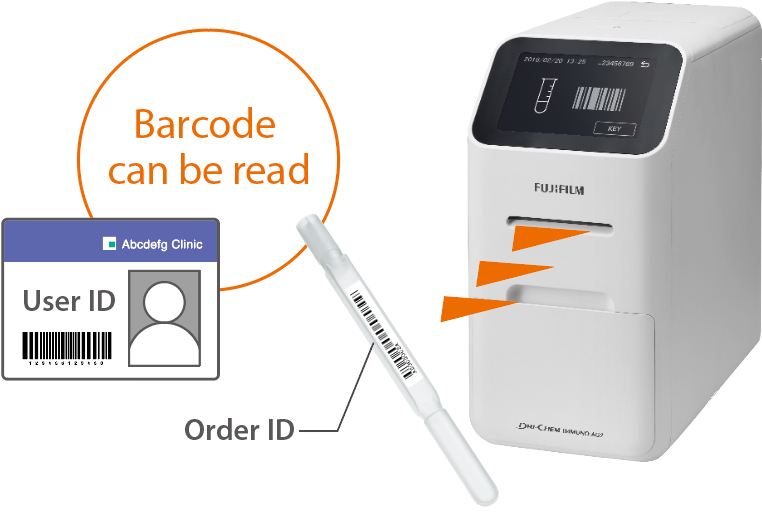

The built-in barcode reader allows reading of Order ID and User ID, reducing input error.
![[photo] Gloved hand pressing touch panel on DRI-CHEM IMMUNO AG2 system display](https://asset.fujifilm.com/www/mm/files/2020-05/df7efec461e390a59795362c925d32f4/pic_dri-chem-immuno-ag2_05.jpg)
![[photo] DRI-CHEM IMMUNO AG2 front and side views](https://asset.fujifilm.com/www/mm/files/2020-05/2ec76851cf55dd7599f4ac20fad8ae8c/pic_dri-chem-immuno-ag2_06.jpg)
![[image] 3 DRI-CHEM IMMUNO AG2 systems next to each other in a row, with width, depth, and heigh dimension highlighted](https://asset.fujifilm.com/www/mm/files/2020-05/096179f08b3876071112d06b5347f834/pic_dri-chem-immuno-ag2_07.jpg)
