TECHNO-STABI Series - Overview

NEW

Binoculars with image-stabilization for vibration-free viewing an subject to vibrations.

The world's first electronic gyro stabilizing system for binoculars

The erect prism in the gimbal system is constantly stabilized when the electronic gyro sensor detects vibration, providing vibration correction at a wider range of angles than any other system.

[image] Arrow of light passing through binoculars and being corrected in gimbal section, even at an angle
TS-L 1640 / TS-L 2040 (NEW)

High-magnification image-stabilized binoculars equipped with ED lenses, allowing for brighter and clearer observation of distant objects.

  • Highest level of magnification in the “FUJINON TECHNO-STABI Series” with two models: 16x (TS-L 1640) and 20x (TS-L 2040).
  • The image stabilization system with a correction angle of ±3° allows users to see athletes and performers’ faces clearly during sports events or music concerts in large venues.
  • These binoculars feature ED lenses (extra-low dispersion glass) to reduce axial chromatic aberration for long distance subject observation.
  • Despite of its large-diameter binoculars with 40mm objective lenses, they achieve a lightweight design at approximately 856g (TS-L 1640) and approximately 853g (TS-L 2040).
  • The external design is highly matched with the sophisticated and high-quality “X Series” mirrorless digital cameras. Carrying these binoculars alongside a digital camera accentuates their stylish design.
  • Both a hand strap and a neck strap are included in the box. These accessories allow users to choose the best option for different situations. The hand strap can be attached to either the left or right side.

TS-L 1640

TS-L 2040

Specifications
pecifications TS-L 1640 TS-L 2040
Magnification 16 20
Objective diameter (mm) 40 40
Field of view (°) 4.2 3.4
Apparent field of view (°)*1 60.8 61.4
Field of view at 1000m (m) 73 59.4
Exit pupil (mm) 2.5 2.0
Relative Brightness 6.3 4.0
Eye relief (mm) 15.7 15.4
Minimum Focus Distance  (m)*2 5.0 5.0
Height (mm) 185.5 185.5
Width (mm) 122 122
Depth (mm) 72 72
Weight (g) (w/o Battery) 856 853
Adjustment range for interpupillary distance (mm) 56-70 56-70
Dioptric adjustment range (±mm) ±2 ±2
Focus type CF CF
Water resistant*3 1m-30min(IPX7) 1m-30min(IPX7)
Battery AAA×2 or AAA NiMH ×2 AAA×2 or AAA NiMH ×2
Operating temperature -10℃~+50℃ -10℃~+50℃

Bundled items: Lens cap, eyepiece caps, case, hand strap, neck strap and 2 AAA alkaline batteries.

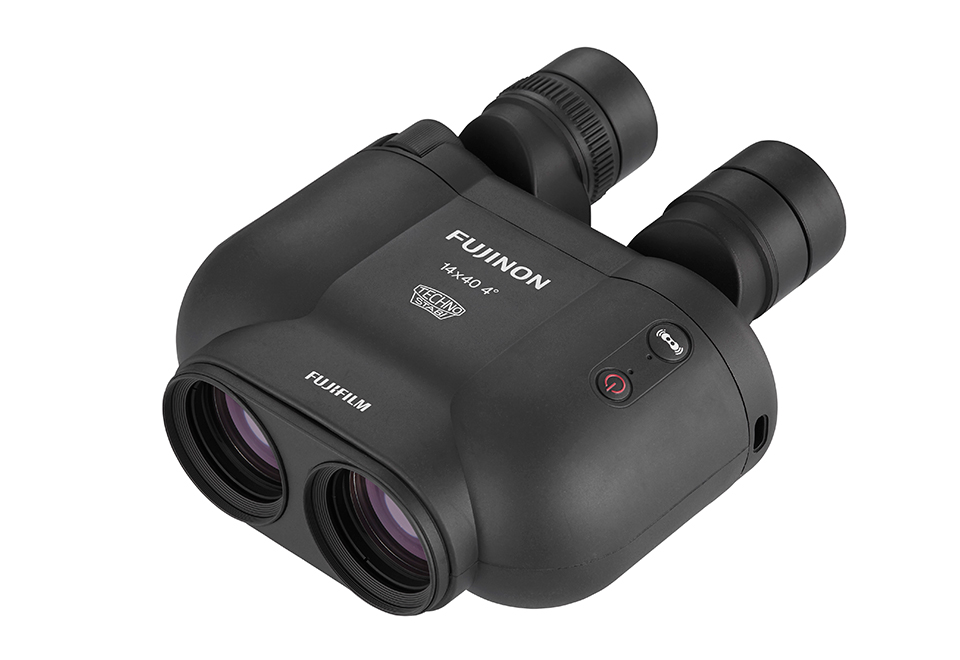

TS-X 1440 / TS-X 1440 Yellow / TS-X 1440 Navy



The TS-X comes with our strongest vibration-correction system for a steady view in bumpy conditions.

  • Class-Leading image stabilization* at ±6° Provides a stress-free experience in cars, boats, and other bumpy transportation.
  • The latest image stabilization system works at high magnification levels, making it easy to adjust the focus without losing sight of your target.
  • Enables a steady image at 14x magnification without a tripod - impossible in binoculars without vibration correction.
  • Waterproof and user-friendly design, making these binoculars the perfect companion in a wide range of settings that include marine sports, safaris, professional fishing, and sailing.

  • *According to September 2019 research conducted by Fujifilm on vibration-correcting binoculars.
  •
TS-X 1440, TS-X 1440Yellow, TS-X 1440Navy
Specifications
pecifications TS-X 1440
(TS-X 1440 Yellow/Navy)
Magnification 14
Objective diameter (mm) 40
Field of view (°) 4
Apparent field of view (°)*1 52.1
Field of view at 1000m (m) 70
Exit pupil (mm) 2.9
Relative Brightness 8.2
Eye relief (mm) 13
Minimum Focus Distance  (m)*2 5
Height (mm) 179.5
Width (mm) 165
Depth (mm) 81
Weight (g) (w/o Battery) 1,300
Adjustment range for interpupillary distance (mm) 60-70
Dioptric adjustment range (±mm) ±2
Focus type CF
Water resistant*3 1m-5min
Battery AA x4 or Ni-MH x4
Operating temperature -10℃~+50℃

Bundled item: Lens cap, eyepiece caps, case, strap and 4 AA alkaline batteries.

TS12×28WP / TS16×28WP

The TECHNO-STABI Compact Waterproof series comes with a high magnification vibration correction feature, providing a steady image at 12x and 16x.

  • Compact and lightweight with a stabilization correction of ±3 degrees.
  • Ideal in a variety of settings, including concerts, theme parks, marine leisure and bird-watching.
  • Stabilization activates with a shift switch, providing effortless control during prolonged use.
  • Provides sharp image at a high magnification without the use of a tripod.
[photo] TS12×28WP binoculars
[photo] TS16×28WP binoculars
Specifications
pecifications TS12×28WP TS16×28WP
Magnification 12 16
Objective diameter (mm) 28 28
Field of view (°) 4.2 4
Apparent field of view (°)*1 47.5 58.4
Field of view at 1000m (m) 73 70
Exit pupil (mm) 2.3 1.8
Relative Brightness 5.4 3.1
Eye relief (mm) 16.5 16
Minimum Focus Distance  (m)*2 3.5 3.5
Height (mm) 148 151
Width (mm) 109 120
Depth (mm) 74 74
Weight (g) (w/o Battery) 485 550
Adjustment range for interpupillary distance (mm) 55-70 55-70
Dioptric adjustment range (±mm) ±2 ±2
Focus type CF CF
Water resistant*3 1m-30min(IPX7) 1m-30min(IPX7)
Battery CR2 x1 CR2 x1
Operating temperature -10℃~+50℃ -10℃~+50℃
  • *1 Apparent field of view based on ISO14132-1:2002
  • *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
  • *3 Do not mean it can be used in water.
