2/3" 4K ENG/EFP Portable Lenses

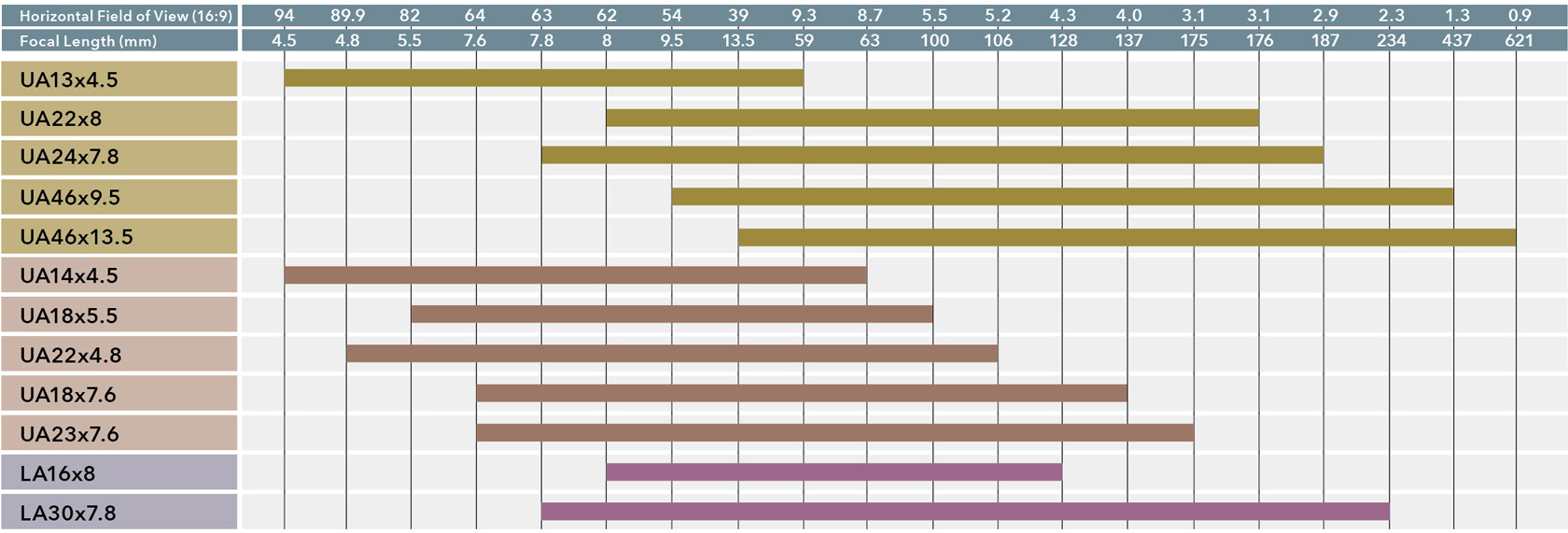

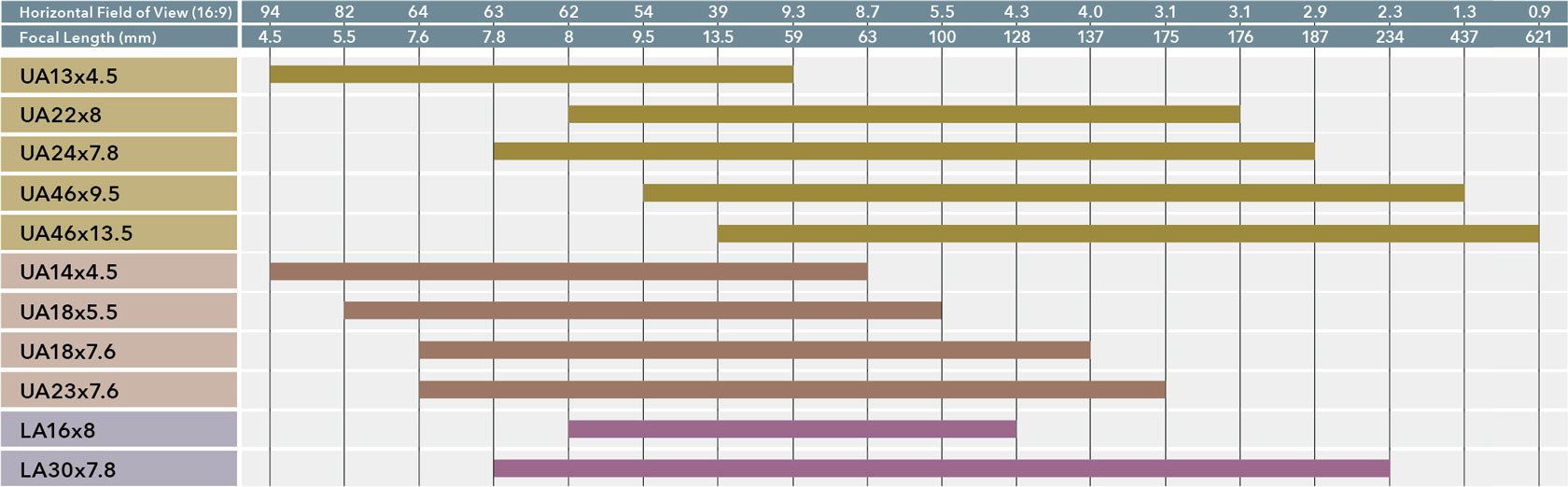

[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number

Lineups 4K Plus Premier Series

UA13x4.5BERD

Advanced optical performance that enables 4K compatibility under any shooting conditions
Powerful 4K footage with 13x zoom from 4.5mm in wide angle
9-blade round iris enabling natural bokeh in images
Equipped with 16bit encoder for virtual device

Specifications

Model Name: UA13x4.5BERD
Focal Length: [1x]
4.5mm-59mm
[2x]
9mm-118mm
Zoom ratio: 13x
Extender: 2x
Maximum relative aperture (F-no.): 1:1.8 (4.5mm-41mm) 1:2.6 (59mm)
Minimum object distance (M.O.D.) from front lens: 0.3m
Object dimensions at M.O.D. 16:9 Aspect ratio: [1x]
4.5mm 744mm x 418mm
59mm 54mm x 30mm
[2x]
9mm 367mm x 206mm
118mm 28mm x 16mm
Angular field of view 16:9 Aspect ratio: [1x]
4.5mm 93.6° x 61.8°
59mm 9.3° x 5.2°
[2x]
9mm 56.1° x 33.3°
118mm 4.7° x 2.6°
Filter Thread: M127 x 0.75 (Filter attaches to the lens hood)
Approx. Size: Φ95 x 253mm (ΦxLength)
Approx. Mass: 2.28kg (without lens hood)

UA22x8BERD

Advanced optical performance that enables 4K compatibility under any shooting conditions
Powerful 4K footage with 22x zoom from 8mm in wide angle
New drive unit design for enhanced operability
Compatibility with typical accessories used in TV broadcast operation.
Equipped with 16bit encoder for virtual device

Specifications

Model Name: UA22x8BERD
Focal length: [1x]
8.0-176mm
[2x]
16-352mm
Zoom ratio: 22x
Extender: 2x
Maximum relative aperture (F-no.): 1:1.8 (8-124mm) 1:2.55 (176mm)
Minimum object distance (M.O.D.) from front lens: 0.85m
Object dimensions at M.O.D. 16:9 Aspect ratio: [1x]
8mm 905mm x 509mm
176mm 43mm x 24mm
[2x]
16mm 472mm x 265mm
352mm 22mm x 12mm
Angular field of view 16 : 9 Aspect ratio: [1x]
8mm 61.9° x 37.2°
176mm 3.1° x 1.8°
[2x]
16mm 33.4° x 19.1°
352mm 1.6° x 0.9°
Filter Thread: M127 x 0.75 (Filter attaches to the lens hood)
Approx. Size: Φ110 x 241.5mm (ΦxLength)
Approx. Mass: 2.55kg (without lens hood)

UA24x7.8BERD

24x zoom covering a wide range of scenes from 7.8mm at wide angle to 187mm at telephoto.
Compact and lightweight body, measuring 220.5mm and 1.98kg.
Achieving natural bokeh with the adoption of nine aperture blades
Excellent 4K optical performance
16bit encoders device for virtual system

Specifications

Model Name: UA24x7.8BERD
Focal Length: [1x]
7.8-187mm
[2x]
15.6-374mm
Zoom Ratio: 24x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:1.8 (7.8-118mm) 1:2.85 (187mm)
Minimum Object Distance (M.O.D.) from Front Lens: 0.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
7.8mm 883mm x 496mm
187mm 38mm x 21mm
[2x]
15.6mm 459mm x 258mm
374mm 20mm x 11mm
Angular Field of View 16:9 Aspect Ratio: [1x]
7.8mm 63.2° x 38.1°
187mm 2.9° x 1.7°
[2x]
15.6mm 34.2° x 19.6°
374mm 1.5° x 0.8°
Filter Thread: M95 x 1 / M107 x 1 (Filter attaches to the lens hood)
Approx. Size: Φ100 x 220.5mm (ΦxLength)
Approx. Mass: 1.98kg (without lens hood)

UA46x9.5BERD

The world’s highest zoom ratio in a broadcast portable lens for 4K video production, realizing a 46x zoom
Reproduces rich tones using state-of-the-art optical design technology
Equipped with a proprietary anti-vibration mechanism, supporting 4K video production
Newly developed drive unit realizes a high level of operability
Realizes natural bokeh with the adoption of a nine aperture blade design

Specifications

Model Name: UA46x9.5BERD
Focal Length: [1x]
9.5mm-437mm
[2x]
19-874mm
Zoom Ratio: 46x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:2.0 (9.5mm-224mm) 1:3.9 (437mm)
Minimum Object Distance (M.O.D.) from Front Lens: 2.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
9.5mm 2653mmx1491mm
437mm 59mmx33mm
[2x]
19mm 1331x748mm
874mm 30x17mm
Angular Field of View 16:9 Aspect Ratio: [1x]
9.5mm 53.6°x31.7°
437mm 1.3°x0.7°
[2x]
19mm 28.3°x16.1°
874mm 0.6°x0.4°
Filter Thread: M127 x 0.75
Approx. Size: Φ146.5 x 345.8 (ΦxLength)
Approx. Mass: 5.7kg (without lens hood)

UA46x13.5BERD

World's highest*¹ 46x zoom ratio and longest focal length*² of 621mm in a portable 4K broadcast lens
Cutting-edge optical design technology for rich tonal gradation
Use of the proprietary anti-vibration mechanism to support 4K video production
Use of a high-performance drive unit for comfortable operability
Natural bokeh achieved with nine-blade diaphragm

Specifications

Model Name: UA46x13.5BERD
Focal Length: [1x]
13.5mm-621mm
[2x]
27-1242mm
Zoom Ratio: 46x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:2.8 (13.5mm-316mm) 1:5.5 (621mm)
Minimum Object Distance (M.O.D.) from Front Lens: 2.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
13.5mm 1886mmx1060mm
621mm 42mmx24mm
[2x]
27mm 936mmx526mm
1242mm 21mmx12mm
Angular Field of View 16 : 9 Aspect Ratio: [1x]
13.5mm 39.1°x22.6°
621mm 0.9°x0.5°
[2x]
27mm 20.1°x11.4°
1242mm 0.4°x0.2°
Filter Thread: M127 x 0.75
Approx. Size: Φ146.5 x 364.2 (ΦxLength)
Approx. Mass: 5.8kg (without lens hood)

*¹World's largest zoom magnification among portable 4K broadcast lenses according to Fujifilm data as of September 13, 2018
*²World's longest focal length among portable 4K broadcast lenses according to Fujifilm data as of September 13, 2018

4K Premier Series

UA14x4.5BERD

Advanced optical performance with 4K compatibility across the zoom range
Achieving natural bokeh with the adoption of nine aperture blades
Compact and lightweight body, measuring 238.5mm
4K image quality in a variety of situations
Controlling distortions and aberrations at edges

Specifications

Model Name: UA14x4.5BERD
Focal length: [1x]
4.5-63mm
[2x]
9-126mm
Zoom ratio: 14x
Extender: 2x
Maximum aperture ratio: 1:1.8 (4.5mm - 41mm) 1:2.8 (63mm)
Minimum object distance (M.O.D) from the front lens element: 0.3m
Object Dimensions at M.O.D. 16 : 9 Aspect Ratio: [1x]
4.5mm 744mm x 418mm
63mm 51mm x 29mm
[2x]
9mm 365mm x 205mm
126mm 27mm x 15mm
Angular Field of View 16:9 Aspect Ratio: [1x]
4.5mm 93.6° x 61.8°
63mm 8.7° x 4.9°
[2x]
9mm 56.1° x 33.3°
126mm 4.4° x 2.5°
Filter Thread: M127 x 0.75 (Filter attaches to the lens hood)
Approx. Size: Φ95 x 238.5mm (ΦxLength)
Approx. Mass: 2.21kg (without lens hood)

UA18x5.5BE

Advanced optical performance with 4K compatibility across the zoom range
Achieving natural bokeh with the adoption of nine aperture blades
Compact and lightweight design, weighing just 2kg
18x zoom covering a wide range of scenes from 5.5mm at wide angle to 100mm at telephoto

Specifications

Model Name: UA18x5.5BE
Focal length: [1x]
5.5-100mm
[2x]
11-200mm
Zoom ratio: 18x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:1.8 (5.5-62mm) 1:2.9 (100mm)
Minimum Object Distance (M.O.D.) from Front Lens: 0.4m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
5.5mm 800mm x 450mm
100mm 44mm x 25mm
[2x]
11mm 395mm x 222mm
200mm 22mm x 12mm
Angular Field of View 16:9 Aspect Ratio: [1x]
5.5mm 82.2° x 52.2°
100mm 5.5° x 3.1°
[2x]
11mm 47.1° x 27.5°
200mm 2.7° x 1.5°
Filter Thread: M127 x 0.75 (Filter attaches to the lens hood)
Approx. Size: Φ95 x 240.5mm (ΦxLength)
Approx. Mass: 2.04kg (without lens hood)

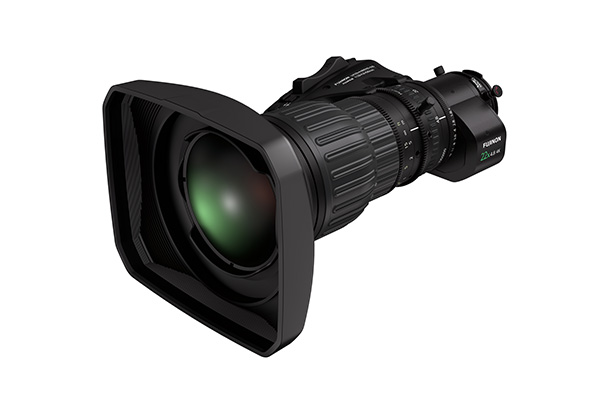

UA22x4.8BERD

Excellent mobility covering a wide angle of 4.8 mm and a high magnification of 22x zoom
4K optical performance across the entire zoom range
Close-up capture is possible at a M.O.D. of 0.4m across the entire zoom range
16bit encoders device for virtual system

Specifications

Model Name: UA22x4.8BERD
Focal Length: [1x]
4.8-106mm
[2x]
9.6-212mm
Zoom Ratio: 22x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:1.8 (4.8-61ｍｍ) 1:3.15 (106mm)
Minimum Object Distance (M.O.D.) from front lens: 0.4m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
4.8mm 913mm x 491 mm
106mm 40mm x 23mm
[2x]
9.6mm 447mm x 247mm
212mm 21mm x 12mm
Angular Field of View 16:9 Aspect Ratio: [1x]
4.8mm 89.9° x 58.6°
106mm 5.2°x 2.9°
[2x]
9.6mm 53.1°x 31.4°
212mm 2.6°x 1.5°
Filter Thread: M127x0.75 (Filter attaches to the lens hood)
Approx. Size: Φ95 x 251mm (ΦxLength)
Approx. Mass: 2.17kg (without lens hood)

UA18x7.6BERD

Standard focal length coverage 7.6-137mm (274mm with extender)
4K Premier optical performance
Equiped New Ergonomical Digital Grip
16bit encoders device for virtual system
Light weight & Compact Design

Specifications

Model Name: UA18x7.6BERD
Focal Length: [1x]
7.6-137mm
[2x]
15.2-274mm
Zoom Ratio: 18x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:1.8 (7.6-102mm) 1:2.4 (137mm)
Minimum Object Distance (M.O.D.) from Front Lens: 0.6m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
7.6mm 696mm x 392mm
137mm 41mm x 23mm
[2x]
15.2mm 362mm x 204mm
274mm 21mm x 12mm
Angular Field of View 16:9 Aspect Ratio: [1x]
7.6mm 64.5°x39°
137mm 4°x2.3°
[2x]
15.2mm 35°x20.1°
274mm 2°x1.1°
Filter Thread: M82x0.75
Approx. Size: Φ85x204mm (ΦxLength)
Approx. Mass: 1.74kg (without lens hood)

UA23x7.6BERD

High Power Zoom Ratio 23x in ENG Style lens
4K Premier optical performance
Equiped New Ergonomical Digital Grip
16bit encoders device for virtual system
Light weight & Compact Design

Specifications

Model Name: UA23x7.6BERD
Focal Length: [1x]
7.6-175mm
[2x]
15.2-350mm
Zoom Ratio: 23x
Extender: 2x
Maximum Relative Aperture (F-No.): 1:1.8 (7.6-119mm) 1:2.65 (175mm)
Minimum Object Distance (M.O.D.) from Front Lens: 0.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: [1x]
7.6mm 915mm x 514mm
175mm 41mm x 23mm
[2x]
15.2mm 473mm x 266mm
350mm 21mm x 12mm
Angular Field of View 16:9 Aspect Ratio: [1x]
7.6mm 64.5°x39°
175mm 3.1°x1.8°
[2x]
15.2mm 35°x20.1°
350mm 1.6°x0.9°
Filter Thread: M95x1 / M107x1 (Filter attaches to lens hood)
Approx. Size: Φ100x221.4mm (ΦxLength)
Approx. Mass: 1.95kg (without lens hood)

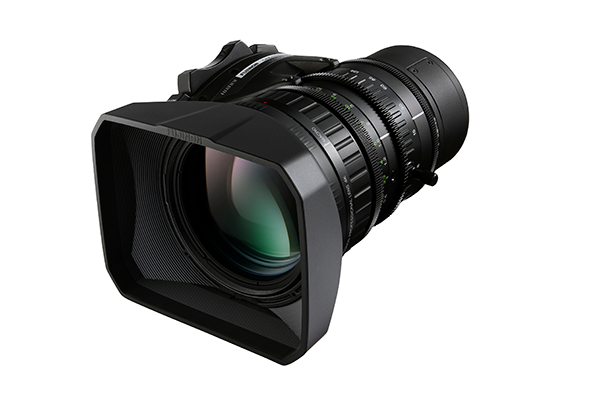

LA16x8BRM

Compact size and lightweight at 163.8mm in length and 1.6kg in weight
4K Premier optical performance
Electronic flange back adjustment function for faster and more efficient adjustment
Macro function up to 5cm by operation of the unique focus ring

Specifications

Focal Length: 8-128mm
Zoom Ratio: 16 x
Extender: -
Maximum Relative Aperture (F-No.): 1:1.9 (8mm) 1:2.8 (128mm)
Minimum Object Distance (M.O.D.) from front lens: 0.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: 8mm 1023 x 575 mm
128mm 98 x 55mm
Angular Field of View 16:9 Aspect Ratio: 8mm 61.9° x 37.2°
128mm 4.3° x 2.4°
Filter Thread: M82 x 0.75
Approx. Size: Φ85 x 163.8mm (ΦxLength)
Approx. Mass: 1.6kg (without lens hood)

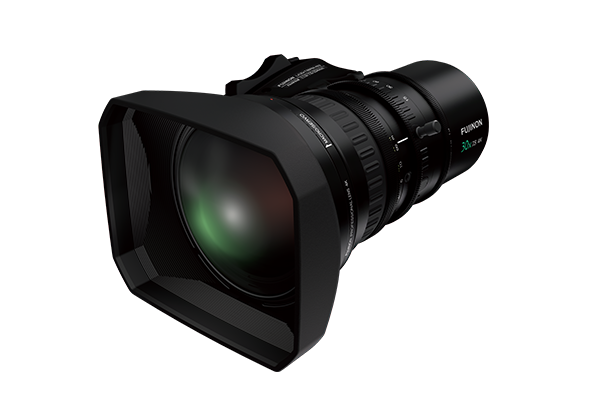

LA30x7.8BRM

30x zoom covering focal lengths of 7.8mm-234mm while measuring just 190mm and weighing 1.7kg
16-bit encoders for extremely accurate position detection, essential for virtual and remote production
Maximum speed of 1.0 sec and minimum speed of 120 sec when zooming from wide to tele
4K Premier optical performance across the entire zoom range
Electronic flange back adjustment function for faster and more efficient adjustment
Macro function up to 5cm by operation of the unique focus ring

Specifications

Model Name: LA30x7.8BRM
Focal Length: 7.8-234mm
Zoom Ratio: 30x
Extender: -
Maximum Relative Aperture (F-No.): 1:1.9 (7.8mm) 1:3.9 (234mm)
Minimum Object Distance (M.O.D.) from front lens: 0.8m
Object Dimensions at M.O.D. 16:9 Aspect Ratio: 7.8mm 1036 x 582 mm
234mm 65 x 37 mm
Angular Field of View 16:9 Aspect Ratio: 7.8mm 63.2° x 38.1°
234mm 2.3° x 1.3°
Filter Thread: M95 x 1
Approx. Size: Φ100 x 190mm (ΦxLength)
Approx. Mass: 1.7kg (without lens hood)

Leaflet [PDF]

Product Movie

4K Portable Lenses - Overview

Related Products
