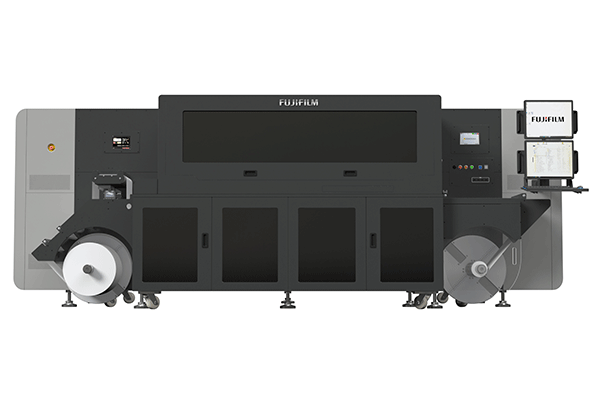

FUJIFILM Inkjet Label Press LP350/LP230

NEW

UV Inkjet Press for Digital Label Printing

Technical Specifications

MAXIMUM PRINT SPEED

164 ft./min

INKJET PRINTHEAD

4-level greyscale (0, 3, 6, 13pl)

MAXIMUM PRINT RESOLUTION

600 x 1200dpi

MEDIA WIDTH

LP350 model: 6 in. – 13.8 in.
LP230 model: 6 in. – 9 in.

MAXIMUM PRINTING WIDTH

LP350 model: 13 in.
LP230 model: 8.7 in.

MEDIA THICKNESS

50 – 450um (30 – 450um when using the cooling roller option)

SUPPORTED MEDIA

Transparent or white film (PP, PVC, PET, BOPP), foil film, coated & uncoated paper

MAXIMUM ROLL DIAMETER

Standard: 23.6 in. (or 44lbs.)

COLOR REGISTRATION ACCURACY

+/- 42um (head nozzle)

DIMENSIONS (W X D X H)

202 in. x 87.5 in x 88 in.

WEIGHT

LP350 model: 12,125 lbs.
LP230 model: 9,920 lbs.

POWER SUPPLY

3P-380VAC +/110% (50/60Hz) 50A

COMPRESSED AIR

100 psi (no oil)

SAFETY CERTIFICATION

NRTL, CE

CONSUMABLES

Fujifilm Uvijet TY (CMYK, Orange, Violet, White), flushing

RIP

Fujifilm RIP

STANDARD FEATURES

Corona treatment
Web cleaning (dust removal)
Antistatic bar
Mark Sensor
Fujifilm RIP software + PC
Single color variable printing

OPTIONAL FEATURES

Cooling roller
Full color variable printing
Cooling jacket for print head
