OnsetX Series

NEW

Full bed print array. The fastest UV flatbed presses on the planet!
No one else can reach the productivity.

OnsetX1-LT Printer

OnsetX1-LT

Imagine being able to upgrade your press to increase throughput as your business grows.Imagine Onset quality at a mid range price. The OnsetX1-LT flatbed UV printer provides the amazing, market-leading print quality expected from the Onset series with production speeds that help your business grow. As the need for throughput increases, an easy upgrade path allows the LT to build to a full Onset X1. At initial install, The X1-LT is capable of producing sellable output of 40 5′ x 10′ full size beds per hour with manual handling.



OnsetX1-LT is capable of producing sellable output at speeds in excess of 2,152 ft2/hr equating to 40 5’ x 10’ beds per hour by utilizing a small droplet size (14 picoliters) jetted through 42,000 nozzles to produce crisp images, fine lines, sharp text and smooth tonal graduations. It offers many of the features associated with the Onset X Series, including a wide color gamut, optional white, variable satin to gloss finish, advanced job management and automation. There’s no gloss-matte banding commonly associated with conventional reciprocating head technology, especially in high saturation areas. In addition, the OnsetX1-LT produces superb POP-quality display graphics economically up to 1.8” (46mm) thick. After the Level 1 Upgrade, the X1-LT is capable of producing 58 5’ x 10’ beds per hour with manual handling. That’s over 4,300 square feet per hour. The Level 1 Upgrade includes the addition of a second UV lamp, the associated electronics and additional print modes. Adding a second UV lamp allows for bidirectional printing, which significantly increases printing speed.

Features

  • High Quality, high speed output of 40 beds an hour
  • Output increases to 58 beds an hour after the Level 1 Upgrade
  • iNozzle auto nozzle mapping technology
  • 25 zoned vacuum print bed
  • Variable gloss levels from satin to gloss
  • Automated print head sensor protection
  • Inca Vision remote diagnostics software
  • IncaConnect software tools allow integration of OnsetX printers into existing workflow solutions, aims to reduce costs and improve efficiency

Specifications

Printing Systems

Process
CMYK+W
CMYK+LcLm

Operation Conditions

Print Area
Rigid and flexible sheets up to 126.8” x 63” (3.22m x 1.6m) (edge to edge printing)


Print Finish
Variable, Satin to Gloss

Max. Substrate Thickness
Manual: 1.8” (46mm)
With Automation: 0.71” (18mm)

RIP
Caldera GrandRIP+
ColorGATE Production Server (Fujifilm edition)

Fujifilm Uvijet Inks
OW or OX series UV Curable Inks

Space Required
Manual – 49.3’ X 19.5’ (15.0 m x 5.9 m) (including space forexclusion zones, door opening and access) + Chiller

Hostert Automation (includes 10’ width for fork truck access):
Long Edge – 47.6’ x 37.7’ (14.5 m x 11.5 m) + Materials Handling + Chiller
Short Edge – 55.8’ x 37.7’ (17 m x 11.5 m) + Materials Handling + Chiller

Power Supply

Printer
Three-phase Rated voltage 380-480V ac, 100A, 50/60Hz, Protective Earth / Ground

Chiller
380-480V ac, Three-phase, 50/60Hz, supplied via 30 amp circuit breaker

Factory Air Requirement

Printer
90 PSI (6 bar)

Network

1000 Base-T

Note: *Product specifications are subject to change without notice.

Download Documents

Uvijet OL Ink

PDF: 403KB

Uvijet OW

PDF: 426KB

Uvijet OX

PDF: 406KB

Uvijet OZ

PDF: 331KB

OnsetX1 Printer

OnsetX1

With a maximum throughput of 4,300 ft2/hour equating to 80 5’ x 10’ beds/hour, OnsetX1 is ideal for companies producing a mix of fast-turnaround retail graphics for distance viewing and high-quality images for close-up viewing. Of the eight channels, four print CMYK and the remainder can be configured as required using any of light magenta, light cyan, white and orange (LmLcWO). When the time is right, an additional six-channel carriage can be added to scale up to the Onset X2.

OnsetX1 is capable of producing sellable output at speeds in excess of 4,300 ft2/hr equating to 80 5’ x 10’ beds per hour. Offering many of the features associated with the Onset range, including a wide color gamut, optional white, variable satin to gloss finish, advanced job management and automation. In Addition, OnsetX1 produces superb POP-quality display graphics economically up to 1.8” (46mm) thick. In addition to CMYK configuration, the OnsetX1 is also available in a configuration with light cyan and light magenta as well as orange and white. A customer can choose to configure their press with any of these options. Also, the ability to vary the gloss level directly from the operator console gives the user flexibility to set the desired gloss level on a per job basis.

Features

  • High Quality, high speed output up to 80 beds an hour
  • iNozzle auto nozzle mapping technology
  • 25 zoned vacuum print bed
  • Variable gloss levels from stain to gloss
  • Automated print head sensor protection
  • IncaConnect software tools allow integration of OnsetX printers into existing workflow solutions, aims to reduce costs and improve efficiency.
  • Inca Vision remote diagnostics software

Specifications

Printing Systems

Process
CMYK
CMYK+WW
CMYK+LcLm
CMYK+O+WW
CMYK+LcLm+O
CMYK+LcLm+WW

Operation Conditions

Print Area
Rigid and flexible sheets up to 126.8” x 63” (3.22m x 1.6m) (edge to edge printing)

Print Finish
Variable, Satin to Gloss

Max. Substrate Thickness
Manual: 1.8” (46mm)With Automation: 0.71” (18mm)

RIP
Caldera Grand RIP+
ColorGATE Production Server (Fujifilm edition)

Fujifilm Uvijet Inks
OW or OX series UV Curable Inks

Space Required
Manual: 49.3’ X 19.5’ (15.0 m x 5.9 m) (including space for exclusion zones, door opening and access) + Chiller

Hostert Automation (includes 10’ width for fork truck access)
Long Edge – 47.6’ x 37.7’ (14.5 m x 11.5 m) + Materials Handling + Chiller
Short Edge – 55.8’ x 37.7’ (17 m x 11.5 m) + Materials Handling + Chiller

Power Supply

Printer
Three-phase Rated voltage 380-480V ac, 100A, 50/60Hz, Protective Earth / Ground

Chiller
380-480V ac, Three-phase, 50/60Hz, supplied via 30 amp circuit breaker

Factory Air Requirement

Printer

90 PSI (6 bar)

Network

1000 Base-T

Note: *Product specifications are subject to change without notice.

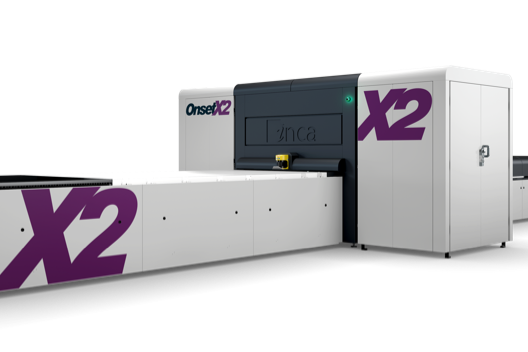

OnsetX2-HS Printer

OnsetX2 HS

With a maximum throughput of 159 5’ x 10’ beds/hour, OnsetX2 HS is ideal for companies producing fast-turnaround retail graphics. As the business expands, OnsetX2 HS provides the capacity to extend the range of jobs companies can handle. The addition of a second set of CMYK delivers even higher productivity while an optional six LmLcWO channels can be populated to add versatility and superb quality. A choice of unidirectional, bi-directional and super high-quality print modes can be selected depending on the specific job requirements.

Features

  • High Quality, high speed output up to 144 beds an hour
  • iNozzle auto nozzle mapping technology
  • 25 zoned vacuum print bed
  • Variable gloss levels from stain to gloss
  • Automated print head sensor protection
  • IncaConnect software tools allow integration of OnsetX printers into existing workflow solutions, aims to reduce costs and improve efficiency
  • More automated features allow for 30-Second Set-Up for faster job changeovers
  • Inca Vision remote diagnostics software

Specifications

Printing Systems

Process
CMYKCMYK
CMYKCMYK+OO
CMYKCMYK+WW
CMYKCMYK+LcLmLcLm
CMYKCMYK+OO+WW
CMYKCMYK+LcLmLcLm+OO
CMYKCMYK+LcLmLcLm+WW

Operations Conditions

Print Area
Rigid and flexible sheets up to 126.8” x 63” (3.22m x 1.6m) (edge to edge printing)

Print Finish
Variable, Satin to Gloss

Max. Substrate Thickness
Manual: 1.8” (46mm)
With Automation: 0.71” (18mm)

RIP
Caldera Grand RIP+
ColorGATE Production Server (Fujifilm edition)

Fujifilm Uvijet Inks
OW or OX series UV Curable Inks

Space Required
Manual:

49.3’ X 19.5’ (15.0 m x 5.9 m) (including space for exclusion zones, door opening and access) + Chiller

Hostert Automation (includes 10’ width for fork truck access)
Long Edge – 47.6’ x 37.7’ (14.5 m x 11.5 m) + Materials Handling + Chiller
Short Edge – 55.8’ x 37.7’ (17 m x 11.5 m) + Materials Handling + Chiller

Power Supply

Printer
Three-phase Rated voltage 380-480V ac, 100A, 50/60Hz, Protective Earth / Ground


Chiller
380-480V ac, Three-phase, 50/60Hz, supplied via 30 amp circuit breaker

Factory Air Requirement

Printer
90 PSI (6 bar)

Network

1000 Base-T

Note *Product specifications are subject to change without notice.

Uvijet OL Ink

PDF: 403KB

Uvijet OW

PDF: 426KB

Uvijet OZ

PDF: 331KB

OnsetX3-HS Printer

OnsetX3 HS

Please change the cover copy to: The World’s fastest high quality flatbed printer, the OnsetX3 HS is capable of printing in excess of 280 5’ x 10’ beds/hour. The OnsetX3 HS features 3 x CMYK ink channels plus the choice of white or orange. The OnsetX3 HS sits at the pinnacle of productivity. With this printer, users of analog printing lines can take the digital route, confident they can print long runs of high-quality print with superb consistency and reliability. Compatible with Inca’s range of application-specific robotic handling systems, and incorporating ‘30 second’ job set up and ‘single cycle’ printing mode, the OnsetX3 HS has the potential to bring your business to the next level.

The OnsetX3 HS features Fujifilm Dimatix drop-on-demand printheads, which are perfect for the production of high volume, quality images onto a wide variety of media. Jetting a 14 picoliter drop size these trusted printheads provide a good balance of quality and volume for the display POP and signage market. Utilizing the Single Cycle printing mode, the OnsetX3 HS produces sellable output at speeds in excess of 280 5’ x 10’ beds/hour. To ensure maximum throughput, the Inca OnsetX3 HS printer is compatible with Inca’s flexible automation system which offers customers the choice to operate in manual, semi or three-quarter robotic handling.

Features

  • High Quality, high speed output up to 200 beds an hour
  • iNozzle auto nozzle mapping technology
  • 25 zoned vacuum print bed
  • Variable gloss levels from stain to gloss
  • Automated print head sensor protection
  • IncaConnect software tools allow integration of OnsetX printers into existing workflow solutions, aims to reduce costs and improve efficiency.
  • More automated features allow for 30-Second Set-Up for faster job changeovers
  • Inca Vision remote diagnostics software

Specifications

Printing Systems

Process
CMYKCMYKCMYK
CMYKCMYKCMYK+O
CMYKCMYKCMYK+WW

Operation Conditions

Print Area
Rigid and flexible sheets up to 126.8” x 63” (3.22m x 1.6m) (edge to edge printing)

Print Finish
Variable, Satin to Gloss

Max. Substrate Thickness
Manual: 1.8” (46mm)
With Automation: 0.71” (18mm)

RIP
Caldera Grand RIP+
ColorGATE Production Server (Fujifilm edition)

Fujifilm Uvijet Inks
OW or OX series UV Curable Inks

Space Required
Manual - 49.3’ X 19.5’ (15.0 m x 5.9 m) (including space for exclusion zones, door opening and access) + Chiller
Hostert Automation (includes 10’ width for fork truck access)
Long Edge – 47.6’ x 37.7’ (14.5 m x 11.5 m) + Materials Handling + Chiller
Short Edge – 55.8’ x 37.7’ (17 m x 11.5 m) + Materials Handling + Chiller

Power Supply

Printer
Three-phase Rated voltage 380-480V ac, 125A, 50/60Hz, Protective Earth / Ground

Chiller
380-480V ac, Three-phase, 50/60Hz, supplied via 30 amp circuit breaker

Factory Air Requirement

Printer
90 PSI (6 bar)

Network

1000 Base-T

Note *Product specifications are subject to change without notice.
