HK Premier Series

NEW

Premier Zoom 14.5-45mm T2.0 Primarily Wide

HK3.1x14.5  14.5-45mm T2.0 covers unlimited focal lengths in a range where primes previously were the rule. This lens works like a high-end Prime when dealing with distortion, chromatic aberration, and all the tough challenges of wide angle lens design. MTF and resolution is stellar from the center to the corners, without shading or fall-off. This is the most expensive, yet most compact of the four Premiers.

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*1
  • 280 degree focus barrel rotation
  • Color Matching
  • Minimal breathing
  • *1 Sensor Size : 24.0 x 13.5mm

Specifications

Focal Length:

14.5-45mm

T-No.

T2.0

Lens Mount:

PL Mount

M.O.D. from Sensor Plane:

0.71m / 2.3ft

Angular Field of View
40.96mm x 21.60mm *2

14.5mm : 79°13'×49°56'
45mm : 29°52'×17°04'

Focus Rotation:

280°

Zoom Rotation:

160°

Iris Rotation

70°

Iris Blades:

9

Front Diameter

136mm

Length (approx.)

φ136 × 310mm / 12.2"

Weight (approx.)

6.5kg / 14.3lbs.

  •  *2 Aspect ratio 1:1.78

Premier Zoom 18-85mm T2.0 Primarily Dramatic

HK4.7x18  18-85mm T2.0 zoom is an all-purpose zoom encompassing the most used focal length range for the majority of dramatic studio and location scenes. Fujinon HK Premier Zooms are designed for the highest performance cameras. They exhibit minimal breathing when focusing. Image quality is consistent and repeatable. Coatings and elements of all lenses are consistently color matched. The 280 degree focus barrel rotation ensures an expanded focus scale, with accurate and consistent marks.

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*3
  • 280 degree focus barrel rotation
  • Color Matching
  • Minimal breathing

  • *3 Sensor Size : 24.0 x 13.5mm

Specifications

Focal Length:

18-85mm

T-No.:

T2.0

Lens Mount:

PL Mount

M.O.D. from Sensor Plane :

0.82m / 2.7ft

Angular Field of View
40.96mm x 21.60mm *4:

18mm : 67°23'×41°07'
85mm : 16°04'×9°05'

Focus Rotation:

280°

Zoom Rotation:

160°

Iris Rotation:

70°

Iris Blades:

9

Front Diameter

136mm

Length (approx.)

φ136 × 352mm / 13.9"

Weight (approx.)

7.0kg / 15.4lbs.

  •  *4 Aspect ratio 1:1.78

Premier Zoom 24 - 180mm T2.6 Primarily Versatile

HK7.5x24  24-180mm T2.6 is the high-quality general purpose member of the family of four 4K+ PL Cine zoom lenses. Identified by their gold band, Fujinon Premier PL 4K+ lenses consistently match each other superbly for focus, iris, zoom, color, contrast, and performance.

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*5
  • 280 degree focus barrel rotation
  • Color Matching
  • Minimal breathing

  • *5 Sensor Size : 24.0 x 13.5mm

Specifications

Focal Length:

24-180mm

T-No.:

T2.6

Lens Mount:

PL Mount

M.O.D. from Sensor Plane:

180mm 119 x 67mm

Angular Field of View
40.96mm x 21.60mm *6:

24mm : 53°08'×31°25'
180mm : 7°38'×4°18'

Focus Rotation:

280°

Zoom Rotation:

160°

Iris Rotation:

62°

Iris Blades:

9

Front Diameter

136mm

Length (approx.):

φ 136×405mm / 15.9"

Weight (approx.):

8.9kg / 19.6lbs.

  • *6 Aspect ratio 1:1.78

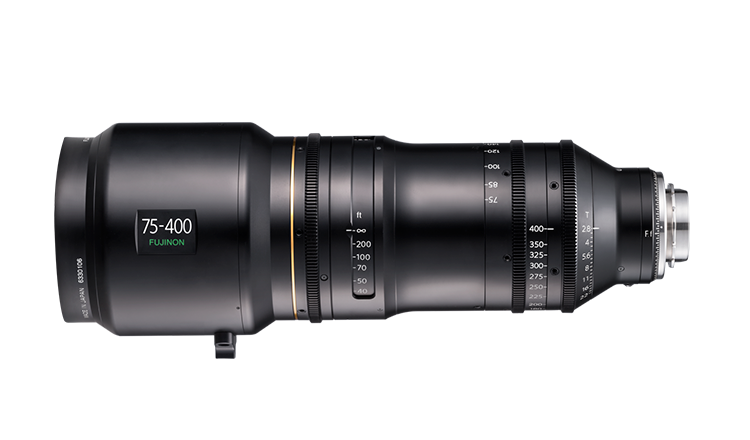

Premier Zoom 75-400mm T2.8 Primarily Far-Reaching

HK5.3x75  75-400mm T2.8-3.8 Zoom when they need to cover a wide range from medium focal length to long telephoto. This is an important lens for sports, cars, action, wildlife, commercials, exteriors, compression shots, slowmotion, and other situations where you want a long lens, with a fast aperture, in a small and light body. It eliminates lots of scrambling to change lenses at magic hour.

  • Outstanding 4K+ ultra optical performance
  • 400mm Super Telephoto
  • Super 35mm format coverage*7
  • 280 degree focus barrel rotation
  • Color Matching
  • Minimal breathing



  • *7 Sensor Size : 24.0 x 13.5mm

Specifications

Focal Length:

75-400mm

T-No.:

T2.8(75-290mm)
T3.8(400mm)

Lens Mount:

PL Mount

M.O.D. from Sensor Plane:

2.0m / 6.6ft

Angular Field of View
40.96mm x 21.60mm *8

75mm : 18°11'×10°17'
400mm : 3°26'×1°56'

Focus Rotation:

280°

Zoom Rotation:

160°

Iris Rotation:

60°

Iris Blades:

9

Front Diameter

136mm

Length (approx.):

φ 136×444mm / 17.5"

Weight (approx.)

9.1kg / 20.1lbs.

  • *8 Aspect ratio 1:1.78
