1/3″ HD ENG Lenses

NEW

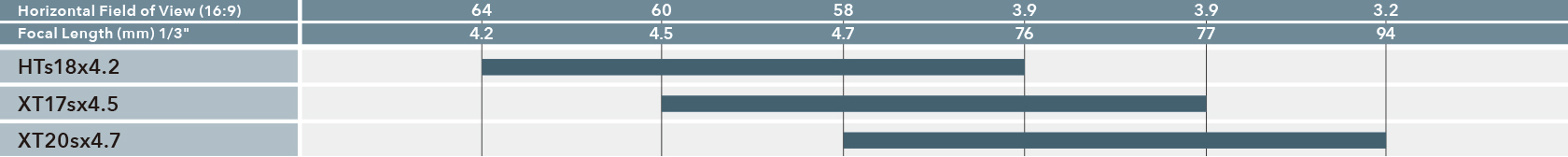

Lineups

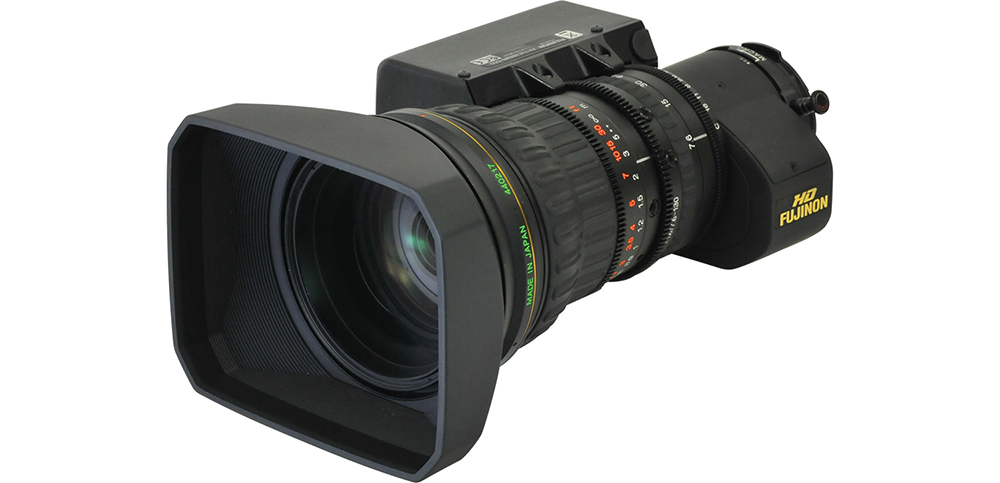

1/3" Series [PREMIER Series]

HTs18x4.2BERM

  • Standard focal length coverage 4.2-76mm (152mm with extender)
  • Built in x2 Extender
  • DiGIPOWER support
  • Equipped New Ergonomic Digital Grip

Specifications

Model Name

HTs18x4.2BERM

Focal length

[1x]
4.2-76mm

[2x]
8.4-152mm

Zoom ratio

18x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.4 (4.2-76mm) / 1 : 2.8 (8.4-152mm)

Minimum object distance (M.O.D.) from front lens

0.6m


Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.2mm   697 x 392mm
76mm   41 x 23mm

[2x]
8.2mm   360 x 202mm
152mm   21 x 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
4.2mm  63.8° × 38.6°
76mm  3.9° × 2.2°

[2x]
8.4mm  34.6° × 19.9°
152mm  2° × 1.1°

Filter thread

M82 x 0.75

Approx. Size

φ85 x 214.1mm(φ x Length)

Approx. Mass

1.66kg (without lens hood)

1/3" Series [eXceed Series]

XT17sx4.5BRM

  • HD Optical Performance
  • Newly eXceed Servo Grip
  • Quick zoom*1 and Auto Cruising
  • Latest EBC coatings for improved optical performance

Specifications

Model Name

XT17sx4.5BRM

Focal length

[1x]
4.5-77mm

[2x]
-

Zoom ratio

17x

Extender

-

Maximum relative aperture (F-no.)

1 : 1.6 (4.5-77mm)

Minimum object distance (M.O.D.) from front lens

0.95m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.5mm   999 x 562mm
77mm   60 x 34mm

[2x]
-

Angular field of view
16 : 9 Aspect ratio

[1x]
4.5mm  60.3° × 36.2°
77mm  3.9° × 2.2°

[2x]
-

Filter thread

M82 x 0.75

Approx. Size

φ85 x 175.6mm(φ x Length)

Approx. Mass

1.28kg (without lens hood)

XT20sx4.7BRM

  • HD Optical Performance
  • Newly eXceed Servo Grip
  • Quick zoom*1 and Auto Cruising
  • Latest EBC coatings for improved optical performance

Specifications

Model Name

XT20sx4.7BRM

Focal length

[1x]
4.7-94mm

[2x]
-

Zoom ratio

20x

Extender

-

Maximum relative aperture (F-no.)

1 : 1.4 (4.7-88mm) / 1 : 1.5 (94mm)

Minimum object distance (M.O.D.) from front lens

0.9m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.7mm   901 x 506mm
94mm   47 x 26mm

[2x]
-

Angular field of view
16 : 9 Aspect ratio

[1x]
4.7mm  58.2° × 34.7°
94mm  3.2° × 1.8°

[2x]
-

Filter thread

M82 x 0.75

Approx. Size

φ85 x 189.8mm (φ x Length)

Approx. Mass

1.48kg (without lens hood)

  • *1 It is necessary to set lens up to use Quick Zoom function.
