Optical Accessories for Portable Lenses

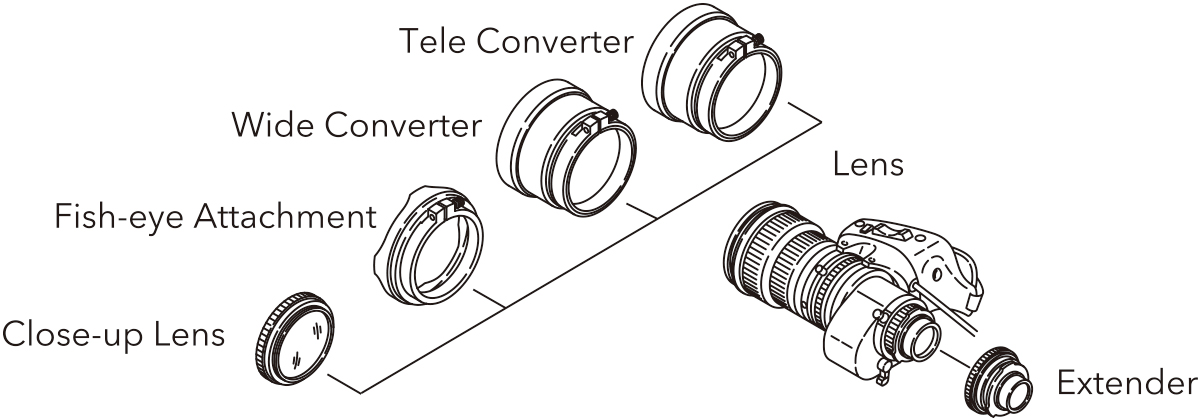

Optical accessories expand the capabilities of FUJINON TV lenses.

Tele Converter(TCV)

►Focal length is multiplied by the magnification of the converter on the telephoto side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is increased. ►Loss of picture edges will occur toward the wide angle side of the zoom range.

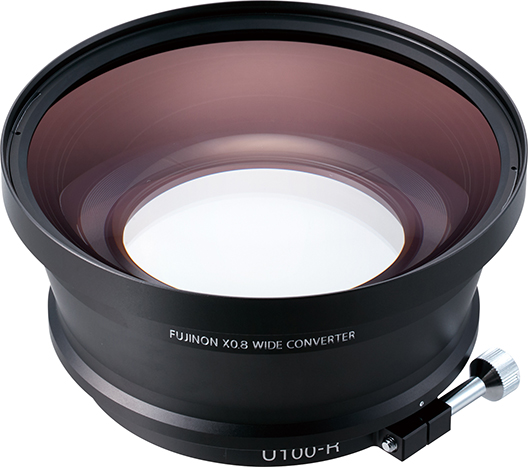

Wide Converter(WCV)

►Focal length is multiplied by the magnification of the converter on the wide side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is decreased.

Wide Attachment(WAT)

►Converts only the wide end of the lens by the magnifica­tion of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

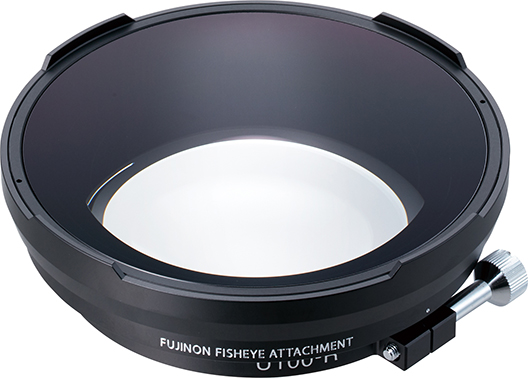

Fish-eye Attachment(F-AT)

►Converts only the wide end of the lens by the magnification of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

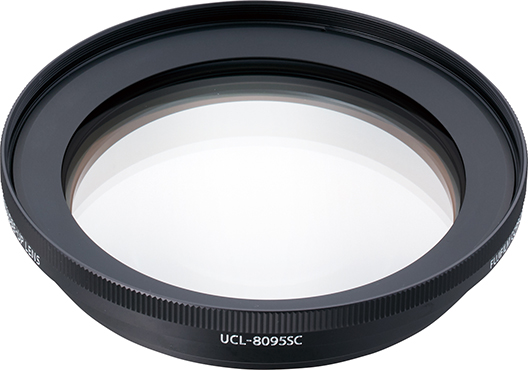

Close-up Lens(CL)

►Close-up lens provides a shorter minimum focusing distance between lens and object. ►Ideal for copy stand or other close up work.

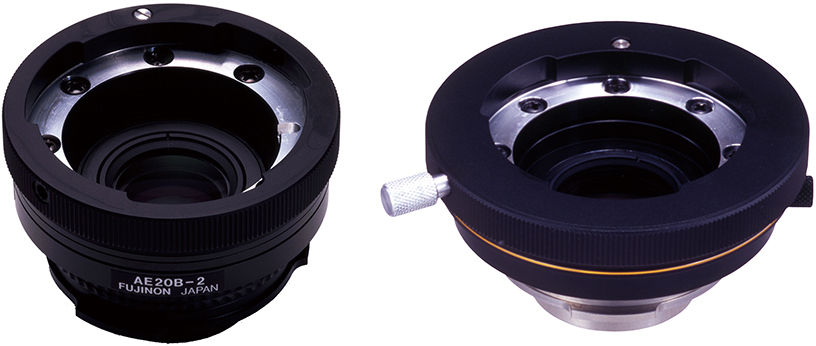

2xExtender

►2x range extender mounts between master lens and camera and doubles the focal length of the master lens. ►F-No. is doubled. ►Includes back focus adjustment.

Tele Converter/ Wide Converter/ Wide Converter/ Fish-eye Attachment

LENS     XA20sx8.5
XS20sx6.3
XT17sx4.5
XT20sx4.7

UA18×7.6
HA18x7.6
HTs18x4.2
ZA17x7.6
ZS17x5.5

UA24x7.8
HA23x7.6
ZA22x7.6
Front Lens Diameter    ∅85 ∅100
Model Name  Magnification Approx.
Mass(kg)

TCV-U85  1.5x  1.10
TCV-U100  1.00
WCV-U85  0.8x  1.24
WCV-U100  1.20
WAT-U85 0.7x  0.36
WAT-U100  0.53
F-ATU85  0.55x  0.71
F-ATU100  0.67



Close-up Lens

Model Name  Magnification Approx.
Mass(kg)

UCL-8082SC 0.8m 0.28
M82x0.75

UCL-8095SC 0.42
M95x1



2xExtender

Model Name  Object Distance Approx.
Mass(kg)

HAeE14-1 1.4x 0.30
AE20B-2 2.0x 0.17
  • * AE20B-2 is specifically designed for SDTV lens.

Sandwich style optical stabilizer for use with most Fujinon 2/3 inch ENG style lenses. Mounts between lens and camera. Increases magnification by 25%.

Application

Stand-alone Optical Image Stabilization

Power Consumption

DC12V, 4.2W (from camera)

Size (Height × Width × Length)

144 × 120 × 58 mm

Weight

Approx. 1.0 kg

Stabilization System

Optical shift system

Magnification of Focal Length

1.25 ×

Frequency of Compensation

Approx. 1 to 10 Hz

Anti-vibration Range

Approx. 20% of picture height

Mount

Bayonet (2/3" B4-type)

Model Name Camera Lens Note
ACM-8B 1/2" Sony Bayonet Mount 2/3" Bayonet Mount Angle of view is approx. 1.3x shifted to tele side
ACM-19 1/3" Bayonet Mount 1/2" Sony Bayonet Mount  Angle of view is approx. 1.3x shifted to tele side
ACM-17 1/3" Bayonet Mount 2/3" Bayonet Mount Angle of view is approx. 1.6x shifted to tele side
ACM-21 SONY PMW-300 2/3" Bayonet Mount Angle of view is approx. 1.4x shifted to tele side



  • * Fujifilm has variety of Mount Adapters. For more detail, please ask our sales office .
