- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

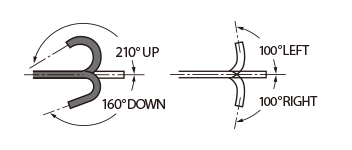

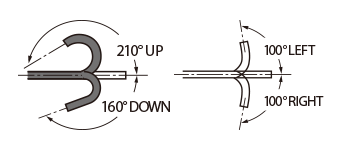

- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm

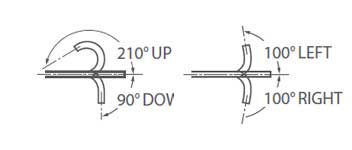

- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability

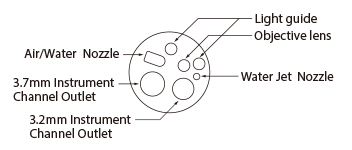

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m
- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

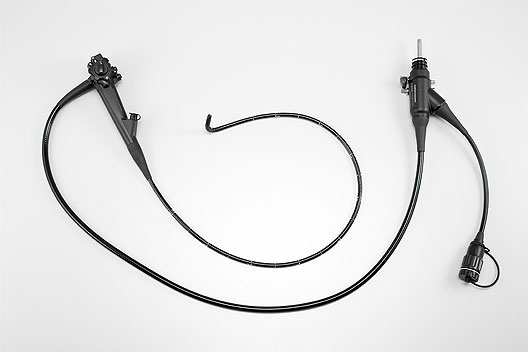

![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/bo/files/2025-09/8076601d1da5ce1bbd91aa2867074057/pic_gastroscopes_01.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/bo/files/2025-09/77a68cc5d1b1a146f6ce4e0ec16d9a08/pic_gastroscopes_02.jpg)

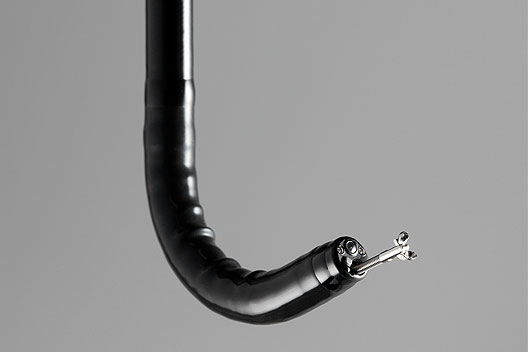

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/bo/files/2025-09/bcb6b40e11b2384593dfdd07ef3d23d5/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

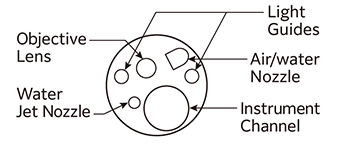

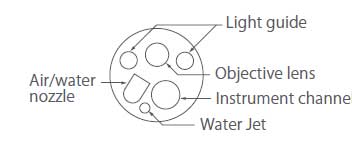

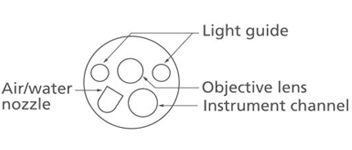

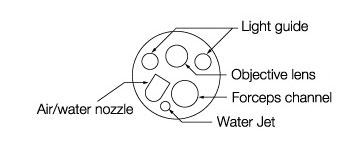

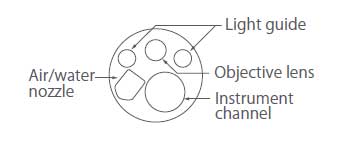

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/bo/files/2025-09/ed6210e04c8ab1fb61404cbbdf98f183/fig_gastroscopes_01.jpg)

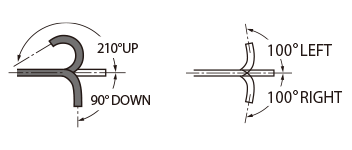

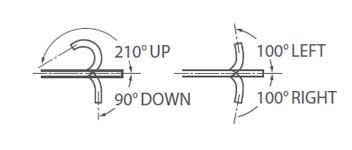

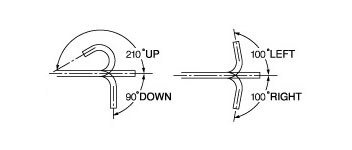

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/bo/files/2025-09/d483f43510100172eaa05966a501ea65/fig_gastroscopes_02.jpg)

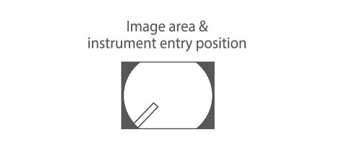

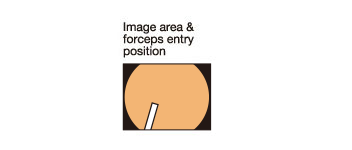

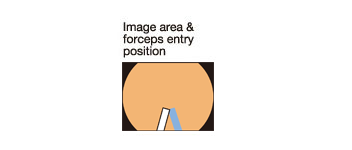

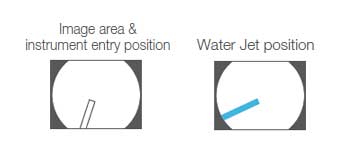

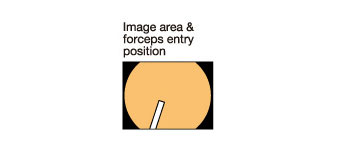

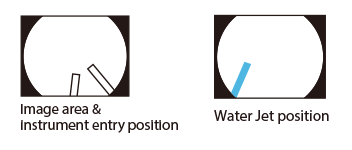

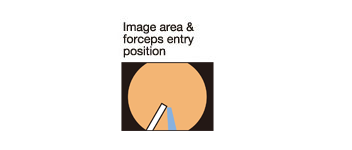

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/bo/files/2025-09/45d37bfe00fac0d2bece029e096182ac/fig_gastroscopes_03.jpg)

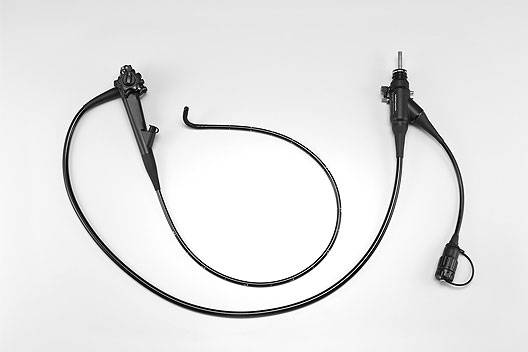

![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/bo/files/2025-09/b5253e794b59449c8f7dfa644c08f9e5/pic_gastroscopes_04.jpg)

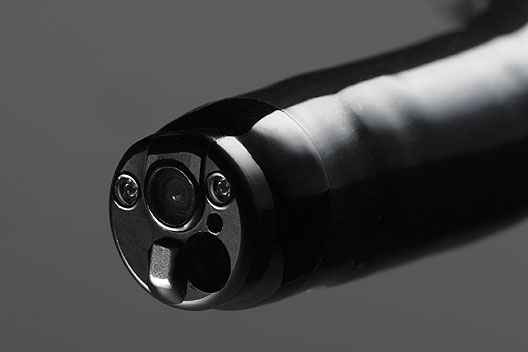

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/bo/files/2025-09/fc94127d3b5849364df4ef5cde381d30/pic_gastroscopes_05.jpg)

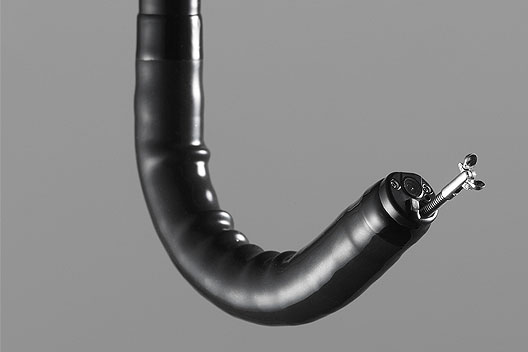

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/bo/files/2025-09/c41b85e11eeb733700ca05902bc3467e/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

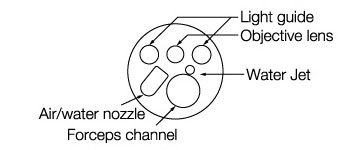

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/bo/files/2025-09/a8a393bc662a2674dc9f053aac835b8c/fig_gastroscopes_04.jpg)

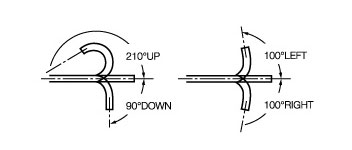

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/bo/files/2025-09/b25bb279054ece0679d334694b0bb96f/fig_gastroscopes_05.jpg)

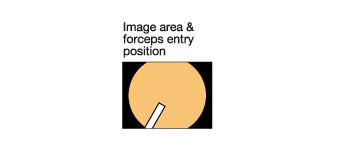

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/bo/files/2025-09/14532d18262394aec82f135c6ffe758f/fig_gastroscopes_06.jpg)

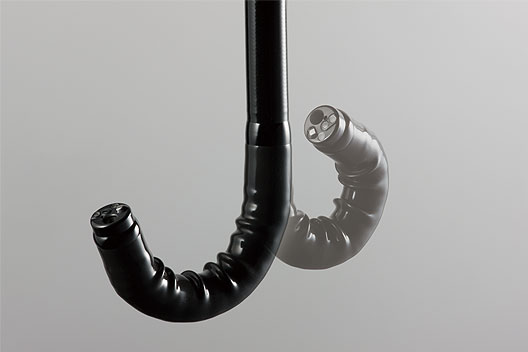

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/bo/files/2025-09/50ed16dee79561c866e43cb6f917c484/pic_gastroscopes_07.jpg)

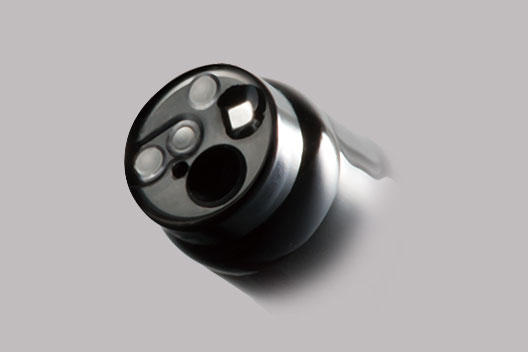

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/bo/files/2025-09/ec8a6d8dd5940409e63a6d79a97d3b74/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

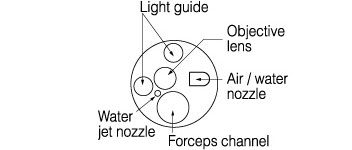

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/bo/files/2025-09/b46aa3603b7dd42b5a6d80a96adc68c8/fig_gastroscopes_07.jpg)

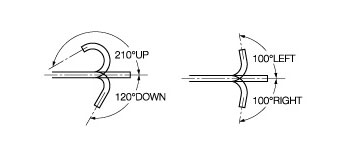

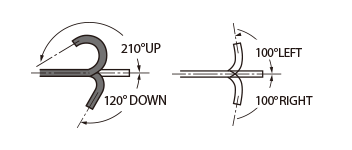

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/bo/files/2025-09/6a8e8cdf2b5974901bba404b6bd50b19/fig_gastroscopes_08.jpg)

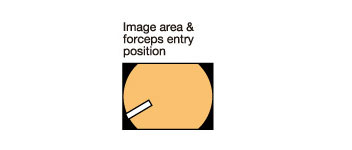

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/bo/files/2025-09/fda7eb699618a1c209b4bd84422c15bd/fig_gastroscopes_09.jpg)

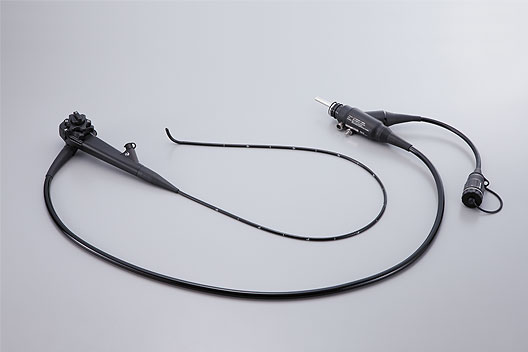

![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/bo/files/2025-09/e3d425742ccea9a8d06c39a48f288fd4/pic_gastroscopes_09.jpg)

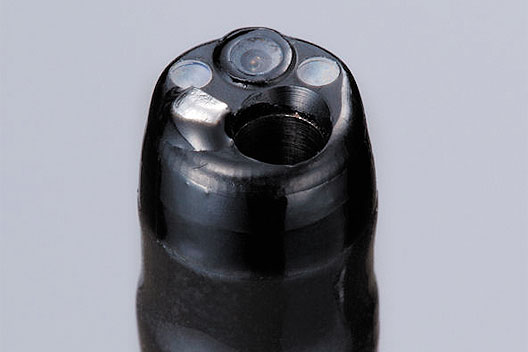

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/bo/files/2025-09/600c552ca8e7cb3afff2cec0276e69fb/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

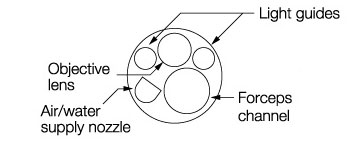

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/bo/files/2025-09/00a3c79448aaf9e6f2b142c2adf0a42e/fig_gastroscopes_10.jpg)

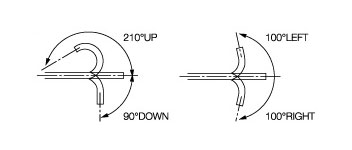

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/bo/files/2025-09/6ac29deac487acfc9cbba34f2fe3213c/fig_gastroscopes_11.jpg)

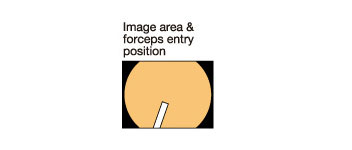

![[image] image area & forceps entry position](https://asset.fujifilm.com/www/bo/files/2025-09/a5368aba8690416d803bf54e1fa7bd70/fig_gastroscopes_12.jpg)
