instax Pal 2™ Specifications

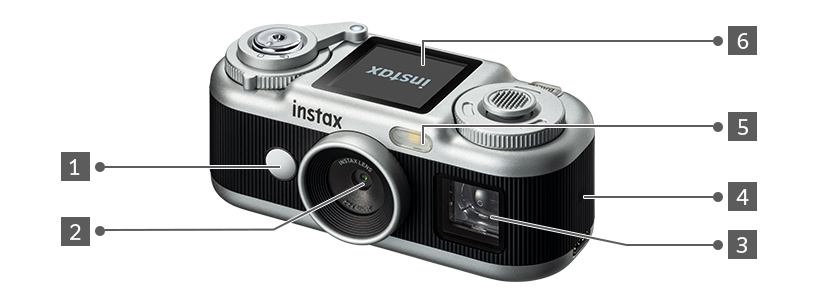

Front

[photo] Diagonal image of the instax Pal 2™

Selfie Mirror
Lens
Finder
Speaker
Flash
LCD Screen

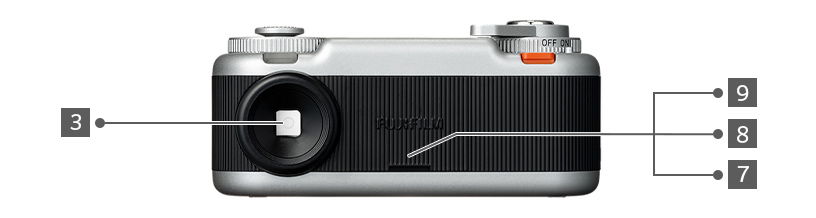

Rear

Cover for Micro SD card Slot & Reset Button
Micro SD Card Slot
Reset Button

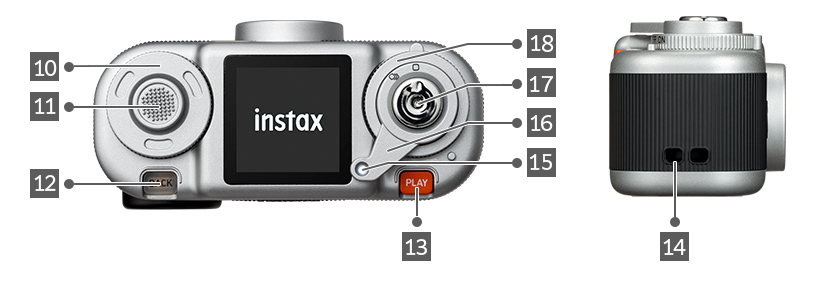

Top / Side

[photo] Image of the top and side of the instax Pal 2™

Command Dial
Select Key
Back Button
Playback Button
Strap Eyelets
Power Lamp
Lever
Shutter Button
Power Dial

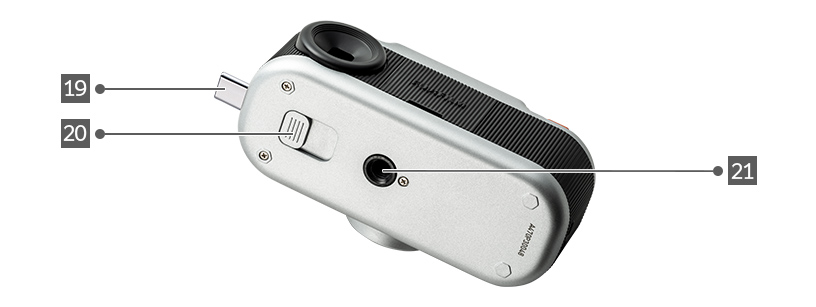

Bottom

USB Type-C Terminal
USB Type-C Terminal retractable slider
Tripod Mount

Specifications

Camera Function

Image sensor: 1/3.06-inch CMOS with primary color filter
Number of recorded pixels: High image quality: 3776 × 2832 pixels
Low image quality: 1280 × 960 pixels
Storage media: Internal memory, microSD / microSDHC / microSDXC memory card (up to 2 TB)
Storage capacity: High image quality mode:
Approximately 100 images in internal memory, approximately 400 images per 1 GB in microSD / microSDHC / microSDXC memory card
Low image quality mode:
Approximately 100 images in internal memory, approximately 3400 images per 1 GB in microSD / microSDHC / microSDXC memory card
Maximum number of shots when the app is not connected: 100 shots
Recording method: JPEG (DCF compliant Exif Ver. 2.3)
Focus distance: f = 28.00 mm (35 mm film equivalent)
Aperture: F2.2
Auto focus: Single AF, Face recognition AF
Shooting distance: 8 cm to beyond
Shutter speed: 1/4 second to 1/8000 second (automatic switching)
Shooting sensitivity: ISO100 to 1600 (automatic switching)
Exposure control: Program AE
Exposure compensation: −2.0 EV to +2.0 EV (1/3 EV step)
Metering method: TTL 256 split metering, multi metering
White balance: AUTO
Flash: Automatic / OFF / ON
Shooting range with flash: Approximately 60 cm to 1.5 m
Self-timer: Approximately 10 seconds / approximately 2 seconds
Zoom: Not equipped

Other

Smartphone app linked functions

Camera effect switching function, remote shooting function, still image / instax Animation™ transfer function, firmware upgrade function

LCD Screen

1.30-inch TFT color LCD Screen Pixel count: Approximately 170,000 dots

External interface

USB Type-C

Bluetooth

Bluetooth Ver. 5.3 (Bluetooth low energy)

Power supply

Lithium ion battery (internal type)

Power consumption

Power Off: Approximately 0.1 W

Auto power off function

5 minutes / 2 minutes / Off

* Deactivating the auto power off function will increase the energy consumption of the product.

Charging time

Approximately 2 to 3 hours

* Charging time depends on the temperature.

Main unit dimensions

37.0 mm × 42.0 mm × 92.3 mm (excluding projecting parts)

Main unit weight

Approximately 87 g

Operating environment

Temperature: 5°C to 35°C
Humidity: 20% to 80% (no condensation)

Print compatible models

instax mini Link™
instax mini Link 2™
instax mini Link 3™
instax mini Link+™
instax SQUARE Link™
instax Link WIDE™
instax Link WIDE 2™
instax mini Evo™
instax mini Evo Cinema™
instax mini LiPlay™
instax mini LiPlay+™
instax WIDE Evo™

Shooting format

instax™ mini
instax™ SQUARE
instax™ WIDE
No Frame (4:3)

Number of transfer data pixels

USB: 3776 × 2832 pixels
Blutooth: 1280 × 960 pixels

Image transfer time

USB: Approximately 0.75 sec / shot
Blutooth: Approximately 15 sec / shot

The above specifications are subject to change for better performance.
instax Pal 2 digital camera does not print photos. Compatible with instax mini Link 3TM, instax mini Link+TM, instax SQUARE Link TM, instax Link WIDE TM smartphone printers, and instax mini Evo™, instax mini LiPlay+™, instax mini LiPlay™ Hybrid instant cameras. Compatible instax™ instant film required (sold separately). Smartphone download of the app relating to your applicable instax™ device required.
