[photo] ASK-500 printer

Dye-sublimation Printer

ASK-500 - Specifications

NEW

Now with even easier supply replacement and more print-size flexibility, the ASK-500 opens up new photo business possibilities.

Contact Us

Specifications

Model: ASK-500
Printing method: Dye-sublimation thermal transfer
Surface finish^*1: Glossy type, Matte type
Printing resolution: 300 × 300 dpi
Print speed^*2: 4” × 6” : approx. 12.0 sec^*3
6” × 8” : approx. 22.5 sec
3.5” × 5” : approx. 11.1 sec^*3
5” × 7” : approx. 20.8 sec
Foot print: 0.105 m²
Dimensions (W × D × H): 11.8” × 13.8” × 11.1” (300 mm × 350 mm × 281 mm)
Weight: Approx. 14 kg (31 lb.)
Interface: Hi-Speed USB ver. 2.0
Power supply: 100V-240V AC 50/60Hz
Accessories: Paper strip bin, Paper tray, Quick Set Up Guide, Safety Guide

* Specifications are subject to change without notice.
*1 Both are available with one media.
*2 Does not include data transfer, printer intialization and paper feed times.
*3 Single print speed of 2-up print.

Consumables Lineup

Model	Print size	Number of prints (max)^*
ASK-500 MEDIA SET 68	4 × 6 in. (102 × 152 mm)	750 prints
ASK-500 MEDIA SET 68	6 × 8 in. (152 × 203 mm)	375 prints
ASK-500 MEDIA SET 57	3.5 × 5 in. (89 × 127 mm)	800 prints
ASK-500 MEDIA SET 57	5 × 7 in. (127 × 178 mm)	400 prints

* Maximum number of prints when printing the same size on one media.

[photo] Red Ribbon replacement for ASK-500

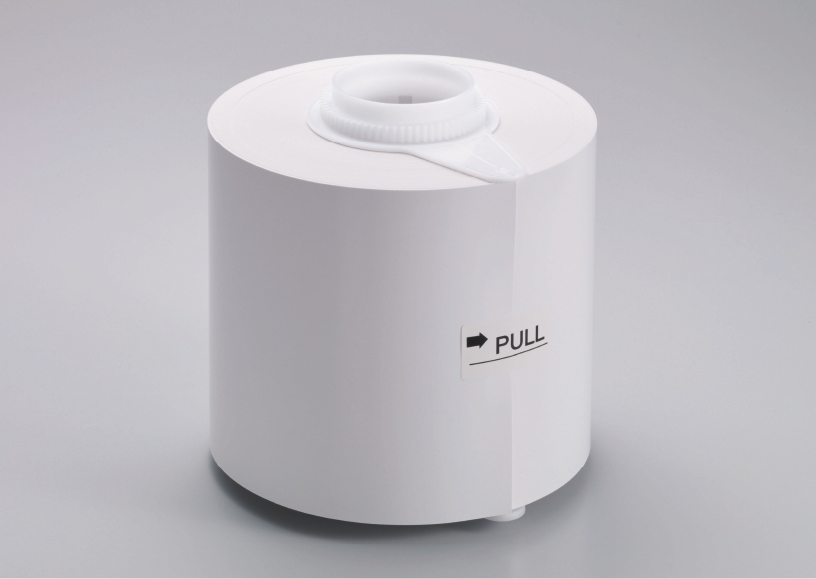

[photo] White Paper Roll replacement for ASK-500
