- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

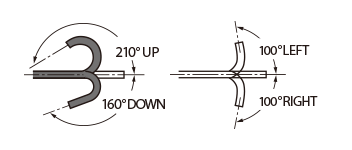

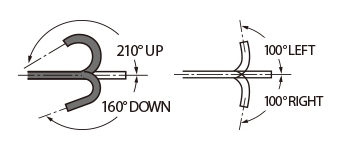

- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm

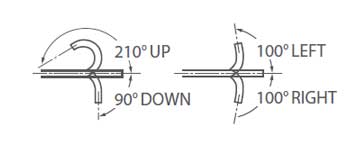

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m
- Minimum instrument channel diameter
3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope

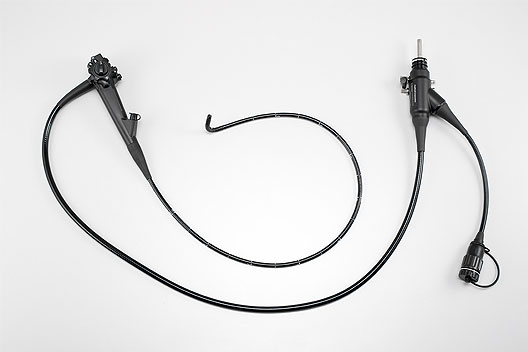

![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/ec/files/2025-09/496a6f09695ec9a8404aa46bd03766c4/pic_gastroscopes_01.jpg)

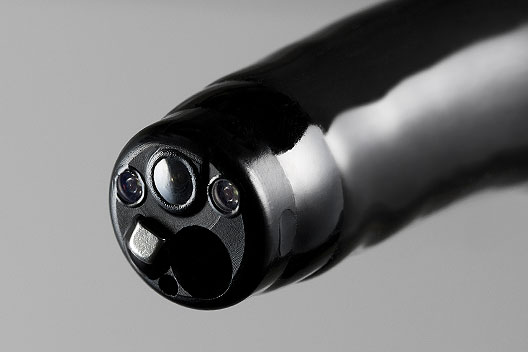

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ec/files/2025-09/cbac4eea9f06da695e2da8539b96b9a7/pic_gastroscopes_02.jpg)

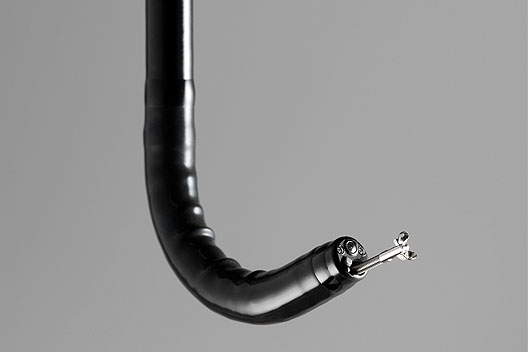

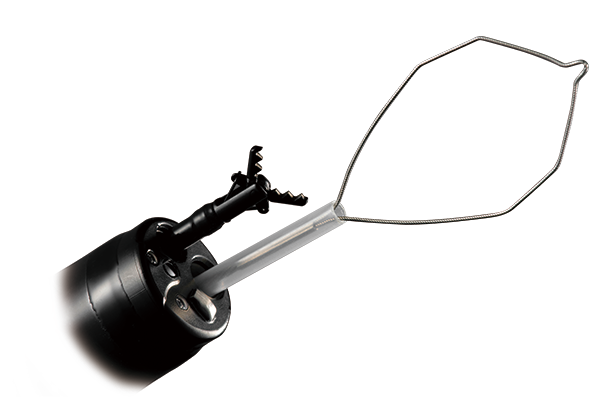

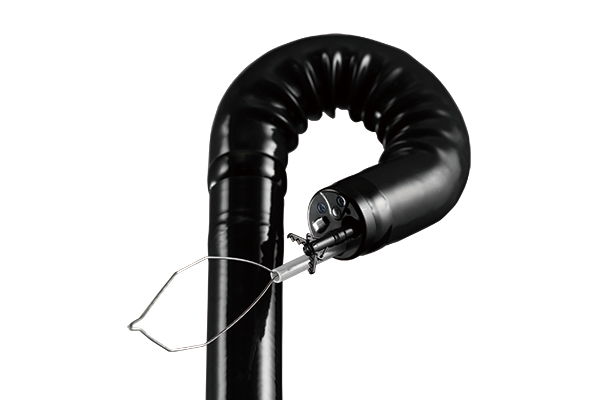

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/ec/files/2025-09/aab6c3365637dd6f4e220027e30321d2/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

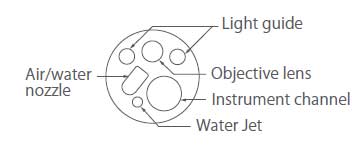

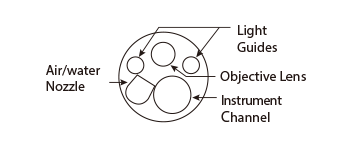

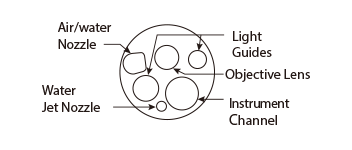

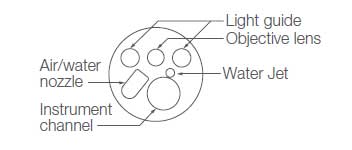

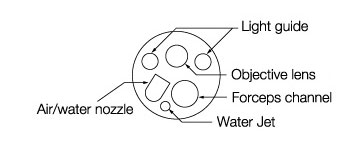

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ec/files/2025-09/9fc6bbe49e5cdfc1c5dff2cf3b53f7ee/fig_gastroscopes_01.jpg)

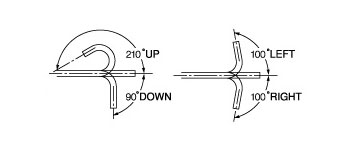

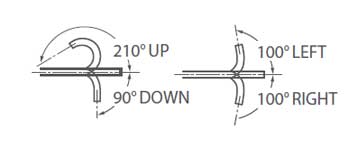

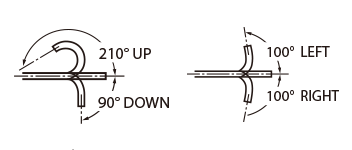

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ec/files/2025-09/f5fd91d1583148e52e5347ecb1297df7/fig_gastroscopes_02.jpg)

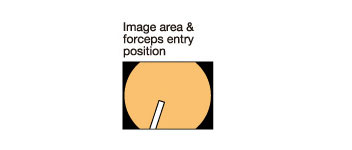

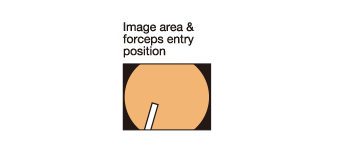

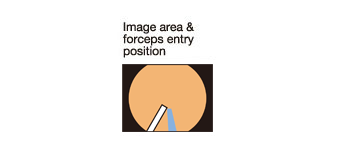

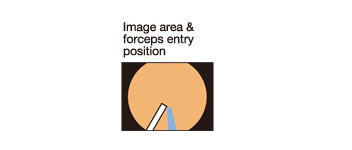

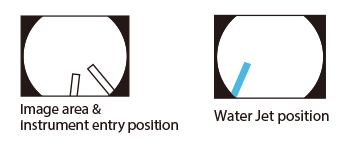

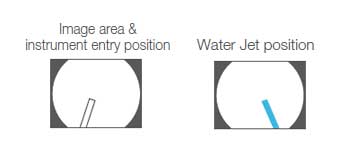

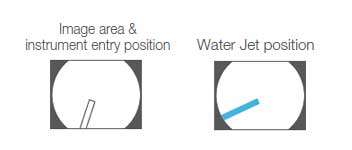

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ec/files/2025-09/c4a558e748b39e0d3855652c290c3876/fig_gastroscopes_03.jpg)

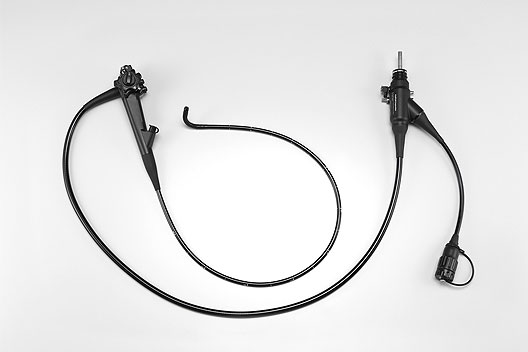

![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/ec/files/2025-09/e0e026a24440f71ff30d7e7607ee7c4d/pic_gastroscopes_04.jpg)

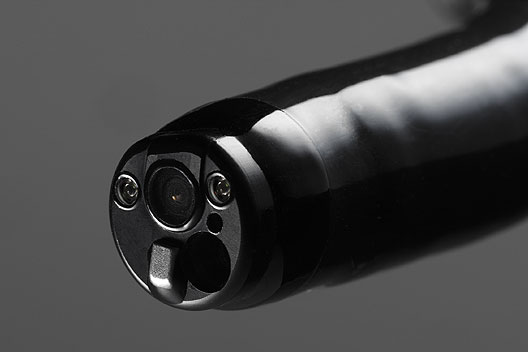

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ec/files/2025-09/416bbf97d5f91a8446f1b7b7e4a1ad08/pic_gastroscopes_05.jpg)

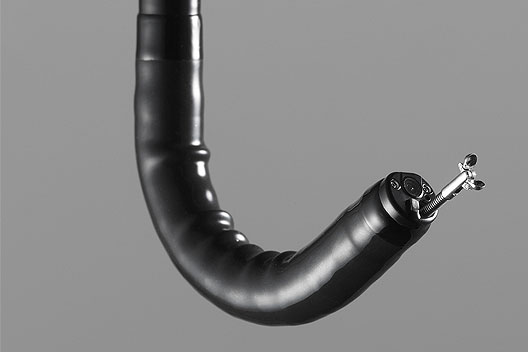

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/ec/files/2025-09/7eb0dee9af6f4b308c0d243d04ca197b/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

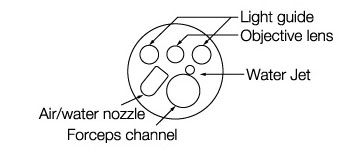

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ec/files/2025-09/5f04ec44808a3b1cb476979d7d8de571/fig_gastroscopes_04.jpg)

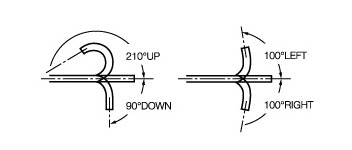

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ec/files/2025-09/27a57f97a0bc8f10ce6bbdd2e68cbc42/fig_gastroscopes_05.jpg)

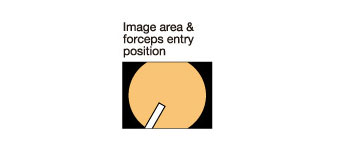

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ec/files/2025-09/ff41f5e5e532019a44b47200cc829b71/fig_gastroscopes_06.jpg)

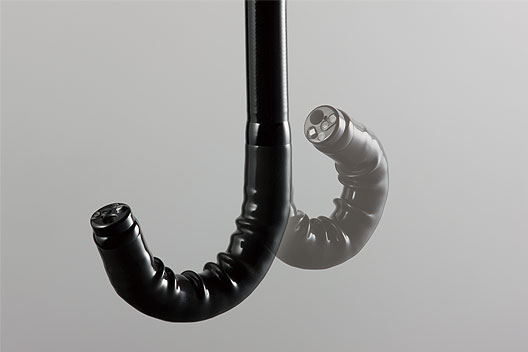

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/ec/files/2025-09/e57e38b5f861a755c8af31234003570c/pic_gastroscopes_07.jpg)

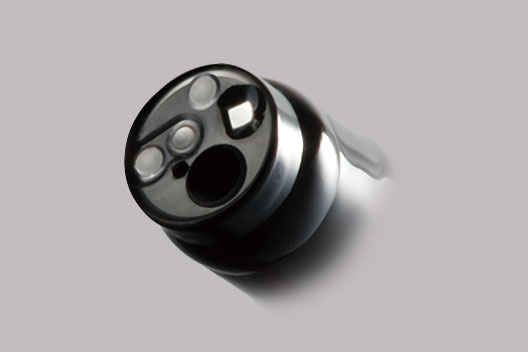

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ec/files/2025-09/6d195947fff4702f1965b3edbd7afa49/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm

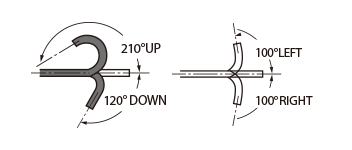

- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

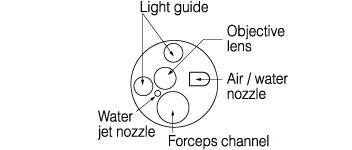

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ec/files/2025-09/91543a5e5949d0e7a968fc8249c80cde/fig_gastroscopes_07.jpg)

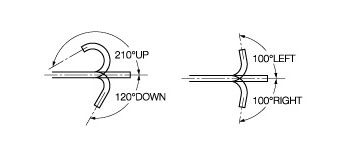

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ec/files/2025-09/46807b2851682bfb787c08315e4044fb/fig_gastroscopes_08.jpg)

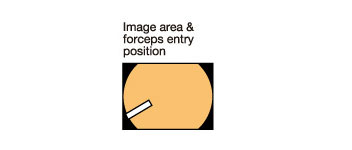

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/ec/files/2025-09/a7c92556cf39b66be253d79db58b17c6/fig_gastroscopes_09.jpg)

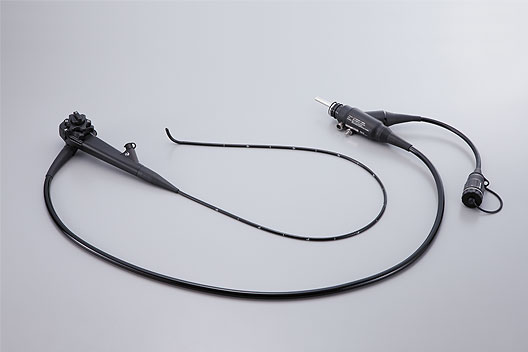

![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/ec/files/2025-09/54f7dd8c43403cfffb424deb3bcb3bae/pic_gastroscopes_09.jpg)

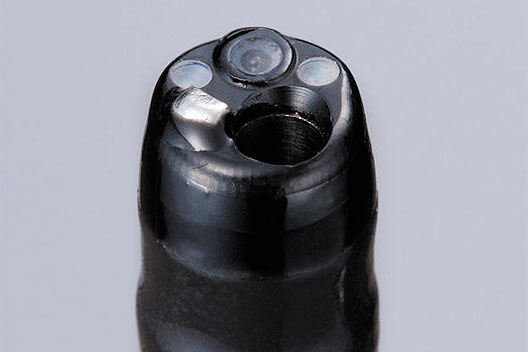

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/ec/files/2025-09/5b41ca9b0592f37c6e0a33a0eef368bd/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

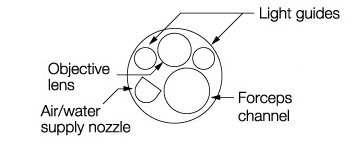

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/ec/files/2025-09/b5717626844724836f3f68fcb1f8ec59/fig_gastroscopes_10.jpg)

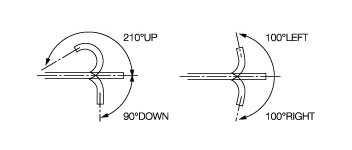

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/ec/files/2025-09/99be2410b26340ea799bcafc42bd47fb/fig_gastroscopes_11.jpg)

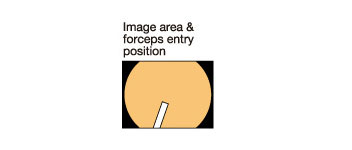

![[image] image area & forceps entry position](https://asset.fujifilm.com/www/ec/files/2025-09/31135c274e88239a0ec0a7b59b8775d6/fig_gastroscopes_12.jpg)
