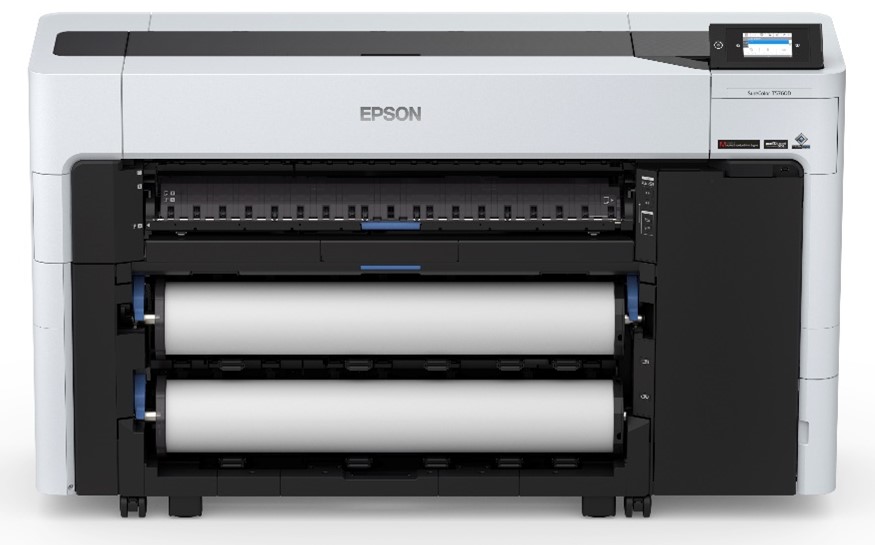

The SureColor T7760DL combines an extremely compact footprint with flexible media handling and a high print speed. It is designed for companies who want to produce large-format colour drawings and posters in moderate to high volume. This model is particularly suited to construction, retail and print-4-pay applications. It uses 6 inks that come in large cost-effective 1.6L ink pouches with an additional Red to enhance the colour range. Integrated high-speed hardware-based Postcript® enables fast and accurate image reproduction via drag-n-drop from the desktop or direct from a USB device. All configurations feature dual-roll support with the 2nd roll also able to be used as an Auto Take Up.
The SC-T7760DL incorporates Epson's latest PrecisionCore™ print head with ultra-fine nozzles and a small minimum drop size for outstanding image quality. The extra wide 2.64" print width and durable high-speed feed mechanism makes it perfect for high volume production. The new all-aqueous UltraChrome® XD3 ink set is well suited to drawings, schematics, posters, POS and POP. The addition of Red ink enables an enhanced colour gamut while the inclusion of Matte and Photo Black ink (with dedicated lines for each) facilitate operation with a wider range of media. Ink ships in 1.6L pouches to suit high print volume production and cost-per-print requirements. Prints dry almost instantly to be water and scratch resistant.
This printer accepts single-sheet and roll-based stocks ranging from standard bond to premium presentation paper and even board. It is extremely cost-effective to run with low power consumption, low ink consumption and low wastage. Designed for business and retail environments, it features a small footprint and flat top. The printer is easy to operate with a large touch-panel display and all-front-loaded consumables. It ships with a suite of software that enables output from office and photo applications along with job costing and remote management. An optional SSD is available for efficient workgroup operation with print spooling and direct reprint.
Print PDFs up to 3x faster with more accurate processing and transparent layer handling
Print continuously or on multiple media types and/or sizes with auto-loading and exchange, alternatively use the second roll as a take-up reel for roll-to-roll production
Over 28 IT security features including IEEE 802.1x, NFC card support and optional 960GB SSD with encryption
crisp, detailed, colourful prints with industry-leading 2.64-inch PrecisionCore print head enables poster and POP production at over 27 m2/hr, CAD and technical drawings at up to 130 m2/hr.
Up to 25% smaller than equivalent machines with a flat top, lit platen window and front panel USB interface
Ships with Win & Mac drivers, print and accounting s/w, remote management and monitoring with Epson Cloud Solution PORT
Print on glossy, bond, matte and specialty medias, even rigid poster board up to 1.5mm thick
The SC-T7760DL incorporates Epson's latest 2.64" PrecisionCore print head with micro-fine nozzles that support resolutions up to 2400x1200 dpi. The head is factory fitted to ensure maximum print precision and durable performance without the cost or inconvenience of regular replacement3.
Epson UltraChrome ink features an aqueous all-pigment construction. The XD3 formulation includes an additional Red for vivid output with an enhanced gamut range. Images are extremely durable with colour is accurate and consistent. Prints exit almost dry with a finish that is resistant to damage through scratching and moisture exposure. The ink set incorporates both a photo and matte black to support imaging on a wide range of media types.
The SureColor T7760DL supports sheet sizes up to B0 and roll media up to 44-inch (1118mm) wide. It features a low running cost with reduced ink consumption and ultra-low power consumption. Ink cartridges can be ordered in 1.6L sizes to suit continuous operational and low running costs per print requirements. Wastage is minimised through the implementation of dedicated PK/MK ink lines, inkless-nozzle status monitoring and automatic nozzle replacement/masking. Consumable replacement is easy with everything loading from the front
The SureColor T7760DL incorporates high-speed networking with support for the latest addressing and security protocols. Designed to operate with standard Macintosh and Windows applications, it also support HP-GL/2 and RTL emulation for specialist applications. The printer features an ultra-compact design with all connections located on the right to enable operation against a wall or in a corner. The large 4.3" LCD touchscreen makes operation simple and for those who like to monitor their work the top panel incorporates a viewing panel with a lit platen. An integrated media bin ensures prints don’t get damaged on exit and is a pull-out drop-down design that is easy to deploy and stow. High-speed hardware based Adobe Postscript enables files to be printed directly from a USB key or from the desktop using a simple 'drag-n-drop' process with configurable settings. If operation involves extremely large files or workgroups then an optional 960GB SSD is recommended to improve efficiency while allowing for job spooling and direct instant reprints.1 2
This printer has been designed to provide reliable operation with extended durability. It is backed with a comprehensive on-site warranty that covers everything including the print head. Service is extendable up to a total of 5 years using optional CoverPlus. Little maintenance is required however with high print volumes an occasional clean is recommended using some inexpensive swabs that are available as a consumable. This model supports Cloud Solution PORT for remote web and app based operator monitoring along with enhanced Epson service support. A condition of CoverPlus on this model is that PORT be activated. 3
1 Borderless printing is supported on nominated print sizes only. When printing on board the printer may need to be brought forward to allow space for media transport.
2 HP-GL/2 and HP-RTL are trademarks of Hewlett-Packard Company. Printer may not print HP-GL/2 or HP-RTL (CMYK type not supported for the latter) language data accurately depending on your system environment or type of print data use. In order to ensure correct printing results, please make sure that you run a printing test prior to deciding on purchasing the printer. Ask your local Epson representative or Epson authorised reseller for your test.
3 When printers are installed, maintained and operated appropriately using Genuine Epson UltraChrome XD3 ink then print heads are covered under warranty with free on-site replacement subject to conditions outlined in the Epson Warranty Statement.
