ApeosPrint C5570

A3 Colour Printer

High print speed with robust security features

ApeosPrint C5570 Banner Image

Overview

  • A3 Colour / 55 ppm (A4 LEF)
  • Print Resolution up to 1,200 x 2,400 dpi
  • USB, Ethernet, Wi-Fi* connectivity
  • Finishers*
  • Optional

Features

Speedily usable

  • High speed output of 55 ppm (A4 LEF) for both colour and monochrome, meeting high-volume colour printout needs in office
  • Fast first print output time of 5.0 seconds or less* for colour, and 3.5 seconds or less* for mono printing to reduce waiting time
  • The time between the start of the print operation and the ejection of the first sheet of paper

Automate finishing*

Supports frequently-used office functions such as Punch, Saddle Staple, and Single Fold.
From printing to post-processing, you can do it all at once.

  • Optional

Automate finishing

High durability*

Durability* is as high as 1.5 million sheets, so it can be used as a central machine in offices.

  • When continuously printing the same A4 LEF original. When periodic replacement parts are properly replaced.

Superb print quality

  • Print resolution up to 1,200 x 2,400 dpi
  • Super EA-Eco toner for sharp text and fine lines
  • Rich colour expression with LED printhead and IReCT*
  • Image Registration Control Technology

In-house promotional materials creation

  • Supports long paper up to 320 x 1,200 mm
  • Supports 52 to 300 gsm paper from lightweight to cardstock paper such as certificate of commendation
  • Bypass Tray supports postcards and envelopes, and an optional "Envelope Tray" is available

In-house promotional materials creation

Eco-support

  • Toner save function in increments of 1%
  • Super EA-Eco toner: Fusing achieved at a low temperature contributes to low power consumption

Large paper capacity of up to 6,140 sheets & various finishing options are available according to your needs.

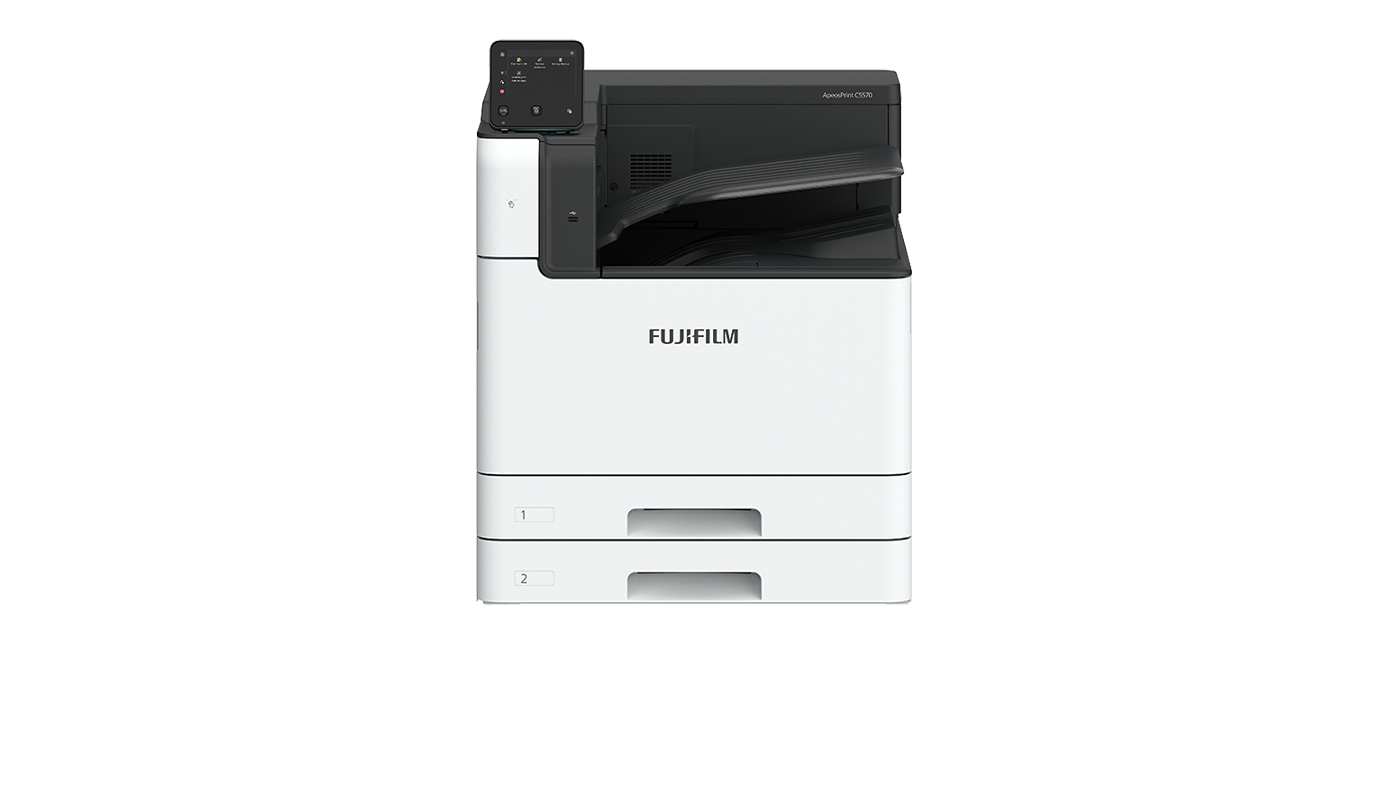

Standard Model

Standard Model
  • Paper capacity of up to 1,130 sheets

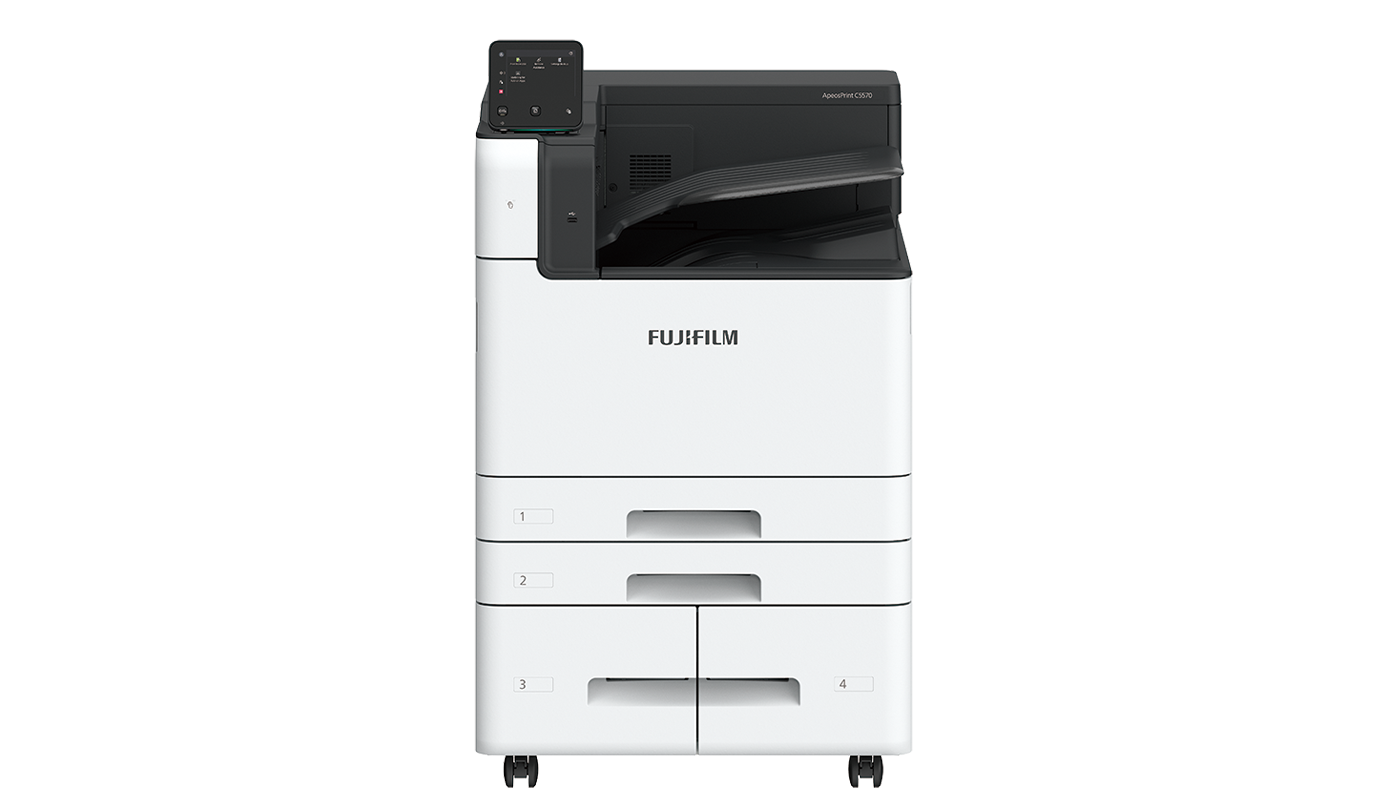

With Tandem Tray Module

With Tandem Tray Module
  • Paper capacity of up to 3,200 sheets

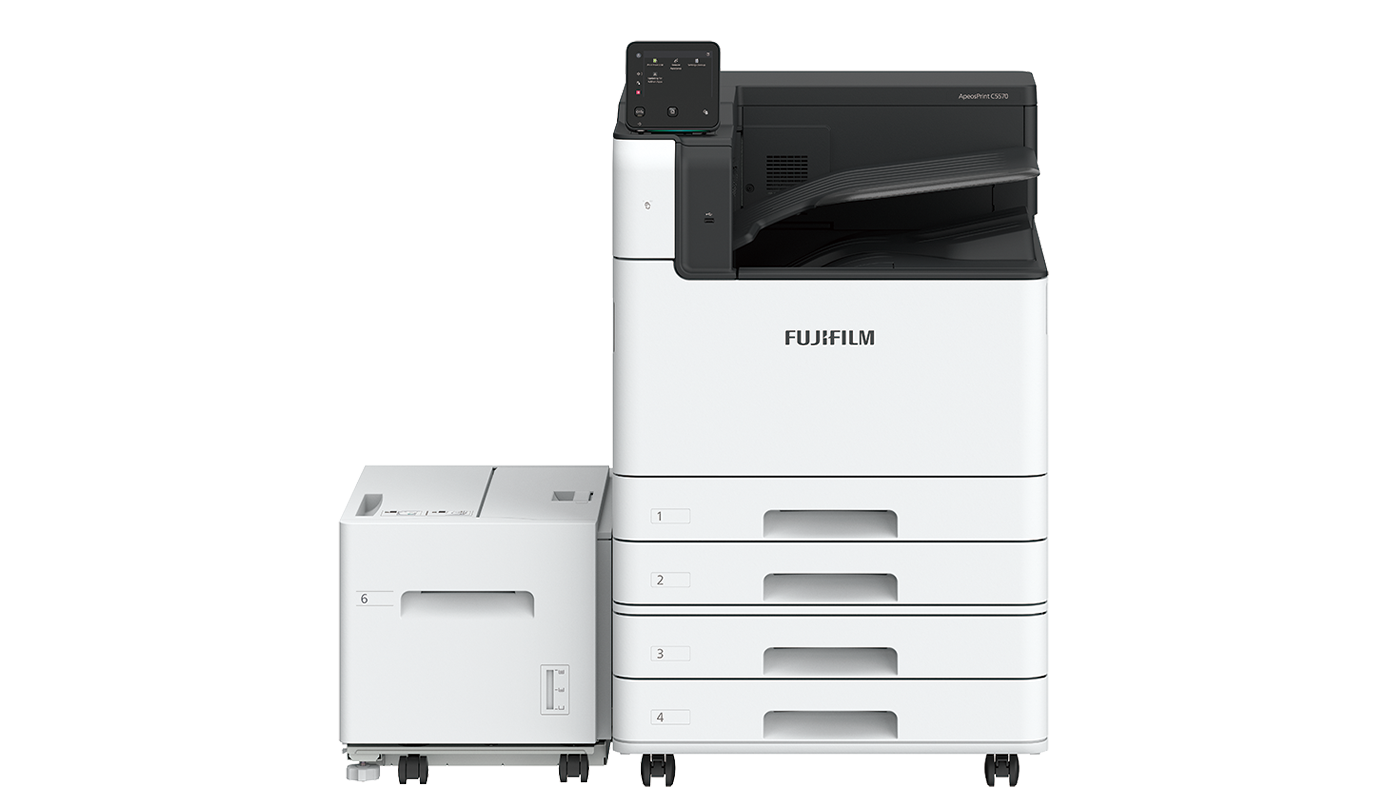

With 2 Tray Module and High Capacity Feeder B1

With 2 Tray Module and High Capacity Feeder B1
  • Paper capacity of up to 4,170 sheets

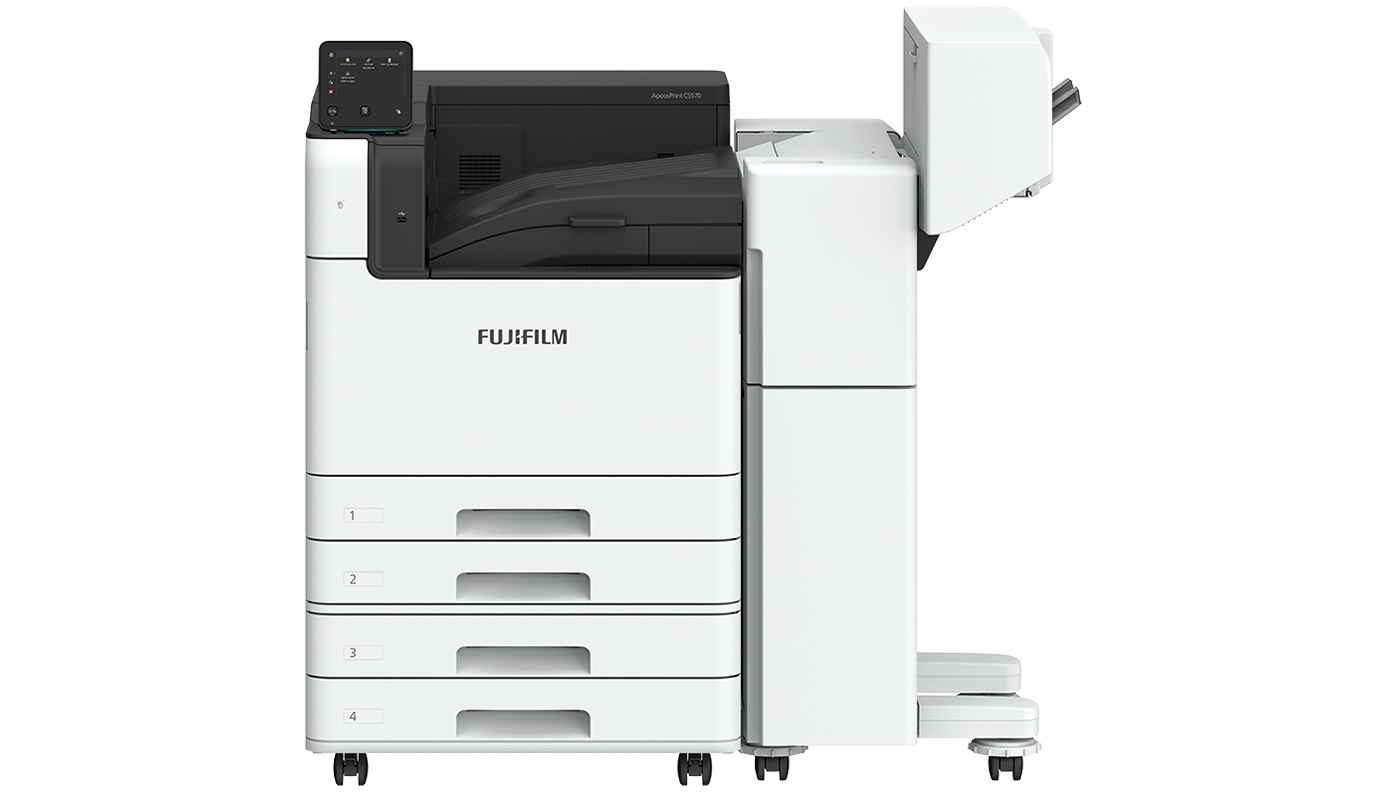

With 2 Tray Module, Finisher-B4 / B5, Booklet Maker Unit and Hole Punch Kit

With 2 Tray Module, Finisher-B4 / B5, Booklet Maker Unit and Hole Punch Kit
  • Paper capacity of up to 2,170 sheets
  • Staple capacity of 50 sheets*1
  • Staple-free Staple*2
  • Punch*3
  • Saddle Staple*4
  • Single Fold*4

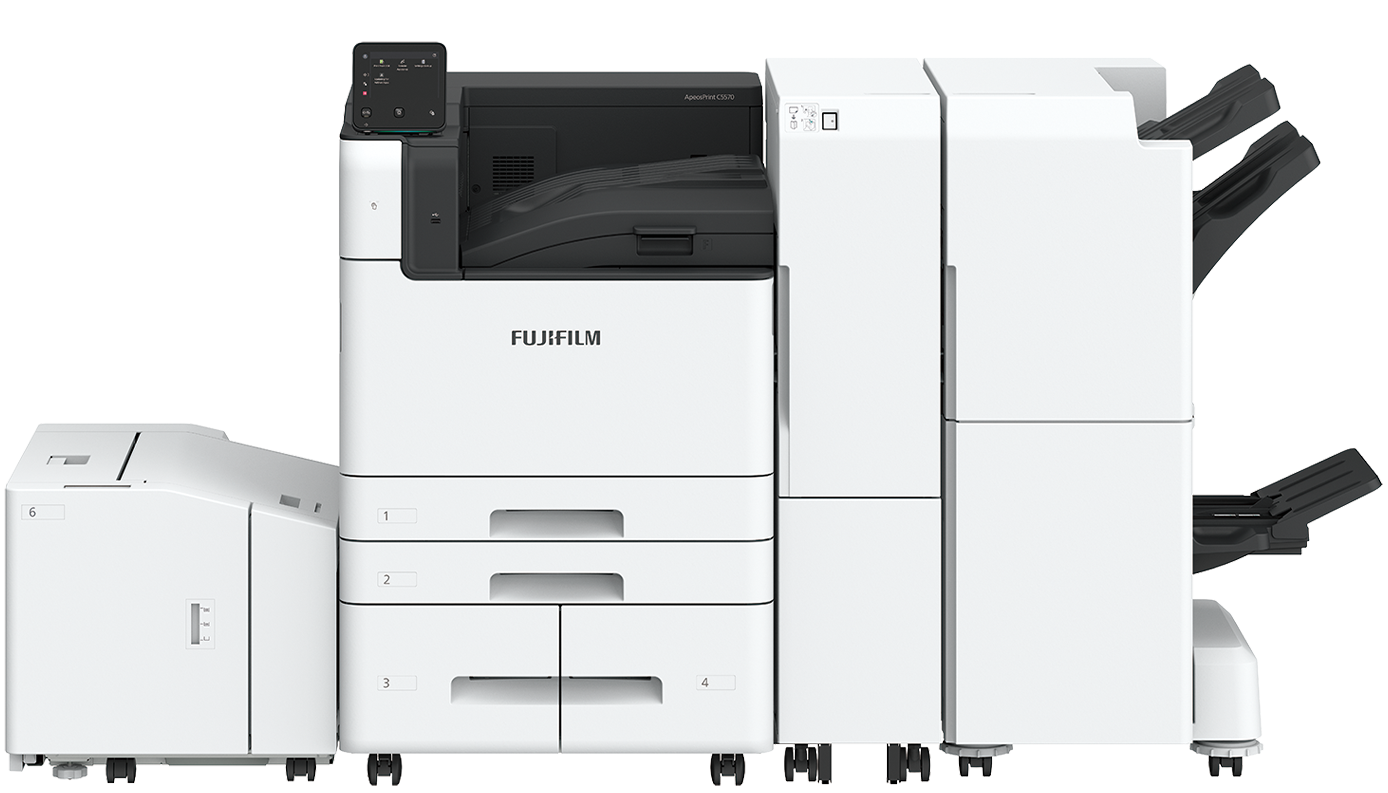

With Tandem Tray Module, High Capacity Feeder B2, Finisher-C4 / C5 with Booklet Maker and Folder Unit CD3

With Tandem Tray Module, High Capacity Feeder B2, Finisher-C4 / C5 with Booklet Maker and Folder Unit CD3
  • Paper capacity of up to 6,140 sheets
  • Staple capacity of 65 sheets*1 *5
  • Staple-free Staple*2
  • Punch*6
  • Saddle Staple
  • Single Fold
  • Tri-fold*7
  • Z Fold Half Sheet*7
  • Note: All models come with two Standard Trays. Paper capacity (80 gsm) includes Bypass Tray

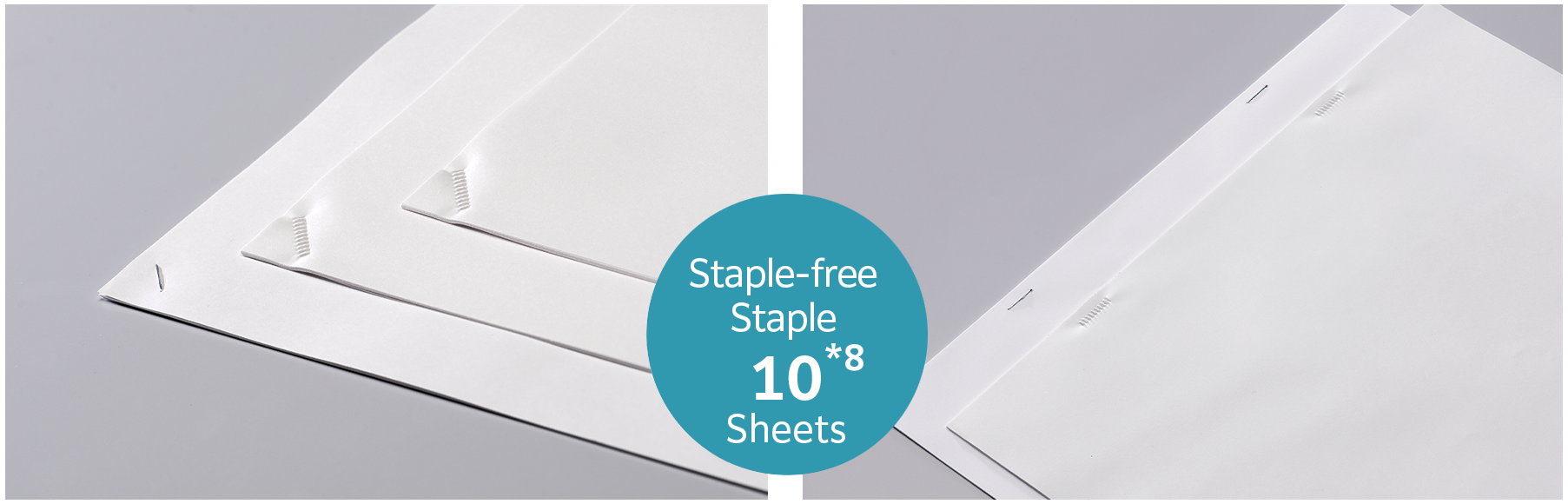

Staple-free stapling

Staple-free stapling Left: Photo shows a single stapling / Right: Photo shows a double stapling

  • *1: 90 gsm or less.
  • *2: Applicable models: Finisher-B5, Finisher-C5 and Finisher-C5 with Booklet Maker.
  • *3: Optional Punch Unit is required.
  • *4: Optional Booklet Maker Unit is required. When specifying Saddle Staple or Single Fold with Finisher-B4 / B5, paper is not folded but creased.
  • *5: When optional Finisher-C Staple Unit 65 sheets is installed.
  • *6: Finisher with Punch Unit is available.
  • *7: Folder Unit is required.
  • *8: 80 gsm or less.

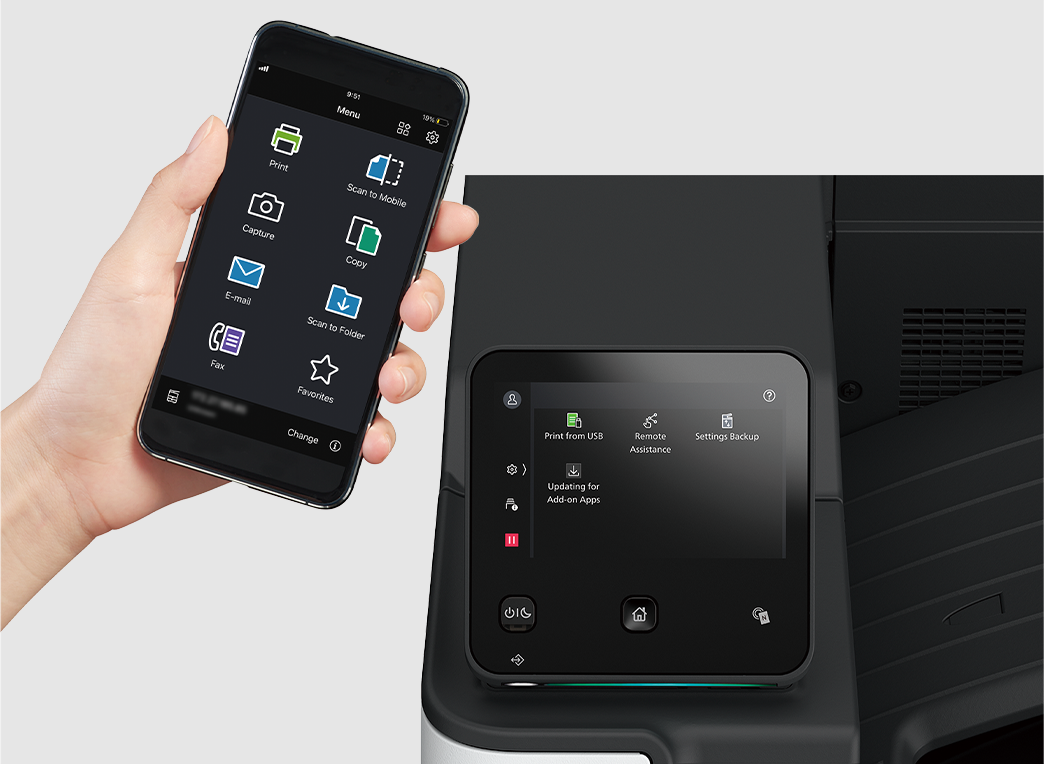

Seamless connectivity with mobile devices or USB flash drive

  • Mobile devices can be connected for print jobs*1 using the Print Utility*2 application
  • Directly print documents from the USB flash drive for greater work efficiency
  • *1: Connect to machine via optional wireless LAN environment.
  • *2: It can be downloaded free of charge from Google PlayTM or App Store.

Seamless connectivity with mobile devices or USB flash drive

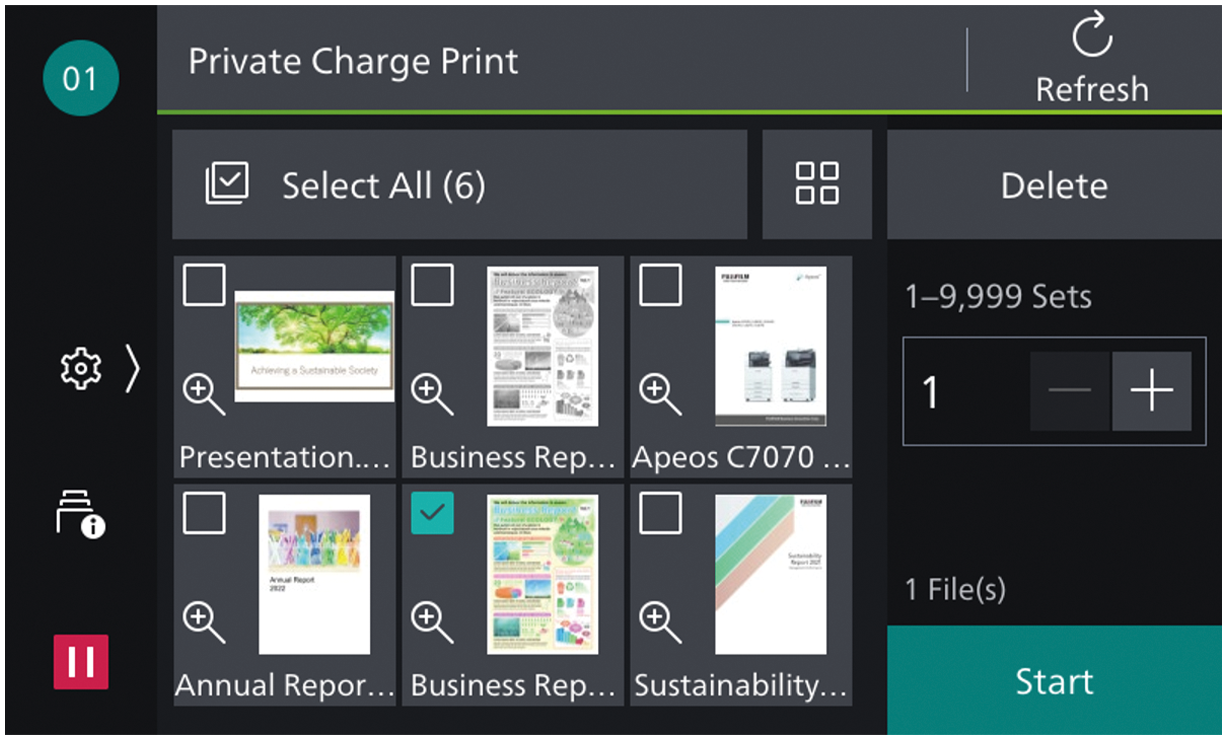

Simple layout with easy navigation

  • Home screen personalisation for ease of access to commonly used functions
  • When using Private Charge Print, documents can be easily selected or deleted by viewing the preview or thumbnails* on the touch panel.
  • Optional storage (SSD) is required for preview and thumbnail view.

Simple layout with easy navigation

Supports wireless LAN environment*

  • Being wireless-enabled, device can be installed anywhere in your office
  • Up to five Wi-Fi Direct devices can be connected at the same time
  • You can easily print from mobile devices using Print Utility, AirPrint, and Mopria® Print Service
  • Optional

Server-less Authentication*

By sharing users registered in the printer among multiple connected devices, you can register and authenticate using IC Card from any devices in a serverless environment.

  • Optional

Supporting Universal Print by Microsoft*1

By registering ApeosPrint C5570 to Universal Print by Microsoft in advance, users*2 authenticated with Azure AD can print from anywhere through the cloud.

  • *1: Optional Storage (SSD) is required
  • *2: Organizations with Microsoft Windows Enterprise or Microsoft 365 subscriptions

Print from any of the printer within the office

With Server-less On-Demand Print*, you have the flexibility to print and collect the print outs from any of the connected printer.

  • Improves productivity by printing from another available device when the current device is in use
  • Up to 100 devices can be linked
  • Optional
  • Prevents paper information leakage with Secure Print and Private Charge Print with IC card authentication*
  • Job logs and the image itself can be stored and managed, enabling prompt investigation upon information leakage with Image Log*
  • Newly support WPA3 as latest wireless LAN security protocol and adopt TPM (Trusted Platform Module) 2.0, as a security chip that conforms to the latest standards with enhanced encryption
  • Detects tampering of device software and self-repairing feature protects and repairs device software against tampering events
  • Provides more robust and secured office environment with enhanced security feature of both hardware and software
  • Optional

Safeguard important information
