XK Cabrio Series

NEW

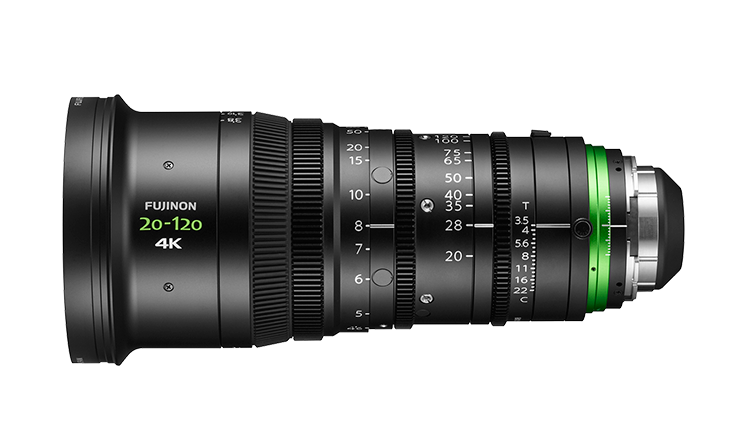

XK20-120mm T3.5

Feature

  • Outstanding 4K optical performance and compact design
  • Wide focal length from 20mm to 120mm
  • T3.5 brightness in the entire zoom range
  • 0.8mm gear pitch
  • Moderate focus torque with 200-degree rotation angle to aid accurate focusing
  • Focus indicator can be displayed in feet or meters

Specifications

Model name:

XK6x20

Camera specifications:

Super 35mm PL Mount camera

Focal length:

20mm - 120mm

Zoom raito:

6x

T-no.:

3.5

Minimum object distance (M.O.D):

1.1m/3.61ft

Object dimensions (at the M.O.D)

20mm 1109mm × 624mm

[Horizontal × Vertical] :

120mm 182mm × 102mm

Angle of view [Horizontal × Vertical]:

20mm 63°41′ × 38°30′

16:9 aspect ratio :

120mm 11°49′ × 6°40′

Approx. size (φ × Length):

φ114mm x 239mm

Approx. Weight:

2.9kg (with drive unit) / approx. 2.4kg (without drive unit)
