UV Light Distribution Mapping System

FUD-7010E

NEW

Management by converting colors into numeric values with analysis systems

In this system, exclusive analysis software is used along with a usable scanner*1. The system makes it possible to scan color of UV sclales, convert it into UV light amount values, analyze UV light amount distribution , and save them.

  • *1 Scanners are sold separately and customers are to purchase them on their own.

Advantages of management with numerical values

Analysis

The Separation accuracy of density can be improved, so sections that cannot be visually judged can be analyzed.

Standardization

Internal inspection standards can be set.

Sharing

Analysis results can be shared

Data saving

Digitizing data makes it possible to compare it to past data.

System Configuration

Analysis system measurement features

Division Color Bar Setup

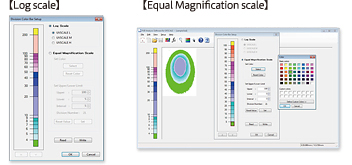

Light amounts measured are illustrated in a graph by colors. Various settings, such as scale type (log scale, equal magnification scale), upper and lower limits of scale bars, intervals, and color, can be freely set based on measurement conditions.

Log scale
[photo] Log scale
Equal Magnification scale
[photo] Equal Magnification scale

Rectangular Area Data Export Function

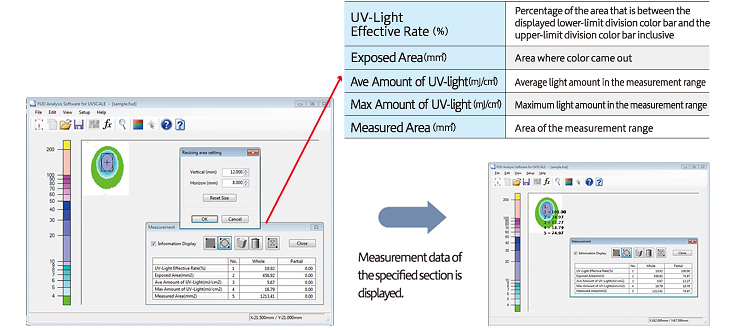

Results of partial measurement (rectangle) can be output in text data. Using Excel to graph the results—as shown on the right—makes it possible to see the light amount distribution in a way that is easy to understand.

[photo] FUD Analysis Software screenshot with graph on Excel generated from the data
Graph on Excel generated from the data
[photo] Graph on Excel generated from the data

How to use an analysis system

[photo] Irradiate light to a UVSCALE.

1)Irradiate light to a UVSCALE.

[photo] Set UVSCALE on the scanner (recommended model) and scan the color sample.

2)Set UVSCALE on the scanner (recommended model) and scan the color sample.

[photo]Analyze it on a PC in which the exclusive software has been installed.

3)Analyze it on a PC in which the exclusive software has been installed.

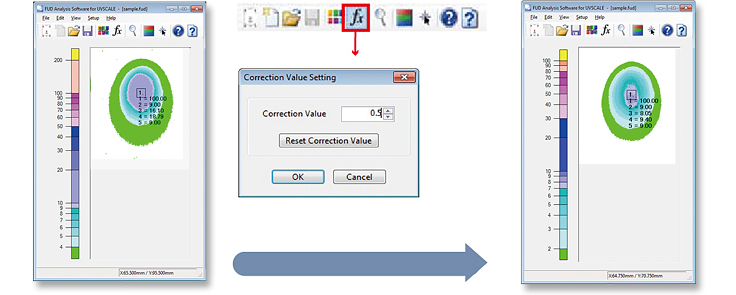

Calibration

Use a calibration sheet to correct variations caused by differences in scanners and conditions as much as possible and to stabilize measurement results.
