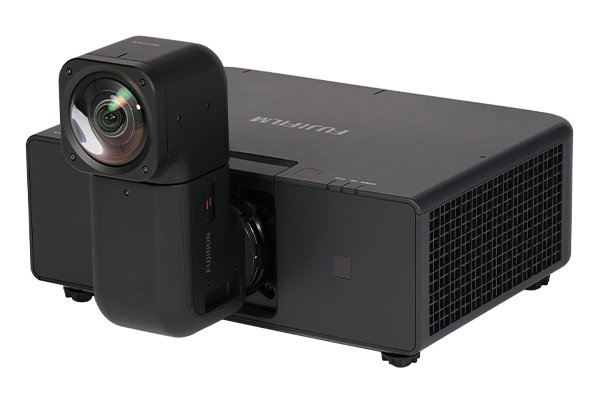

[photo] Fujifilm Z Projector FP-Z8000

Projector FP-Z8000/FP-Z6000 - Specifications

NEW

The Z-projector FP-Z8000 and FP-Z6000 is adaptable to a wide range of installation. Use it gallery and showroom, amusement facility, or events.

Specifications Principal Specifications
Model  name  FP-Z8000-W(White)
FP-Z8000-B(Black)
FP-Z6000-W(White)
FP-Z6000-B(Black)
DLP chip Size 0.67 in, 16:10 aspect ratio
Display method 1 Chip DLP
Resolution 2,304,000 pixel (1920 x 1200)
Lens Type Folded two-axial rotatable lens
Shift Electrical: Vertical ±70%, Horizontal ±35%
Zoom Electrical: x1.0-x1.1
Throw ratio(TR)*1 0.34 (Wide)-0.37 (Telephoto)
Focal length f=5.0mm (Wide)-5.5mm (Telephoto)
F No. F2.3 (Wide)-F2.39 (Telephoto)
Keystone correction range Vertical ±5°/ Horizontal ±5°
Light source Laser diode
Brightnes [ANSI lm*2] 8,000lm 6,000lm
Light source life*3 Up to about 20,000 hours
Contrast ratio*4 12,000:1
Projected image size 70-300 inches
Speaker 10W x 1
Maximum display resolution(WxH) WUXGA 1920 x 1200
Terminals Video IN terminals HDMI 1 IN

TypeA

HDMI 2.0 (Compatible with HDCP 2.2, Accept 3840 x 2160 60P Input)

DisplayPort IN

DisplayPort 20pin

Display Port1.2 (Compatible HDCP 1.3, Accept 3840 x 2160 60P Input)

SDI IN

BNC

3G/HD/SD SDI Input

HDBaseT IN

RJ-45

for video/audio/connection control (Accept 3840 x 2160 60P Input)

Control IN/OUT terminals LAN

RJ-45

for network connection (10BASE-T/100Base-TX)

HDBaseT

RJ-45

for projector connection control

RS-232C

D-Sub 9Pin

for projector connection control

Audio IN/OUT terminals AUDIO IN 3.5mm stereo mini jack
AUDIO OUT 3.5mm stereo mini jack
Others USB 1

TypeA

for maintenance, DC 5V 1.5A(Max)

Warping/Edge blending function HDMI 2 IN

TypeA

HDMI 1.4 (Compatible with HDCP 1.4, Audio input not supported)

USB 2

TypeA

for warping / edge blending function

Power supply AC 100-120V, AC 220-240V 50/60Hz
Power consumption 1020W Normal:960W, Eco:620W 642W Normal:604W, Eco:386W
Power consumption(during standby) Approx.0.5W, Network standby Approx.3.0W
Dimensions 460mm (W) x 510mm (D) x 162.5mm (H) (excluding adjustable feet)
Weight Approx.18.4 kg (40.6 lb) Approx.17.5kg (38.6lb)
Noise level*5 Normal:43dB, Eco:40dB Normal:41dB, Eco:38dB
Operation enviroment Operating temperature 0-40℃ (32-104°F)
Accessories included Power cord 3.0m (9.8ft)
Power cord lock
Lens cap
Remote control
Remote control battery (AAA type x2)
Basic manual
  • *1 The “throw ratio” is the throw distance divided by the screen width.
  • *2 The average value for this model at shipment, according to ANSI standards.
  • *3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
  • *4  Assumes that dynamic contrast ratio is on.
  • *5 The average value for this model at shipment.

Brochure only
Product specifications and appearance are subject to change withourt advance notice

  • * Optional accessories: ceiling mount, dedicated storage case
  • * The projectors are Class 1 laser products. Do not look directly into the beam.
  • * PJ Link is a trademark registered in Japan, the United States, ard other countries.
  • * HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
  • * DLP and the DLP logo are registered trademarks of Texas Instruments.
  • * HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
  • * Crestron, Crestron RoomView, Crestron Connected, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.
Interface Connectors
Description of the input terminal face of the Z-Projector
Warping/Edge bending function terminals
  1. HDMI 2
  2. USB 2
  • * The Warping and Edge blending function terminals is carried only in Z8000
Video IN terminals
  1. HD BaseT
  2. DisplayPort
  3. HDMI 1
  4. SDI
Other
  1. USB 1
Audio IN/OUT terminals
  1. AUDIO OUT
  2. AUDIO IN
Control IN/OUT terminals
  1. RS-232C
  2. HD BaseT
  3. LAN
Dimension

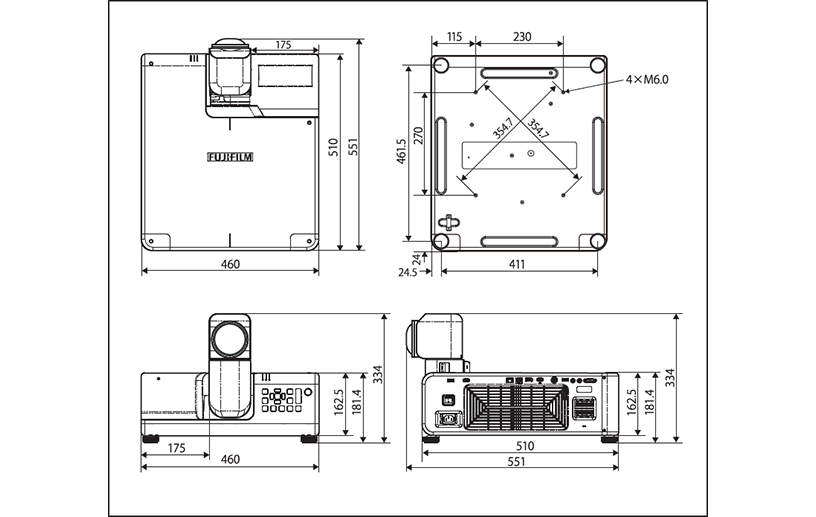

External Dimensions
Detailed size description of each part of Z-Projector

* Product specifications and appearance are subject to change without advance notice.

Projection Distance
Lens Shift Range
Detailed explanation of shift movement range - In the case of WUXGA (16:10), 70% vertical and 35% horizontal movement is possible in relation to the screen size.
Projection Distance
Description of the screen shift range from the center of the lens
Projection Distances
16:10 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
70 151 × 94 50 - 55 -113 - 19
80 172 × 108 58 - 64 -129 - 22
90 194 × 121 65 - 72 -145 - 24
100 215 × 135 72 - 80 -162 - 27
120 258 × 162 87 - 96 -194 - 32
150 323 × 202 109 - 121 -242 - 40
200 431 × 269 147 - 161 -323 - 54
250 538 × 337 184 - 202 -404 - 67
300 646 × 404 221 - 243 -485 - 81
  • * Figures are approximate. differing from the actual values by a few percent.
