ApeosPro C810 / C750 / C650 : Specifications

Basic Specifications / Print Function

Item		Description
Item		C810	C750	C650
Type		Console
Color Capability		Full color
Printing Resolution		2400 × 2400 dpi
Continuous Print Speed^*1		A4: 81 ppm, A3: 42 ppm	A4: 75 ppm, A3: 37 ppm	A4: 65 ppm, A3: 34 ppm
Paper Size^*2	Tray 1, 2	Standard size: Max A3, 11 × 17”; Min A5 Custom size: Max 330 × 488 mm, Min 100 × 148 mm
	Tray 3, 4	Standard size: Max A4, Letter, Min JIS B5
	Bypass Tray (Tray 5) ^*3	Standard size: Max A3, 11 × 17”; Min A6 Custom size: Max 330 × 1300 mm^*4, Min 100 × 148 mm
Paper Weight^*5	Tray 1 to 4	52 to 300 gsm
Paper Weight^*5	Bypass Tray (Tray 5) ^*3	52 to 350 gsm^*6
Paper Tray Capacity^*7	Standard	520 sheets × 2-tray + 840 sheets + 1230 sheets + Bypass Tray 250 sheets
Paper Tray Capacity^*7	Optional	Multi Sheet Inserter for Banner Print: 250 sheets High Capacity Feeder B1-S: 2000 sheets × 1-tray
Output Tray Capacity^7 8		500 sheets
Power Supply		AC220-240 V ± 10 %, 10 A, 50/60 Hz common
Maximum Power Consumption		2.4 kW Sleep Mode: 0.5 W, Low Power Mode: 150 W, Ready Mode: 193 W
Dimensions^*9		W 780 × D 793 × H 1154 mm
Weight^*9		246 kg

*1 When continuously printing a single document on 52 to 128 gsm, uncoated paper. Print speed may be reduced depending on conditions such as output data, use of auto image quality adjustment, is performed, use of mixed paper sizes / types, switching the feeding tray and use of long paper output.
*2 Image loss width: Lead edge 4.0 mm, Trail edge 4.0 mm, Front 3.0 mm, Rear 3.0 mm.
*3 The optional Multi Sheet Inserter for Banner Print is available for smooth and stable feeding of long paper.
*4 When a standard Bypass Tray or optional Multi Sheet Inserter for Banner Print is connected directly to main unit (including when High Capacity Feeder B1 is connected). Automatic duplex printing support up to 330 × 762 mm.
*5 It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement.
*6 For Banner Printing, uncoated paper: 52 to 220 gsm, coated paper: 106 to 220 gsm.
*7 80 gsm paper.
*8 When the Catch Tray is installed.
*9 When Bypass Tray closed. The output option is not connected.

Body size and Footprint

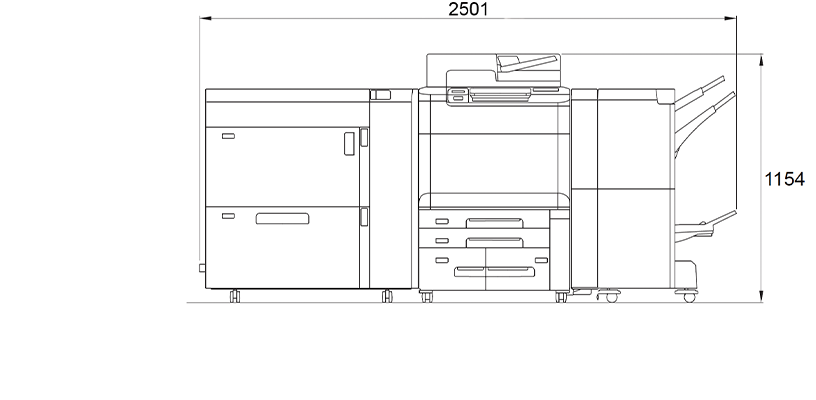

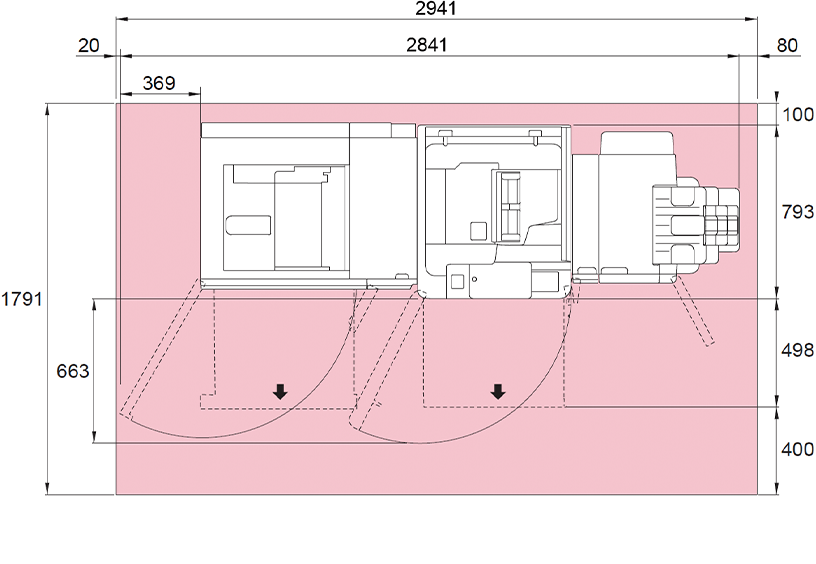

Main Body + High Capacity Feeder B1S + Transport Unit V2 + Finisher C4

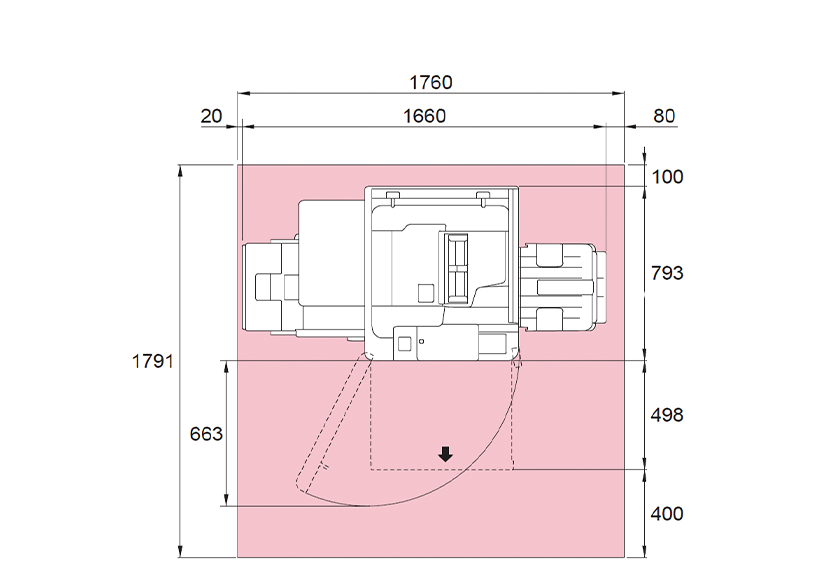

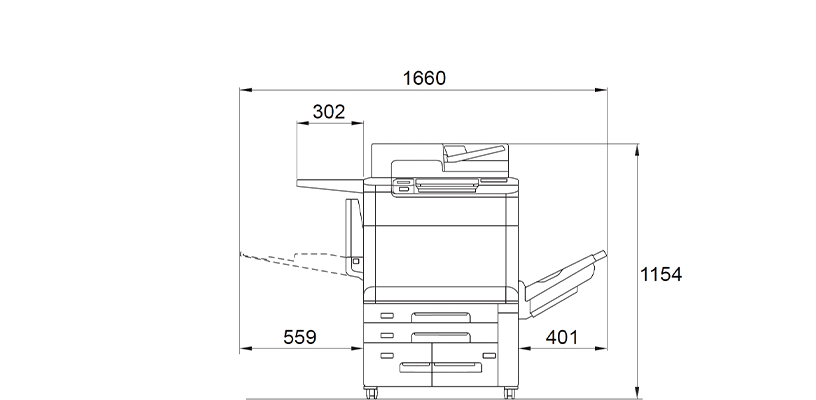

Main Body
