DRI-CHEM NX600V
NEWA standard model of analyzer that greatly simplifies measurement preparation and enables 3-step easy measurement.
The content on this page is intended to healthcare professionals and equivalents.
Parameters
| Classification | Parameter | Measurement range | Measurement time (min.) |
||||
|---|---|---|---|---|---|---|---|
| Unit (A) | Unit (B) | ||||||
| Biochemical tests | Enzymes | ALP | 14 – 1183 | U/L | 0.23 – 19.76 | μ Kat/L | 4 |
| v-AMY | 100 – 2500 | U/L | 1.67 – 41.75 | μ Kat/L | 3 | ||
| CPK | 10 – 2000 | U/L | 0.17 – 33.40 | μ Kat/L | 4 | ||
| GGT | 10 – 1200 | U/L | 0.17 – 20.04 | μ Kat/L | 5 | ||
| GOT/AST | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
| GPT/ALT | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
| v- LIP | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 5 | ||
| LDH | 50 – 900 | U/L | 0.84 – 15.03 | μ Kat/L | 2 | ||
| General chemistry | ALB | 1.0 – 6.0 | g/dL | 10 – 60 | g/L | 6 | |
| BUN | 5.0 – 140.0 | mg/dL | 1.79 – 49.98 | mmol/L | 4 | ||
| Ca | 4.0 – 16.0 | mg/dL | 1.00 – 4.00 | mmol/L | 4 | ||
| CRE | 0.2 – 24.0 | mg/dL | 18 – 2122 | μ mol/L | 5 | ||
| GLU | 10 – 60 | mg/dL | 0.6 – 33.3 | mmol/L | 6 | ||
| IP | 0.5 – 15.0 | mg/dL | 0.16 – 4.84 | mmol/L | 5 | ||
| Mg | 0.2 – 7.0 | mg/dL | 0.08 – 2.88 | mmol/L | 4.5 | ||
| NH3 | 10 – 500 | μg/dL | 7 – 357 | μ mol/L | 2 | ||
| TBIL | 0.2 – 30.0 | mg/dL | 3 – 513 | μ mol/L | 6 | ||
| TCHO | 50 – 450 | mg/dL | 1.29 – 11.64 | mmol/L | 6 | ||
| TCO2 | 5 – 40 | mmol/L | 5 – 40 | mmol/L | 5 | ||
| TG | 10 – 500 | mg/dL | 0.11 – 5.65 | mmol/L | 4 | ||
| TP | 2.0 – 11.0 | g/dL | 20 – 110 | g/L | 6 | ||
| UA | 0.5 – 18.0 | mg/dL | 30 – 1071 | μ mol/L | 4 | ||
| Electrolytes (on only one slide) |
Na | 75 – 250 | mEq/L | 75 – 250 | mmol/L | 1 | |
| K | 1.0 – 14.0 | mEq/L | 1.0 – 14.0 | mmol/L | |||
| CI | 50 – 175 | mEq/L | 50 – 175 | mmol/L | |||
| Immunological Test | vc-CRP | 0.3 – 7.0 | mg/dL | 3 – 70 | mg/L | 5 | |
| Comprehensive S-panel | TP, ALB, ALP, GLU, TBIL, IP, TCHO, GGT, GPT/ALT, Ca, CRE, BUN | ||||||
| Pre-Surgical S-panel | TP, ALP, GLU, GPT/ALT, CRE, BUN | ||||||
| Plus S-panel | TG, v-LIP, GOT/AST, v-AMY, Mg, Na-K-Cl | ||||||
| Calculations | GLOB, ALB/GLOB, GOT/GPT, BUN/CRE, Na/K, Anion Gap | ||||||
- * Unit (A) and (B) is available
- * There are parameters which may not be available in your area. For details please contact your local distributor.
- * v-LIP, v-AMY and vc-CRP slides are designed for veterinary use.
Other slides are designed for use in analyzing human blood. Measurement results may vary depending on the animal species. For details, please contact your local distributors.
Specifications
-
Measurement test
-
Colorimetry 23 tests
Electrolytes 3 tests
-
Throughput
-
Colorimetry 120 test/ hour
Combined 128 test/ hour
-
Number of sample rack
-
1
-
Number of incubator cell
-
Colorimetry 13, Electrolytes 1
-
Measurement time
-
Colorimetry 2 to 6 minutes/ test
Electrolytes 1 minute/ 3 tests (Na, K, Cl)
-
Sample type
-
Plasma, Serum, Whole blood
-
Sample volume
-
Colorimetry 10μL/ test
Electrolytes 50μL/ 3 tests (Na, K, Cl)
-
Data transmission to PC
-
RS 232C (1 port), USB (2 port), LAN (1 port)
-
Data print
-
Thermal printer
-
Electrical requirements
-
Single phase AC; 100 - 240 V ±10%; 50 to 60 Hz
-
Display
-
7 inch color touch panel
-
Dimensions
-
470 (W) ✕ 360 (D) ✕ 370 (H) mm
-
Weight
-
Approx. 27kg (NX600V IC) / Approx. 26kg (NX600V)
-
Operating temperature
-
15 to 32°C (59 to 89 °F)
-
Operating humidity
-
30 to 80% RH (no vapor condensation)
-
Altitude
-
Up to 2,000 m (810 hPa)
Dimensions (mm)
NX600V Series Products
| With electrolyte measuring function | With automatic dilution function | With centrifugal separation function | |
|---|---|---|---|
| NX600V IC | ● | ● | ● |
| NX600V | ● | ● | - |
Option Items

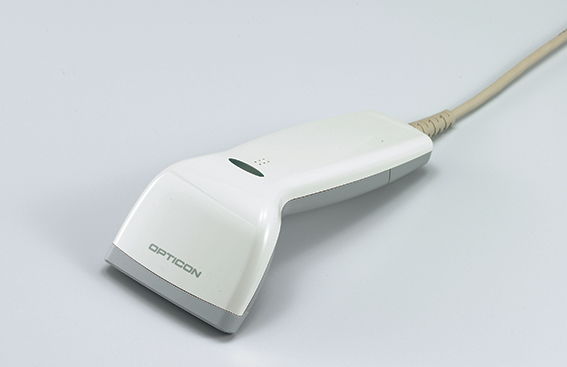

Barcode Reader
Barcode reader is available as option item to read sample ID on sample tube.
DRI-CHEM NX600V (Product name: FUJI DRI-CHEM NX600V IC, FUJI DRI-CHEM NX600V, FUJI DRI-CHEM NX600iV )
